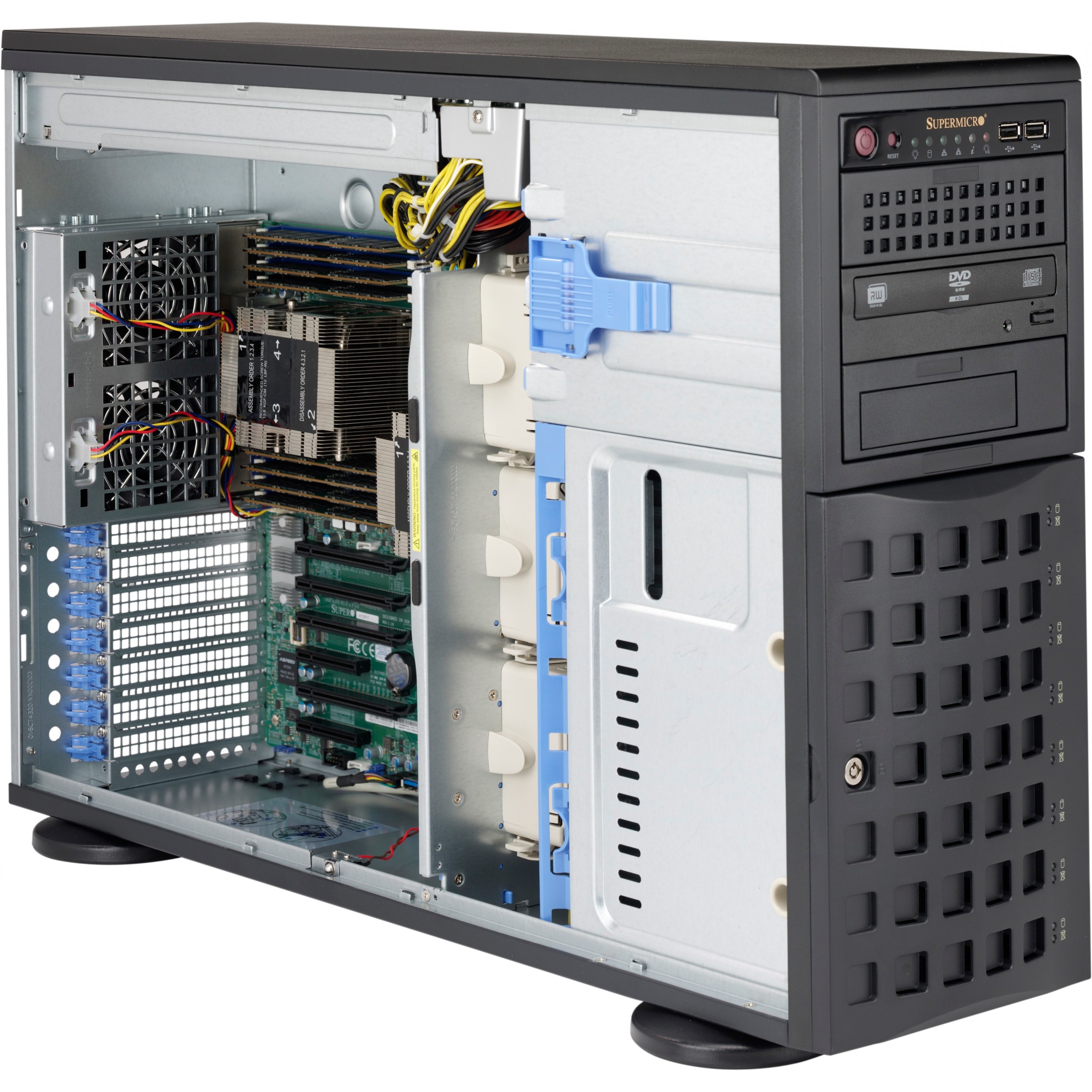

Supermicro's SC745 chassis series is optimized for the latest Intel Xeon processor and is also compatible with previous generation Intel and AMD single/dual processor-based motherboards. Utilizing redundant. high-efficiency power supplies (95+%) and eight hot-swap 3.5" drive bays. this chassis offers reliable performance with problem-free maintenance. Designed with 100% cooling redundancy using a combination of high-performance fans. the chassis minimizes the probability of system downtime or performance degradation from thermal-related issues. With seven tool-less PCIe expansion slots. and 6-pin power connectors supporting up to three high-end graphics cards. and it is quick to configure and easy to operate. Optionally. this tower can be converted to a 4U rack-mountable chassis in a standard rack.

Design
Form factor: Full Tower
Type: Server
Product colour: Black
Supported motherboard form factors: ATX. EATX. micro ATX
Number of 3.5" bays: 8
Number of 5.25" bays: 3
Number of 2.5" bays: 8
Number of expansion slots: 7
Feature: Rack mounting
Rack capacity: 4U
Feature: Reset button
Feature: On/off button
LED indicators: HDD. Network. Power. Power fail. System
Certification: Redundant Titanium Level Certified
Power supply
Feature: Power supply included
Power supply: 1230 W
Number of SATA connectors: 8
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Front fans installed: 3x 80 mm
Number of front fans supported (max): 3
Front fans diameters supported: 80 mm
Rear fans installed: 2x 80 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 80 mm
Storage
Supported HDD sizes: 2.5.3.5.5.25"
Number of HDDs supported: 19
Feature: Hot-swap
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 178 mm
Depth: 647 mm
Height: 452 mm
Weight: 26.8 kg
