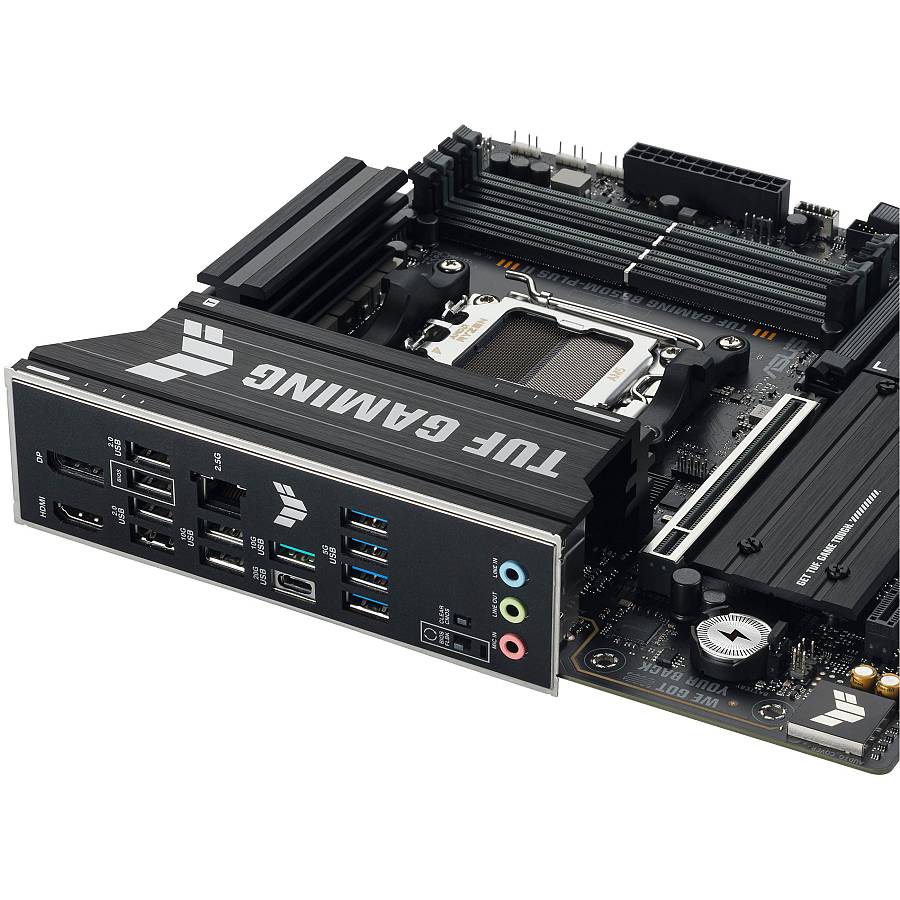

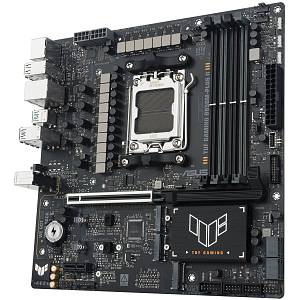

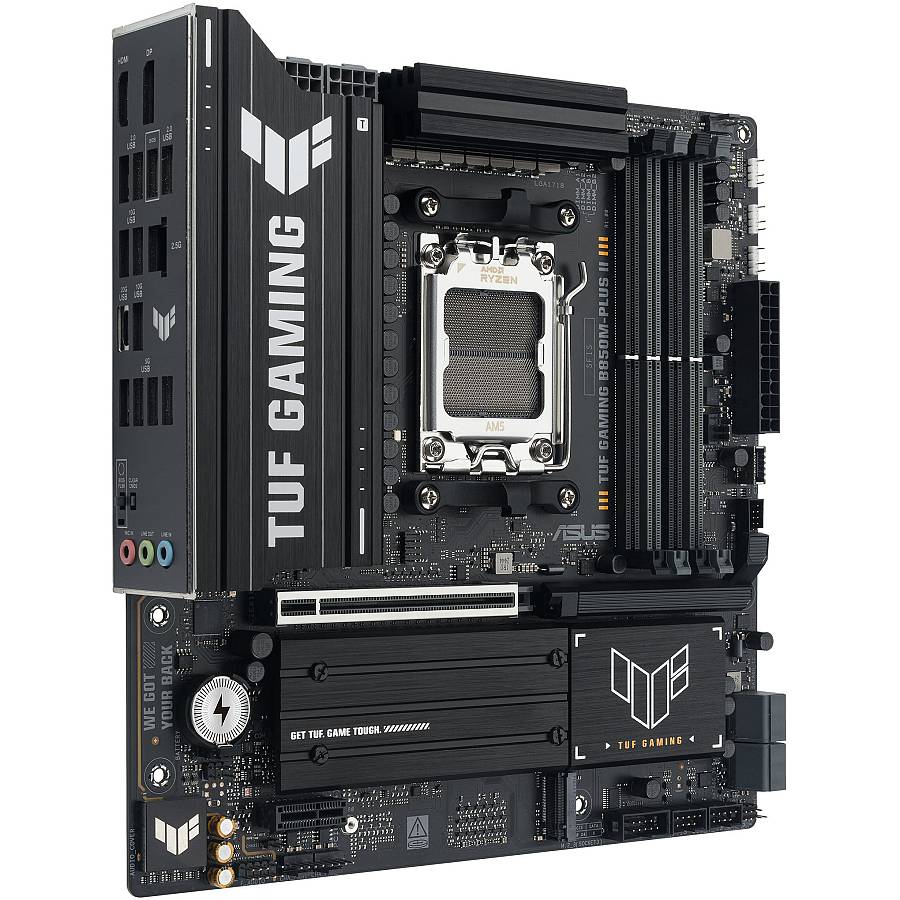

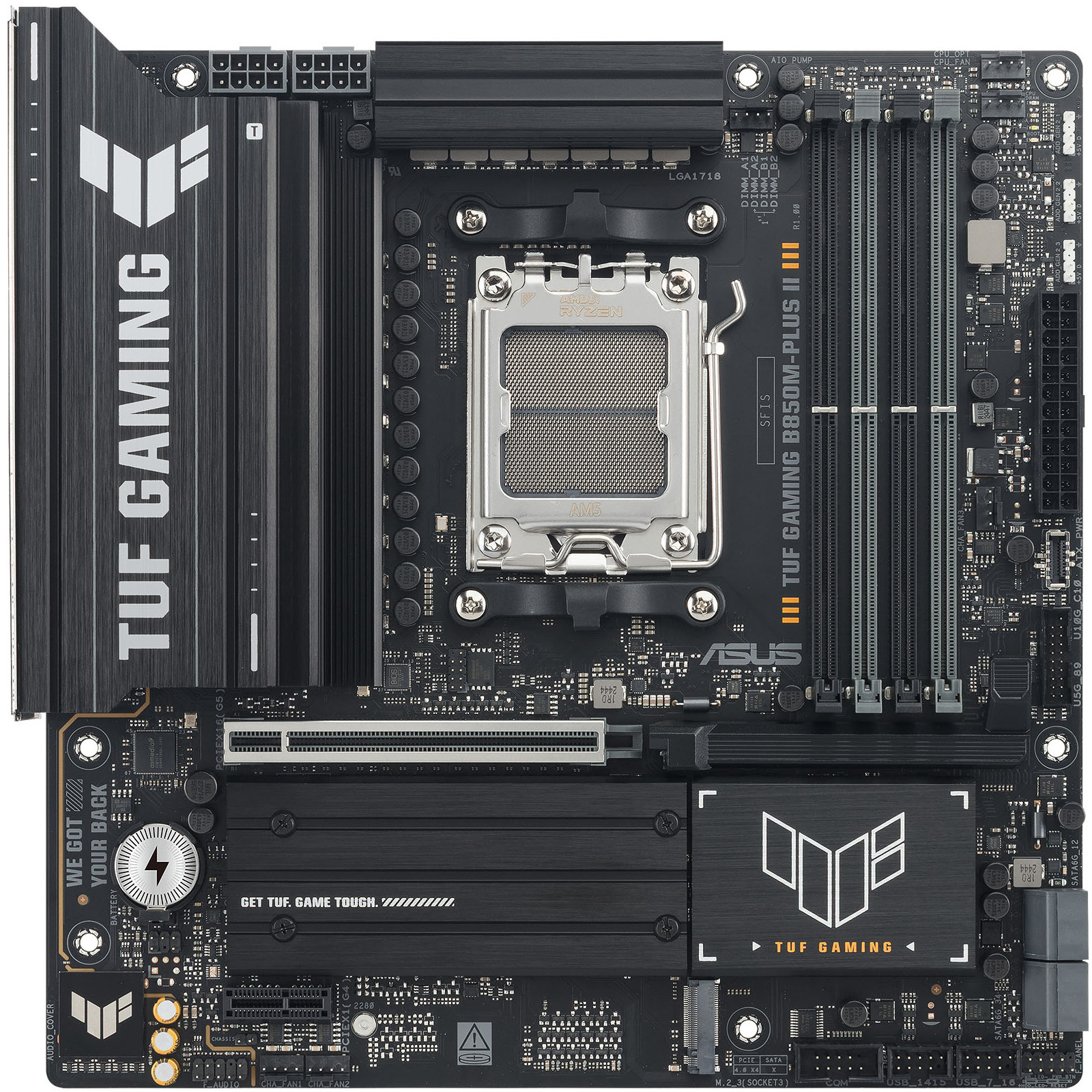

MB ASUS TUF GAMING B850M-PLUS II

Product code: 16642622 // MPN: 90MB1MT0-M0EAY0 // EAN: 4711636181853

€295,50 (inc. VAT)

Available from 4 to 10 days (19 pcs available)

Add to wishlist

MB ASUS TUF GAMING B850M-PLUS WIFI7

Code: 16642522

€380,35

Available from 4 to 10 days

Product Type	Motherboard - micro ATX
Chipset Type	AMD B850
Processor Socket	Socket AM5
Max Processors Qty	1
Compatible Processors	Ryzen (supports Ryzen 7000/8000/9000 Series)
Supported RAM	Supported RAM
Max Size	256 GB
Technology	DDR5
Bus Clock	8000 MT/s (O.C.)
Supported RAM Integrity Check	Non-ECC, on-die ECC
Registered or Buffered	Unbuffered
Features	AMD EXPO technology, dual channel memory architecture
Audio	Audio
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC1220P
Compliant Standards	High Definition Audio, DTS Sound Unbound
LAN	LAN
Network Interfaces	2.5 Gigabit Ethernet
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x1 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces	1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack
Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x serial - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Features	Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	14+2+1 Phase Power Design, DIY Friendly Design, pre-mounted I/O shield, ASUS Aura Sync, 80A Power Stage, VRM heatsink design, chipset heatsink, M.2 heatsink, BIOS FlashBack button, 8 Layer PCB, ProCool Power Connector, ASUS DIGI+ VRM, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Clear CMOS Button, ASUS SafeSlot, ASUS SafeDIMM, ESD Guards, TUF LANGuard, ASUS Stainless Steel Back I/O, overvoltage protection, ASUS TUF Protection, Q-Dashboard, Q-DIMM
Miscellaneous	Miscellaneous
Included Accessories	TUF GAMING sticker, 1 x M.2 rubber package, M.2 screw package
Cables Included	2 x Serial ATA cable
Software Included	Armoury Crate, ASUS AI Advisor, ASUS DriverHub, TurboV Core, DTS Audio Processing, Adobe Creative Cloud (free trial), Norton 360 for Gamers (60 days trial), WinRAR (40 days trial)
Width	24.4 cm
Depth	24.4 cm
