MOTHERBOARDS

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS. AERO. and GIGABYTE. Featuring innovative designs and advanced features. these boards offer exceptional performance and reliability. Whether you're a gamer. content creator. or professional. our series cater to your needs. ensuring uncompromising quality and cutting-edge technology.

Processor
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series. AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133.2400.2667.2933.3200.3400.3466.3600.3733.3866.4000.4133.4266.4400.4600.4800.5100 MHz
Supported memory clock speed (max): 5100 MHz
Maximum internal memory: 64 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of storage drives supported: 5
Feature: RAID support
RAID levels: 0. 1. 10
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Feature: HDCP
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Feature: TPM connector
Feature: 12V power connector

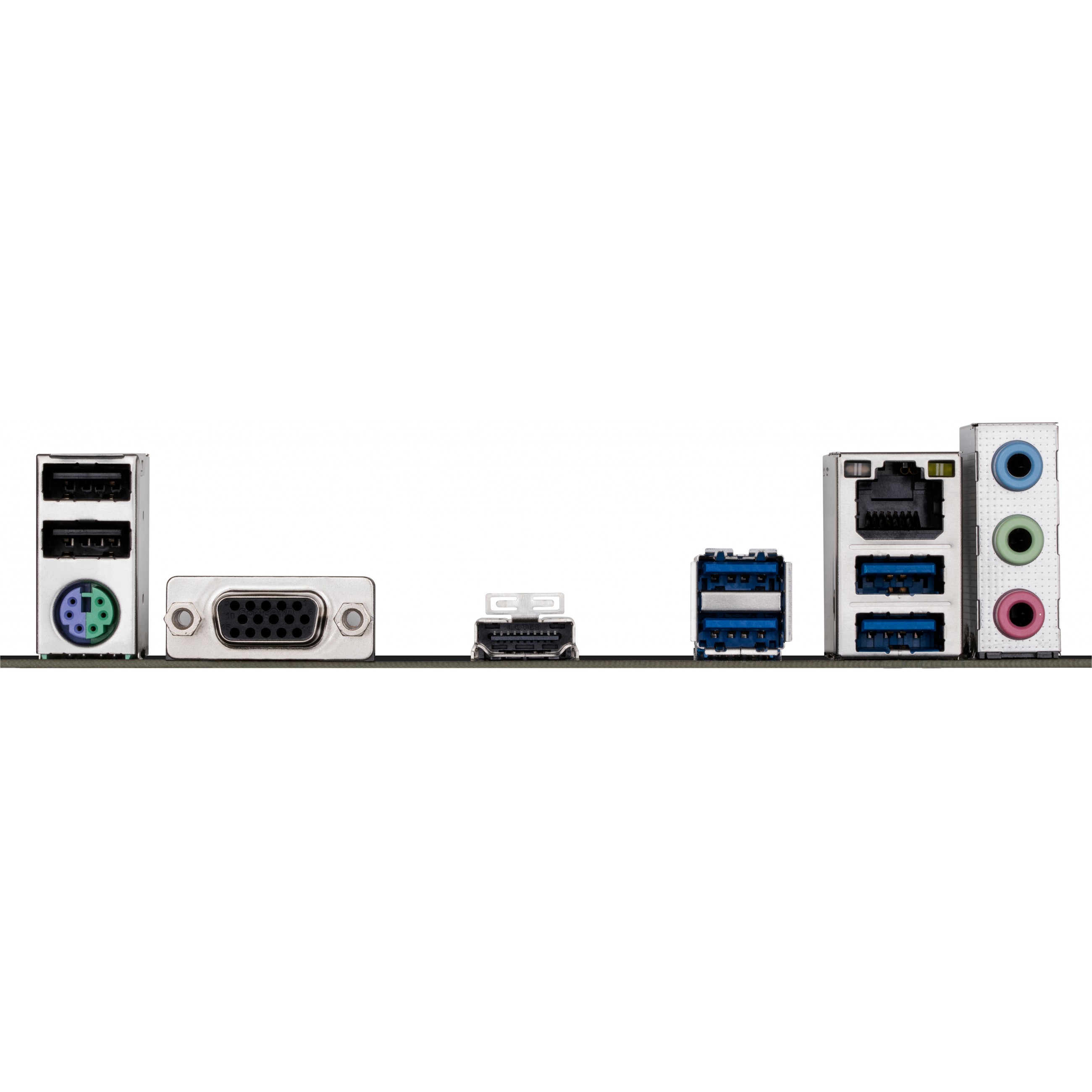

Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 3
Feature: Microphone in
USB connector type: USB Type-A
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Features
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
PC health monitoring: Fan. Temperature. Voltage
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64. Windows 11 x64
Expansion slots
PCI Express x1 slots: 1
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 265 mm
Package depth: 235 mm
Package height: 52 mm
Package weight: 675 g
Weight & dimensions
Width: 233 mm
Depth: 198 mm
Height: 35 mm
Packaging content
Cables included: SATA
Feature: Batteries included
Bundled software: Norton Internet Security
Technical details
Warranty period: 3 year(s)
