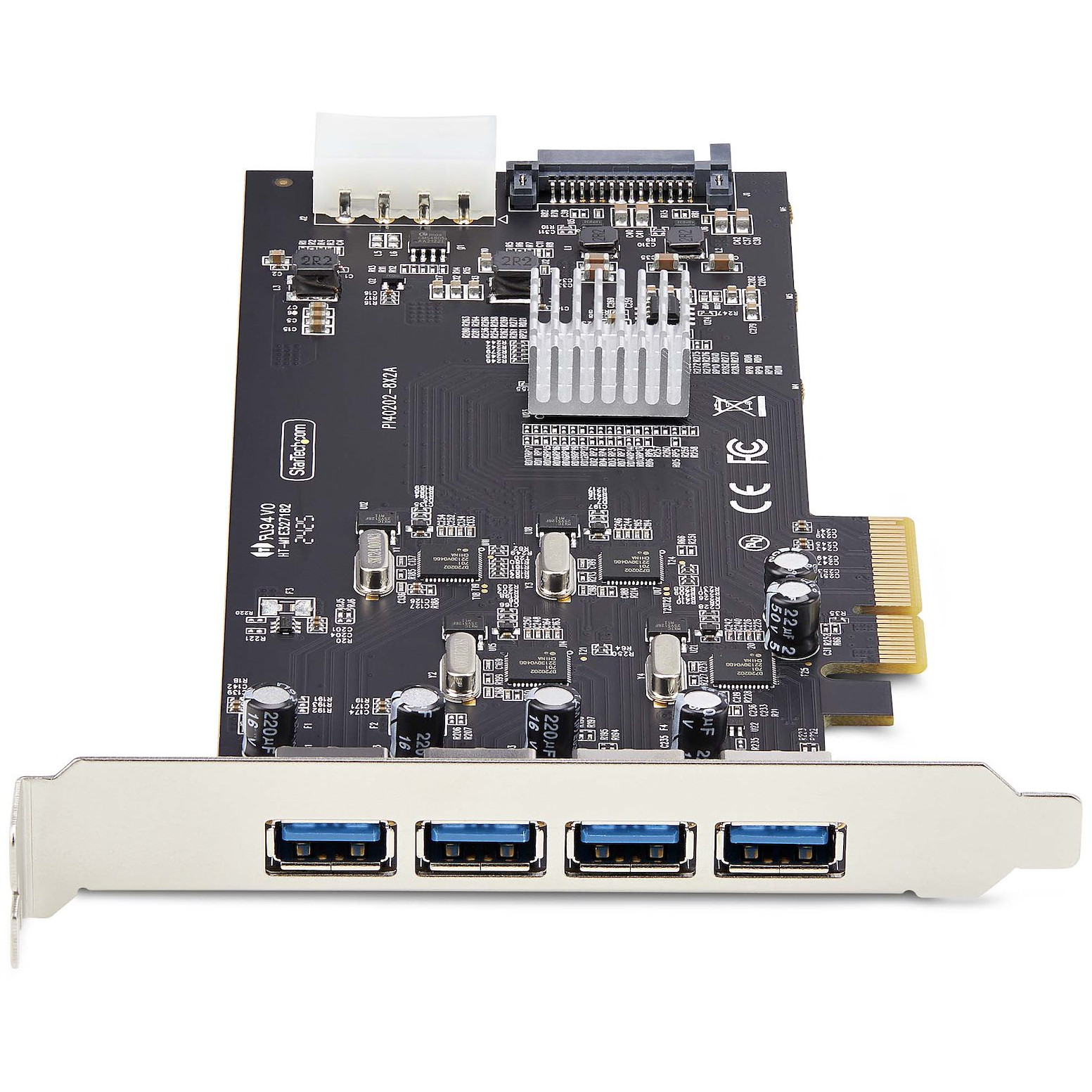

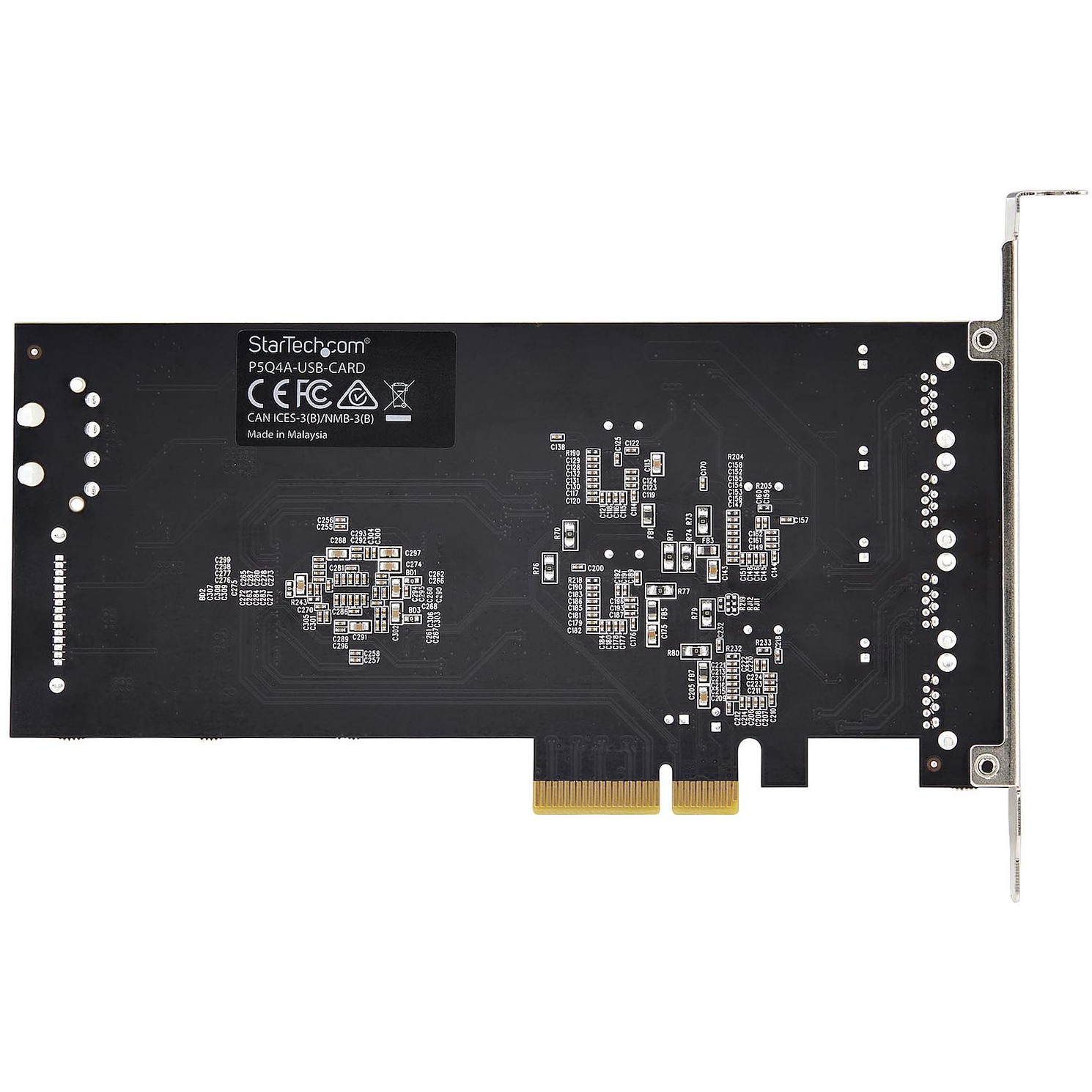

4-PORT USB-A PCIE CARD 5GBPS

Product code: 17269422 // MPN: P5Q4A-USB-CARD // EAN: 0065030912761

€163,90 (inc. VAT)

Available from 4 to 10 days (16 pcs available)

Add to wishlist

LINDY USB 3.1 Typ C Gigabit Ethernet Konverter

Code: 16625622

€46,70

Available from 4 to 10 days

Device Type	USB adapter
Form Factor	Plug-in card
Interface (Bus) Type	PCI Express 2.0 x4
PCI Specification Revision	PCIe 2.0
[Networking]
Ports	USB 3.2 Gen 1 x 4
Connectivity Technology	Wired
Data Link Protocol	USB 3.2 Gen 1
Data Transfer Rate	5 Gbps
Features	UASP, bus powered, USB Power Delivery (up to 10 watt)
Compliant Standards	USB 3.2 Gen 1
[Processor / Memory]

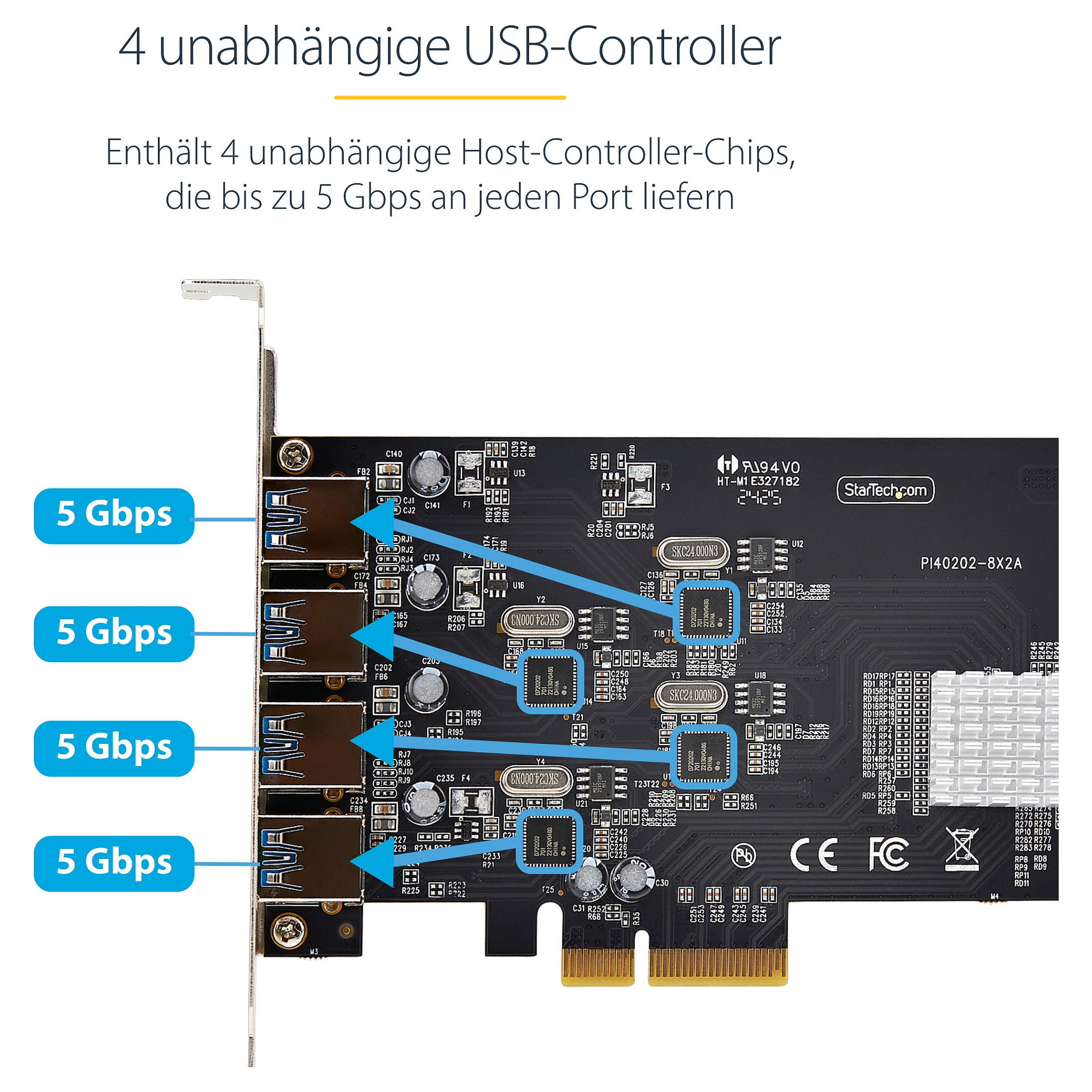

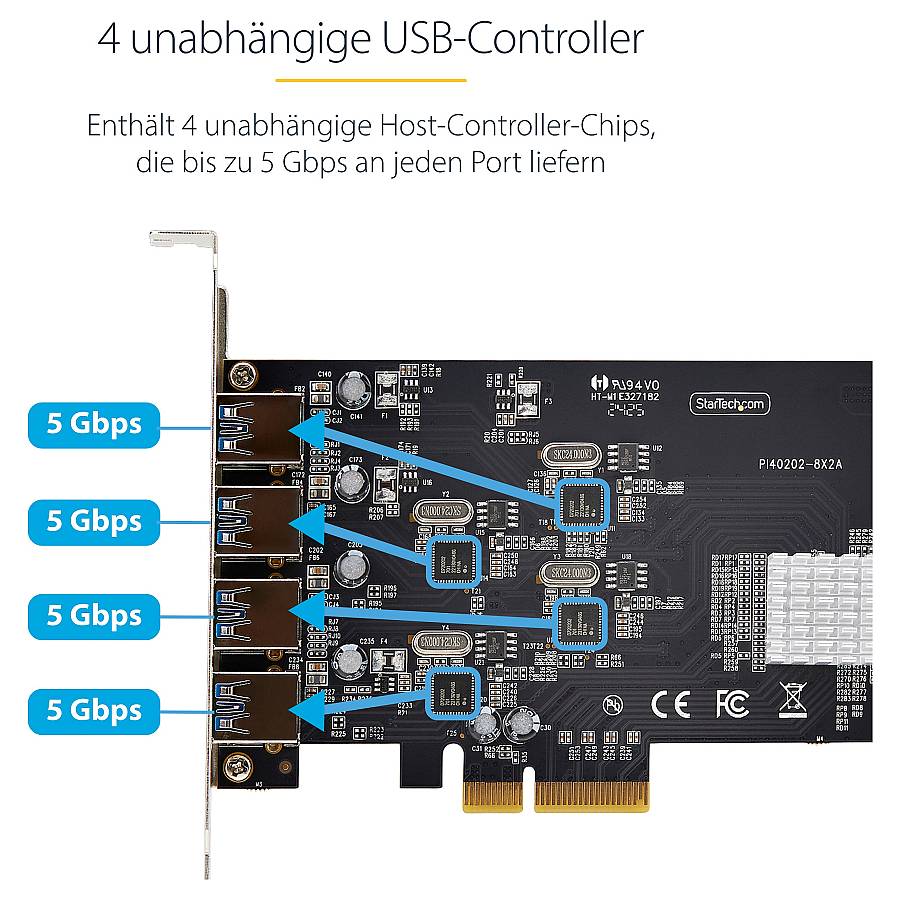

Processor	Renesas / Diodes Incorporated UPD720202 / PI7C9X2G608
[Expansion / Connectivity]

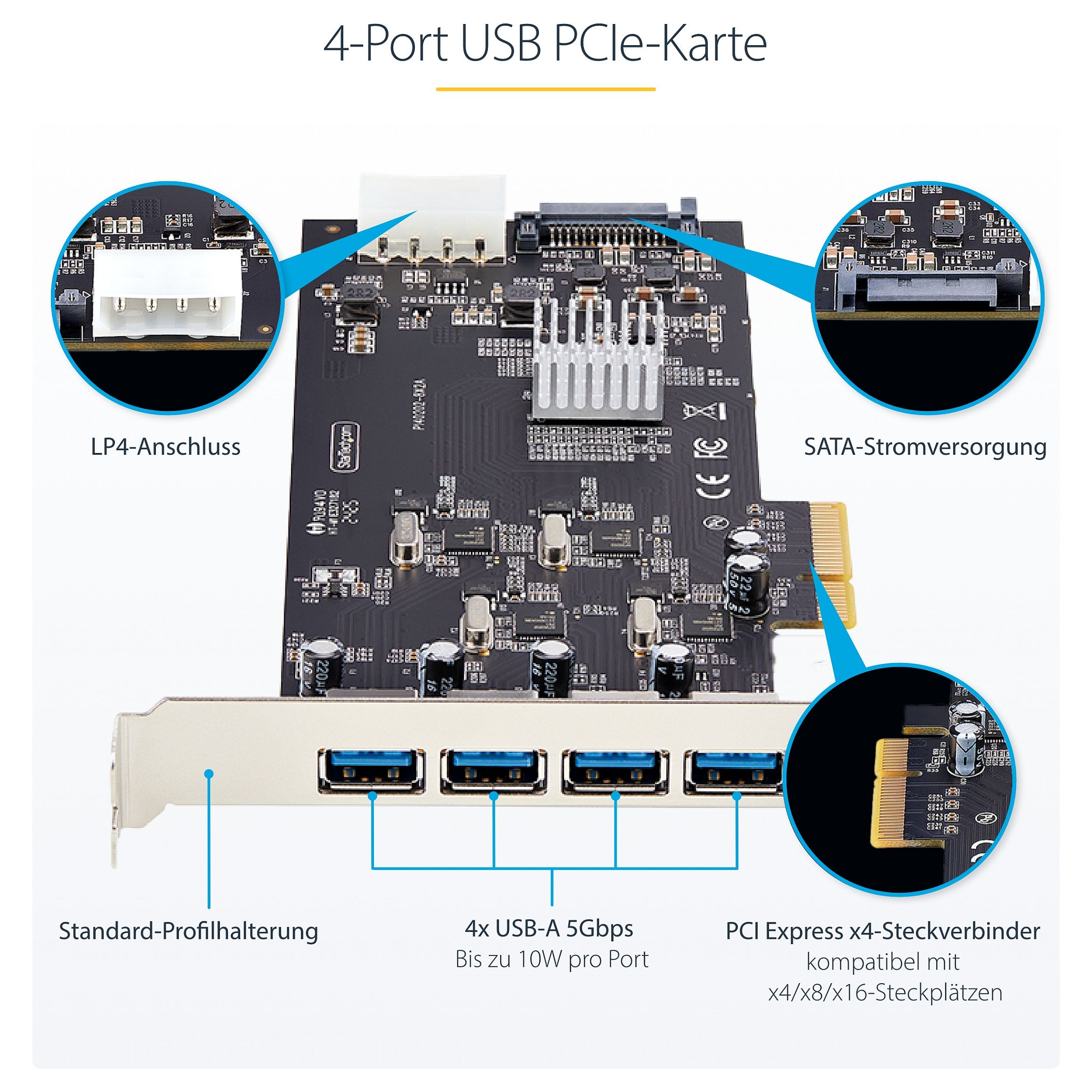

Interfaces	4 x USB 3.2 Gen 1 - 9 pin USB Type A - female (external) 1 x LP4 - 4 pin power - female (internal) 1 x SATA power - 15 pin Serial ATA power - male (internal)
[Miscellaneous]
Included Accessories	Low-profile bracket
Compliant Standards	WEEE
Colour	Black
[Software / System Requirements]
OS Required	Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Linux 2.6.31 or later LTS versions only
[Dimensions & Weight]
Width	1.9 cm
Depth	16.9 cm
Height	12 cm
Weight	100 g
[Dimensions & Weight (Shipping)]
Shipping Width	3.8 cm
Shipping Depth	20.7 cm
Shipping Height	14.4 cm
Shipping Weight	110 g
[Manufacturer Warranty]
Service & Support	Limited warranty - 2 years
[Environmental Parameters]
Min Operating Temperature	0 Â°C
Max Operating Temperature	50 Â°C
Humidity Range Operating	5 - 90% RH (non-condensing)
[Compatibility Information]
Designed For	P/N: FCREADMICRO3V2, USB315AC1M, USB3S2SAT3CB
