POWERLINE

Gigabit Network Goes Further
with AV1000 Powerline
HomePlug AV2
AV1000 Gigabit Passthrough Powerline Starter Kit
TL-PA7017P KIT

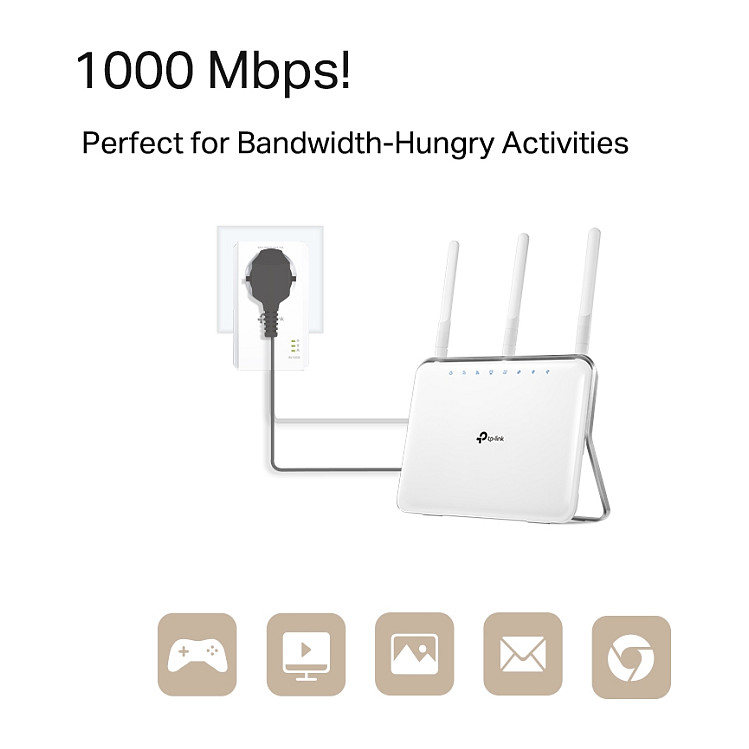

1000 Mbps!
Perfect for Bandwidth-Hungry Activities
Coming with advanced HomePlug AV2 technology. TL-PA7017P KIT provides users with high-speed data transfer rates of up to 1000 Mbps—ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streaming. online gaming. and large file transfers.

Gigabit Port for
Ultra-Fast Data Transfer
With one Gigabit Ethernet port. TL-PA7017P KIT allows users to connect a bandwidth-intensive device to the internet at high speeds. ensuring smooth streaming for Ultra HD videos. This makes the TL-PA7017P KIT the perfect home entertainment companion.

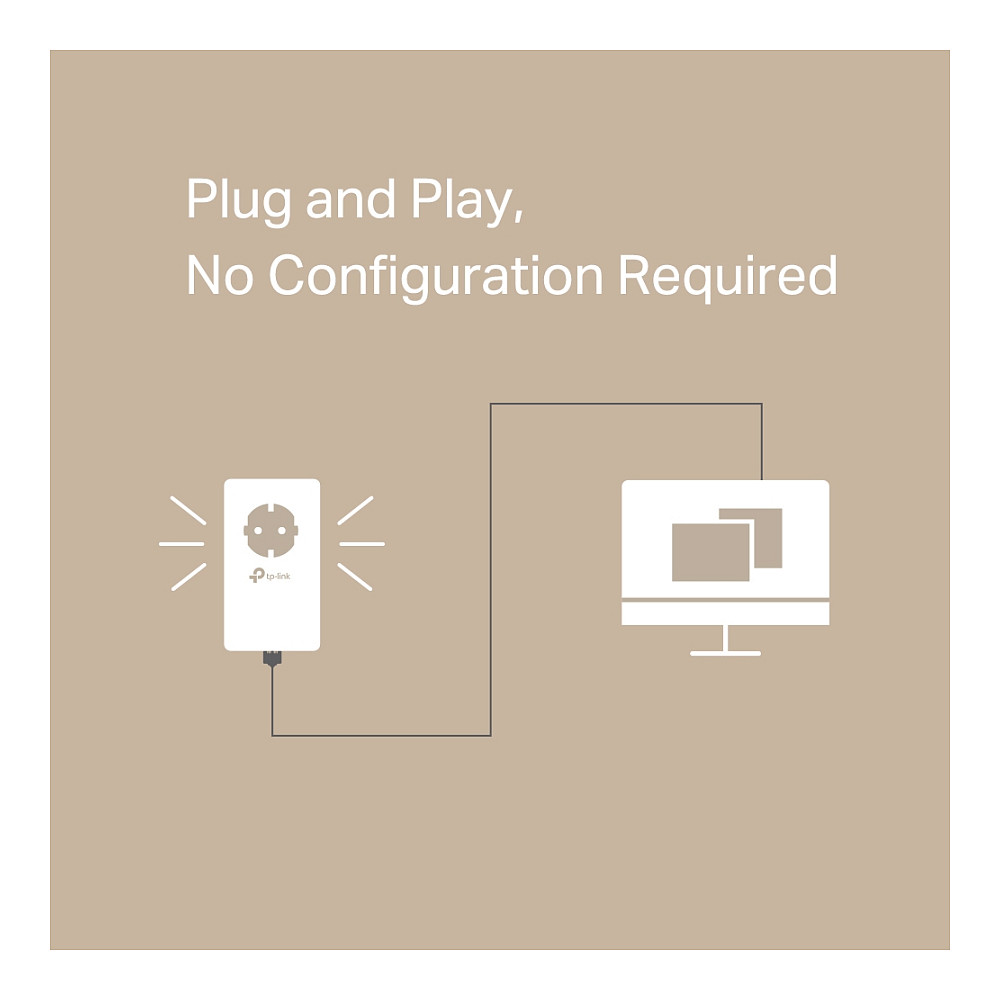

Plug and Play. No Configuration Required
Connect a powerline adapter to the router. Plug another powerline adapter into a wall socket in another room. Connect it to your internet enabled device via Ethernet—and you’re done!

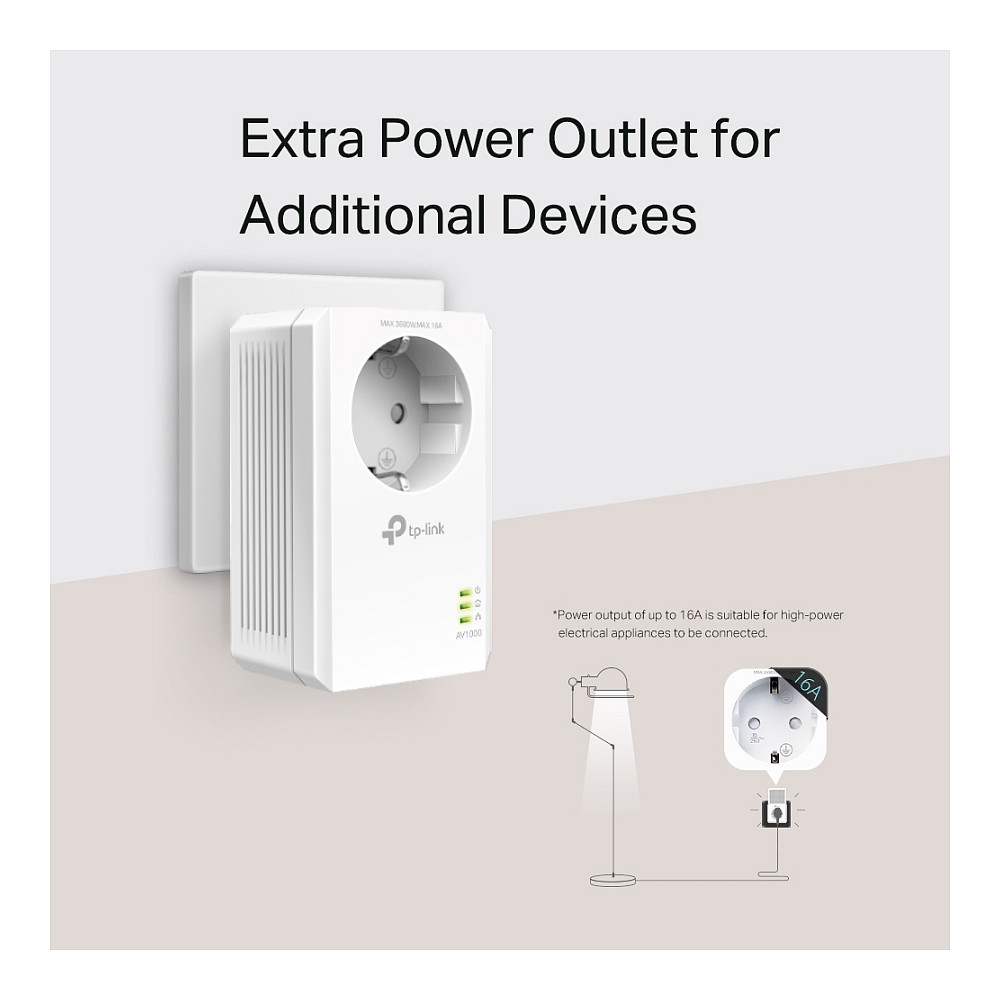

Extra Power Outlet for Additional Devices
Finding it hard to plug in your devices? The TL-PA7017P KIT has an integrated AC pass-through power socket. Your powerline adapter can now be used like a traditional electrical outlet. Plug your smart TV or game consoles into the adapter. No socket left to waste.

Up to 85% Power Saved
The future’s looking green for powerline adapters. TL-PA7017P KIT’s practical design and sophisticated Power-Saving Mode. which automatically switches from its regular "Working" mode to "Power-Saving" mode. reduces its energy consumption by up to 85%

Performance
Maximum data transfer rate: 1000 Mbit/s
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10.100.1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Networking standards: IEEE 1901. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u
Power plug: Type E / F
Feature: Built-in power socket
PowerLine standard: HomePlug AV2
Modulation: OFDM
Security algorithms: 128-bit AES
Maximum operating distance: 300 m
Feature: Encryption button
Feature: Plug and Play
Power
Power consumption (typical): 2.3 W
Power consumption (standby): 0.5 W
Design
LED indicators: LAN. PLC. Power
Product colour: White
Certification: CE
System requirements
Windows operating systems supported: Windows 2000. Windows 7. Windows 8. Windows 8.1. Windows Vista. Windows XP
Feature: Linux operating systems supported
Feature: Mac compatibility
Feature: Mac operating systems supported
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 58 mm
Depth: 42 mm
Height: 95 mm
Certificates
Compliance certificates: RoHS
Packaging data
Package width: 190 mm
Package depth: 136 mm
Package height: 100 mm
Package weight: 580 g
Packaging content
Quantity per pack: 2 pc(s)
Feature: Quick installation guide
Cables included: LAN (RJ-45)
Logistics data
Harmonized System (HS) code: 85171800
