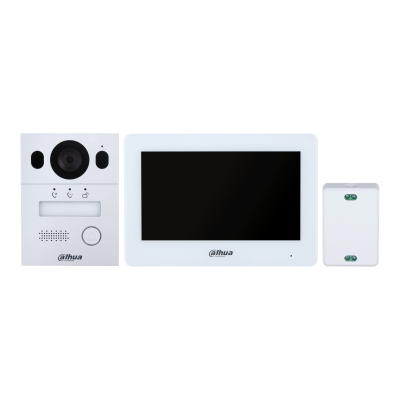

Dahua VD 2-wire Wi-Fi Hybrid KIT KTX01
Product code: 17765520 // MPN: KTX01(s)
€469,44 (inc. VAT)
Available from 1 to 3 days
Similar products
Dahua AC Standalone Keypad Supports DesFire Cards ASI1201M-MEP
Code: 18242920
€185,28
Available from 1 to 3 days2-wire Wi-Fi Hybrid Indoor Monitor:
- 7" TFT capacitive touch screen.
- Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex.
- Supports recording videos and capturing snapshots. (SD card is required).
- 6-channel alarm input and 1-channel alarm output.
- The app can be used to receive calls and alarm notifications.
- Connects to HDCVI camera.
2-wire Hybrid Villa Door Station:
- Aluminum alloy front panel.
- Auto IR illumination.
- Video messages can be left for unanswered calls. (SD card is required for VTH).
- Features nameplate and DWDR.
- Supports local lock and second lock.
- Offers anti-tampering alarm.
- IP65 and IK07 rated.
DHI-VTO2003F
System
- Main Processor : Embedded Processor
- Button Type : Mechanical
Basic
- Camera : 1/2.8" 2 MP CMOS HDR Camera
- Field of View : H: 110°; V: 60°
- WDR : DWDR
- Noise Reduction : 3D NR
- Video Resolution : P: 960 (H) × 576 (V) , N: 960 (H) × 480 (V)
- Video Frame Rate : P: 25 fps , N: 30 fps
- Light Compensation : Auto IR
- Day/Night : Auto(ICR)/Color/B/W
- Audio Input : 1
- Audio Output : Built-in speaker
- Audio Mode : Two-way audio (half–duplex)
Function
- Unlock Mode : Remote unlock
- Leave Videos : Yes (SD card inserted in VTH is needed)
Performance
- Casing Material : Aluminum Alloy
Port
- RS-485 : 1
- Alarm Output : 1
- Power Output : 1 × 12 VDC output, 200 mA
- Exit Button : 1
- Door Status Detection : 1
- Lock Control : 1
- Alarm : Tamper Alarm : Yes
General
- Appearance Color : Silver
- Power Supply : 2-wire controller
- Installation : Flush mount; surface mount
- Certifications : CE; FCC
- Product Dimensions : 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
- Protection : IP65 , IK07
- Operating Temperature : –40 °C to +60°C (–40 °F to +140 °F)
- Operating Humidity : 10%–95% (RH), non-condensing
- Operating Altitude : 0 m–3000 m (0 ft – 9842.52 ft)
- Power Consumption : ≤ 1.5 W (standby), ≤ 10 W(working)
- Gross Weight : 0.502 kg (1.11 lb)
- Storage Temperature : –40 °C to +70°C (–40 °F to +158 °F)
- Storage Humidity : 95% (RH), non-condensing
DHI-VTH5123H-W
System
- Main Processor : Embedded Processor
- Operating System : Embedded operating system
- Network Protocol : IPv4; UDP; DNS; TCP
Basic
- Screen Type : Capacitive Touchscreen
- Display Screen : 7" TFT
- Screen Resolution : 1024 (H) × 600 (V)
- Audio Compression : G.711a; G.711u; PCM
- Audio Input : 1
- Audio Output : Built-in speaker
- Audio Mode : Two-way audio with VTO (half–duplex);Two-way audio with app (full–duplex)
- Audio Enhancement : Echo suppression/digital noise reduction
- Audio Bit Rate : 16 kHz; 16 bit
Function
- Leave Videos : Yes (SD card needed)
- DND Mode : Do not disturb period can be set; Do not disturb mode can be set.
- Number of Extensions : 5
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range : 2.4 GHz
- Max Transmission Power : ≤20 dBm@2,400–2,483.5 MHz
- Storage : Micro SD card (up to 64 GB)
Port
- RS-485 : 1
- Alarm Input : 6
- Alarm Output : 1
- Power Output : 1 (12 V, 200 mA)
- Door Bell : Yes (use the alarm input port)
Performance
- Casing Material : PC + ABS
General
- Appearance Color : White
- Power Supply : 2-wire controller
- Installation : Surface Mount
- Certifications : CE; FCC
- Product Dimensions : 130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94")
- Operating Temperature : –10 °C to +55°C (14 °F to +131 °F)
- Operating Humidity : 10%–95% (RH)
- Operating Altitude : 0 m–3000 m (0 ft – 4265.09 ft)
- Power Consumption : ≤ 2.5 W (standby), ≤ 10 W(working)
- Gross Weight : 0.633 kg (1.40 lb)
- Storage Temperature : –40 °C to +70°C (–40 °F to +158 °F)
- Storage Humidity : 95% (RH), non-condensing
VTNC1003C
Performance
- Casing Material : PC + ABS
General
- Appearance Color : White
- Power Supply : 48 VDC
- Certifications : CE; FCC
- Accessory : Included: Line termination terminal
- Product Dimensions :P 65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91")
- Operating Temperature : –10 °C to +55°C (14 °F to +131 °F)
- Operating Humidity : 10%–95% (RH)
- Operating Altitude : 0 m–3000 m (0 ft – 4265.09 ft)
- Power Consumption : 3.5 W
- Gross Weight : 0.13 kg (0.29 lb)
| Brand: | Dahua |
