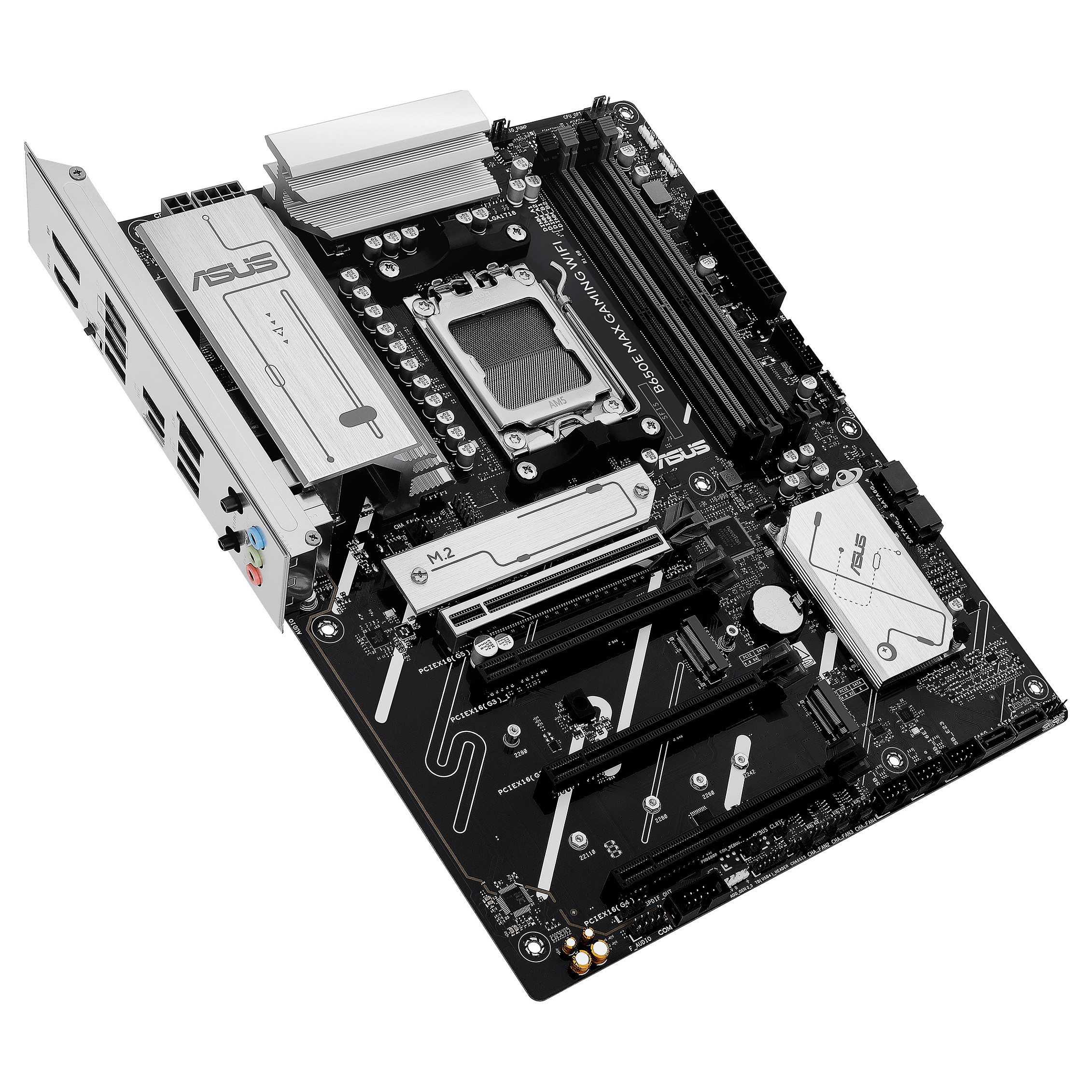

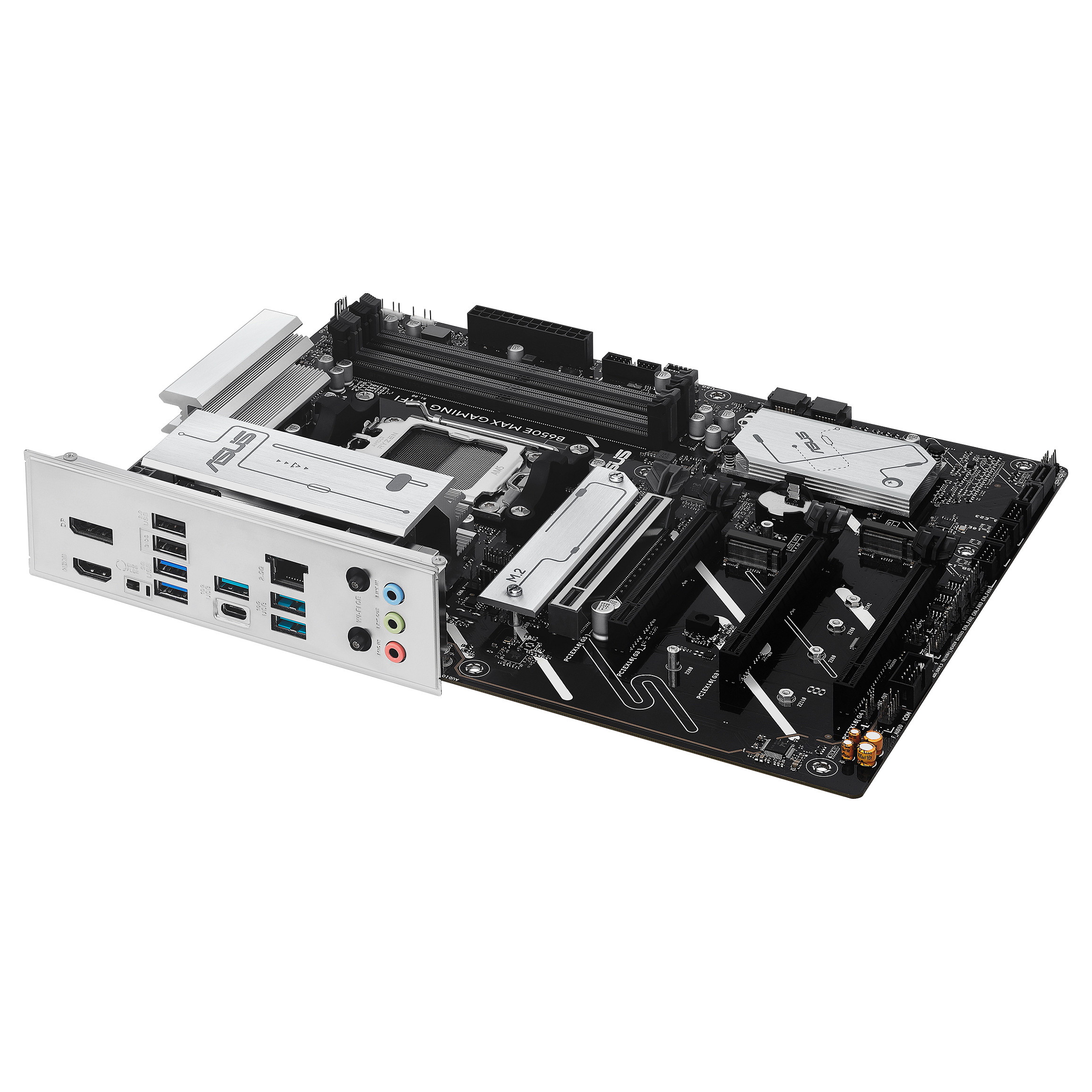

MB ASUS B650E MAX GAMING WIFI
Product code: 17893922 // MPN: 90MB1LD0-M0EAY0 // EAN: 4711387932445
€250,25 (inc. VAT)
Available from 4 to 10 days (100 pcs available)
Similar products
MSI MPG Z890I EDGE TI WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), Intel LGA1851, 128 GB, DDR5-SDRAM
Code: 11185322
€557,85
Available from 4 to 10 days| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x8/x4 mode) 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

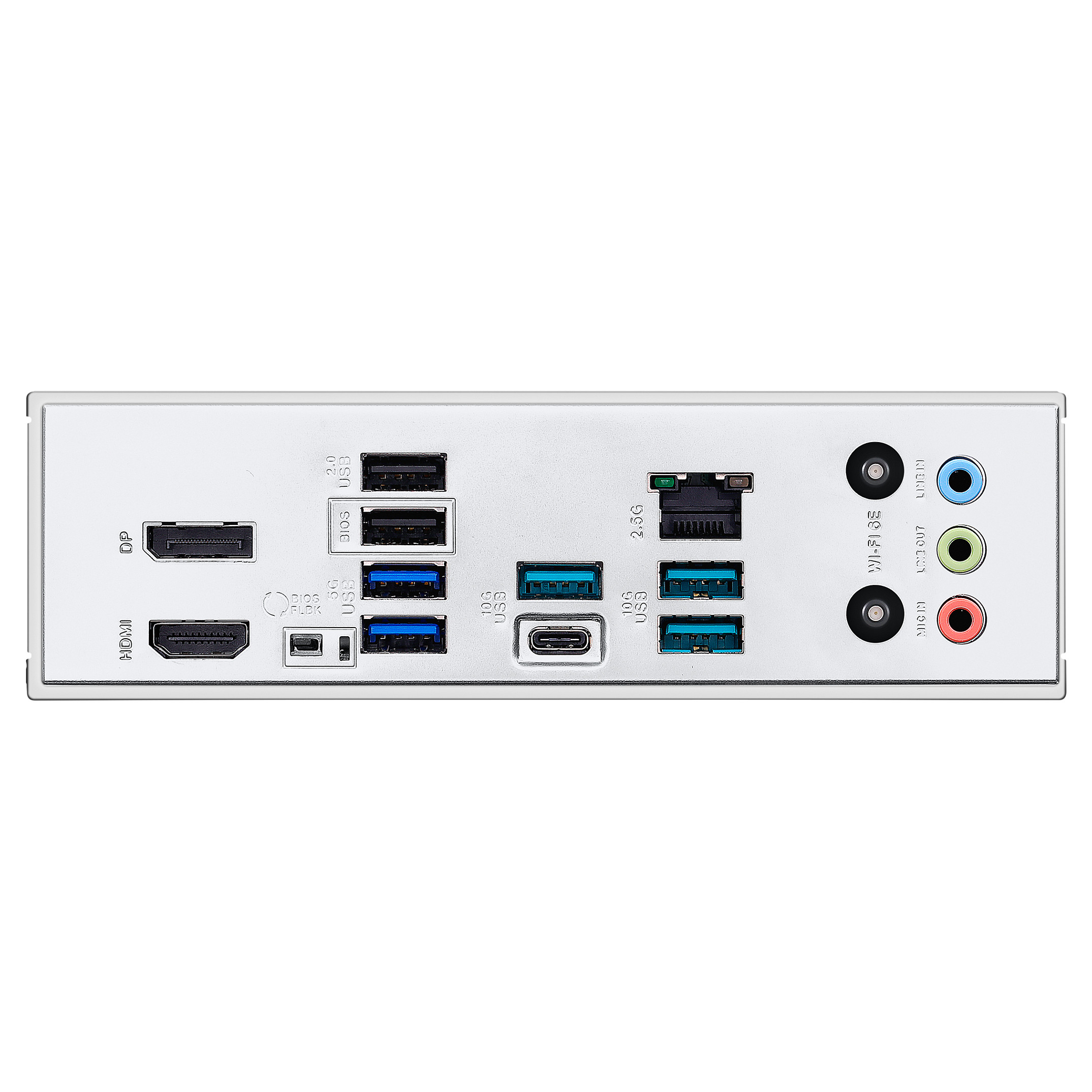

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 2 3 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 2 x aerial |
| Internal Interfaces | 2 x USB 2.0 - header 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 1 x Thunderbolt - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 4-pin ATX12V connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS 5X Protection III, LANGuard, ASUS DIGI+ VRM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, overvoltage protection, Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot, ASUS EZ DIY, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink design, M.2 heatsink, 8+2+1 Phase Power Design |
| Miscellaneous | Miscellaneous |

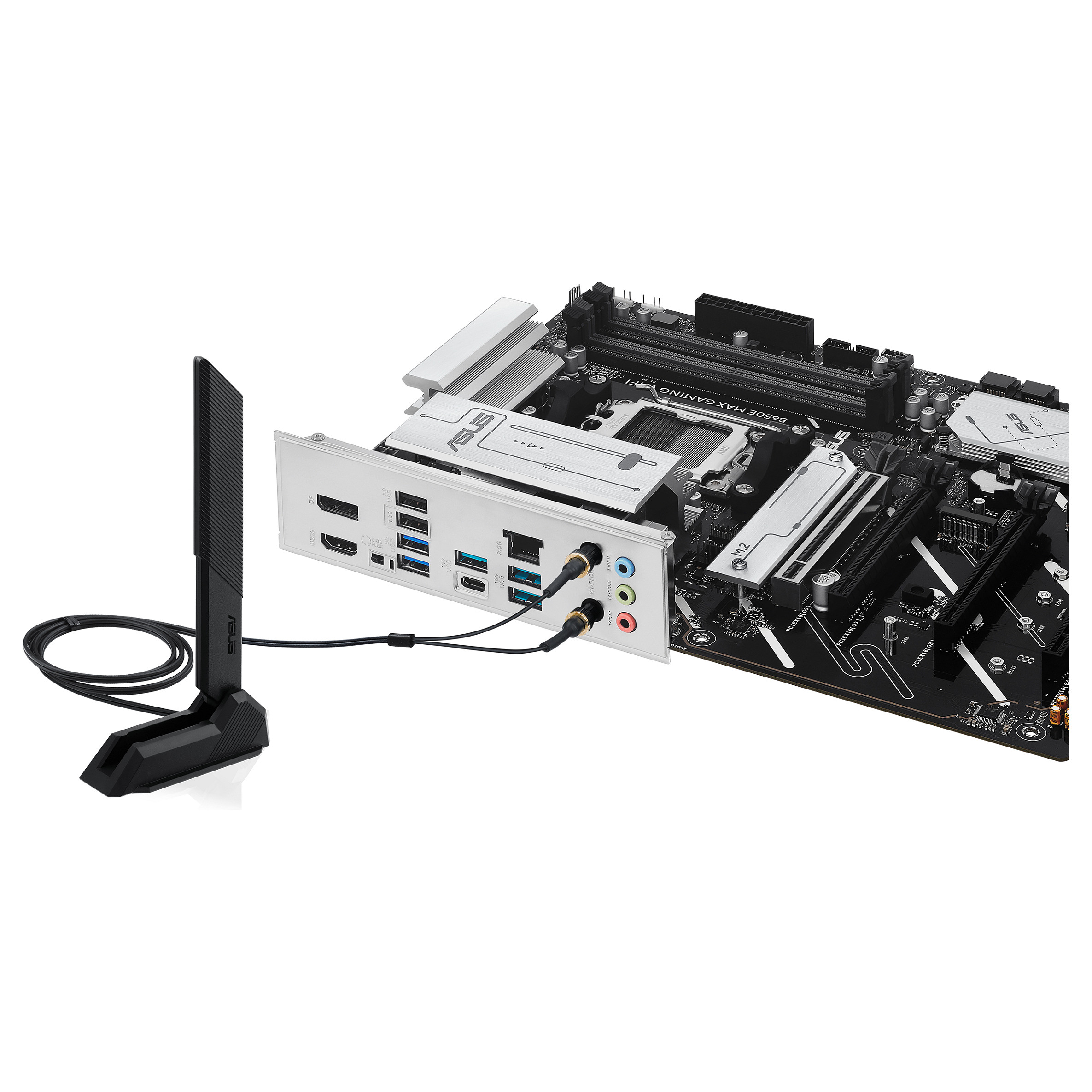

| Included Accessories | ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, 3 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), WinRAR, ASUS CPU-Z |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Brand: | Asus |
