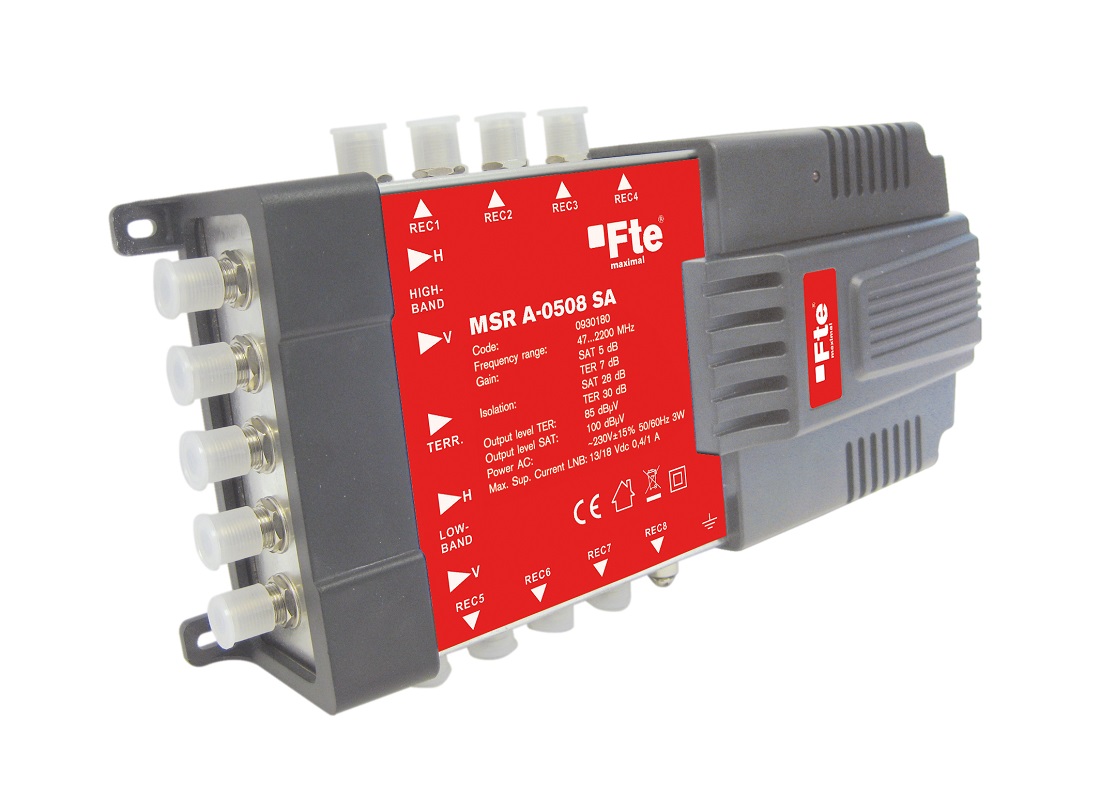

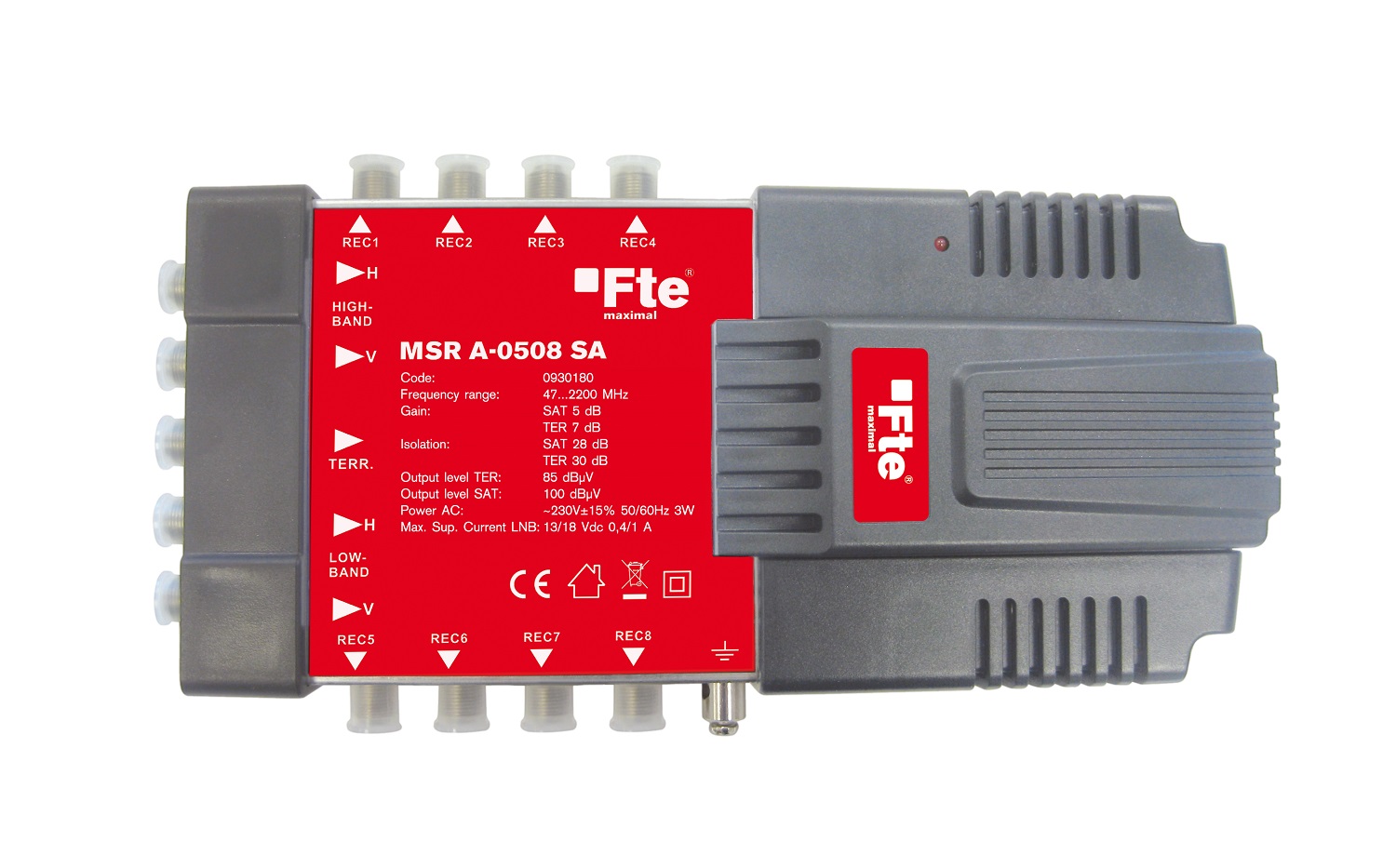

FTE MSRA0508 5/8 Active Sat/Terrestrial Multiswitch
Product code: 17956720 // MPN: 0930180
€47,04 (inc. VAT)
Available from 1 to 3 days
Similar products
- Number of inputs: 4 SAT, 1 TER
- Subscriber outputs: 8
- Connectors (F-con): female
- Frequency range (MHz): SAT 950-2200, TER 47-862
- Gain: SAT 5 ±1.5 dB, TER 7 ±1.5 dB
- Isolation: TER to SAT ≥ 30 dB, SAT to TER ≥ 28 dB
- Isolation cross polarisation H/V: ≥ 25 dB
- Isolation: out - out TER ≥ 28 dB, out - out SAT ≥ 35 dB
- Return loss: SAT inputs ≥ 11dB, SAT outputs ≥ 9dB, TER inputs ≥ 11dB, TER outputs ≥ 9dB
- Output level: SAT (IMD- 35 dB) 100 dBμV, TER (IMD- 60 dB) 85 dBμV
- Impedance input/output: 75 Ohm
- Switching (VDC): 13V/18V / 13V/22 kHz / 18V/22 kHz
- Max current to LNB: 13 VDC: 400 mA / 18 VDC: 1000 mA
- Mains: ~230V ± 15%, 50/60Hz, 3W
- Dimensions: 248x129x64 mm
