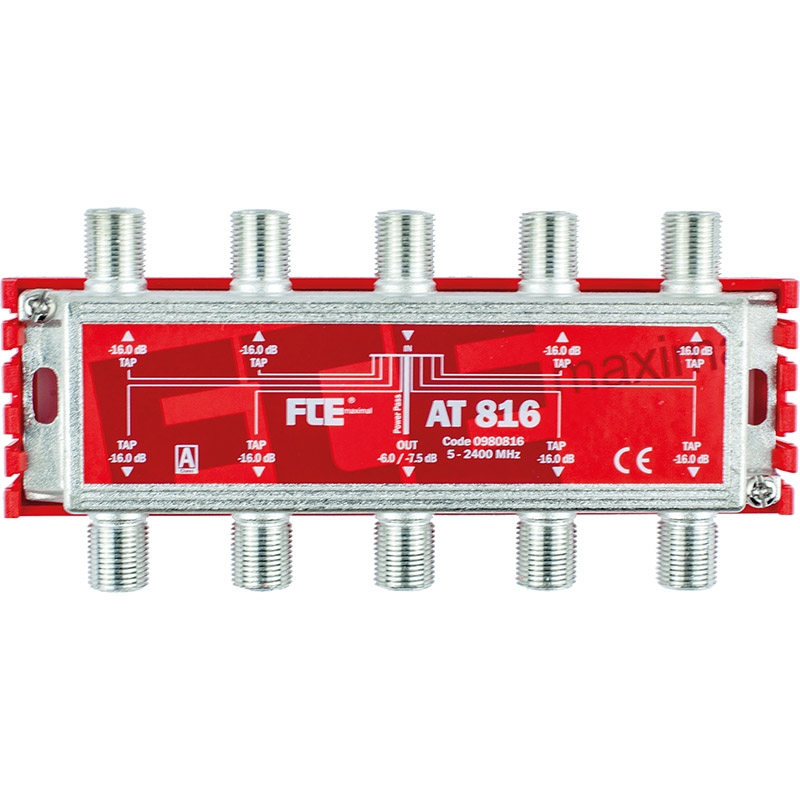

FTE AT816 8-Way Tap 5-2400mhz
Product code: 17964520 // MPN: AT816
€18,24 (inc. VAT)
Available from 1 to 3 days
Similar products
- Band (MHz) 5-2400
- Return path band (MHz) 5-30 / 5-65
- Number of TAPs 8
- Distribution attenuation (dB)( TYP / MAX )
- 5-470 MHz 16,0 / 17,0
- 470-862 MHz 16,5 / 17,0
- 950-2400 MHz 16,5 / 17,5
- Pass attenuation (dB) ( TYP / MAX )
- 5-470 MHz 5,0 / 6,0
- 470-862 MHz 5,2 / 6,0
- 950-2400 MHz 6,5 / 7,5
- Decoupling between outputs (dB)
- 5-470 MHz >40
- 470-862 MHz >30
- 950-2400 MHz >28
- Return loss (dB)
- IN >20
- OUT >20
- TAP >18
- Screening factor (dB) >100
- Impedance (Ω) 75
- Current pass IN - OUT
- Connectors F female
