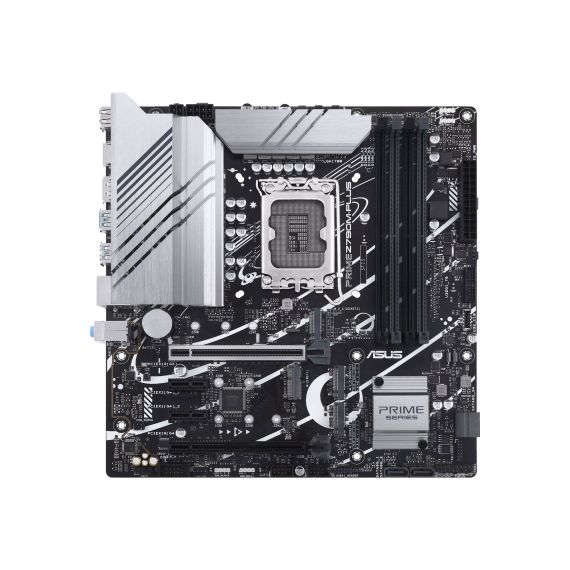

ASUS Motherboard LGA1700 mATX DDR5 PRIME Z790M-PLUS

Product code: 17975020 // MPN: 90MB1E70-M0EAY0

€210,24 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

Gigabyte B860M Gaming X WIFI6E (B860,S1851,mATX,DDR5

Code: 19684423

€208,15

8-12 business days

All-around energy efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Precise digital power control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

VRM heatsinks and thermal pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by design

PRIME Z790M-PLUS features comprehensive cooling controls.

AIO pump header

A dedicated PWM/DC header for self-contained water-cooling setups.

Smart protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-pin PWM/DC fan

Each onboard header supports auto-detection of PWM or DC fans.

ProCool connectors

Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

10 + 1 teamed power stages

10 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to Intel processors.
Special Features

All-around energy efficiency
Precise digital power control
VRM heatsinks and thermal pads
Cooler by design
AIO pump header
Smart protection
4-pin PWM/DC fan
ProCool connectors
10 + 1 teamed power stages

Model: PRIME Z790M-PLUS
Form Factor: Micro-ATX
Socket: LGA1700 (Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron®)
Chipset: Intel® Z790
Memory: 4x DDR5 DIMMs (Max 192GB, 7200+ MHz OC)
Storage: 3x M.2 (PCIe 4.0) + 4x SATA 6Gb/s
PCIe: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1
Networking: Intel® 1Gb Ethernet (ASUS LANGuard)
Wireless: M.2 Key E slot (Wi-Fi module sold separately)

CPU & Memory

CPU Support:
- Intel® Core™ 14th/13th/12th Gen
- Intel® Turbo Boost 2.0 & 3.0 (CPU-dependent)
Memory:
- DDR5 4800–7200+ MHz (OC)
- Dual-Channel, XMP 3.0 Support
- On-Die ECC (Non-ECC DDR5)

Expansion & Storage

PCIe Slots:
- 1x PCIe 5.0 x16 (CPU)
- 1x PCIe 4.0 x16 (x4 mode, Chipset)
- 2x PCIe 4.0 x1
Storage:
- M.2 Slots:
  - 1x PCIe 4.0 x4 (CPU)
  - 2x PCIe 4.0 x4 (Chipset, 1x supports SATA)
- 4x SATA 6Gb/s (RAID 0/1/5/10)

Graphics & Display

Ports:
- 1x DisplayPort 1.4 (4K@60Hz)
- 1x HDMI 2.1 (4K@60Hz)
Note: iGPU support varies by CPU.

Connectivity

Rear USB:
- 1x USB 3.2 Gen 2x2 (20Gbps Type-C®)
- 1x USB 3.2 Gen 2 (10Gbps Type-A)
- 4x USB 3.2 Gen 1 (5Gbps Type-A)
- 2x USB 2.0
Front USB:
- 1x USB 3.2 Gen 1 Type-C® header
- 1x USB 3.2 Gen 1 header (2x ports)
- 2x USB 2.0 headers (4x ports)
Audio: Realtek 7.1-Channel HD Audio
- 24-bit/192kHz, Audio Shielding, Premium capacitors
Networking: Intel® 1Gb Ethernet (ASUS LANGuard)
Wireless: M.2 Key E slot (Wi-Fi/Bluetooth module not included)
