Lenkeng HDMI Extender over Ethernet 50m 4K POC IR Loop LKV465P

Add to wishlist

Code: 17978120

Available from 1 to 3 days

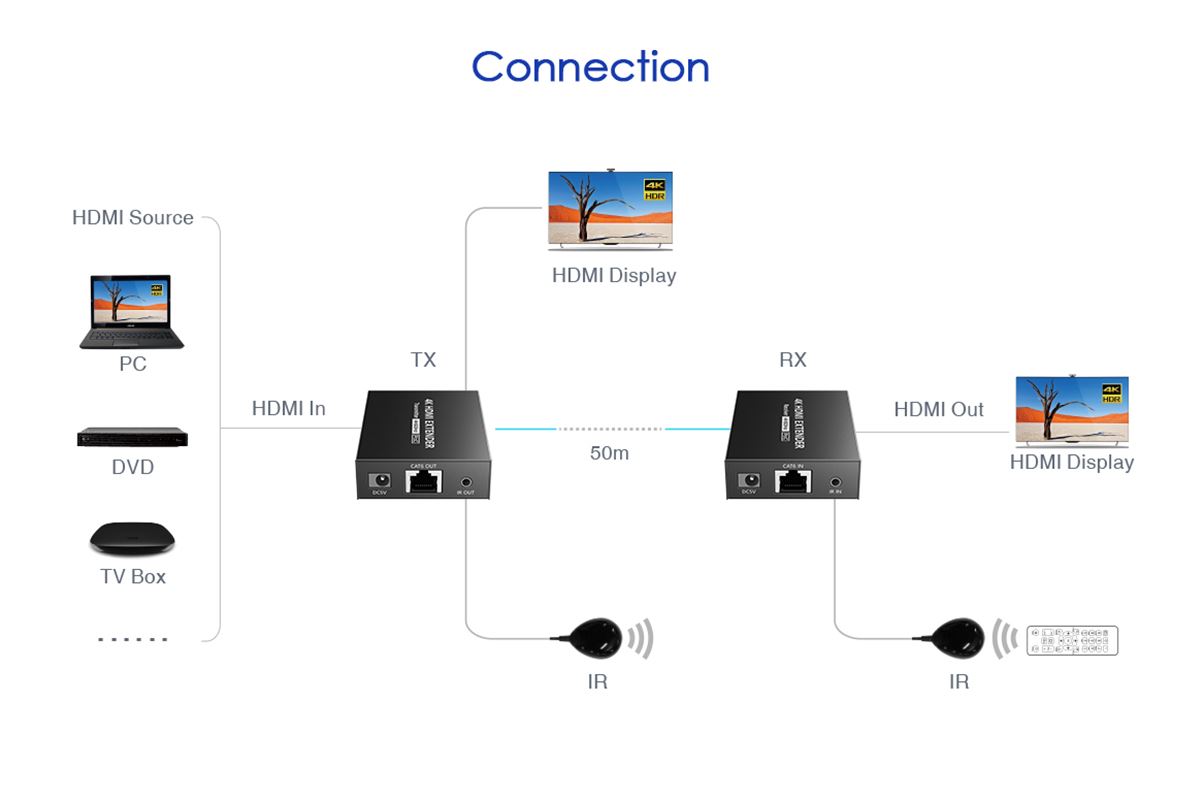

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission
The 4K@60Hz HDMI signal can be extended by 50m through CAT6/6A/7 network cable
It supports HDMI loop out, IR passthrough, etc

HDMI Length ≤5m
Maximum transfer rate 18Gbps
Maximum transmission bandwidth 600MHz

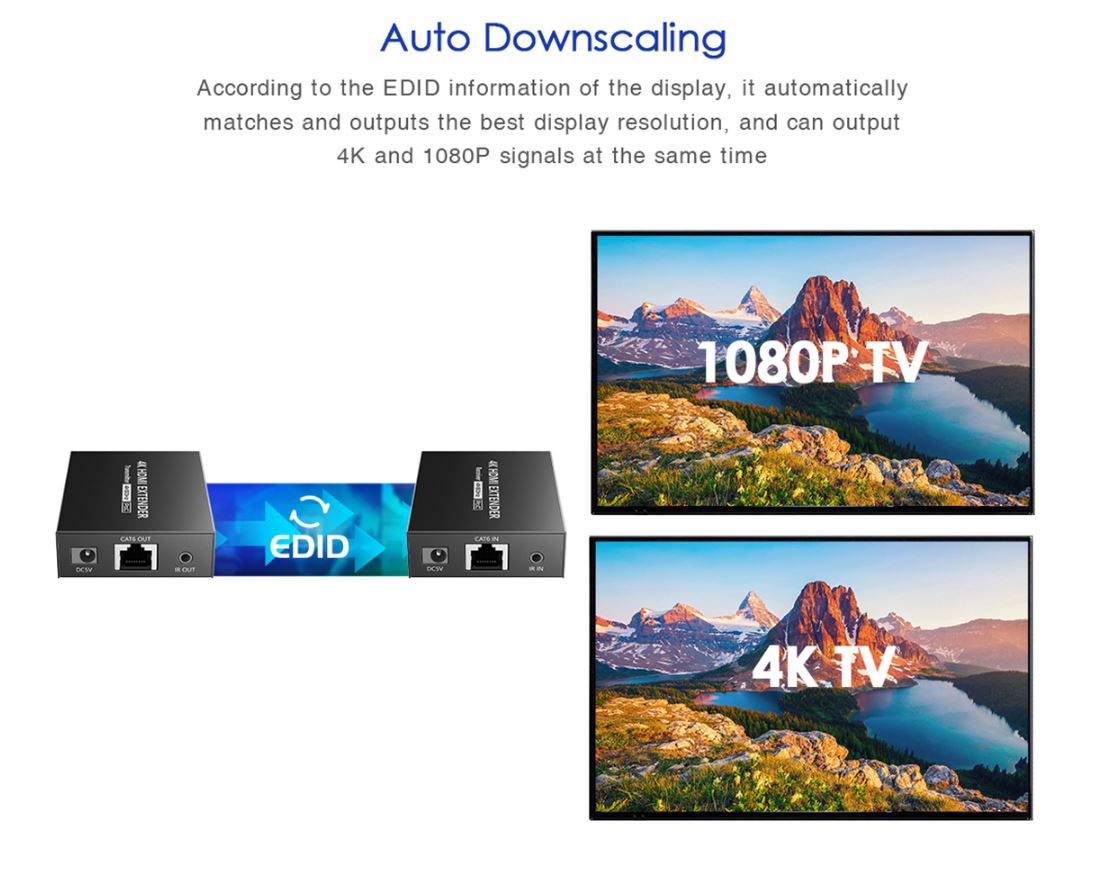

EDID passthrough Yes
Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4:4:4）
HDCP 2.2, HDCP1.4

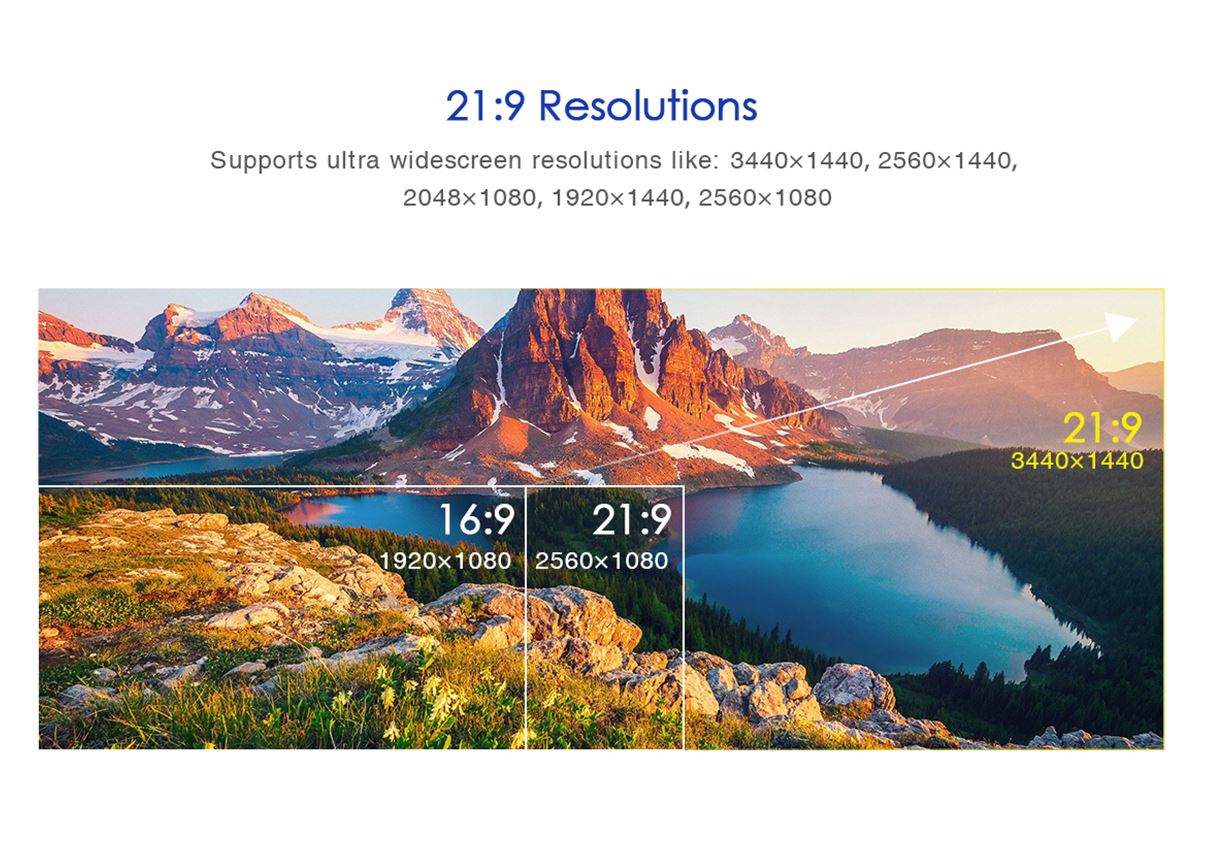

Resolutions 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz、3440x1440、2560x1440、 2560x1080、2048x1080、1920x1440、1920x1080、 1280x960、1280x800、1280x768、1680x1050、 1360x768、1366x768、1600x900、1024x768、800x600
Transmission distance 4K transmission distance 50m
1080p transmission distance 70m
Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
IR interface 1x 3.5mm IR OUT Female
1x 3.5mm IR IN Female
Receiving range ≤5m
Infrared frequency 20KHz~60KHz
Power Supply TX: DC5V/2A

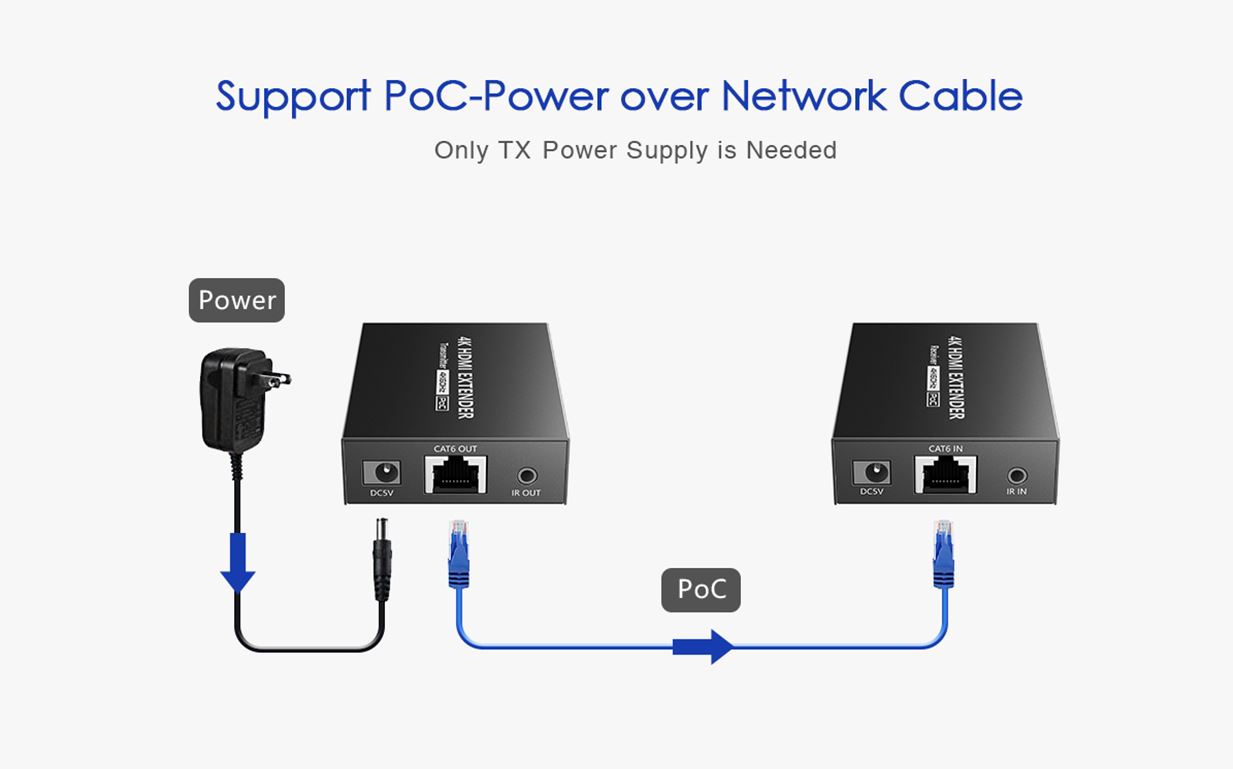

RX: PoC（Powered by TX）
Power Consumption TX+RX＜5.5W
Working temperature -20℃~60℃
Storage temperature -30℃~70℃
Humidity 0~90%RH（No condensation）
Housing Metal
Weight TX : 130g
RX：130g
Color Black
Dimensions 75.0(L)*60.0(W)*21.0(H)mm
Protection ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
