Lenkeng HDMI Extender over Ethernet 70M 4K POC IR Loop LKV565P

Product code: 17978820 // MPN: LKV565P

€87,36 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

Marmitek Wireless Speaker Connection for Surround Speaker Anywhere 650

Code: 17980520

€143,99

Available from 1 to 3 days

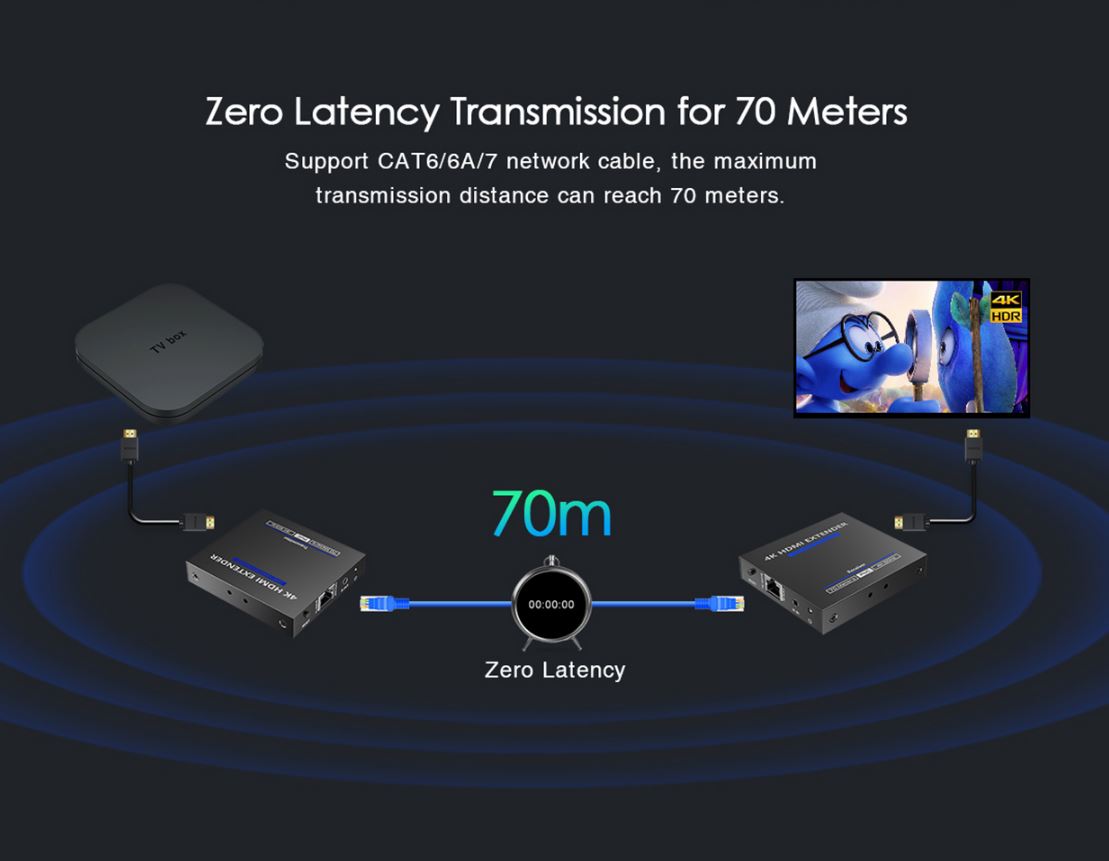

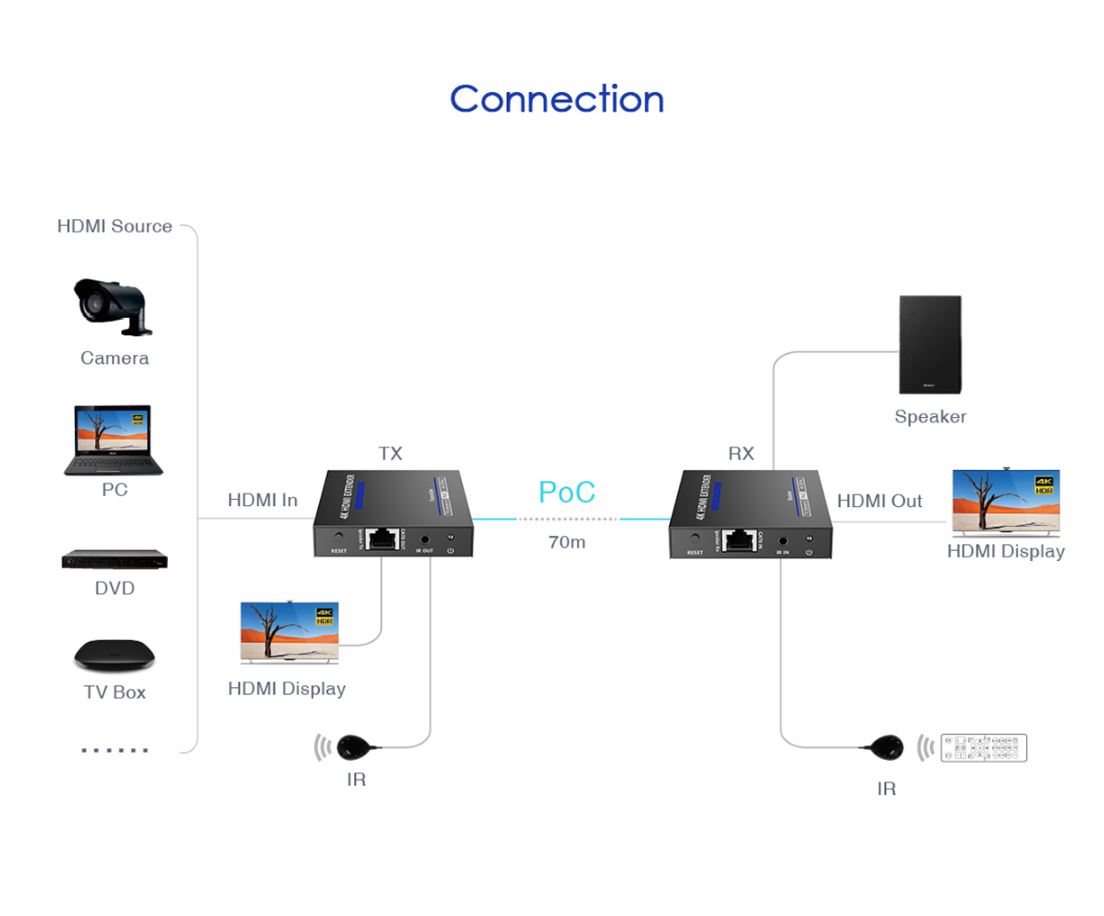

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI™ signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.

ipcolor IMAGE
4K@60Hz HDR
Zero Latency
Visually Lossless
70Meters
PoC
3.5mm L/R
IR Pass-through
HDMI Loop Out
Lightning Protection-Surge Protection-ESD Protection

HDMI Length ≤5m
Maximum transfer rate 18Gbps
Maximum transmission bandwidth 600MHz
EDID passthrough Yes
Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4:4:4）
HDCP 2.2
Resolutions 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz、4096x2160@24/25Hz、 1280x960、1280x800、1280x768、1680x1050、 1360x768、1366x768、1600x900、1024x768、800x600
Transmission distance CAT6/6A/7≤70m
Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
IR interface TX：1x 3.5mm IR OUT Female
RX：1x 3.5mm IR IN Female
Receiving range ≤ ≤5m
Infrared frequency 20KHz~60KHz
Power Supply TX：DC5V/2A
RX：DC5V/2A
Power Consumption TX：＜4W
RX：＜4W
Working temperature -20℃~60℃
Storage temperature -30℃~70℃
Humidity 0~90%RH（No condensation）
Housing Metal
Weight TX：140g
RX：140g
Color Black

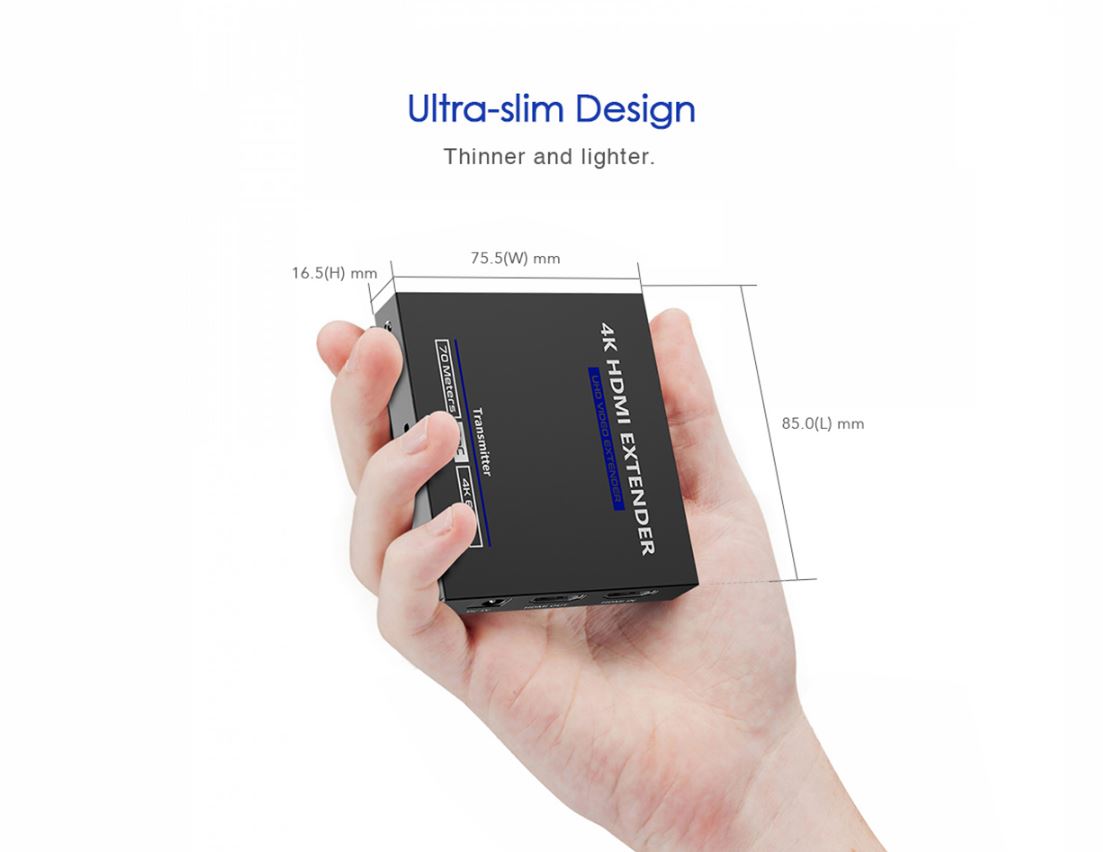

Dimensions TX/RX：85.0(L)*75.5(W)*16.5(H)mm
Protection ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
