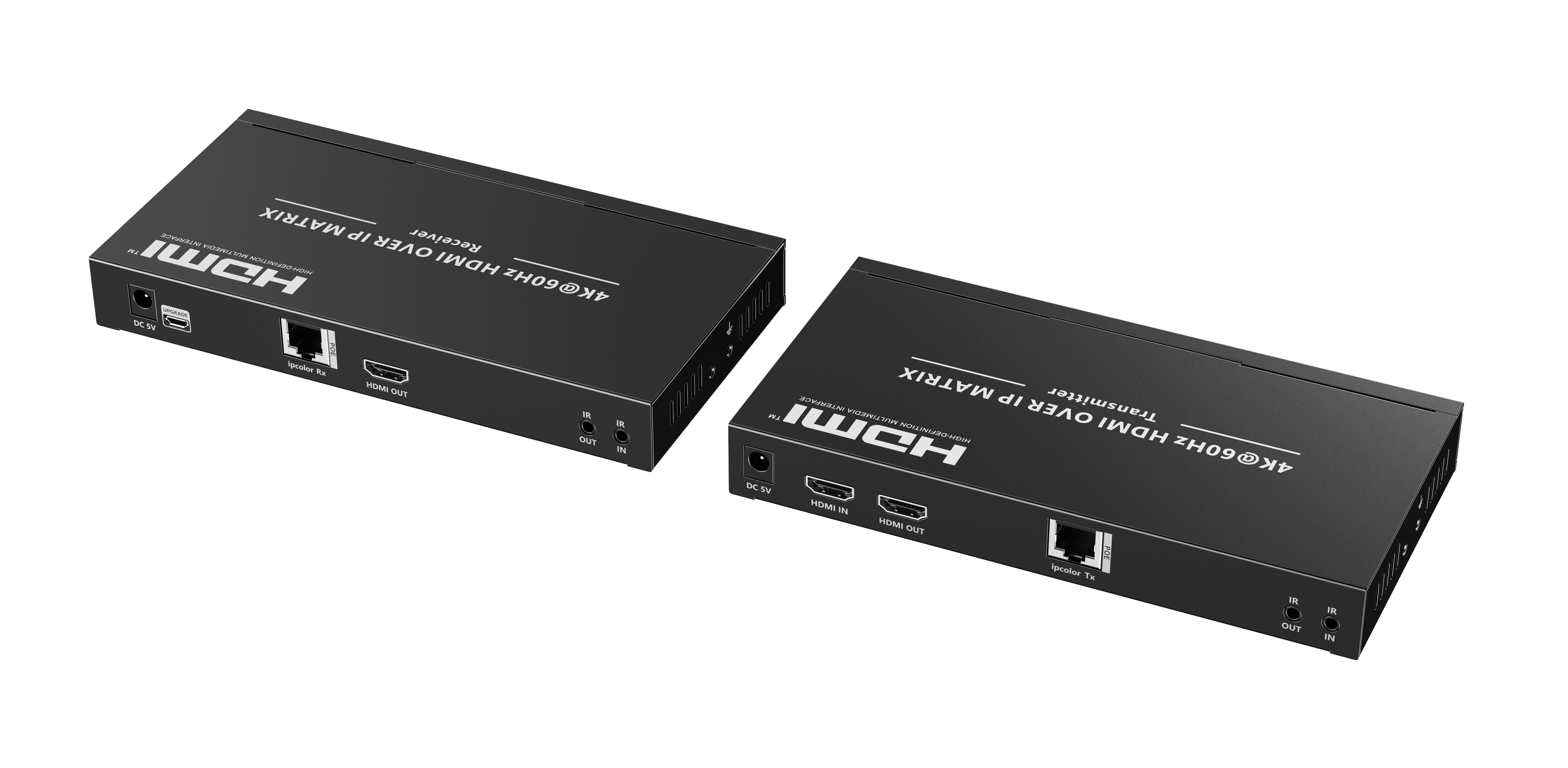

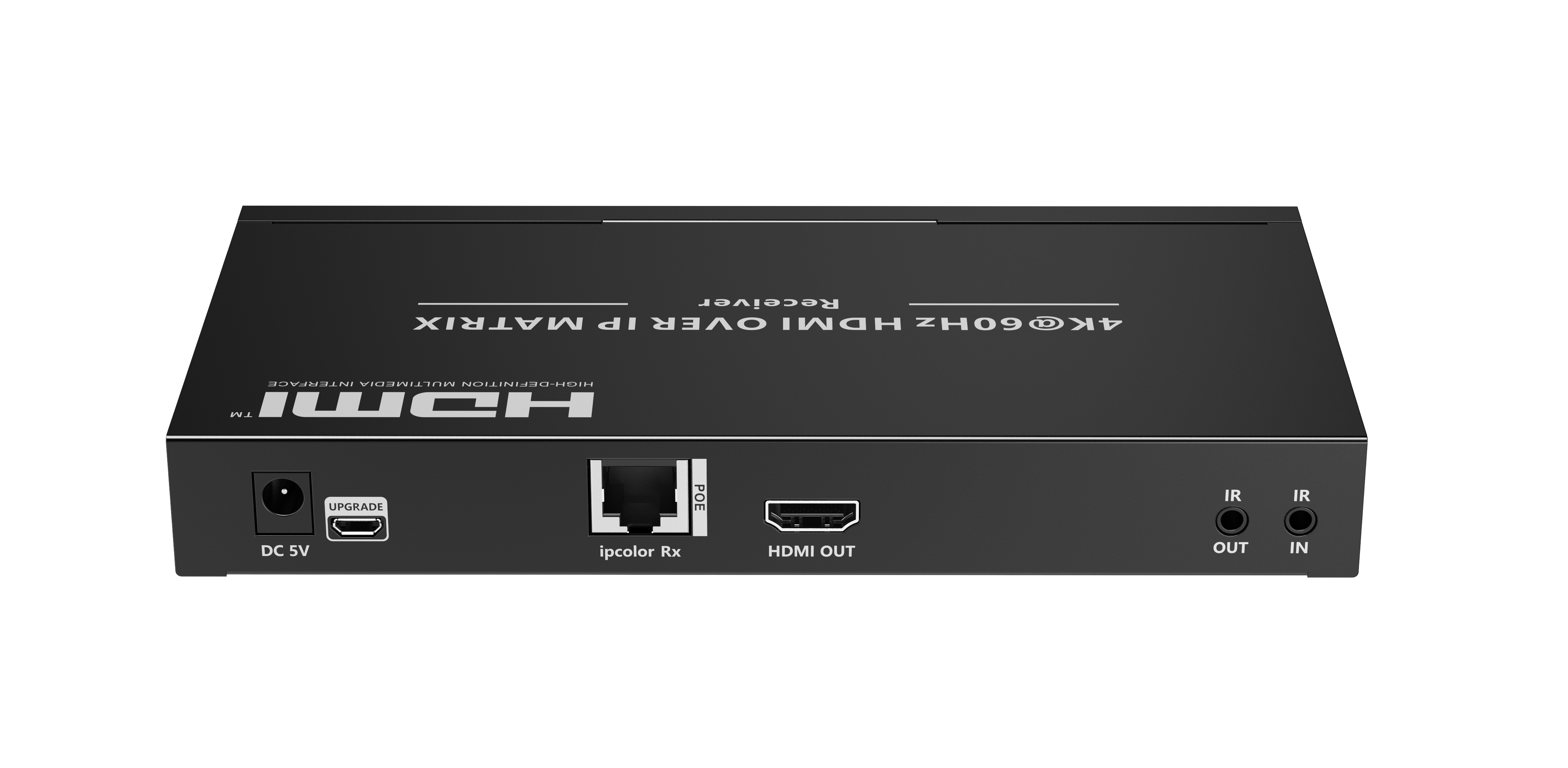

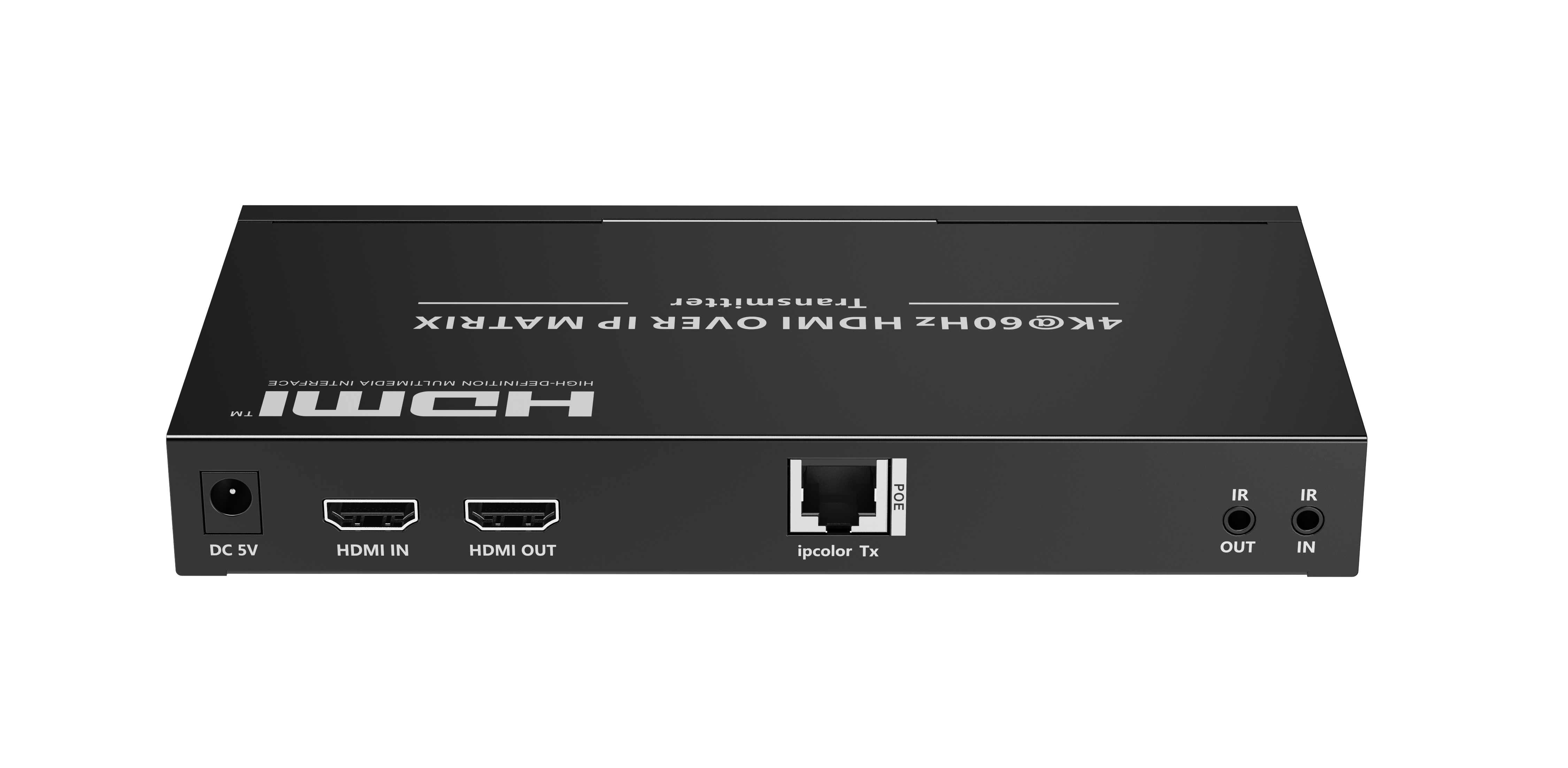

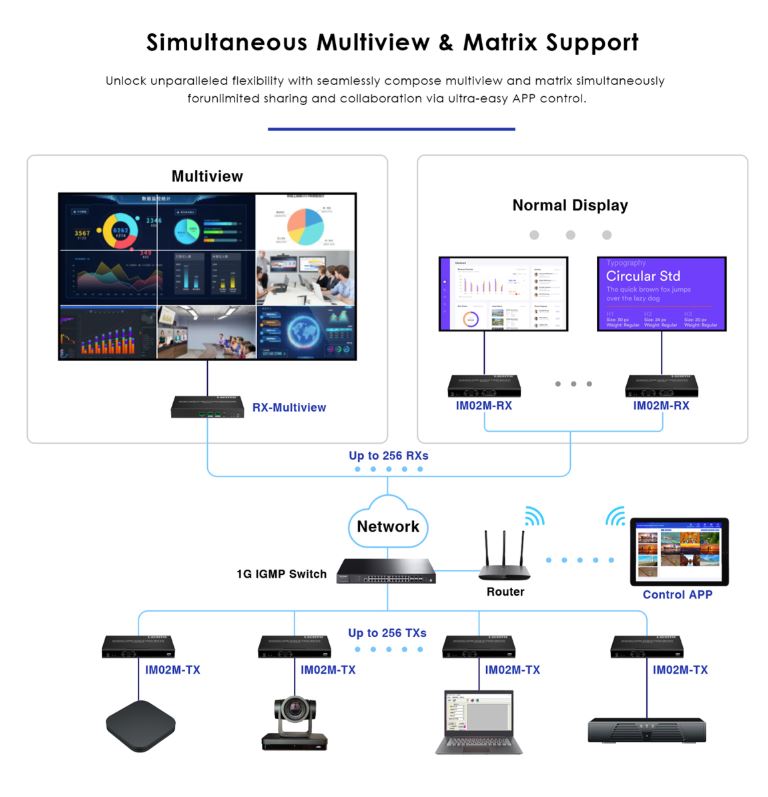

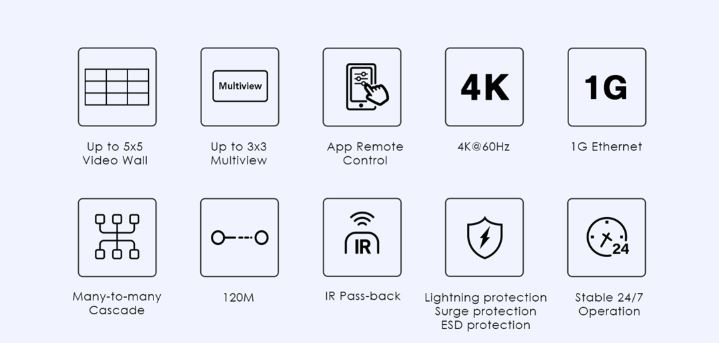

HDMI Transmission

• Max HDMI Cable Length (Direct Connection): ≤5m (standard limitation)

• Extended Transmission via CAT5e/CAT6:

  • CAT5: Up to 80m

  • CAT5e: Up to 100m

  • CAT6: Up to 120m

• Max HDMI Bandwidth: 18Gbps (HDMI 2.0)

• Supported Resolutions:

  • 4K@60Hz (3840×2160)

  • 4K@30Hz (4096×2160)

  • 1440p@60Hz (2560×1440)

  • 1080p@60Hz

  • 720p@60Hz

• HDCP Support: HDCP 1.4 & 2.2 (for DRM-protected content like Netflix, Blu-ray)

 Latency (Important for Gaming & Real-Time Use)

• 4K@60Hz: 130~200ms (high delay, not ideal for gaming)

• 1080p@60Hz: 70~130ms (better, but still laggy for fast-paced games)

 Audio Support

• HDMI Audio Output: LPCM 2.0 (Stereo only, no Dolby/DTS surround)

IR Remote Control Support

• IR Receiving Range: ≤5m

• IR Frequency: 20kHz~60kHz

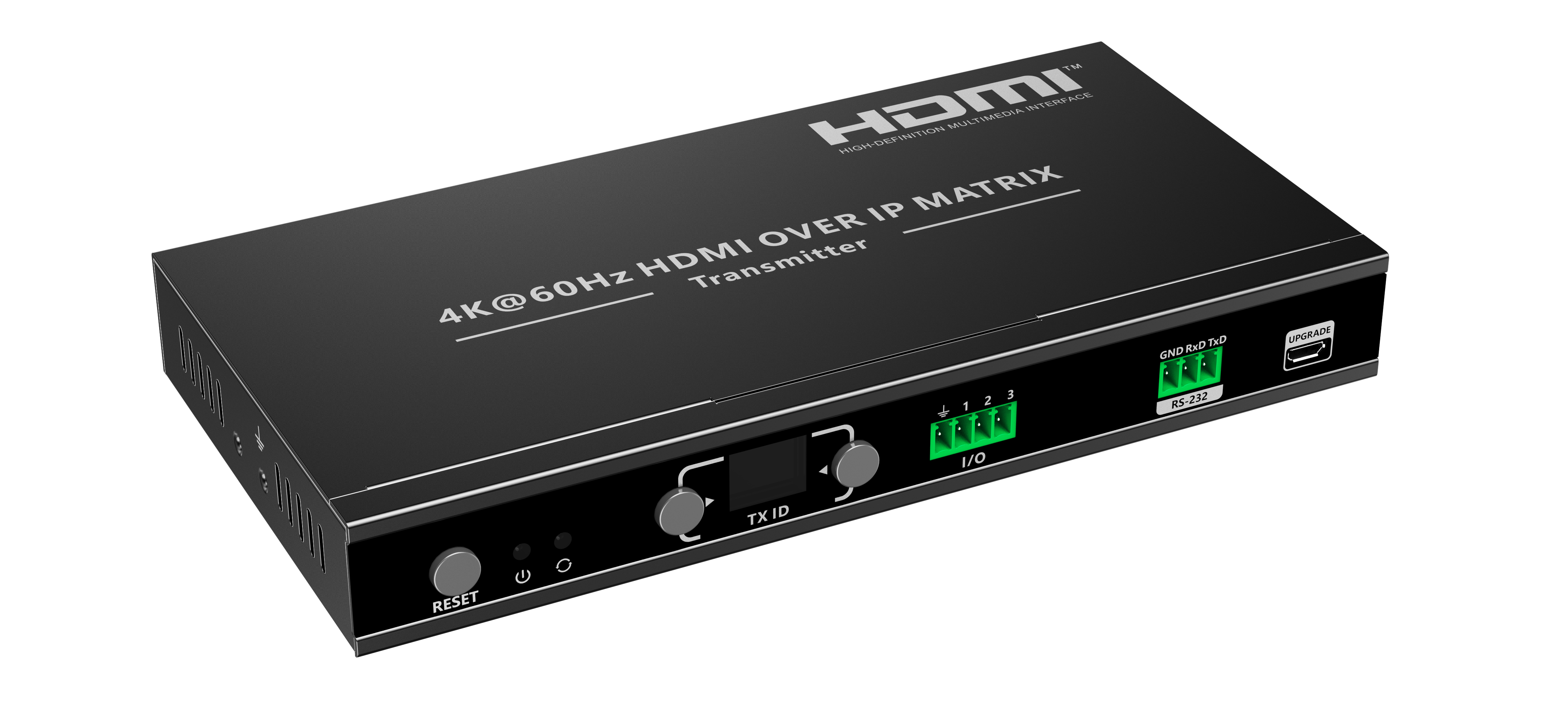

RS-232 Serial Control

• Default Baud Rate: 115200

• Supported Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200

 Power & Consumption

• Input Power: DC 5V/2A (for both TX & RX)

• Power Consumption:

  • TX (Transmitter): ≤5.5W

  • RX (Receiver): ≤3.5W

Physical & Environmental

• Housing Material: Iron (durable but heavy)

• Weight:

  • TX: 523g

  • RX: 514g

• Dimensions: 191.0(L) × 96.0(W) × 25.0(H) mm

• Operating Temperature: -20°C ~ 60°C

• Storage Temperature: -30°C ~ 70°C

• Humidity Tolerance: 0~90% RH (non-condensing)

Protection Features

• ESD Protection:

  • Contact discharge: ±4KV (IEC61000-4-2 Level 2)

  • Air discharge: ±8KV (IEC61000-4-2 Level 3)

• Surge & Lightning Protection (for stable signal transmission)
