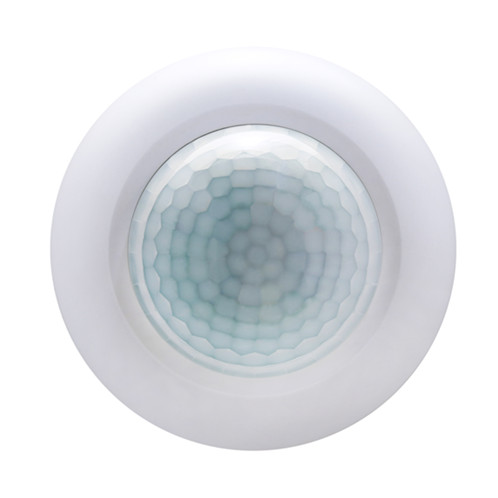

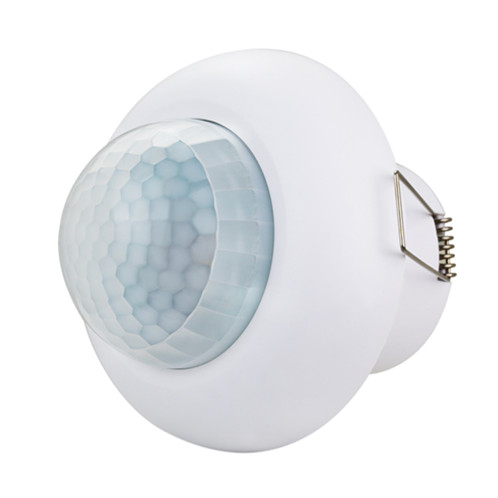

HDL Sensor Presence Reccess Mount M/SIS05.1
Κωδικός: 18060420 // Κωδικός προμηθευτή: M/SIS05.1
€105,60 (συμπ. ΦΠΑ)
Διαθέσιμο από 1-3 εργάσιμες ημέρες
Δείτε επίσης
Sonoff M5 UK 2C (2 Buttons ) WiFi Smart Wall Mechanical Switch
Κωδικός: 20530520
€18,23
Διαθέσιμο από 1-3 εργάσιμες ημέρες- KNX Presence Sensor is a multi-function sensor which contains PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master / slave mode are supported
- 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs. Control targets include switches, dimming, alarm devices, etc
- 1 sensor status feedback function block, including data and status feedback for human presence detection and photo sensitive sensors, and intrusion alarms
- 2 lighting control function blocks, which support automatic and semi-automatic control, and switch control according to ambient illumination
- 1 constant brightness automatic adjustment function block can compare the ambient illumination with the set illumination value, adjust the brightness of the light, and select the curtain combination dimming
- 2 HVAC control blocks enable automatic and semi-automatic mode, HVAC open dalay and duration srttings
- Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control, Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control
- Logic inputs: PIR sensor status, brightness value, temperature and humidity value, and external telegrams
- 2 logical relations: AND, OR
- 2 working modes: Single mode and master / slave mode
- The logic validity can be set by external telegram
Basic Parameters
- Working voltage: 21~30V DC
- Working current: 7mA/30V DC
- Communication: KNX
- Cable diameter of KNX terminal: 0.6 - 0.8mm
- PIR detection range: Φ12m (Installation height:3m)
External Environment
- Working temperature: -5℃~45℃
- Working relative humidity: ≤90%
- Storage temperature: -20℃~60℃
- Storage relative humidity: ≤93%
Specifications
- Dimensions: Φ85×85 (mm)
- Net weight: 96g
- Housing material: ABS, PC, iron
- Installation: Spring clip mounting/Screw mounting/Wall box mounting
- Protection rating (Compliant with EN 60529) IP20
| Brand: | HDL Automation |
