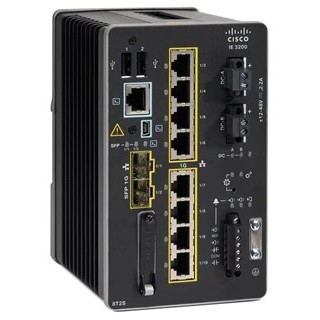

Cisco CATALYST IE3200 RUGGED

Product code: 18166022 // MPN: IE-3200-8T2S-E // EAN: 0889728140164

€3.218,05 (inc. VAT)

Available from 4 to 10 days (17 pcs available)

Add to wishlist

SOPHOS CS1010-8FP Switch - 8 port 8x10G NBase-T with Full PoE - EU power cord

Code: 22548122

€3.216,80

Available from 4 to 10 days

Device Type	Switch - 8 ports - Managed
Enclosure Type	DIN rail mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 + 2 x Gigabit SFP
Capacity	SPAN sessions: 256 Â¦ IGMP groups: 1000 Â¦ STP instances: 128
MAC Address Table Size	8K entries
Routing Protocol	IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2
RAM	2 GB
Flash Memory	1.5 GB
Built-in Devices	SD card reader
Expansion / Connectivity	Expansion / Connectivity
Interfaces	8 x 1000Base-T RJ-45 Â¦ 2 x 1000Base-X SFP Â¦ 1 x serial (RS-232) RJ-45 Â¦ 1 x mini-USB Type B
Expansion Slots	1 (total) / 1 (free) x SD Memory Card
Power	Power
Power Device	Internal power supply
Power Redundancy	Yes
Voltage Required	DC 9.6 - 60 V
Electric Current Required	3.2 A
Power Consumption Operational	33 Watt
Miscellaneous	Miscellaneous
MTBF	641,150 hours
Compliant Standards	EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15
Dimensions & Weight	Dimensions & Weight
Width	9.14 cm
Depth	13.5 cm
Height	15.2 cm
Weight	1.7 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - 5 years - response time: 10 days Â¦ Technical support - 90 days
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-40 Â°C
Max Operating Temperature	70 Â°C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	85 Â°C
Humidity Range Storage	5 - 95% (non-condensing)
