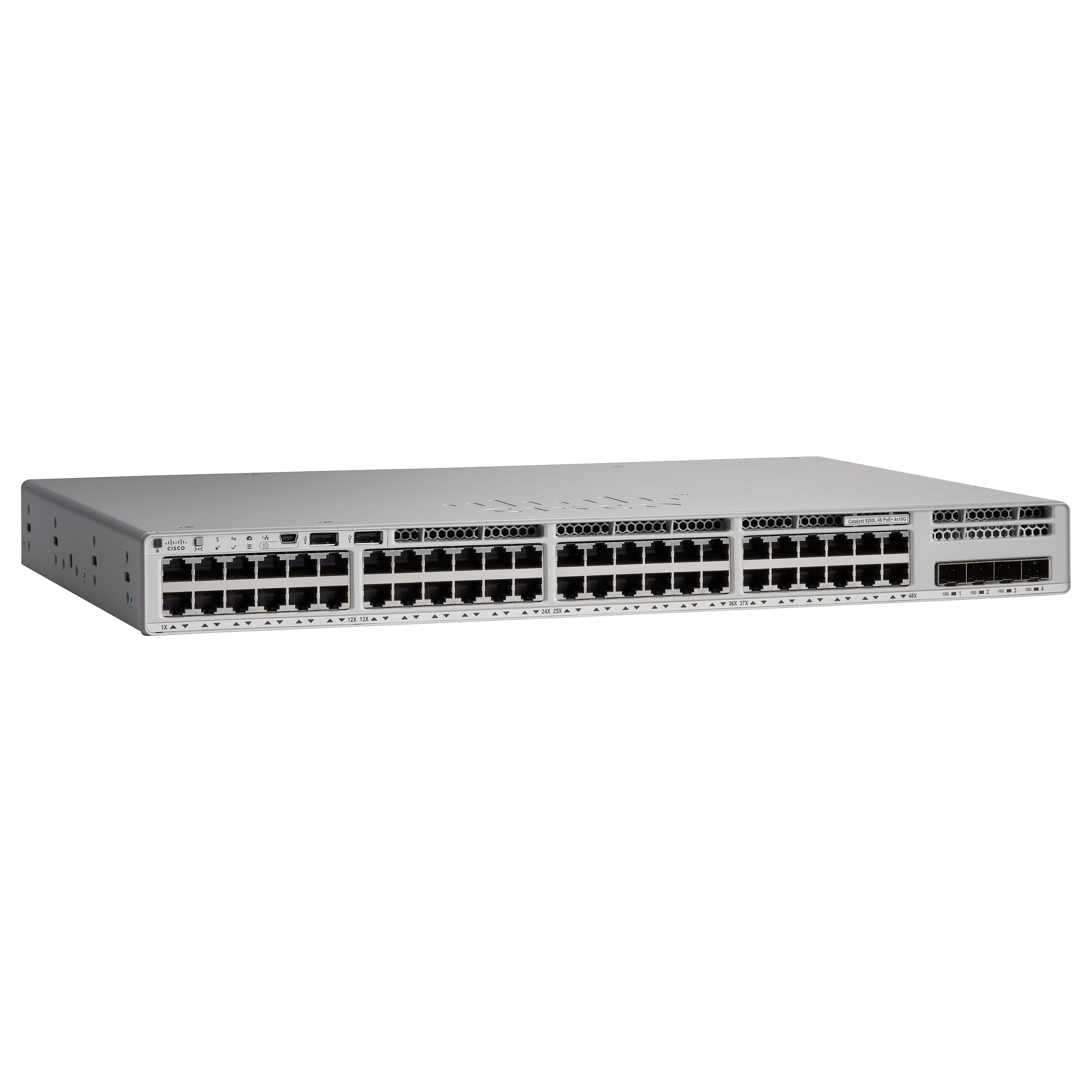

Cisco CATALYST 9200 48-PORT 8XMGIG

Product code: 18329422 // MPN: C9200-48PXG-A // EAN: 0889728168335

€11.113,25 (inc. VAT)

Available from 4 to 10 days (4 pcs available)

Add to wishlist

D-Link DXS-3410-32XY/E 32-Port 10G Lay.3 Stack Manag. Switch

Code: 16770022

€5.269,15

Available from 4 to 10 days

Device Type	Switch - 48 ports - L3 - smart - stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10GBase-T
Power Over Ethernet (PoE)	PoE+
PoE Budget	740 W
Performance	Stacking bandwidth: 160 Gbps Â¦ Switching bandwidth: 400 Gbps Â¦ Switching capacity with stacking: 580 Gbps Â¦ Forwarding rate: 297.61 Mpps Â¦ Forwarding rate with stacking: 431 Mpps
Capacity	QoS scale entries: 1000 Â¦ ACL scale entries: 1600 Â¦ IPv4 routing table entries: 4000 Â¦ IPv6 routing table entries: 2000 Â¦ Packet buffer size: 6 MB Â¦ VLAN IDs: 4096 Â¦ Switched virtual interfaces (SVIs): 1000 Â¦ Flexible NetFlow entries: 16000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES
Features	ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
RAM	4 GB
Flash Memory	4 GB
Built-in Devices	RFID tag
Expansion / Connectivity	Expansion / Connectivity
Interfaces	40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W Â¦ 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 Â¦ 1 x management (LAN) RJ-45 Â¦ 1 x console RJ-45 Â¦ 1 x network stack device
Expansion Slots	1 (total) / 1 (free) x Expansion Slot
Power	Power
Power Device	Internal power supply - hot-plug
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	1000 Watt
Voltage Required	AC 100-240 V (50 - 60 Hz)
Miscellaneous	Miscellaneous
MTBF	320,440 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Dimensions & Weight	Dimensions & Weight
Width	44.4 cm
Depth	39 cm
Height	4.4 cm
Weight	5.44 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - lifetime - response time: next business day Â¦ Technical support - phone consulting - 90 days
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-5 Â°C
Max Operating Temperature	45 Â°C
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	70 Â°C
Humidity Range Storage	5 - 90% (non-condensing)
