| Packaged Quantity |
5 (specifications are for single item) |
| Network Cable Type |

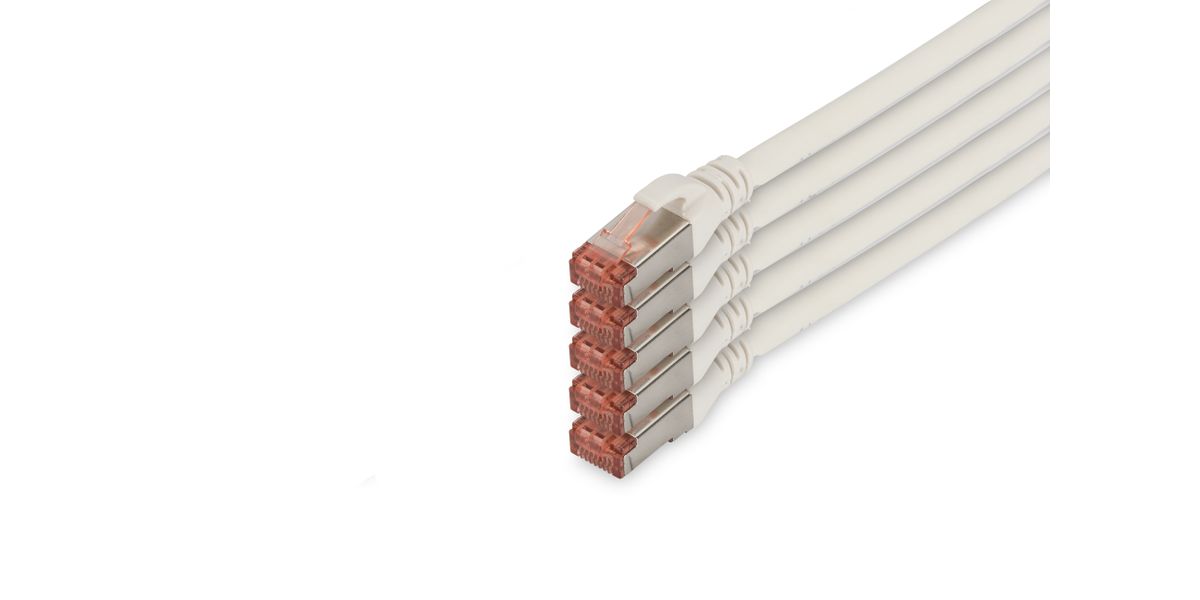

Patch cable - CAT 6 - IEEE 802.3 |
| Technology |
SFTP, PiMF |
| Shielding Material |
Metal foil with braid |
| Jacket Material |
Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) |
27/7 |
| Wires per Cable |
8 wires |
| Pairs per Cable |
4 pairs |
| Plated Connector |
Gold |
| Features |
Halogen-free, molded, snagless, stranded, PoE+ Ready, strain relief, length indication, kink protection, bare copper conductors, latch protection, red connector |
| Length |
10 m |
| Colour |
White |
| [Connectivity] |
| Connector |
RJ-45 - male |
| Connector (Second End) |
RJ-45 - male |
| [Miscellaneous] |
| Compliant Standards |
IEC 60332-1, ISO/IEC 11801, TIA/EIA-568-B, IEC 61034, EN 50173, ANSI/TIA/EIA 568-C - up to 250 MHz |
| [Environmental Parameters] |
| Min Operating Temperature |
-20 °C |
| Max Operating Temperature |
60 °C |
