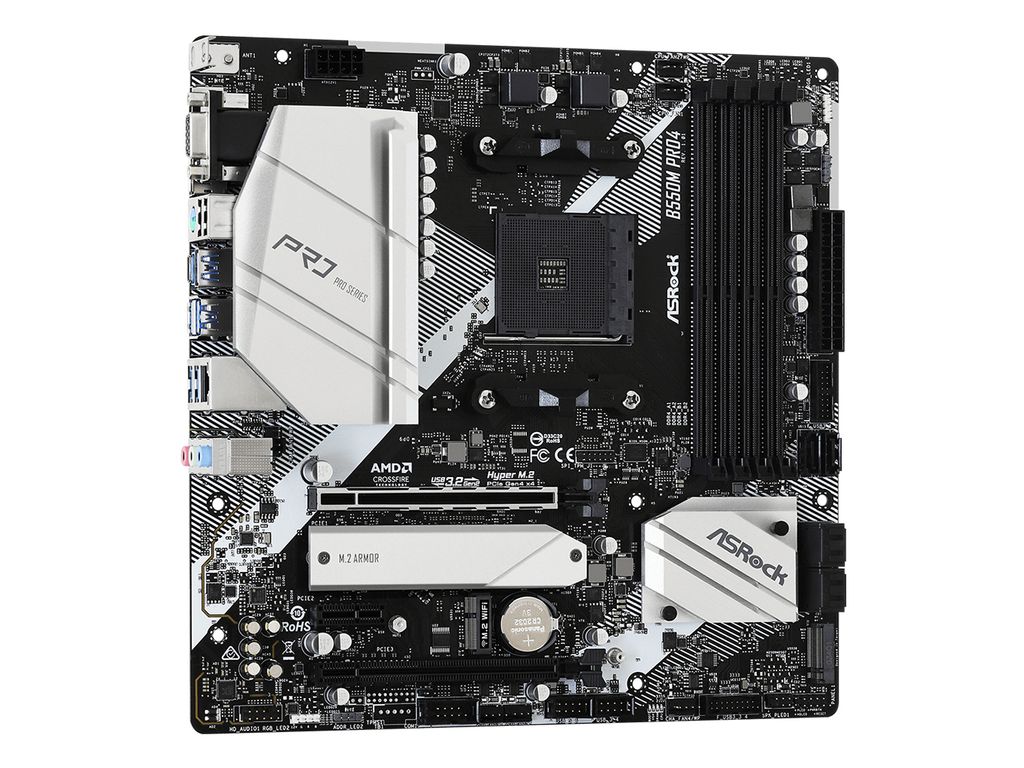

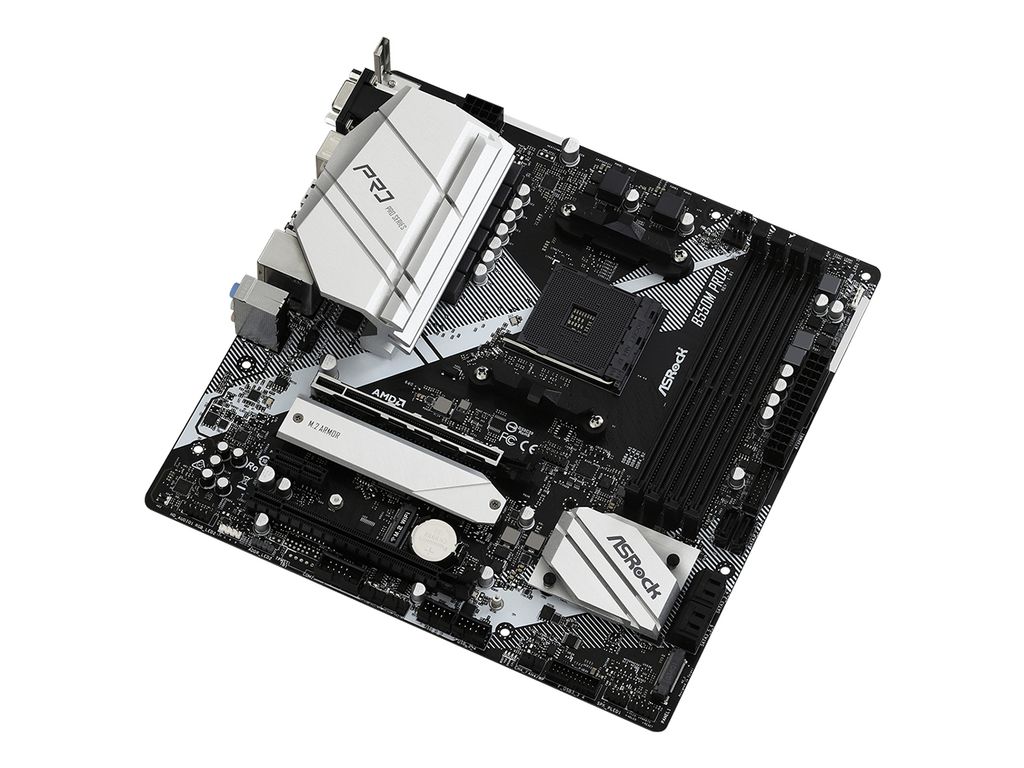

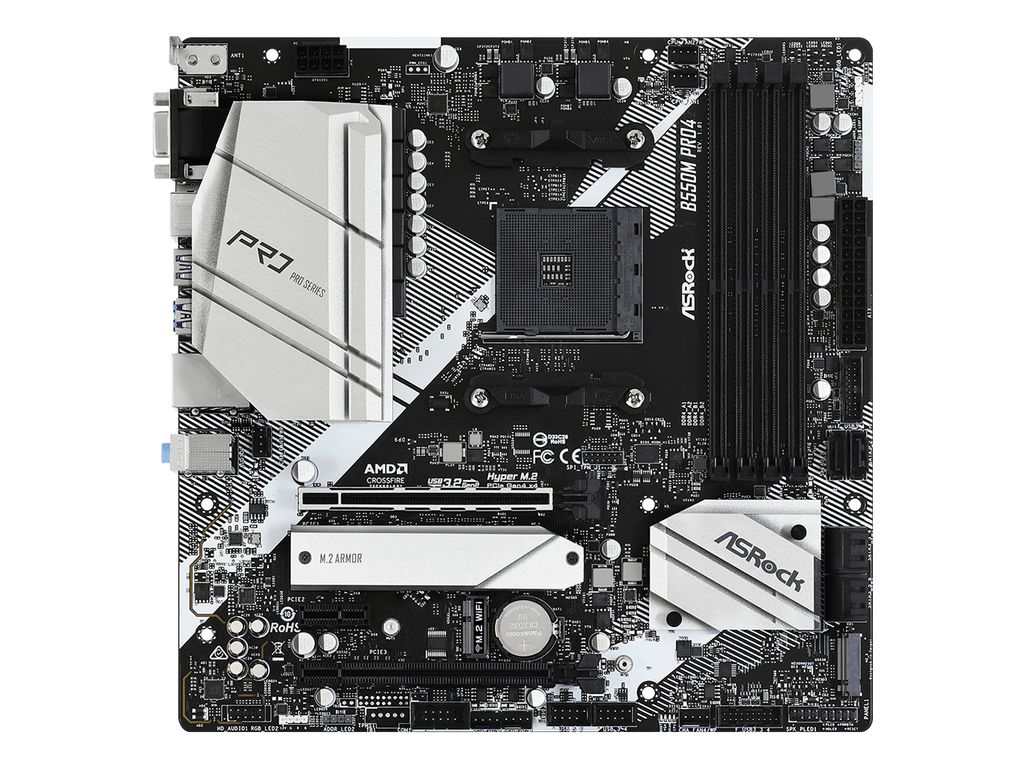

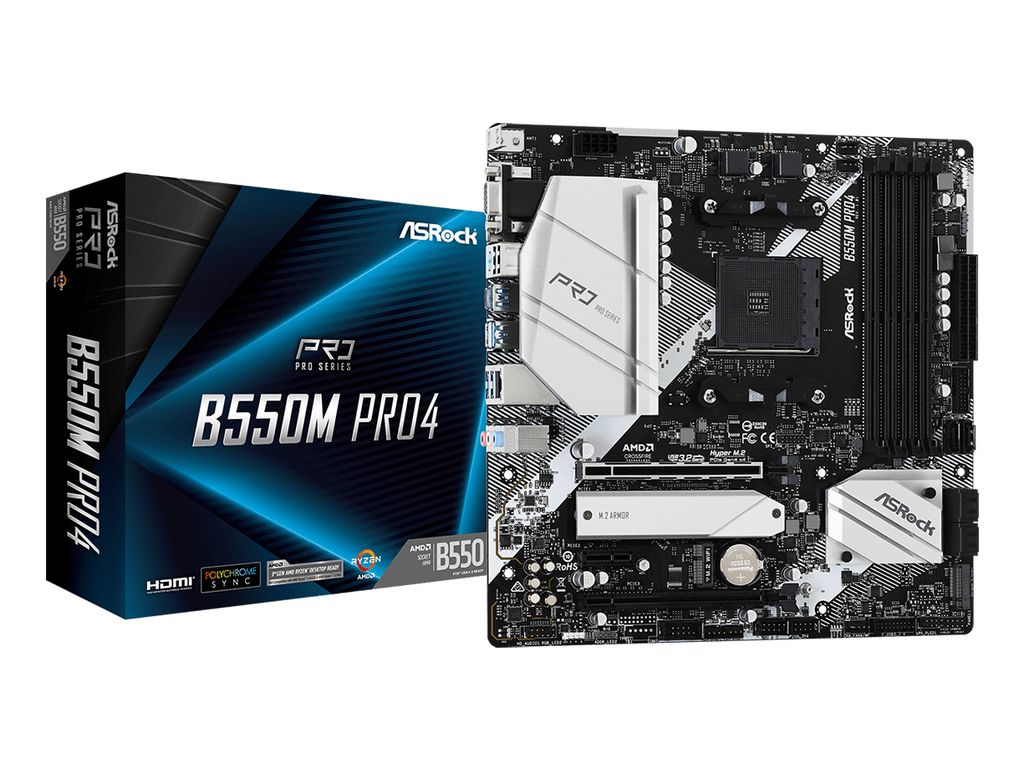

ASRock B550M Pro4 AM4 mATX VGA/HDMI DDR4 retail

Product code: 19645023 // MPN: 90-MXBDK0-A0UAYZ // EAN: 4710483931598

€116,30 (inc. VAT)

8-12 business days (10 pcs available)

Add to wishlist

AM4 ASRock B550M-HDV mATX

Code: 11168822

€86,35

Available from 4 to 10 days

Product Type	Motherboard - micro ATX
Chipset Type	AMD B550
Processor Socket	Socket AM4
Max Processors Qty	1
Compatible Processors	Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC1200
Compliant Standards	High Definition Audio, Premium Blu-ray audio support
Network Controller	Realtek RTL8111H
Network Interfaces	Gigabit Ethernet
Expansion Slots	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot)
Storage Interfaces	SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces	1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2
Internal Interfaces	4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
BIOS Type	AMI
BIOS Features	JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
Hardware Monitoring	CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up	Wake on LAN (WOL)
Hardware Features	8 Phase Power Design, ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, ASRock Live Update, Premium 50A Power Choke, PCB Isolate Shielding, 2oz Copper PCB, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Steel Slot Gen4, ASRock Hyper M.2
Included Accessories	I/O back plate, 2 x M.2 screws
Cables Included	2 x Serial ATA cable
Software Included	Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Compliant Standards	Plug and Play, FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Width	24.4 cm
Depth	24.4 cm
