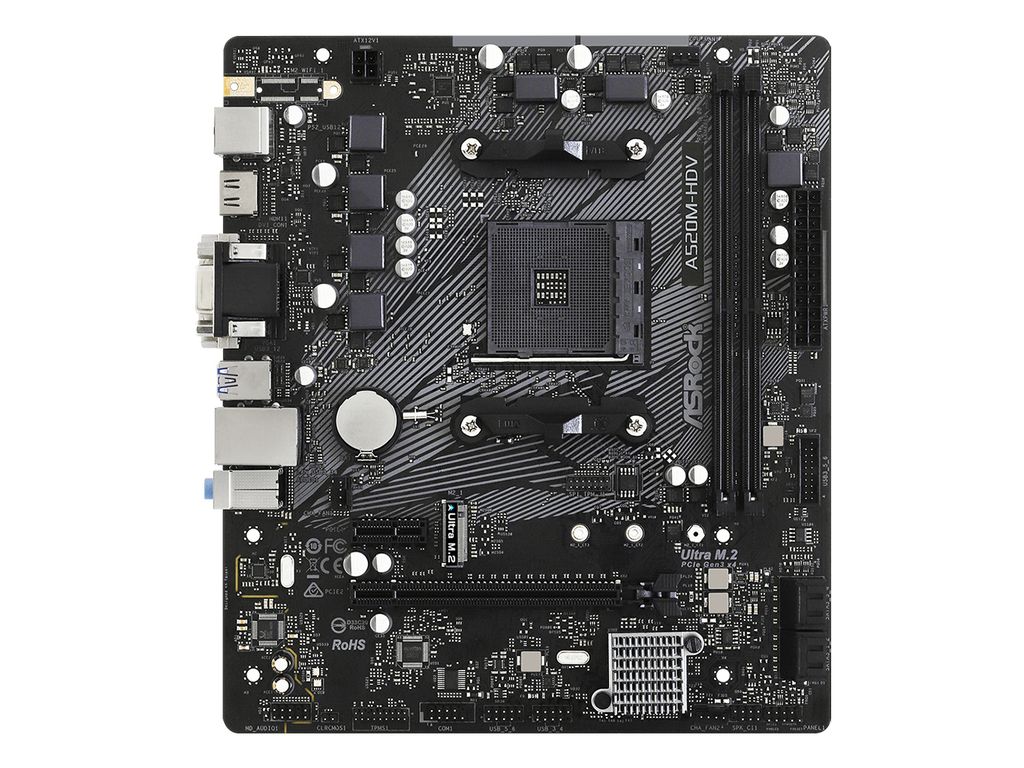

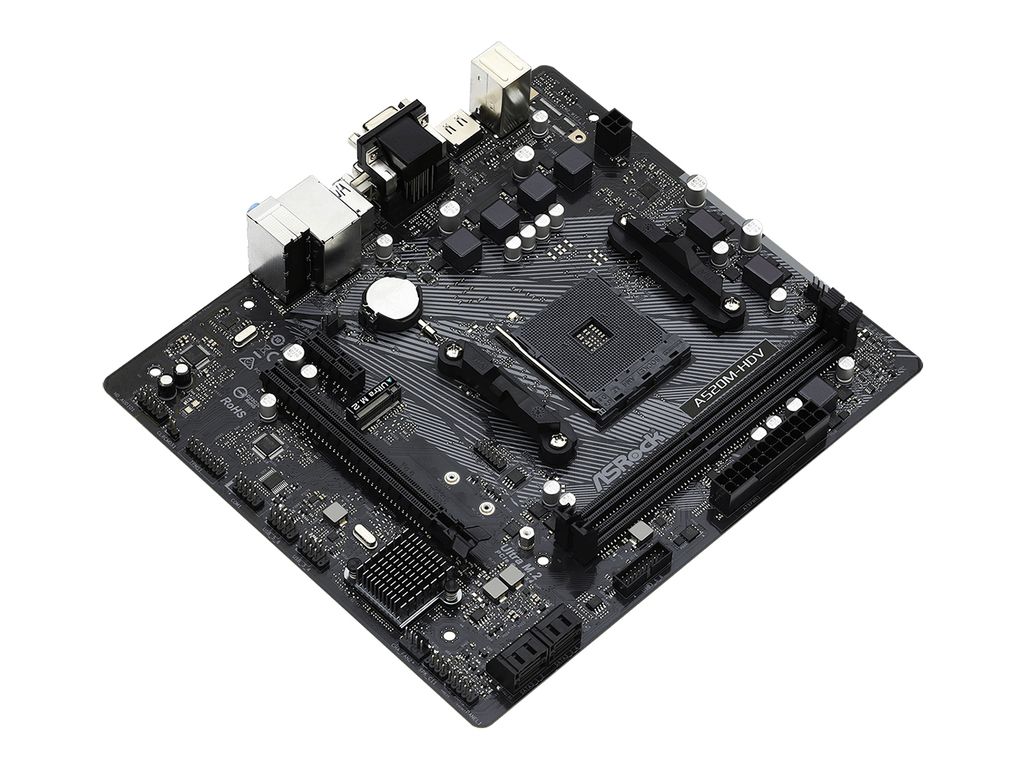

ASRock A520M-HDV AM4 mATX VGA/HDMI/DVI DDR4 retail

Product code: 19645323 // MPN: 90-MXBE50-A0UAYZ // EAN: 4710483932267

€65,00 (inc. VAT)

8-12 business days (94 pcs available)

Add to wishlist

ASUS PRIME H810M-E-CSM Motherboard micro ATX LGA1851 Socket , H810 Chipset , USB-C 3.2 Gen 1, USB 3.2 Gen 1 , Gigabit LAN , onboard graphics (CPU required) , HD Audio (8-channel) , ASUS Corporate Stable Model (CSM)

Code: 19966223

€149,20

8-12 business days

Product Type	Motherboard - micro ATX
Chipset Type	AMD A520
Processor Socket	Socket AM4
Max Processors Qty	1
Compatible Processors	Ryzen (supports 3rd Generation Ryzen)
Max Size	64 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4466 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Allocated RAM Size	16 GB
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC887
Compliant Standards	High Definition Audio
Network Controller	Realtek RTL8111H
Network Interfaces	Gigabit Ethernet
Expansion Slots	1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2

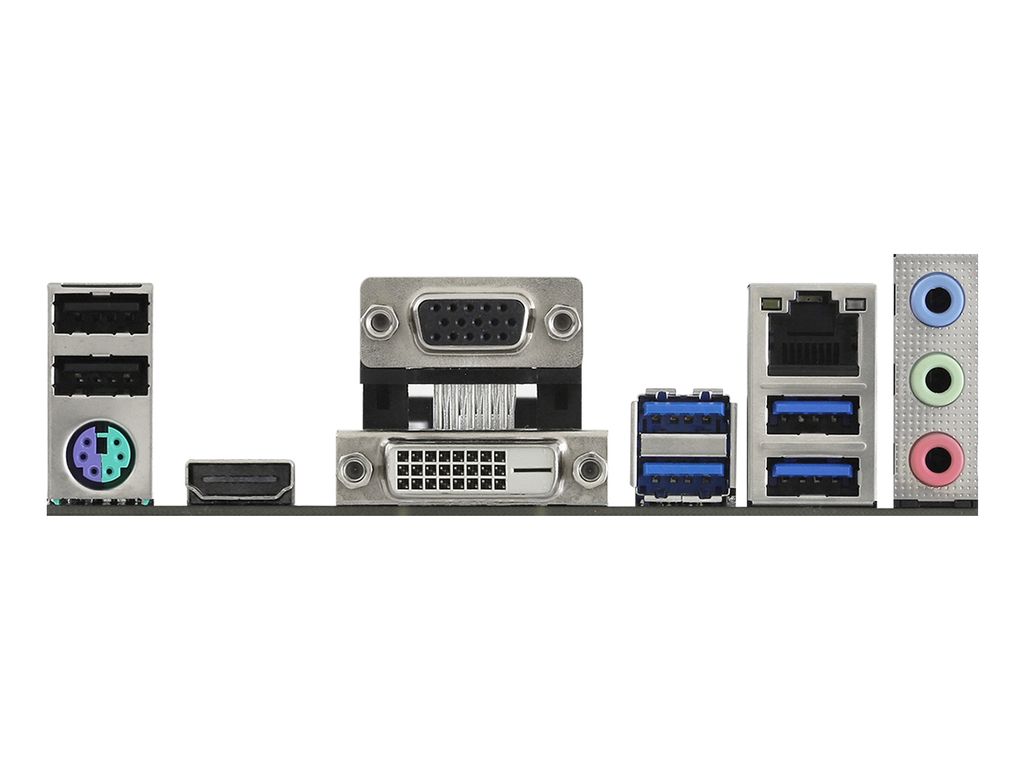

Interfaces	1 x VGA ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces	4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector
BIOS Type	AMI
BIOS Features	JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
Hardware Monitoring	CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection
Sleep / Wake Up	Wake on LAN (WOL)
Hardware Features	ASRock Instant Flash, All-Solid Capacitor motherboard Design, 15µ Gold Contact, 6 Phase Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, Premium 50A Power Choke
Included Accessories	I/O back plate, 1 x M.2 screw
Cables Included	2 x Serial ATA cable
Software Included	Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Compliant Standards	FCC, EuP Ready, ErP Ready
Width	23 cm
Depth	20.1 cm
Service & Support	Limited warranty - 3 years
