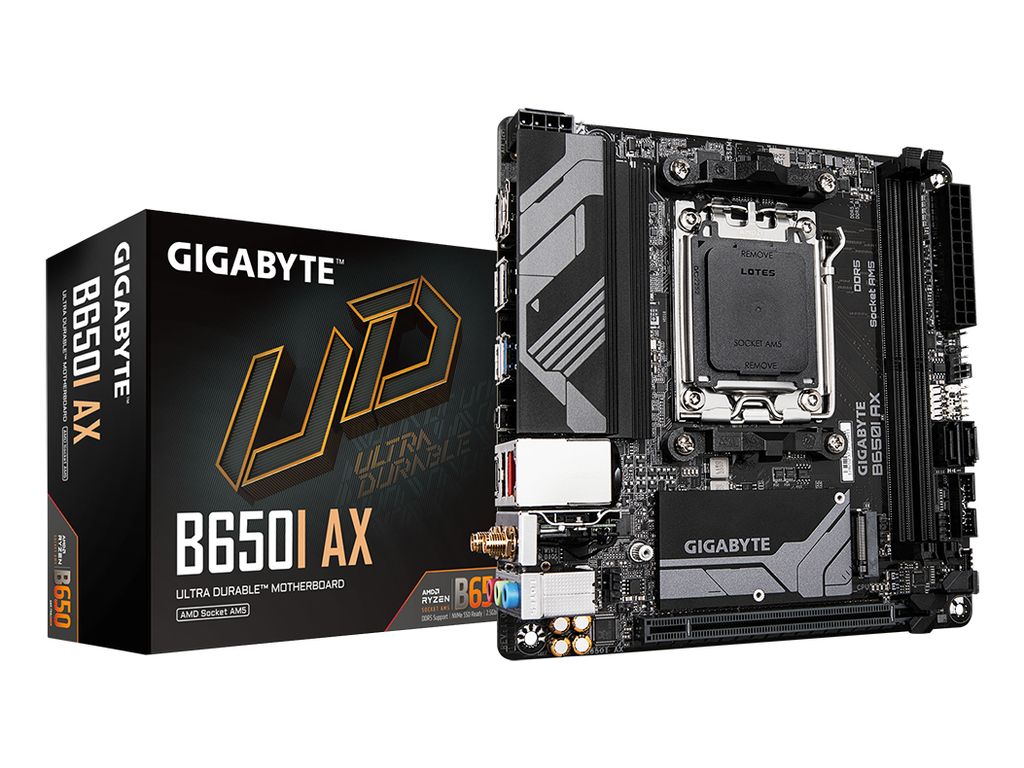

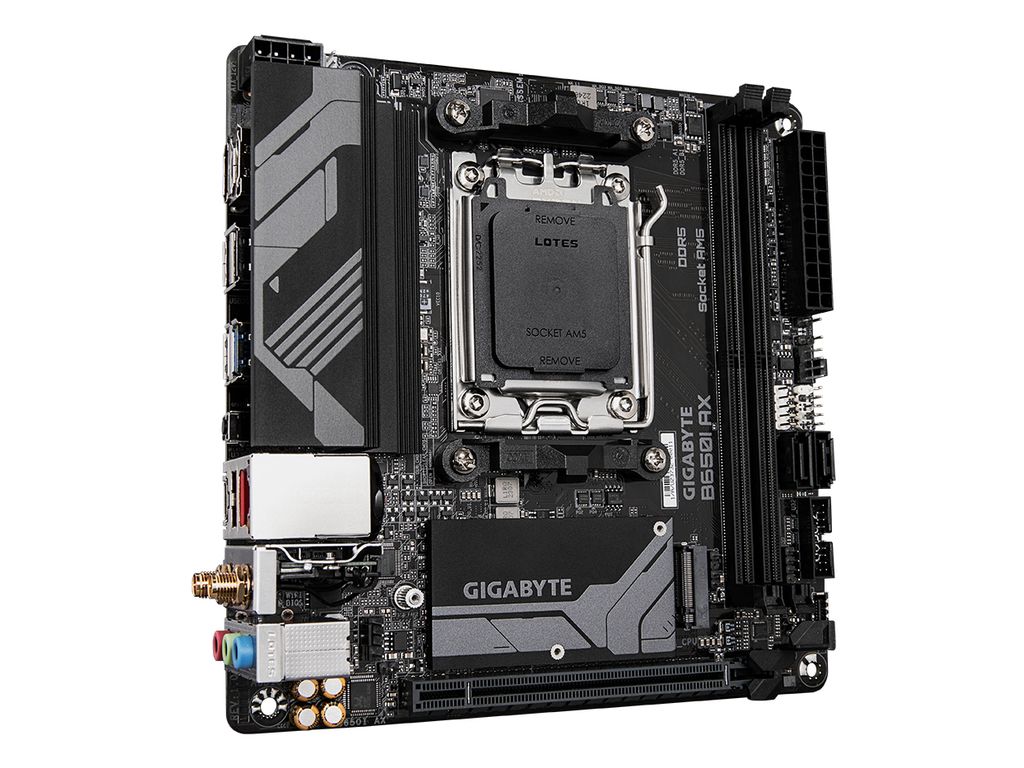

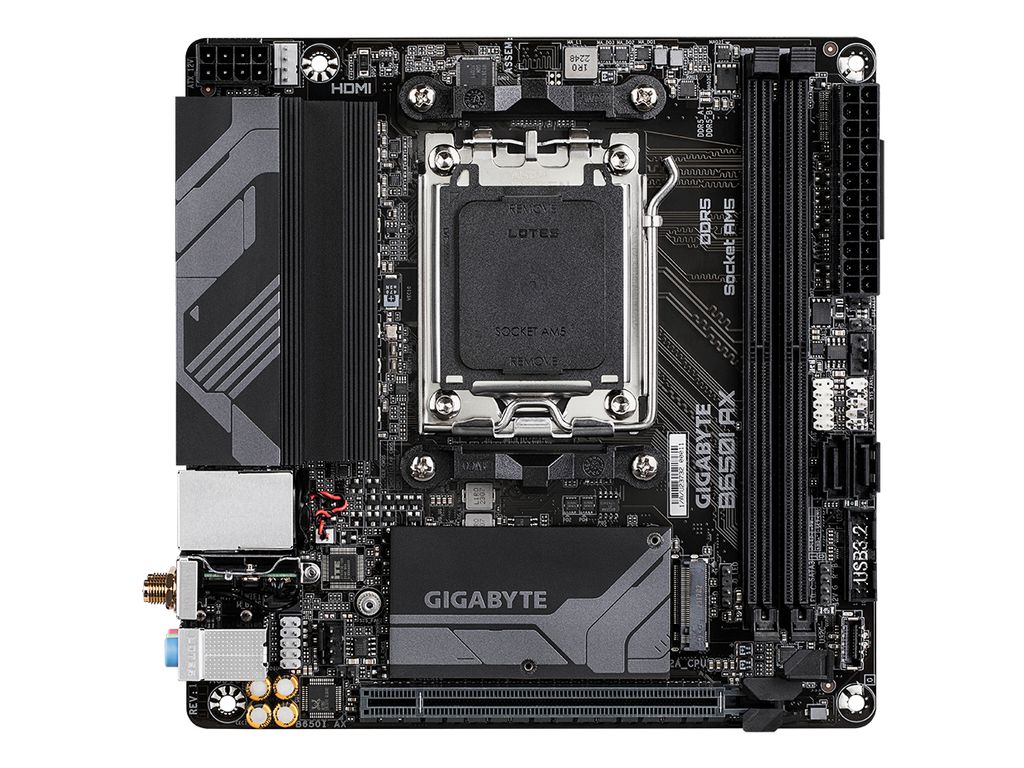

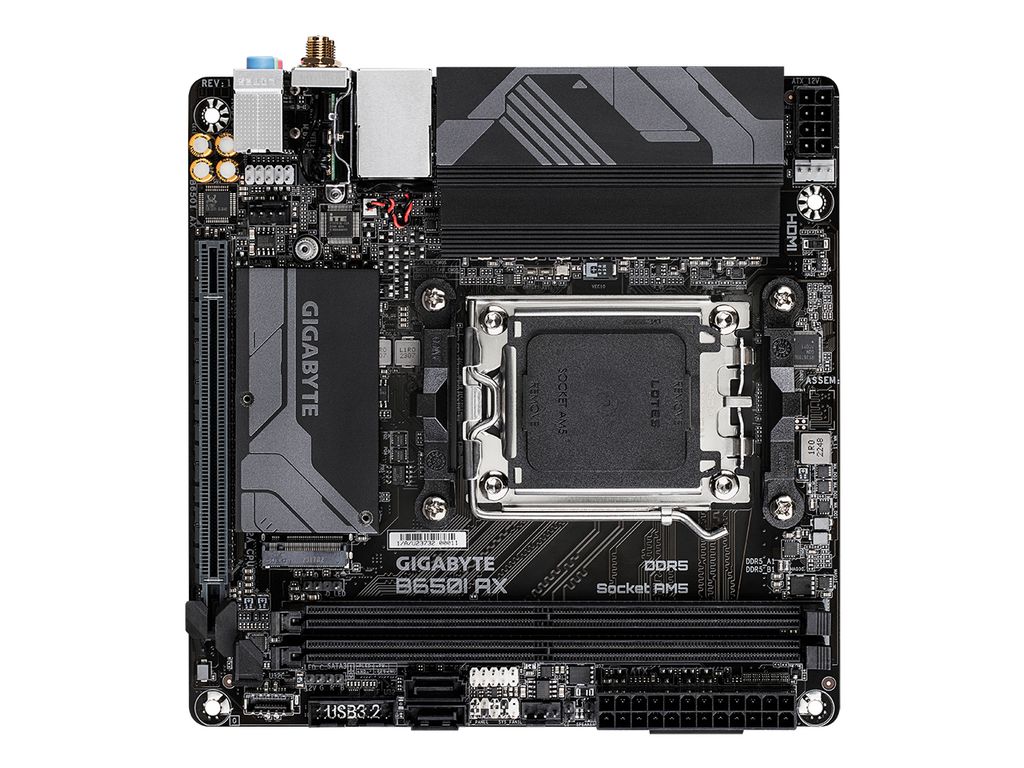

Gigabyte B650I AX (B650,AM5,mITX,DDR5)
Product code: 19651223 // MPN: B650I AX // EAN: 4719331859190
€183,95 (inc. VAT)
8-12 business days (5 pcs available)
Similar products
Supported RAM
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 4400 MHz, 5200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
Audio
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
LAN
| Network Controller | Realtek RTL8852CE |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
Expansion / Connectivity
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 3 x USB 2.0 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x USB 3.2 Gen 2 |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan control, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, Q-Flash Plus, Audio Noise Guard, RGB FUSION, DIY Friendly Design, GIGABYTE Smart Fan 6, PCIe EZ Latch, High-end Audio Capacitors, 5+2+1 Phase Power Design |
Miscellaneous
| Included Accessories | I/O back plate, 1 x M.2 screw, 2 x Wi-Fi aerial |
| Cables Included | 2 x Serial ATA cable |
| Software Included | GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version) |
| Width | 17 cm |
| Depth | 17 cm |
| All in one: | |
| Gaming: |
