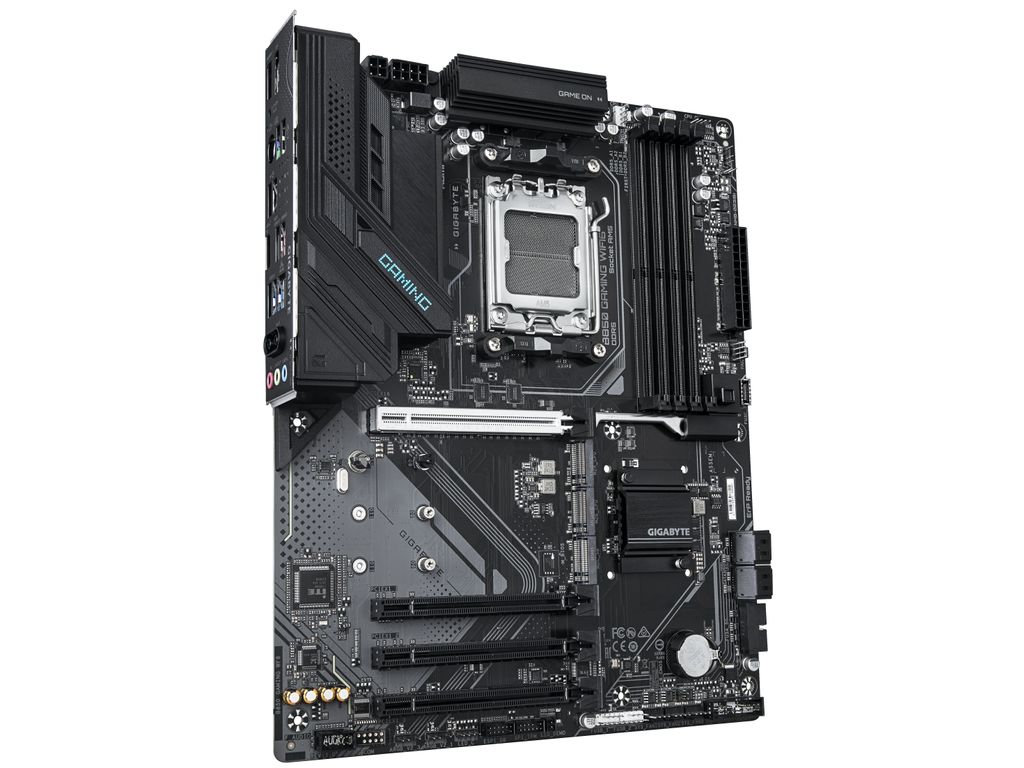

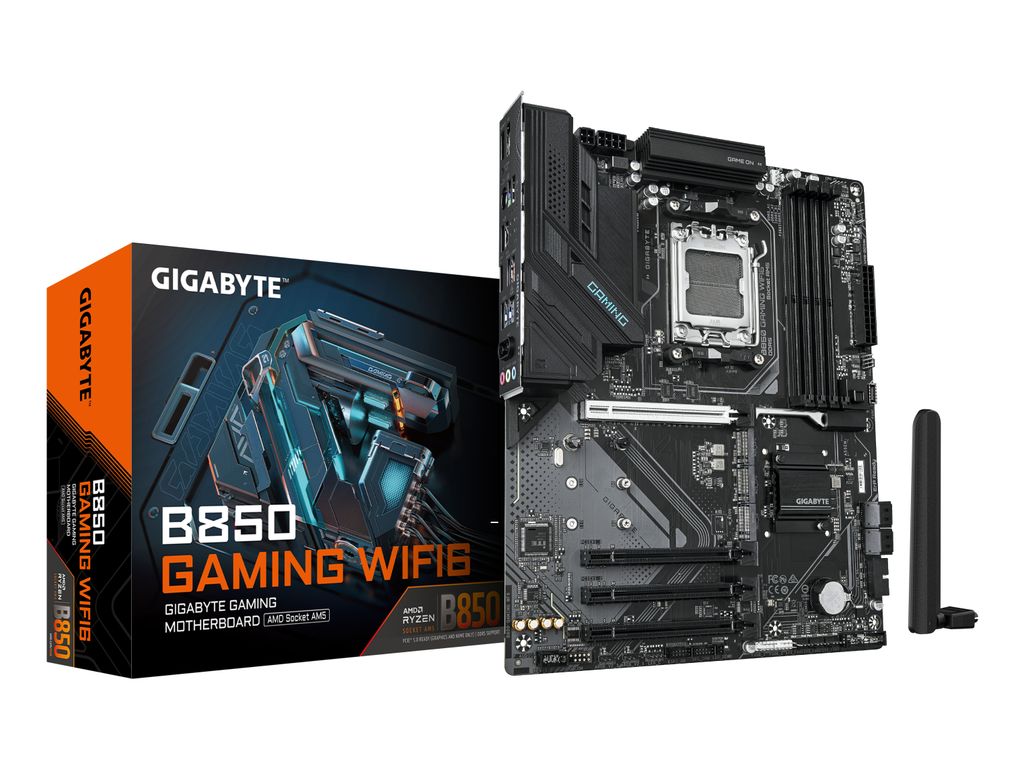

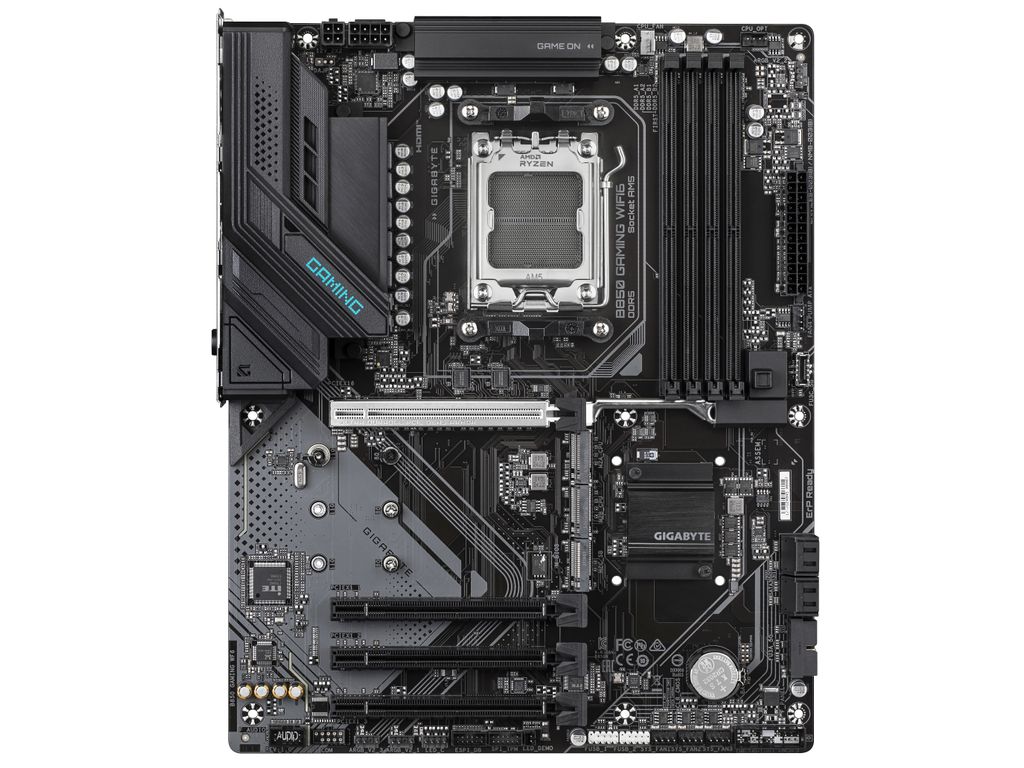

Gigabyte B850 Gaming WF6 (B850,AM5,ATX,DDR5)
Product code: 19654823 // MPN: B850 GAMING WF6 // EAN: 4719331866631
€203,45 (inc. VAT)
8-12 business days (69 pcs available)
Similar products
Specifications
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8851BE |
| Network Interfaces | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe x16 3 x PCIe 3.0 x16 (x1 mode) 1 x M.2 socket (22110/2280) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 |

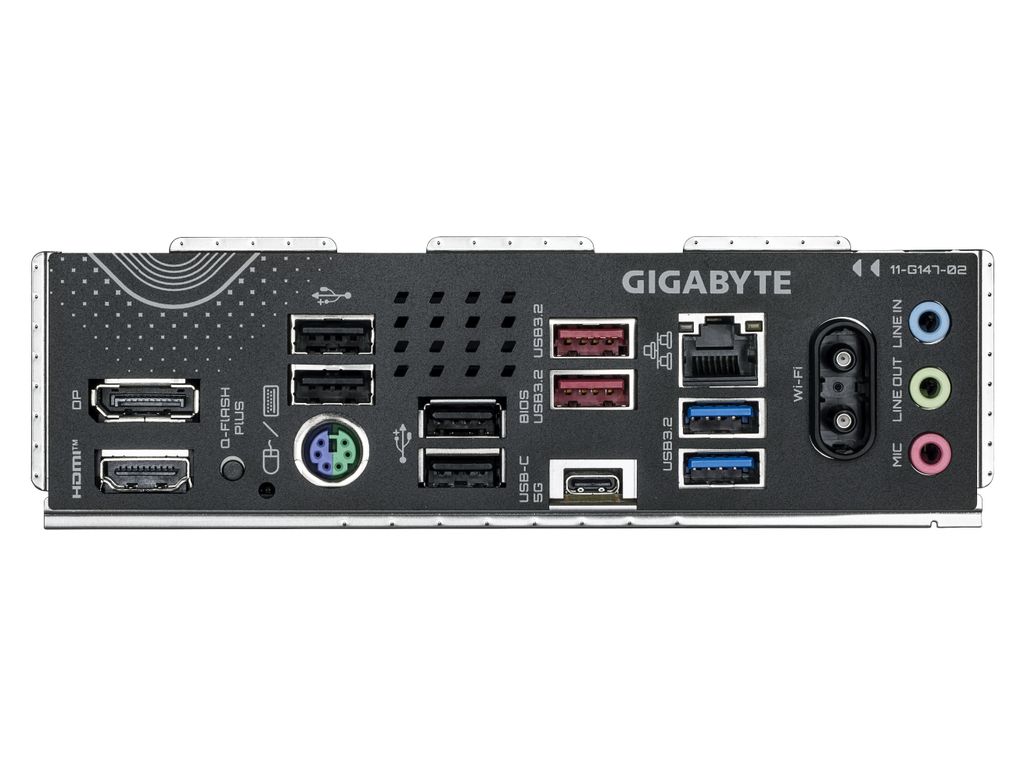

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x PS/2 keyboard / mouse 4 x USB 2.0 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 1 2 x USB 3.2 Gen 1 1 x LAN (Gigabit Ethernet) 2 x aerial 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, fan fail warning, fan control, water cooling flow rate, fan speed detection, temperature detection |
| Hardware Features | DIY Friendly Design, 6+2+2 Phase Power Design, 6 Layer PCB, Premium Power Choke, GIGABYTE Smart Fan 6 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial, M.2 screw package, rubber pad, G-Connector |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| All in one: | |
| Gaming: |
