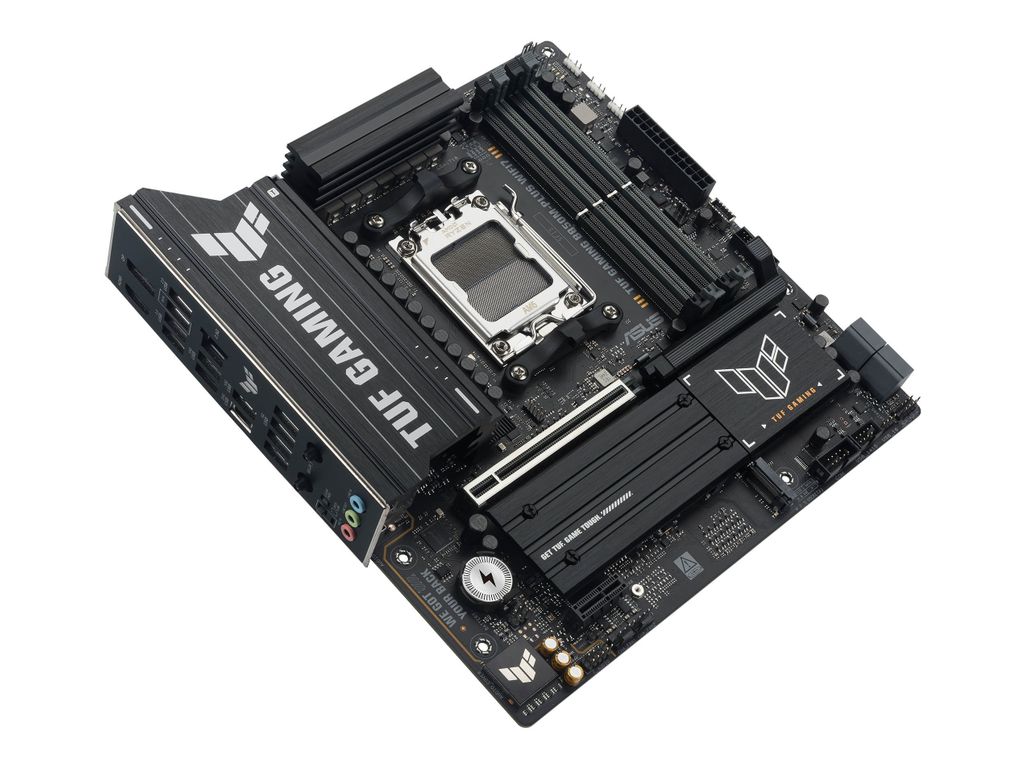

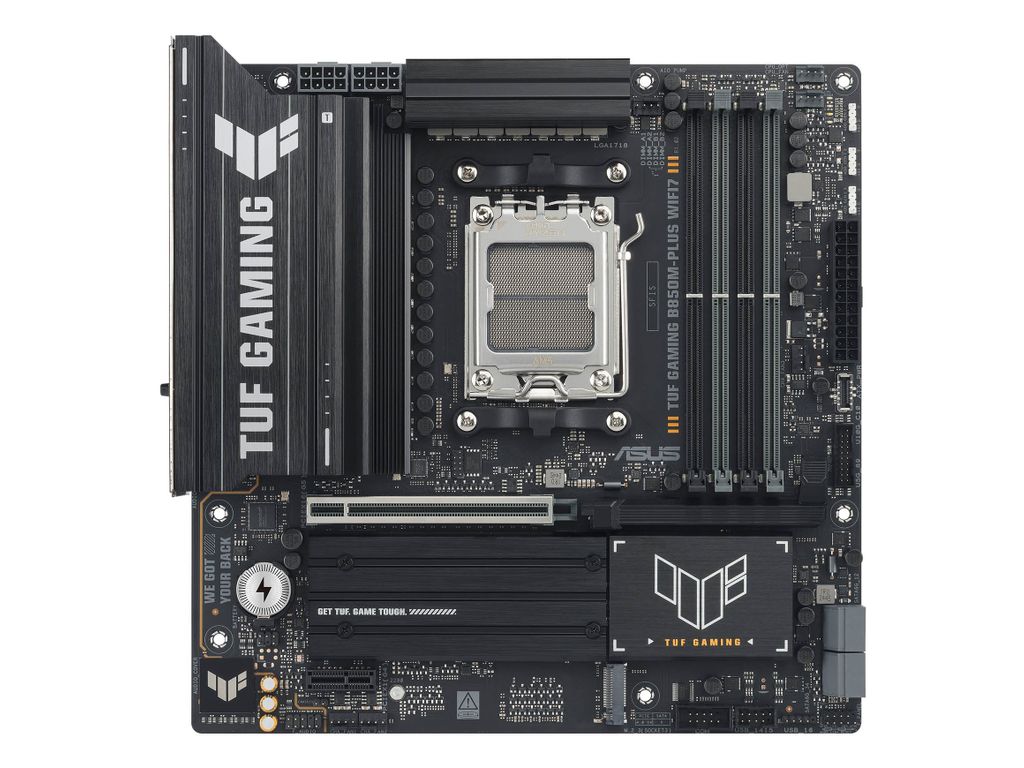

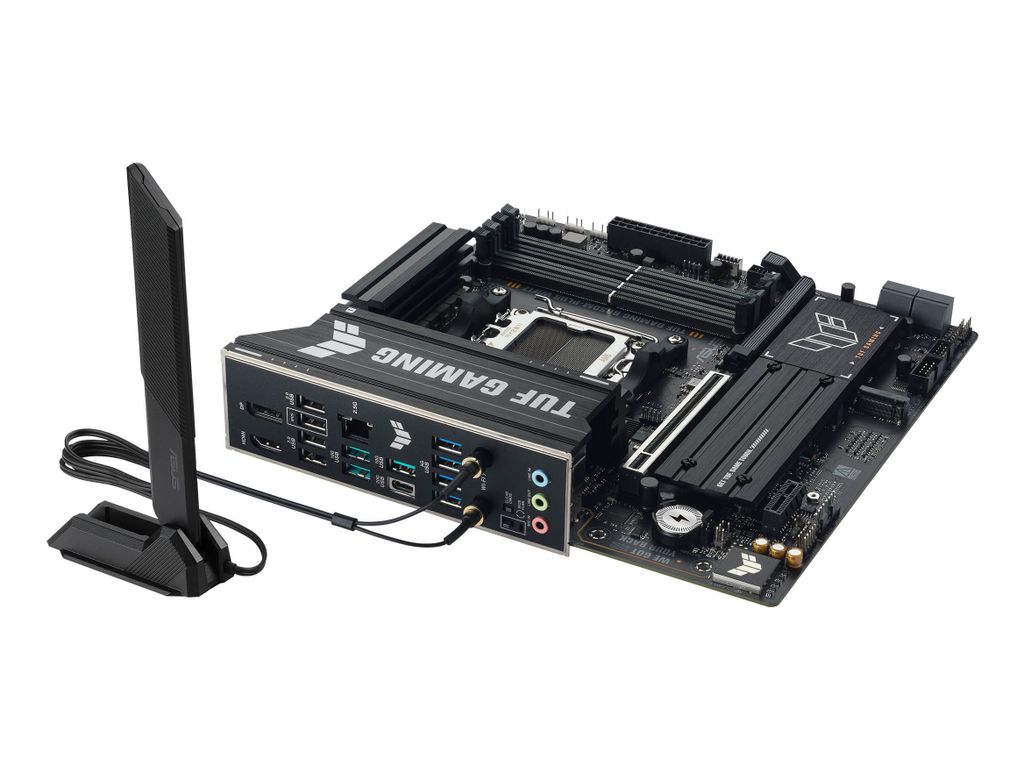

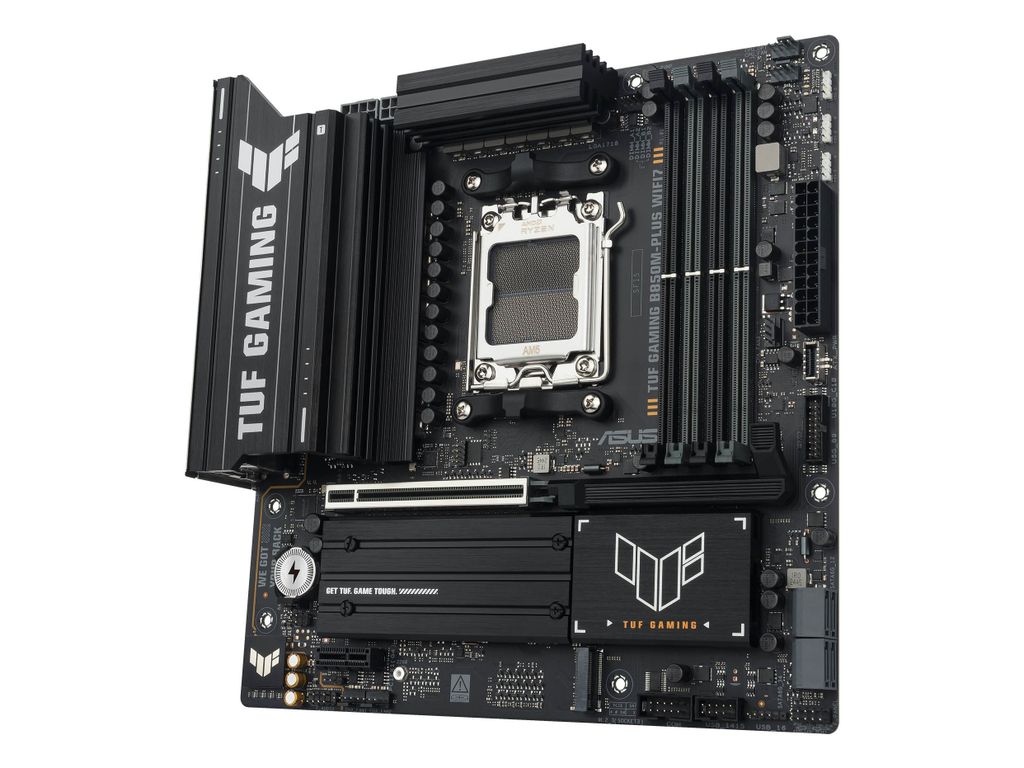

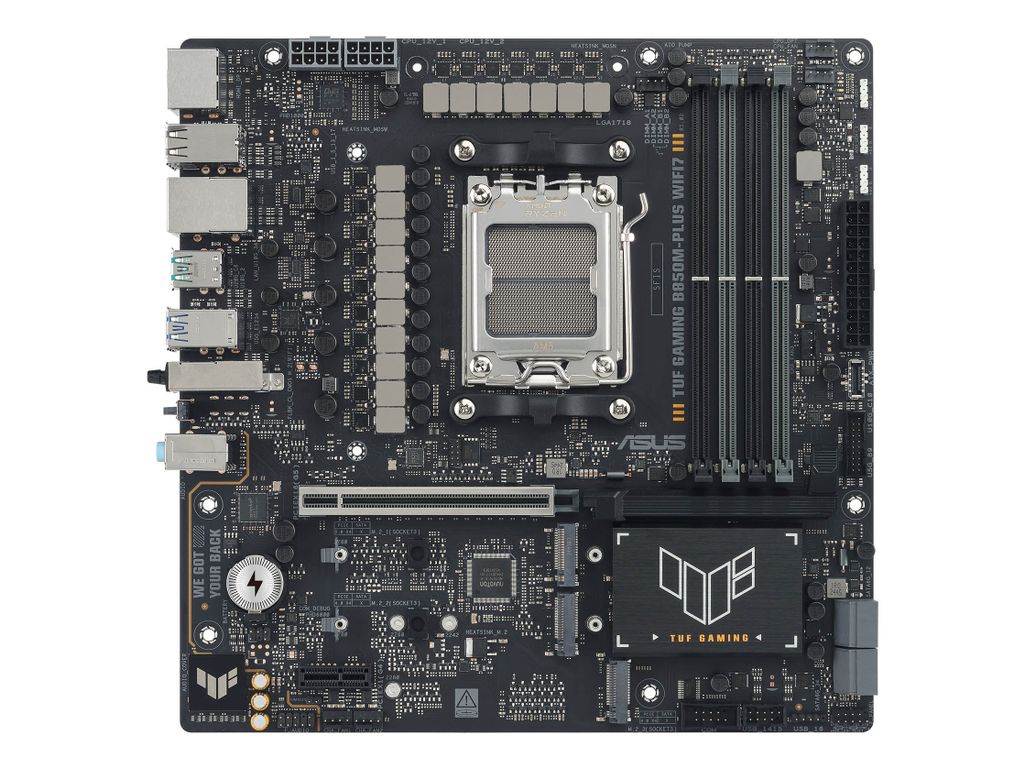

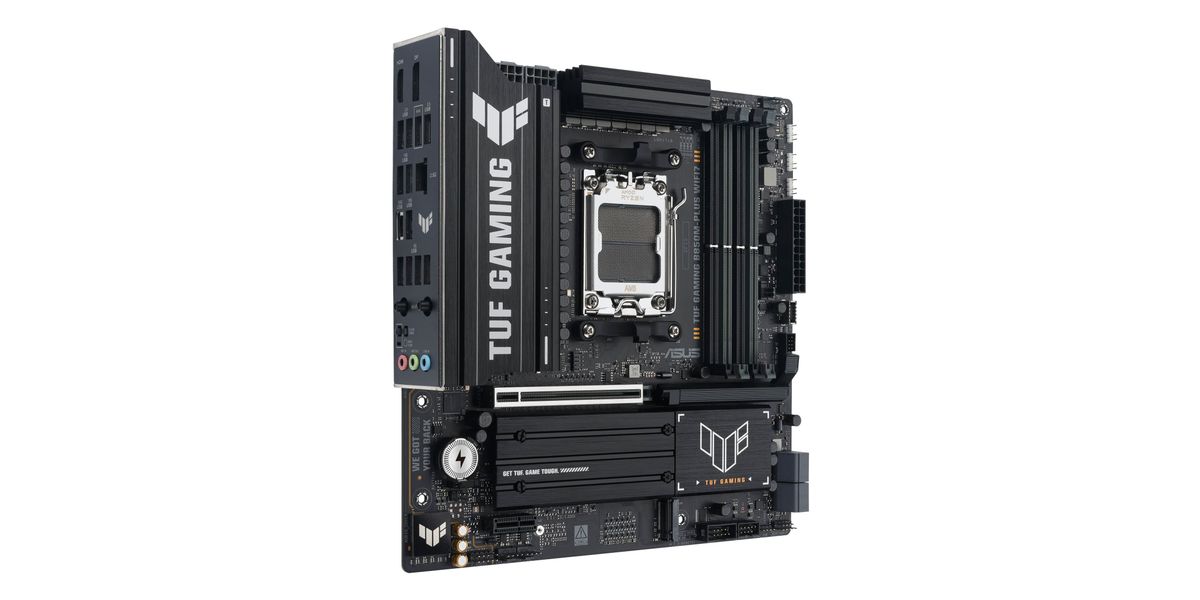

MB ASUS TUF GAMING B850M-PLUS WIFI7 (AMD,AM5,DDR5,mATX)
Product code: 19664123 // MPN: 90MB1MU0-M0EAY0 // EAN: 4711636179027
€380,35 (inc. VAT)
8-12 business days (16 pcs available)
Similar products
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8000 MT/s (O.C.) |
| Supported RAM Integrity Check | On-die ECC, non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Mediatek MT7925 |
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x1 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | AMD RAID Xpert2 Technology |
| Interfaces | 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0 2 x aerial 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 3 x USB 2.0 - header 1 x audio - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS Aura Sync, TUF LANGuard, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack button, BIOS FlashBack LED, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, VRM heatsink design, 14+2+1 Phase Power Design, DIY Friendly Design, chipset heatsink, 8 Layer PCB, TUF 5K black metallic capacitors, PCH heatsink |
| Miscellaneous | Miscellaneous |
| Included Accessories | ASUS Wi-Fi Q-antenna, TUF GAMING sticker, 1 x M.2 rubber package, M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, Norton 360 for Gamers (60 days trial), TurboV Core, WinRAR (40 days trial), DTS Audio Processing |
| Width | 24.4 cm |
| Depth | 24.4 cm |
