| Product Type |
Motherboard - micro ATX |
| Chipset Type |
AMD B850 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM |
Supported RAM |
| Max Size |
256 GB |
| Technology |
DDR5 |
| Bus Clock |
4800 MT/s, 5600 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6400 MT/s (O.C.), 8200 MT/s (O.C.) |
| Supported RAM Integrity Check |
Non-ECC, on-die ECC |
| Registered or Buffered |
Unbuffered |
| Features |
AMD EXPO technology, dual channel memory architecture |
| Audio |
Audio |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALC897 |
| Compliant Standards |
High Definition Audio |
| LAN |
LAN |
| Network Controller |
Realtek RTL8126VB |
| Network Interfaces |
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity |
Expansion / Connectivity |
| Expansion Slots |
1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 3.0 x16 (x1 mode) 1 x PCIe 4.0 x16 (x4 mode) 2 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces |

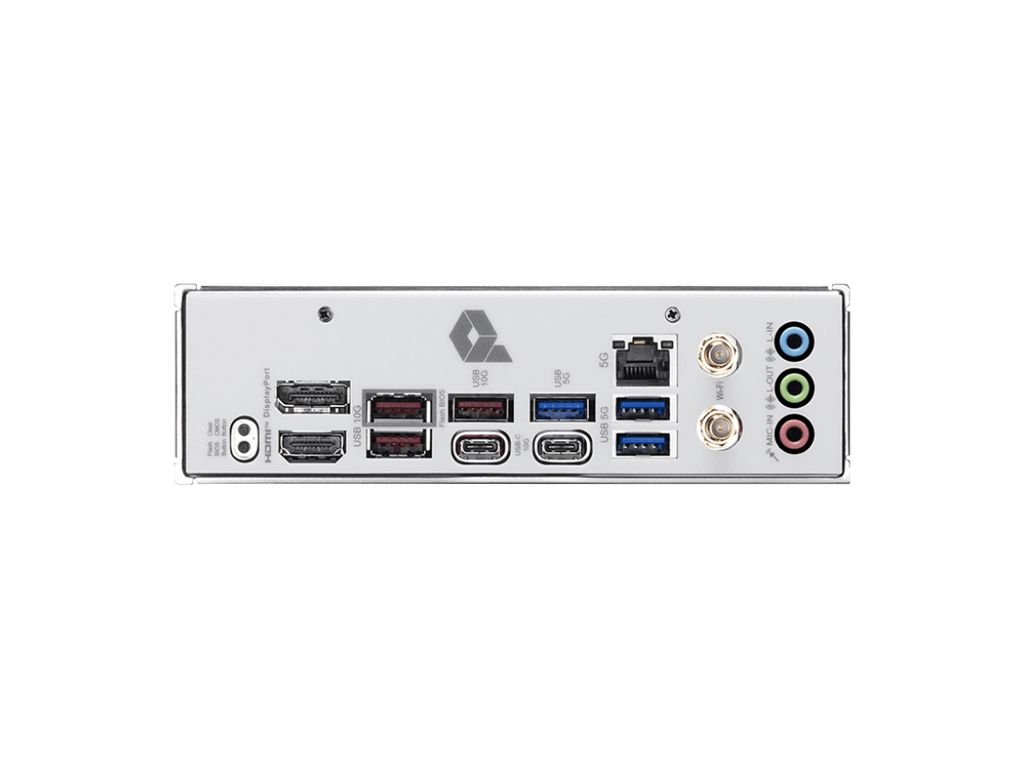

1 x HDMI 2 x USB-C 3.2 Gen 2 3 x USB 3.2 Gen 1 3 x USB 3.2 Gen 2 1 x DisplayPort 1 x LAN (5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial |
| Internal Interfaces |
4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x serial - header 1 x SPI - header |
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features |
Features |
| BIOS Type |
AMI |
| BIOS Features |
MSI ClickBIOS |
| Hardware Features |
MSI EZ DIY, 8+2+1 Phase Power Design, MSI EZ OC, Extended Heatsink Design, M.2 Shield FROZR, pre-mounted I/O shield, MSI AI Engine, MSI AI LAN Manager, Frozr AI Cooling, 6 Layer PCB, 2oz Copper PCB, overvoltage protection, MSI Memory Boost, transient voltage suppressors, MSI Stainless Steel Back I/O, overcurrent protection, MSI Steel Armor, MSI Audio Boost, MSI Mystic Light |
| Miscellaneous |
Miscellaneous |
| Included Accessories |
EZ Wi-Fi antenna, 2 x EZ M.2 clip II, EZ M.2 clip II remover |
| Cables Included |
1 x Serial ATA cable |
| Software Included |
MSI Center |
| Width |
24.384 cm |
| Depth |
24.384 cm |
