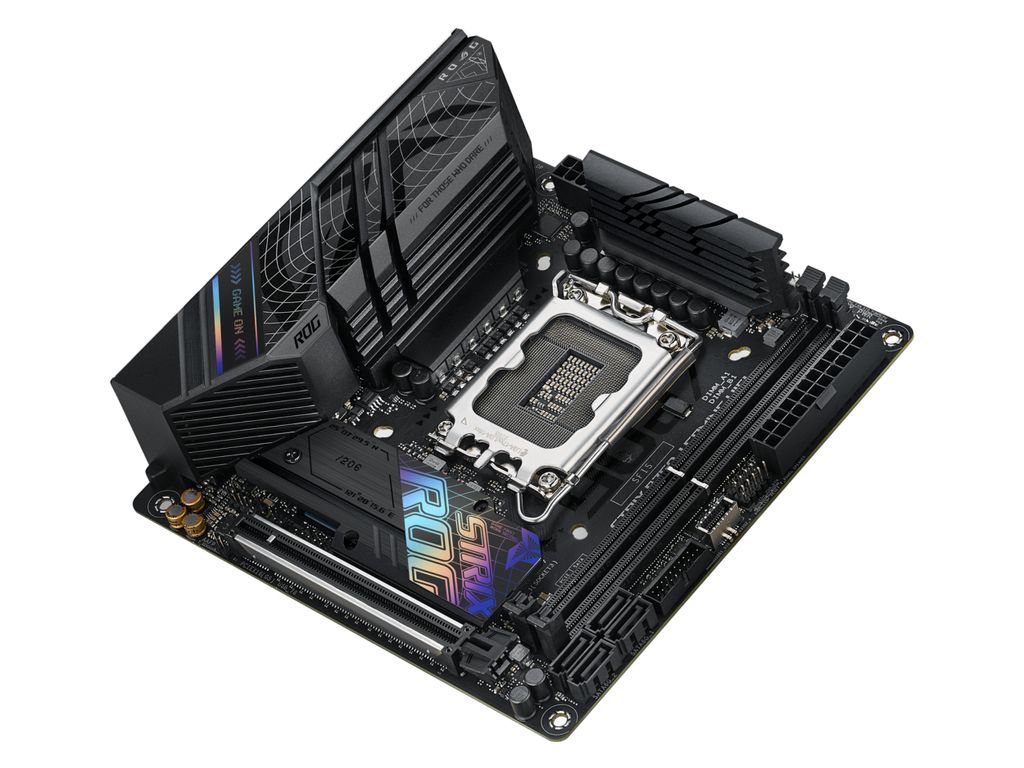

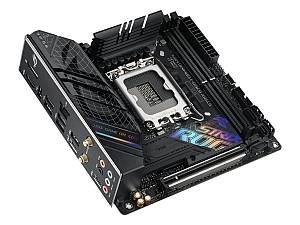

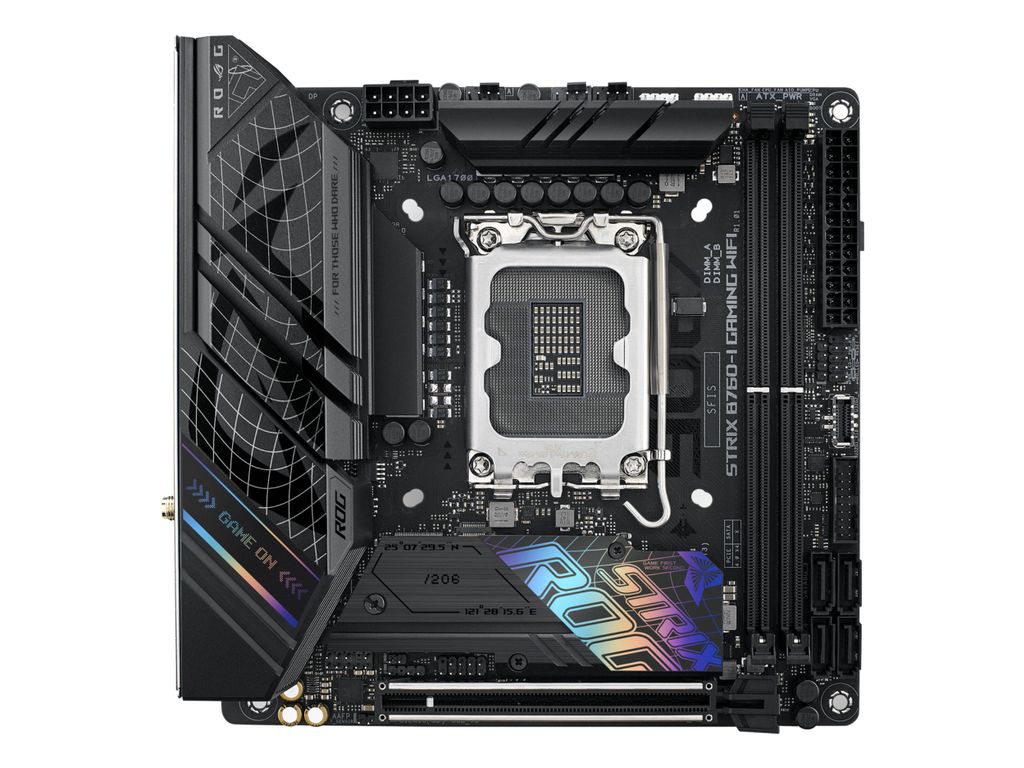

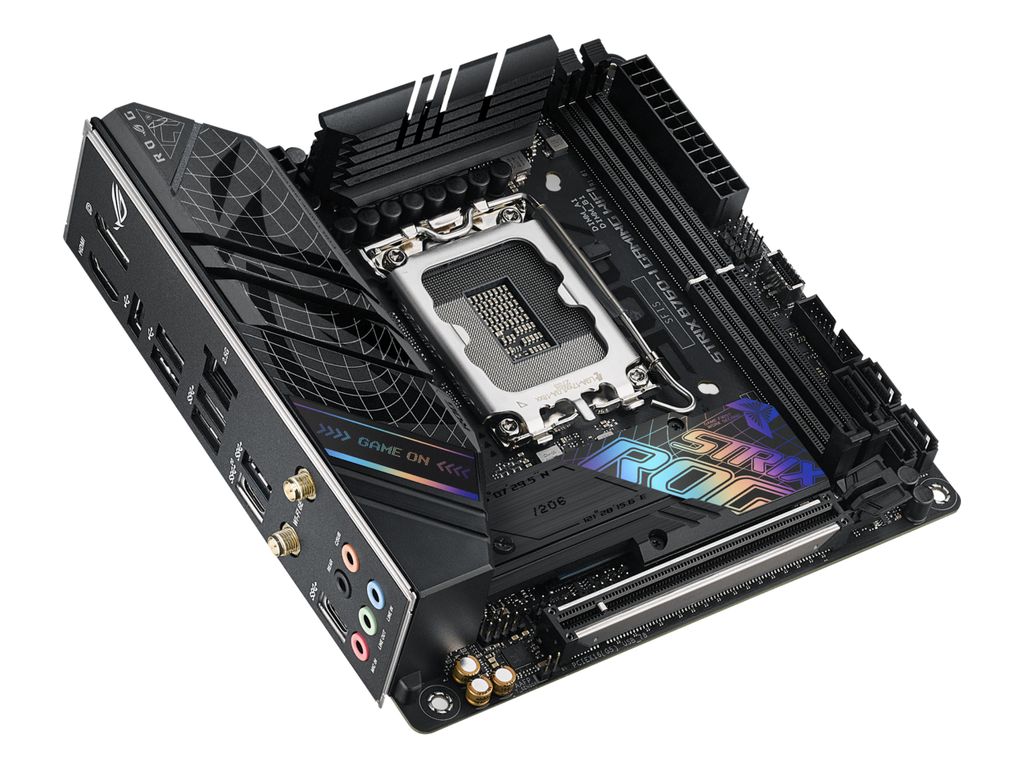

MB ASUS ROG STRIX B760-I GAMING WIFI (Intel,1700,DDR5,mITX)
Product code: 19670523 // MPN: 90MB1D90-M1EAY0 // EAN: 4711081997658
€223,05 (inc. VAT)
8-12 business days (208 pcs available)
Similar products
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7466 MHz (O.C.), 7600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

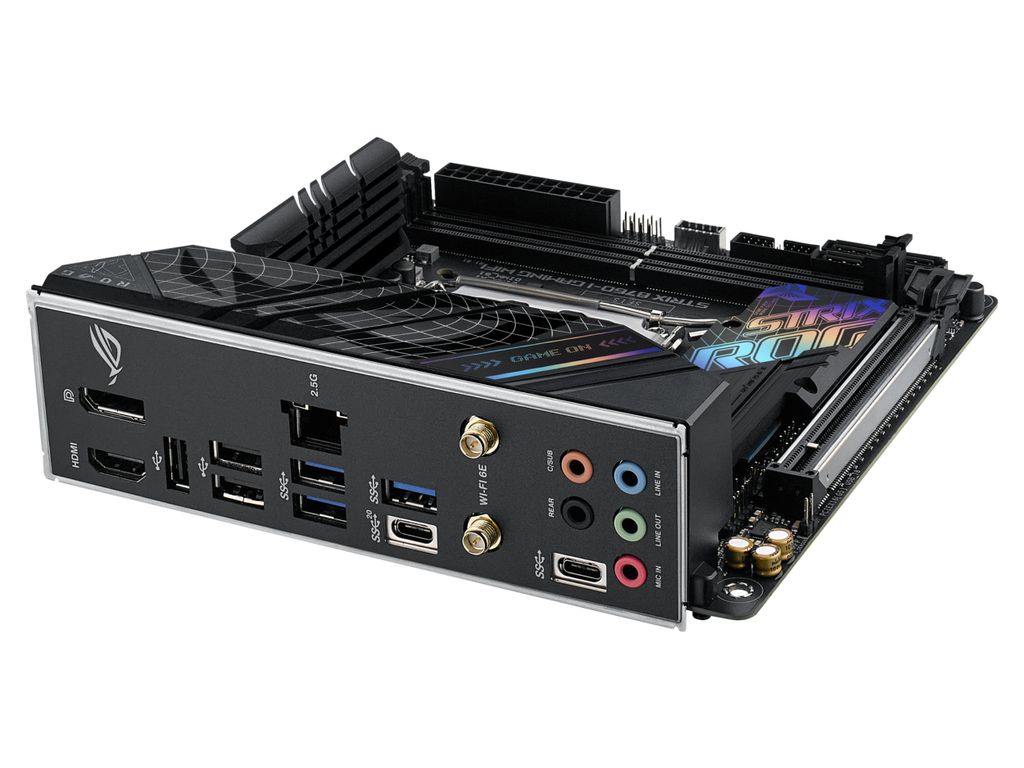

| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 3 x USB 2.0 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 2 x aerial 1 x audio line-out - mini-jack 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x audio - header 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, Savitech SV3H712 amplifier, audio jack detect technology, jack retasking, Preboot eXecution Environment (PXE), SupremeFX Shielding technology, Windows 11 compatible, CrashFree BIOS 3, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, ASUS EZ DIY, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, 8+1 Phase Power Design, 8 Layer PCB, Water Pump Header, DIY Friendly Design |
| Miscellaneous | Miscellaneous |

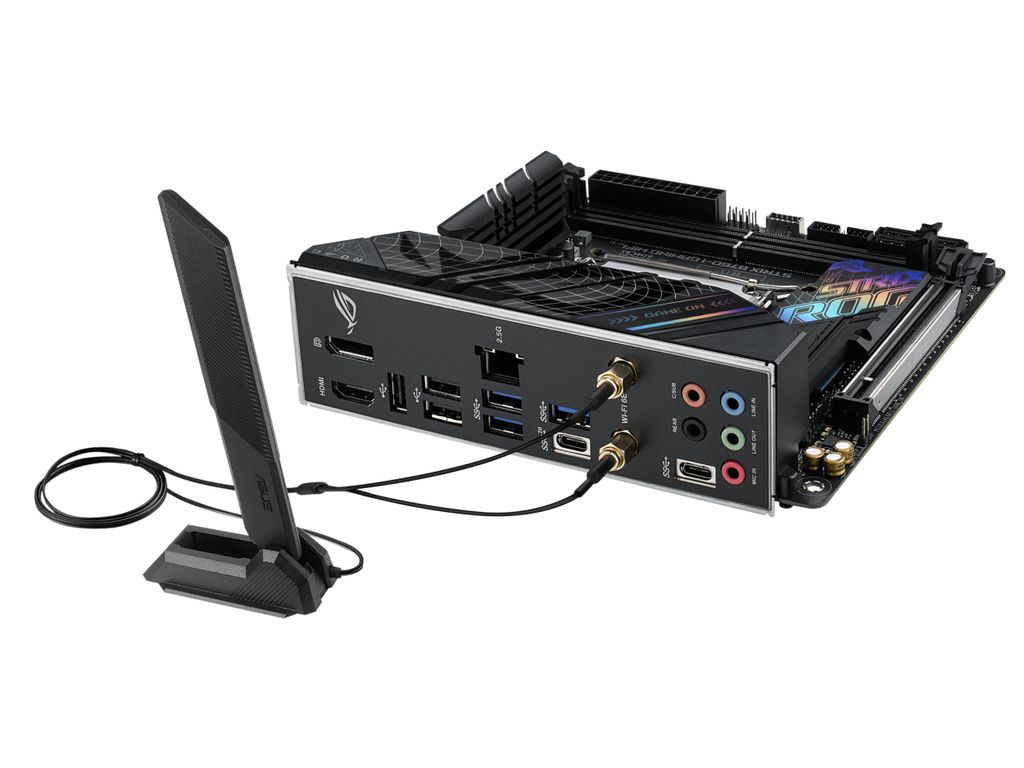

| Included Accessories | ASUS Wi-Fi moving aerial, cable ties, 1 x M.2 rubber package, thermal pad for M.2 SSD, 2 x M.2 screw package, M.2 bracket, ROG key chain, STRIX stickers, ROG thank you card, panel cable |
| Cables Included | 2 x Serial ATA cable 1 x USB 2.0 splitter cable 1 x panel cable |
| Software Included | ROG CPU-Z, Sonic Studio III, Sonic Radar III, Sonic Studio Virtual Mixer, Sonic Suite Companion, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, Armoury Crate, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR, ROG GameFirst VI |
| Width | 17 cm |
| Depth | 17 cm |
