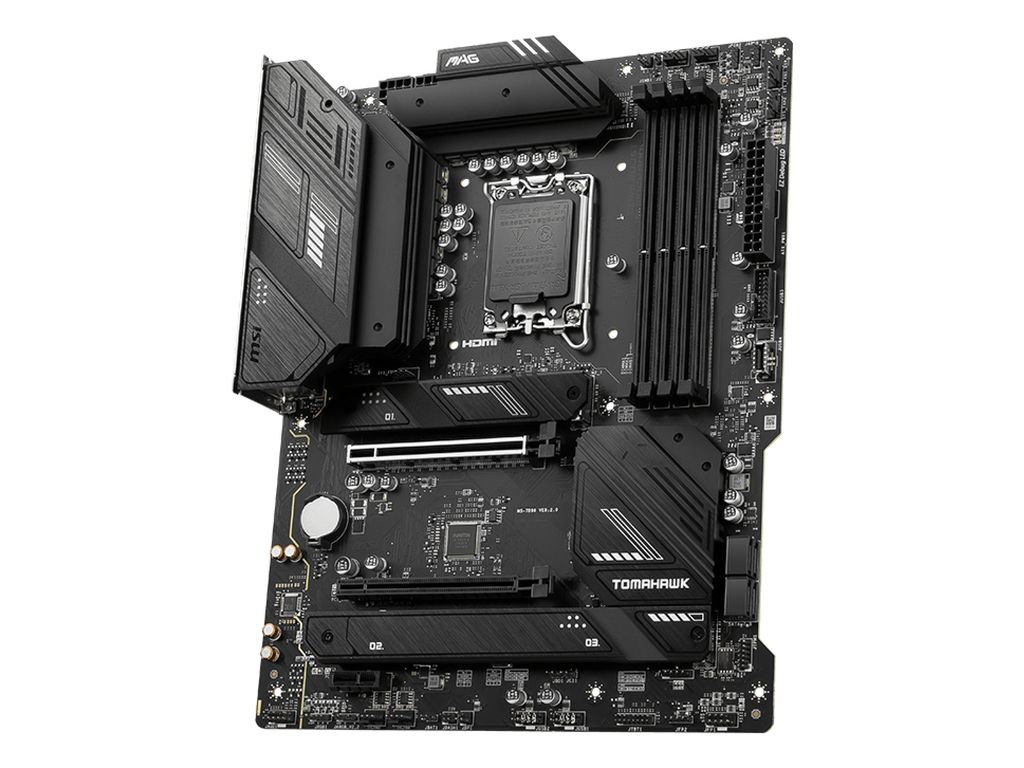

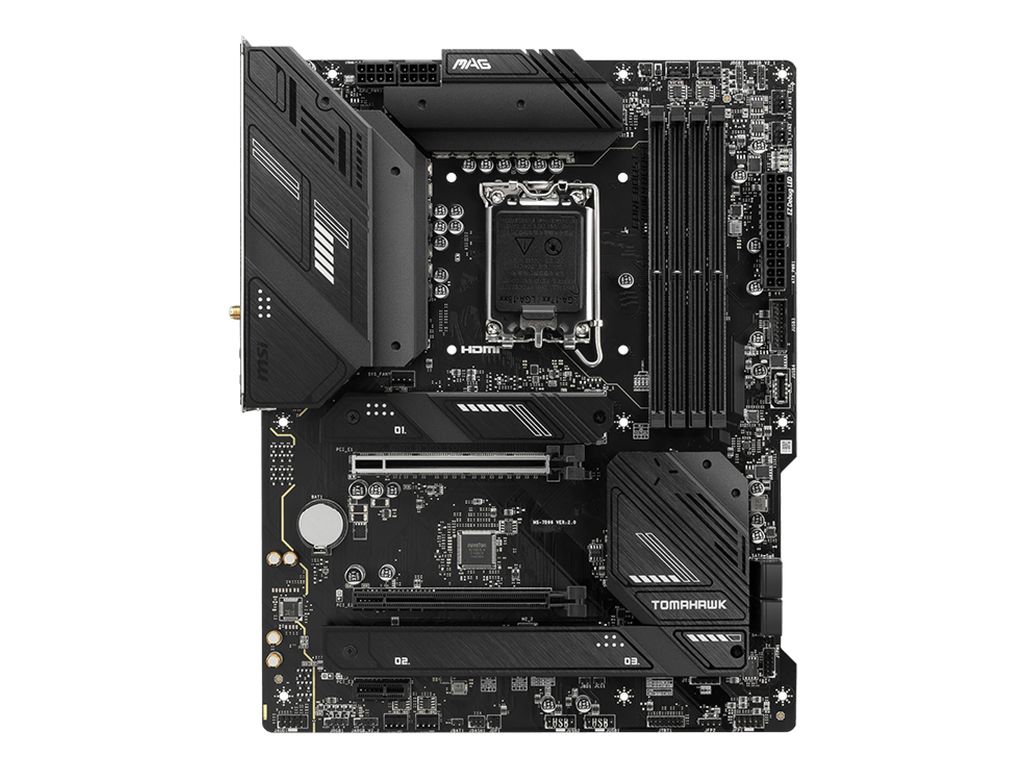

MSI MAG B760 TOMAHAWK WIFI (B760,S1700,mATX,DDR5)
Product code: 19670923 // MPN: 7D96-003R // EAN: 4711377034210
€223,20 (inc. VAT)
8-12 business days (58 pcs available)
Similar products
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |

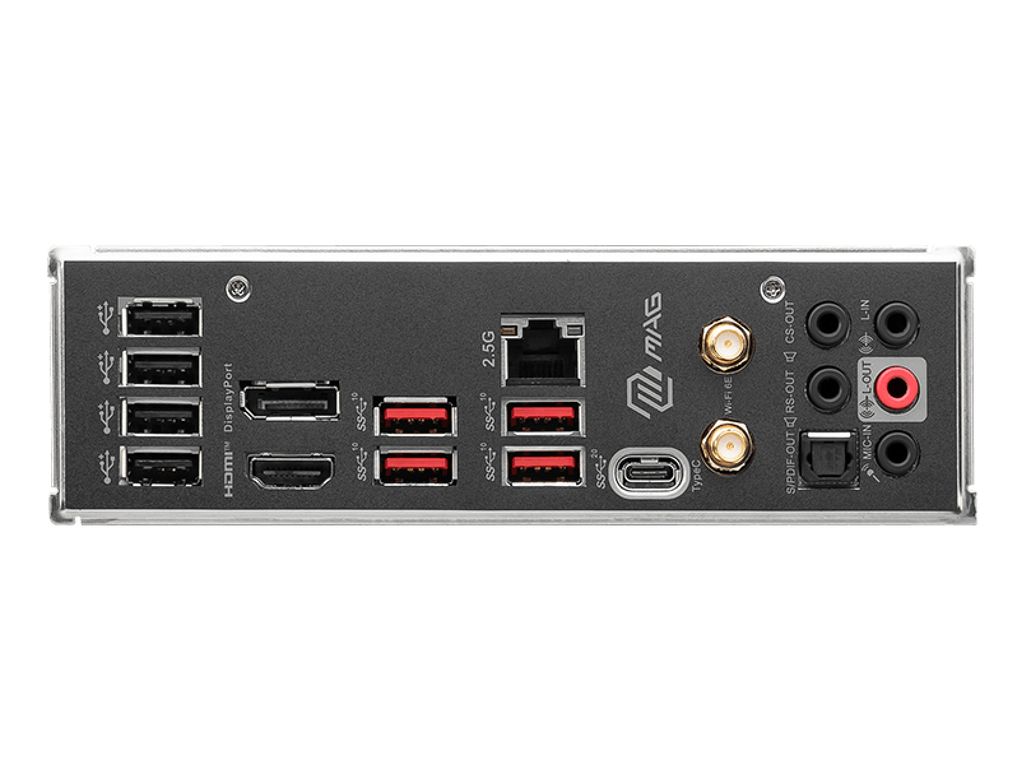

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Features | M-Flash, MSI ClickBIOS 5 |
| Hardware Monitoring | CPU core temperature, chassis temperature, system voltage, CPU core voltage |
| Hardware Features | Digital PWM, MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, overvoltage protection, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, 12+1+1 Phase Power Design, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Surface Mount Technology (SMT), VRM heatsink design, MSI Memory Boost, load-line calibration (LLC) |
| Miscellaneous | Miscellaneous |

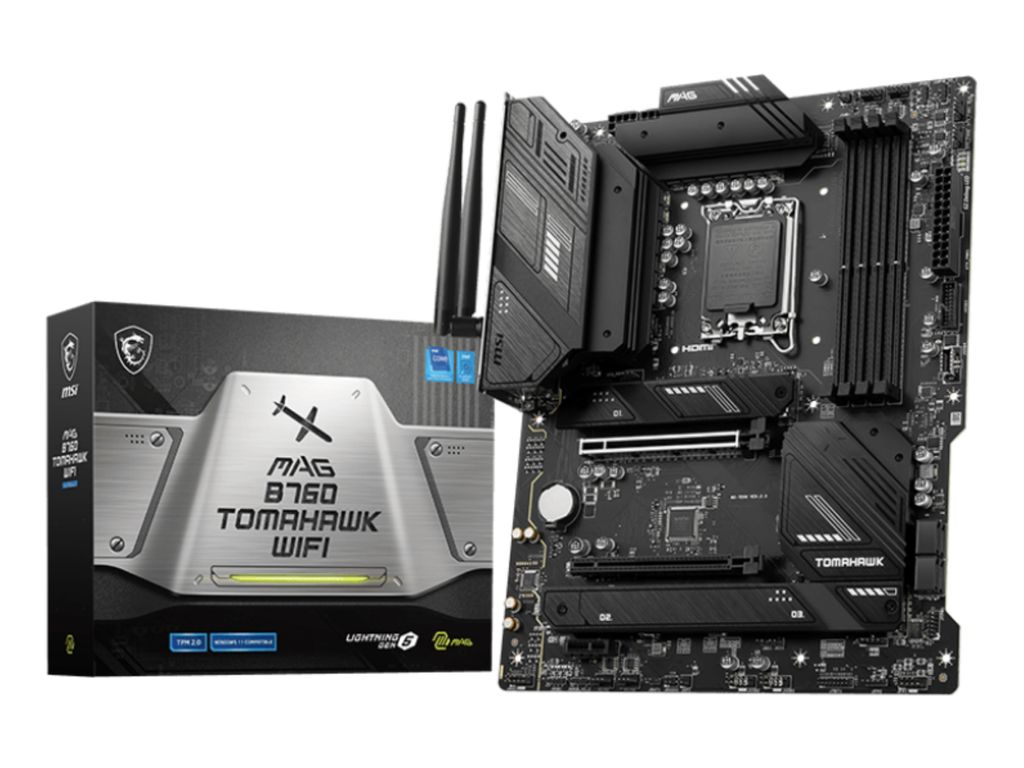

| Included Accessories | Cable stickers, EZ M.2 clip, 2 x Wi-Fi aerial |
| Cables Included | 1 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial) |
| Compliant Standards | WEEE, FCC Part 15 Class B, DisplayPort 1.4 |
| Width | 30.48 cm |
| Depth | 24.348 cm |
| All in one: | |
| Brand: | MSI |
| Gaming: |
