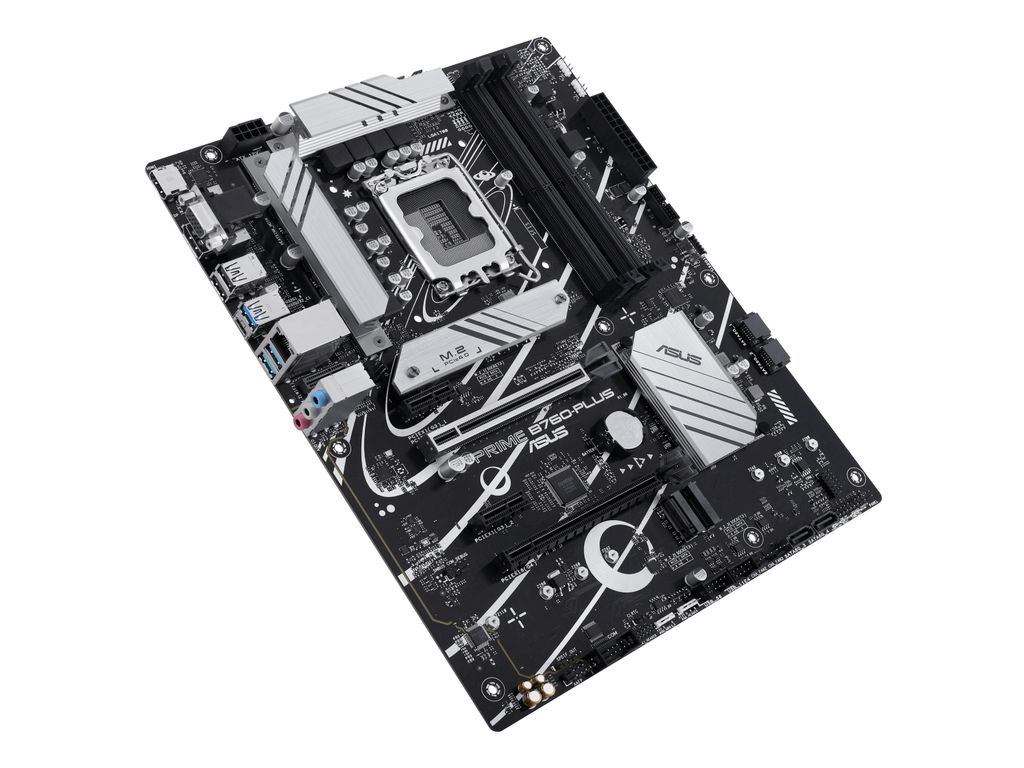

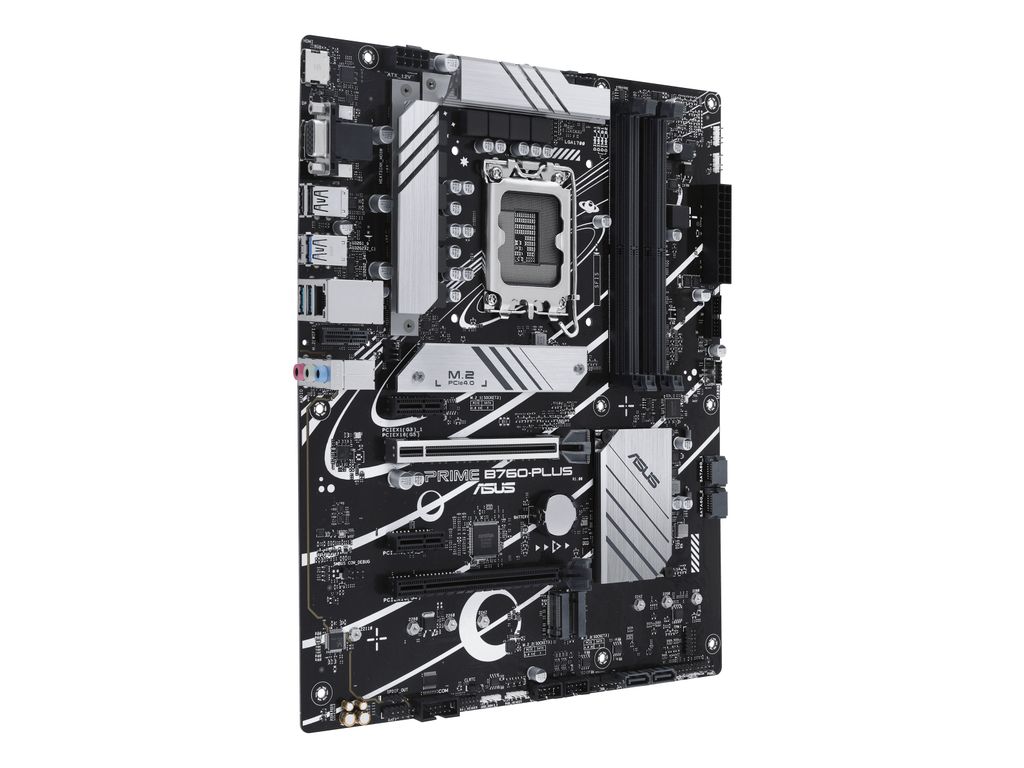

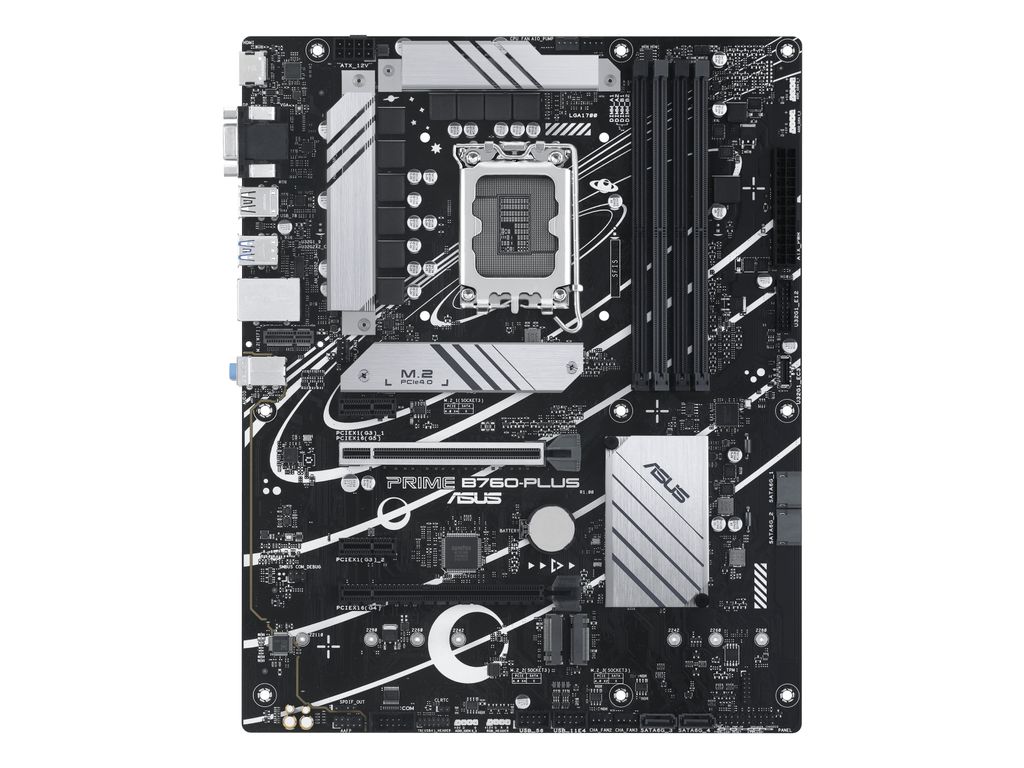

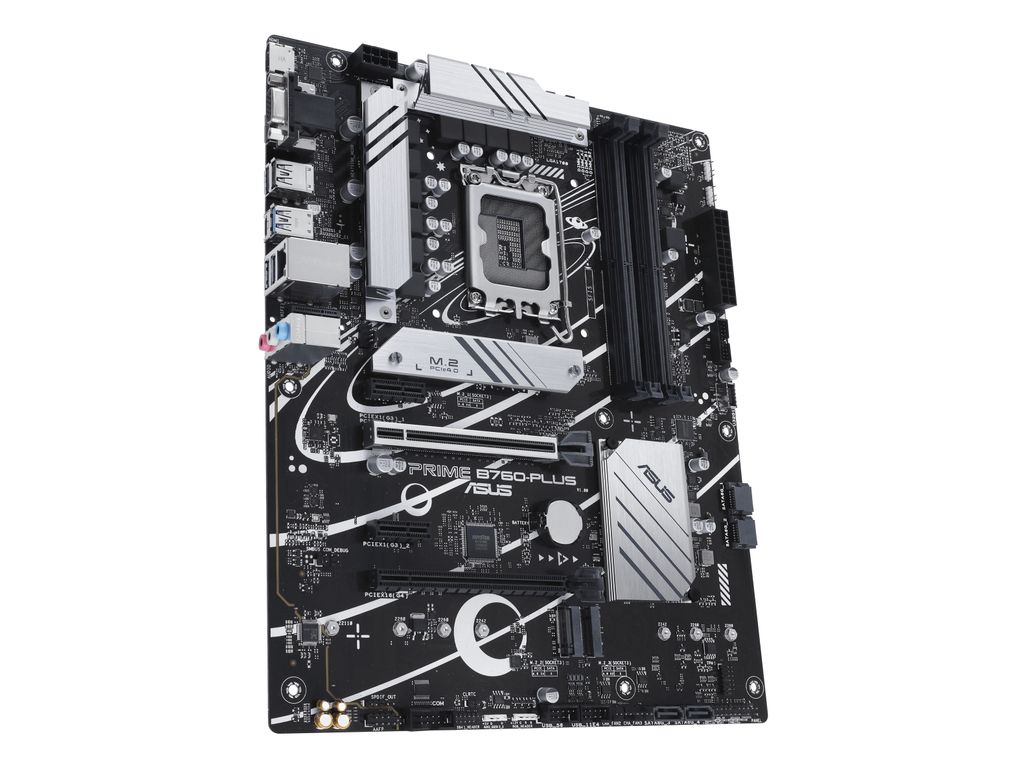

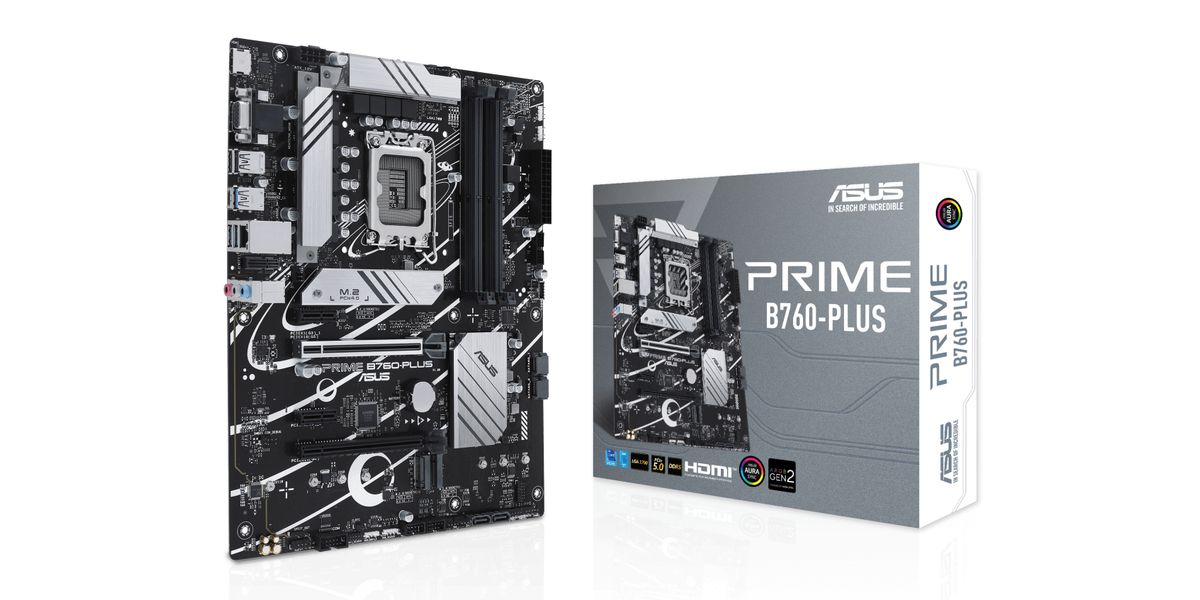

MB ASUS PRIME B760-PLUS (Intel,1700,DDR5,ATX)
Product code: 19672123 // MPN: 90MB1EF0-M1EAY0 // EAN: 4711387102985
€184,40 (inc. VAT)
8-12 business days (500 pcs available)
Similar products
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x DisplayPort 1 x VGA 1 x HDMI 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPDIF out - header 1 x SPI - header 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS UEFI BIOS EZ Mode, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS OptiMem II, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, LANGuard, M.2 heatsink, overvoltage protection, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, audio jack detect technology, jack retasking, DIY Friendly Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 1 x M.2 rubber package, 2 x M.2 SSD screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| All in one: | |
| Gaming: |
