| Product Type |

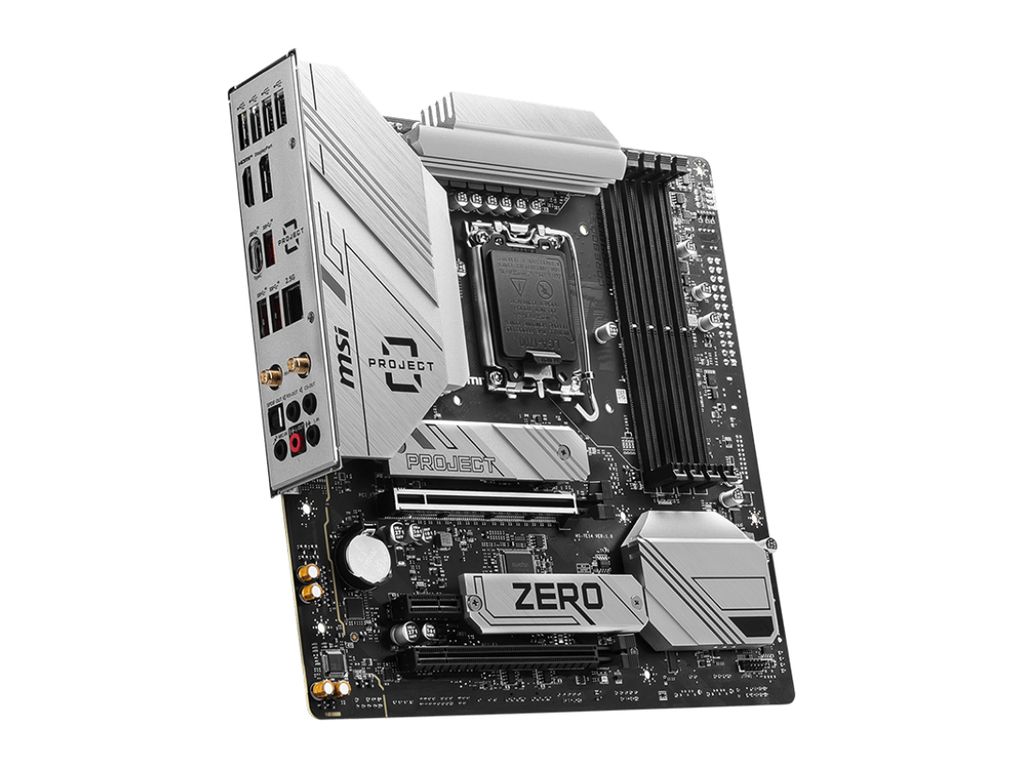

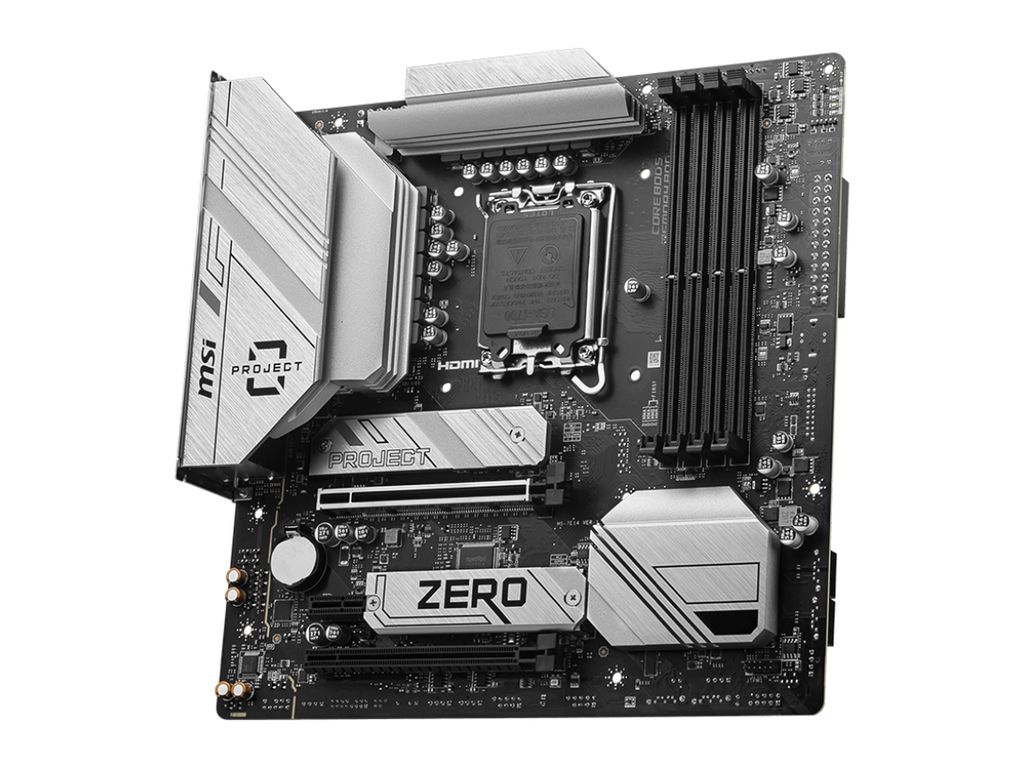

Motherboard - micro ATX |
| Chipset Type |
Intel B760 |
| Processor Socket |
LGA1700 Socket |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM |
Supported RAM |
| Max Size |
256 GB |
| Technology |
DDR5 |
| Bus Clock |
5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.) |
| Supported RAM Integrity Check |
Non-ECC |
| Registered or Buffered |
Unbuffered |
| Features |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio |
Audio |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALC897 |
| Compliant Standards |
High Definition Audio |
| LAN |
LAN |
| Network Interfaces |
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity |
Expansion / Connectivity |
| Expansion Slots |
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces |
1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces |
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header |
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features |
Features |
| BIOS Features |
M-Flash, MSI ClickBIOS 5 |
| Hardware Features |
MSI Audio Boost, overcurrent protection, 6 Layer PCB, MSI Mystic Light, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, pre-mounted I/O shield, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Surface Mount Technology (SMT), MSI Memory Boost, EZ Debug LED |
| Miscellaneous |
Miscellaneous |
| Included Accessories |
Wi-Fi aerial, m.2 screw / standoff sets, cable sticker, EZ M.2 clip |
| Cables Included |
1 x Serial ATA cable |
| Software Included |
AIDA64 Extreme (60 days trial), MSI Center, Norton 360 Deluxe (60 days trial) |
| Width |
24.384 cm |
| Depth |
24.384 cm |
| Package Details |
Box |
