| Product Type |

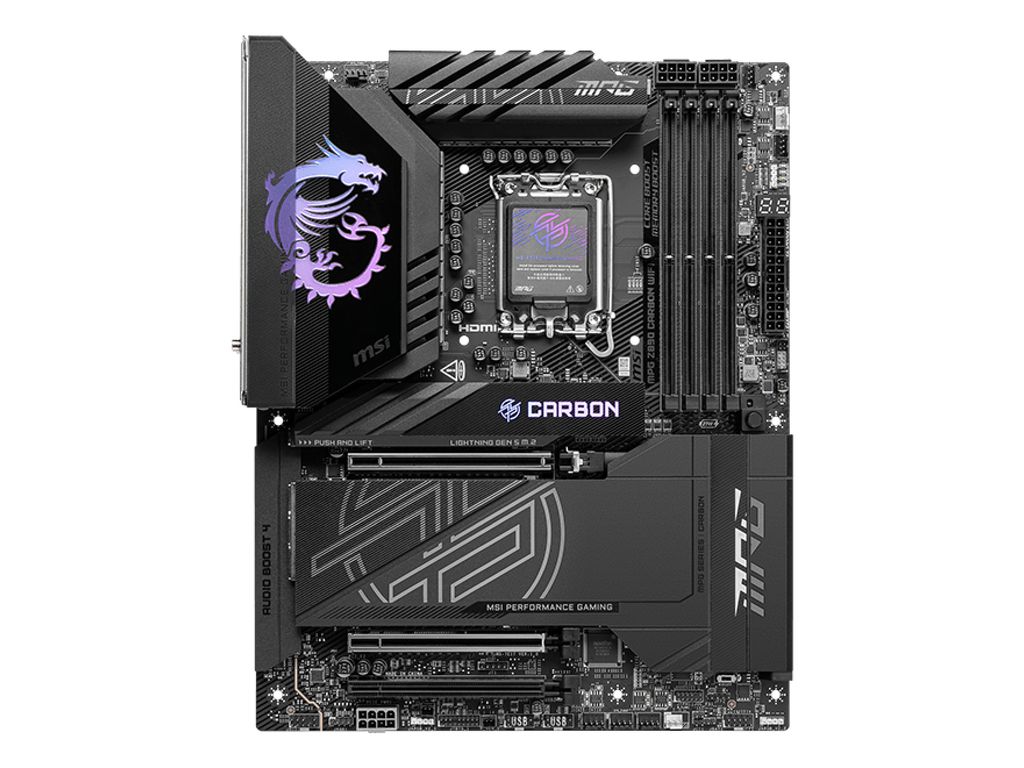

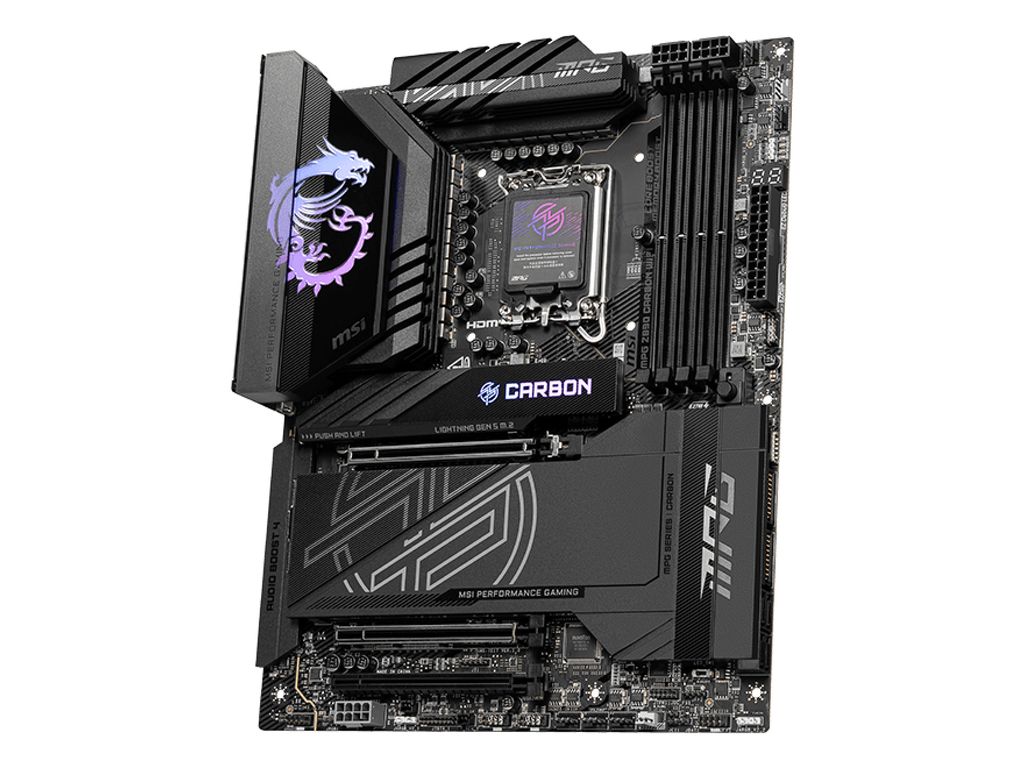

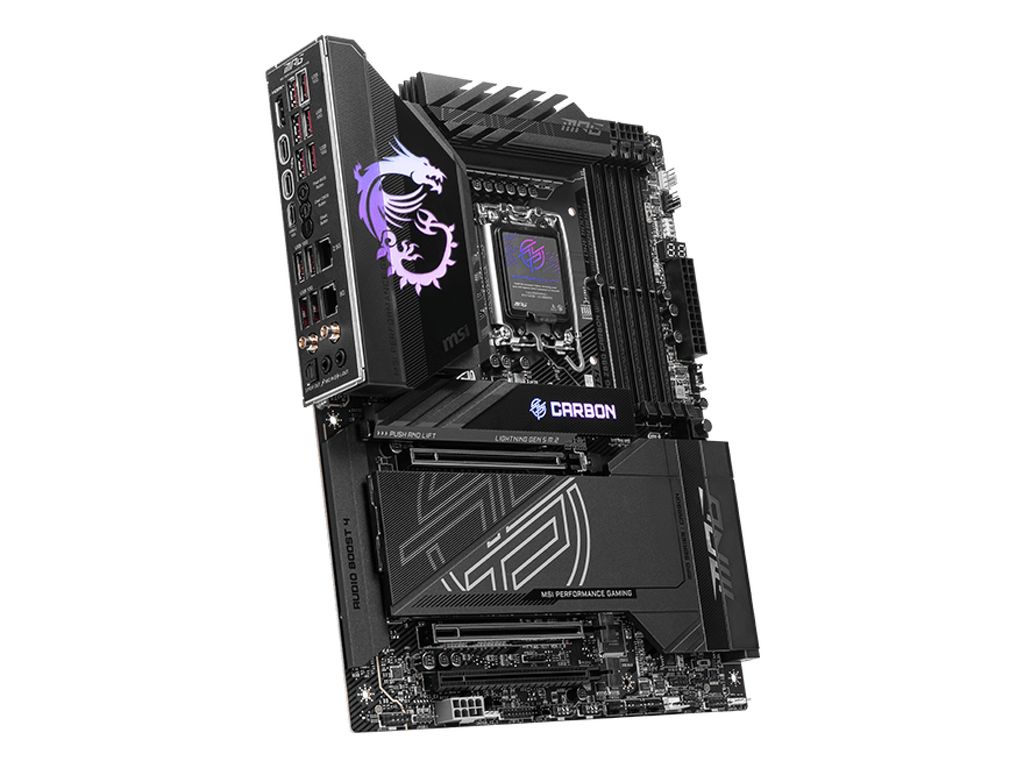

Motherboard - ATX |
| Chipset Type |
Intel Z890 / Nuvoton NCT6687D-M |
| Processor Socket |
LGA1851 Socket |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Intel Core Ultra processors (Series 2)) |
| Supported RAM |
Supported RAM |
| Max Size |
256 GB |
| Technology |
DDR5 |
| Bus Clock |
4600 MHz (O.C.), 3200 MHz (O.C.), 3200 MHz, 2400 MHz, 3600 MHz (O.C.), 2400 MHz (O.C.) |
| Supported RAM Integrity Check |
Non-ECC |
| Registered or Buffered |
Unbuffered |
| Features |
Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Audio |
Audio |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALC1220P |
| Compliant Standards |
High Definition Audio |
| LAN |
LAN |
| Network Controller |
Intel Killer BE1750x / Intel Killer E5000B / Intel I226V |
| Network Interfaces |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity |
Expansion / Connectivity |
| Expansion Slots |
1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) 1 x PCIe 4.0 x16 (x4 mode) 4 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (Key E) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces |

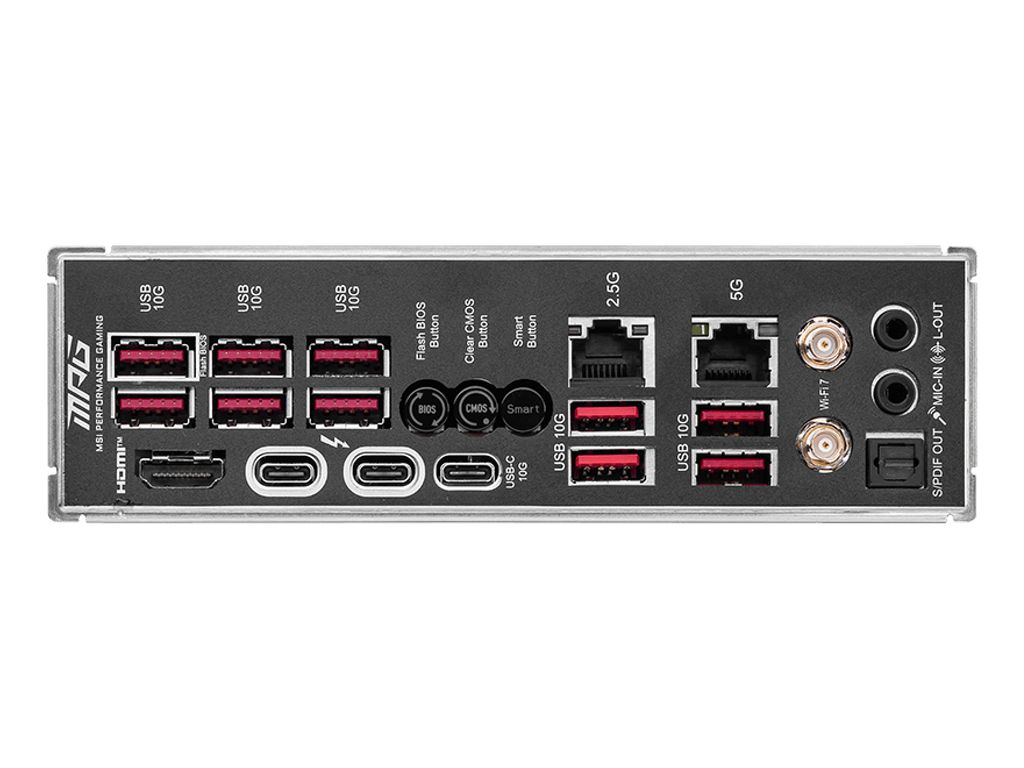

1 x HDMI 10 x USB 3.2 Gen 2 2 x Thunderbolt 4/DisplayPort/USB4 1 x USB-C 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 1 x LAN (5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out 2 x aerial |
| Internal Interfaces |
4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x SPI - header |
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Features |
Features |
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ACPI 6.5 support, SMBIOS 3.7 support, MSI ClickBIOS |
| Hardware Monitoring |
CPU core temperature, chassis temperature, fan speed detection, fan control |
| Hardware Features |
CUDIMM support, Clear CMOS Button, Smart Button, flash BIOS button, Cooling Wizard, EZ Conn-Design, EZ Debug LED, EZ LED control, EZ M.2 Clip II, EZ M.2 Sheild FROZR II, EZ PCIe Release, Frozr AI Cooling, MSI AI Engine, MSI Companion, MSI EZ DIY, MSI LAN Manager, MSI Mystic Light, MSI Steel Armor II, pre-mounted I/O shield, Super Charger+, 2oz Copper PCB, Extended Heatsink Design, lightning gen4 solution, lightning gen5 solution, MSI Audio Boost 4, MSI Core Boost, MSI Memory Boost, 20+1+1+1 Phase Power Design, 8 Layer PCB, Enlarged Chipset Heatsink, Surface Mount Technology (SMT), MSI Stainless Steel Back I/O, overcurrent protection |
| Miscellaneous |
Miscellaneous |
| Included Accessories |

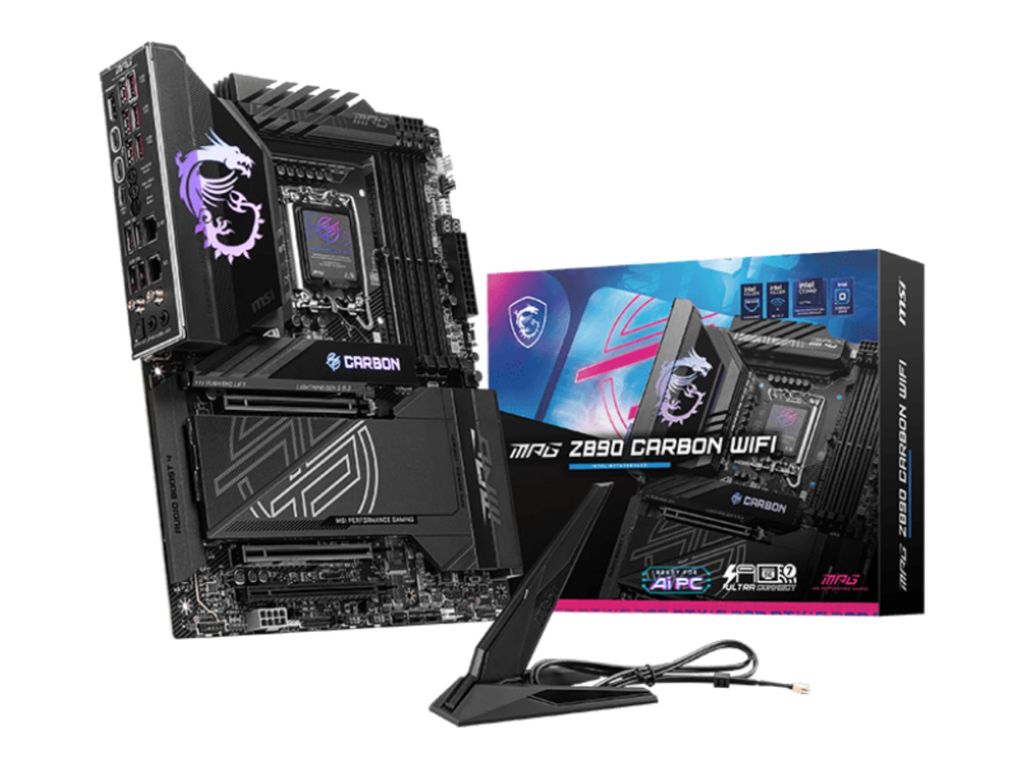

USB drive, 1 to 2 RGB extension cable, ARGB extension cable, EZ front panel cable, 1 to 3 EZ Conn-Cable, EZ Wi-Fi antenna, cable sticker, EZ M.2 clip II, EZ M.2 clip II remover |
| Cables Included |
2 x Serial ATA cable |
| Software Included |
Drivers & Utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, MSI App Player, Intel Extreme Tuning Utility, Intel Killer Networking, Norton 360 |
| Compliant Standards |
JEDEC, DisplayPort 2.1 |
| Width |
30.5 cm |
| Depth |
24.4 cm |
