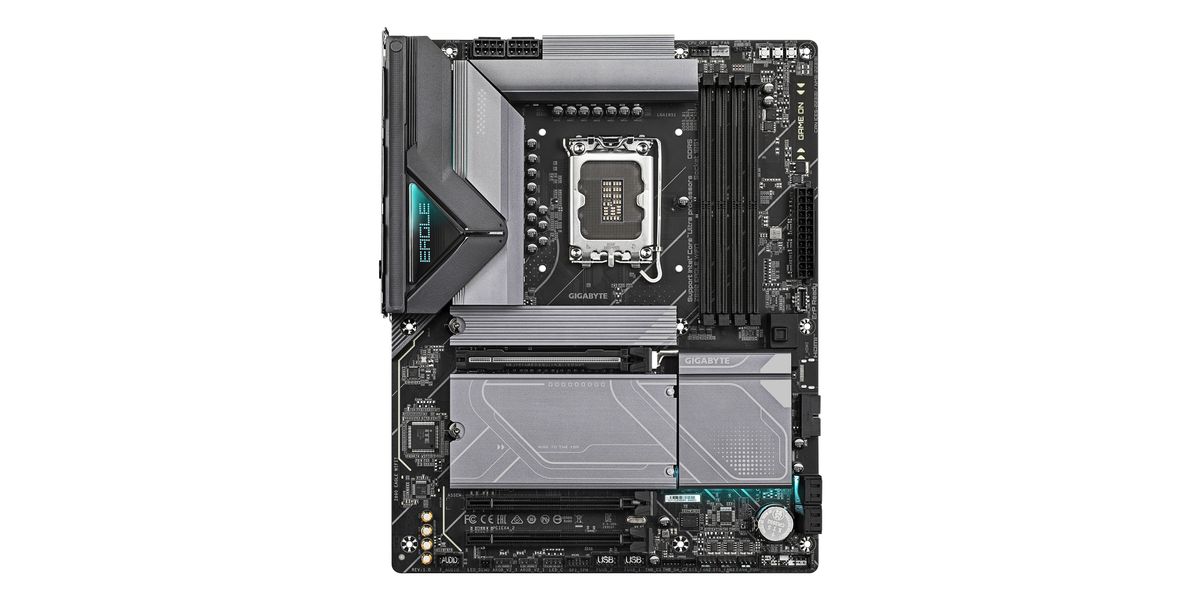

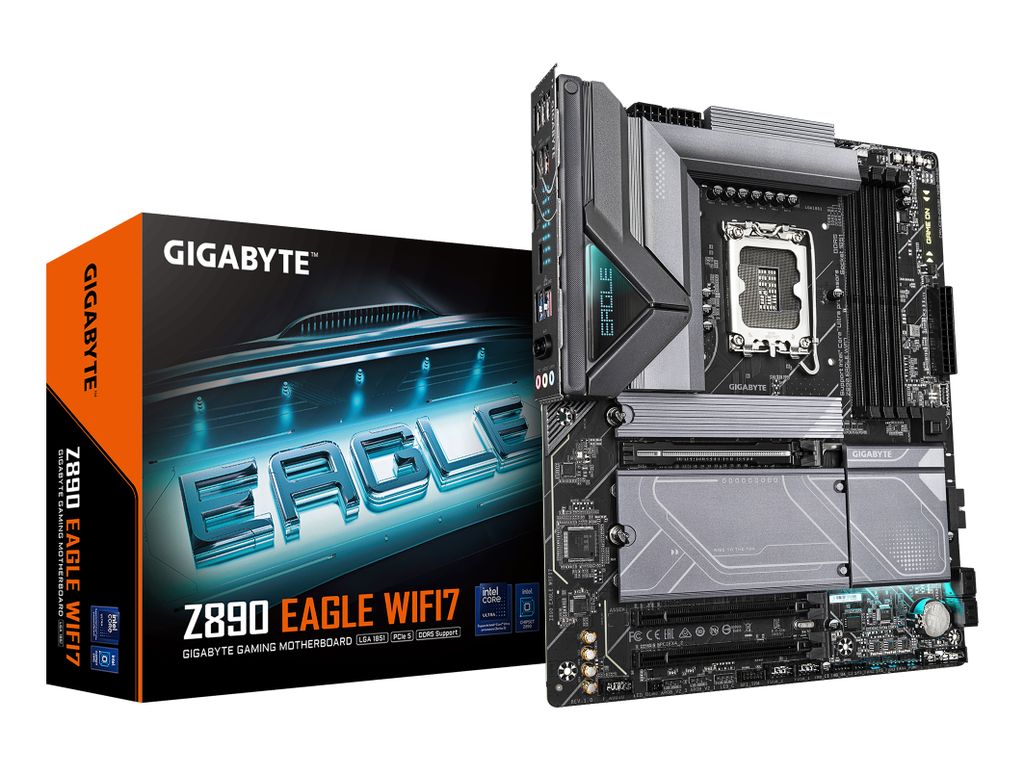

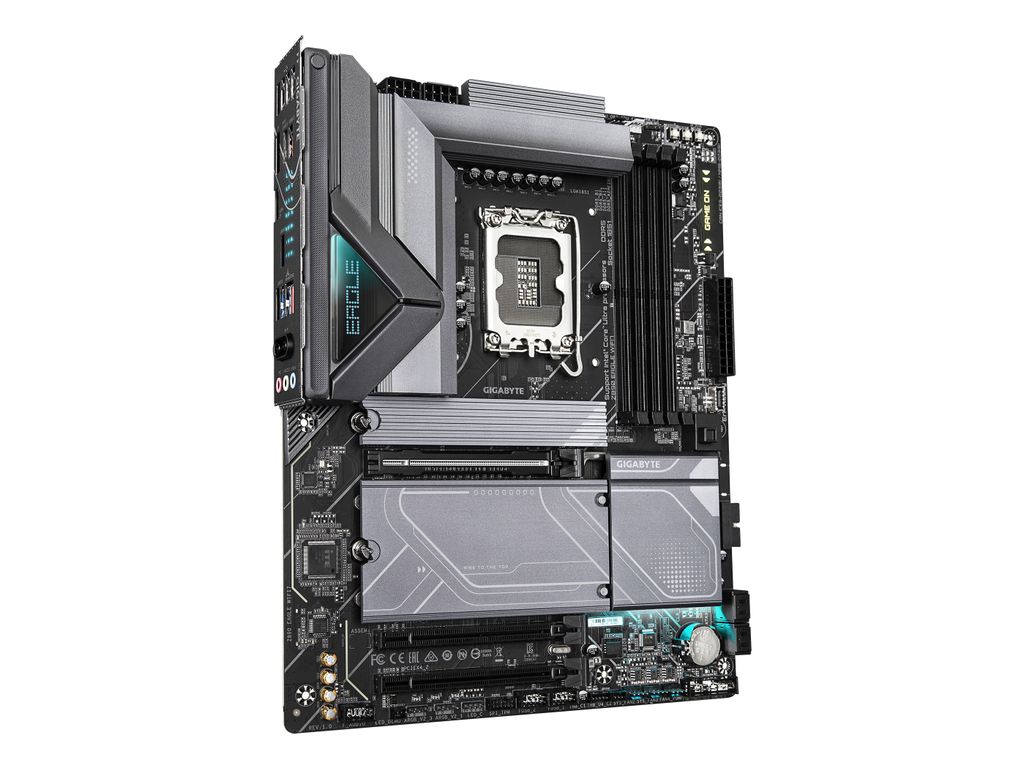

Gigabyte Z890 EAGLE WIFI7 (Z890,S1851,ATX,DDR5)

Κωδικός: 19680923 // Κωδικός προμηθευτή: Z890 EAGLE WIFI7 // EAN: 4719331864927

€258,25 (συμπ. ΦΠΑ)

4-10 εργάσιμες ημέρες (19 τεμάχια διαθέσιμα)

Προσθήκη στη wishlist

Δείτε επίσης

MSI B850 Gaming Plus Wifi (B850,AM5,ATX,DDR5)

Κωδικός: 19656023

€240,50

4-10 εργάσιμες ημέρες

Specifications

Product Type	Motherboard - ATX
Chipset Type	Intel Z890
Processor Socket	LGA1851 Socket
Max Processors Qty	1
Compatible Processors	(supports Intel Core Ultra processors (Series 2))
Supported RAM	Supported RAM
Max Size	256 GB
Technology	DDR5
Bus Clock	4600 MHz (O.C.), 4533 MHz (O.C.), 4467 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz
Supported RAM Integrity Check	Non-ECC, ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio	Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN	LAN
Network Interfaces	Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 3 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces	1 x Thunderbolt 4/DisplayPort/USB4 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x DisplayPort 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in
Internal Interfaces	1 x USB-C 3.2 Gen 2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Features	Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring	Fan control, fan fail warning, fan speed detection, system voltage, temperature detection
Hardware Features	CUDIMM support, Q-Flash, Q-Flash Plus, power button, Q-Flash Plus button, reset button, 14+1+2 Phase Power Design, AI Perfdrive, WIFI EZ-Plug, 2x Copper PCB, DIY Friendly Design, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 Thermal Guard, M.2 Thermal Guard Ext., PCIe EZ Latch Plus, RGB FUSION, VRM Thermal Armor Advanced, AI Overclocking, EZ Debug LED, AI SNATCH Engine, VRM heatsink design, GIGABYTE Smart Fan 6, Ultra Durable
Miscellaneous	Miscellaneous
Included Accessories	Wi-Fi aerial
Cables Included	2 x SATA Express cable
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO
Width	30.5 cm
Depth	24.4 cm
