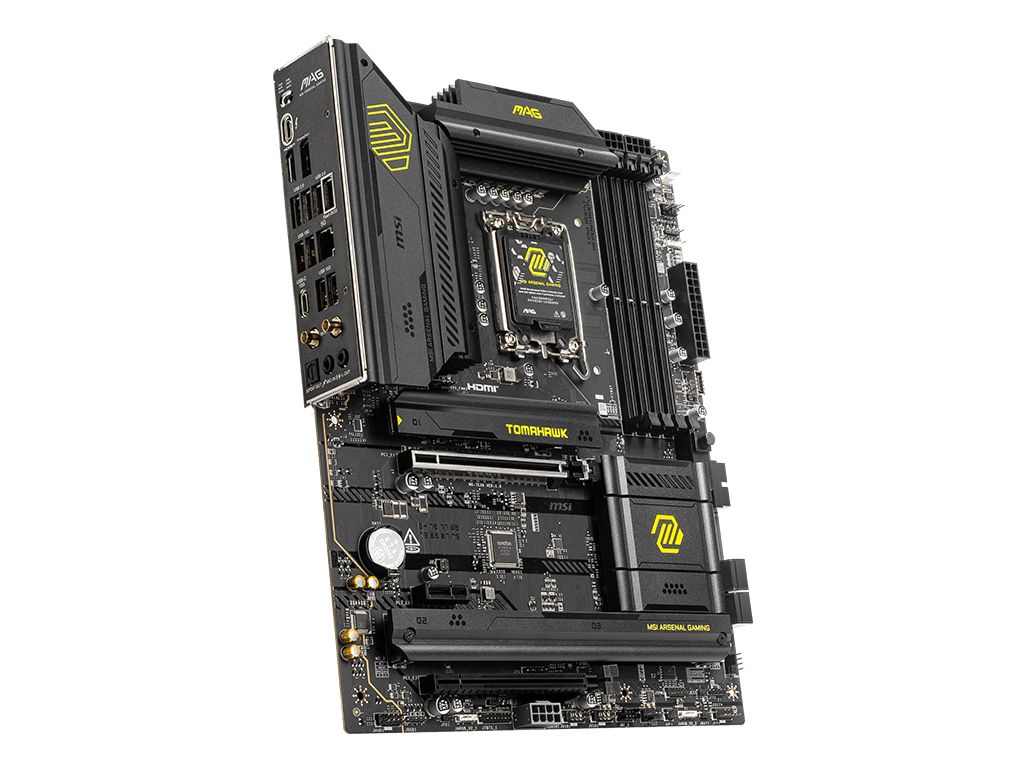

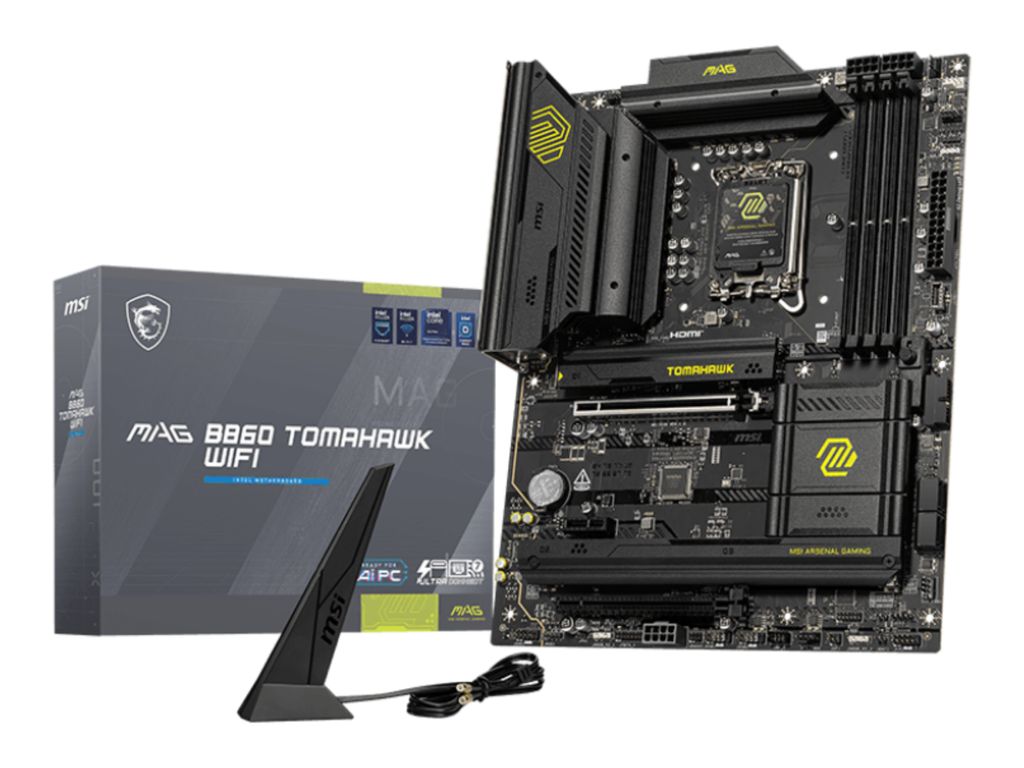

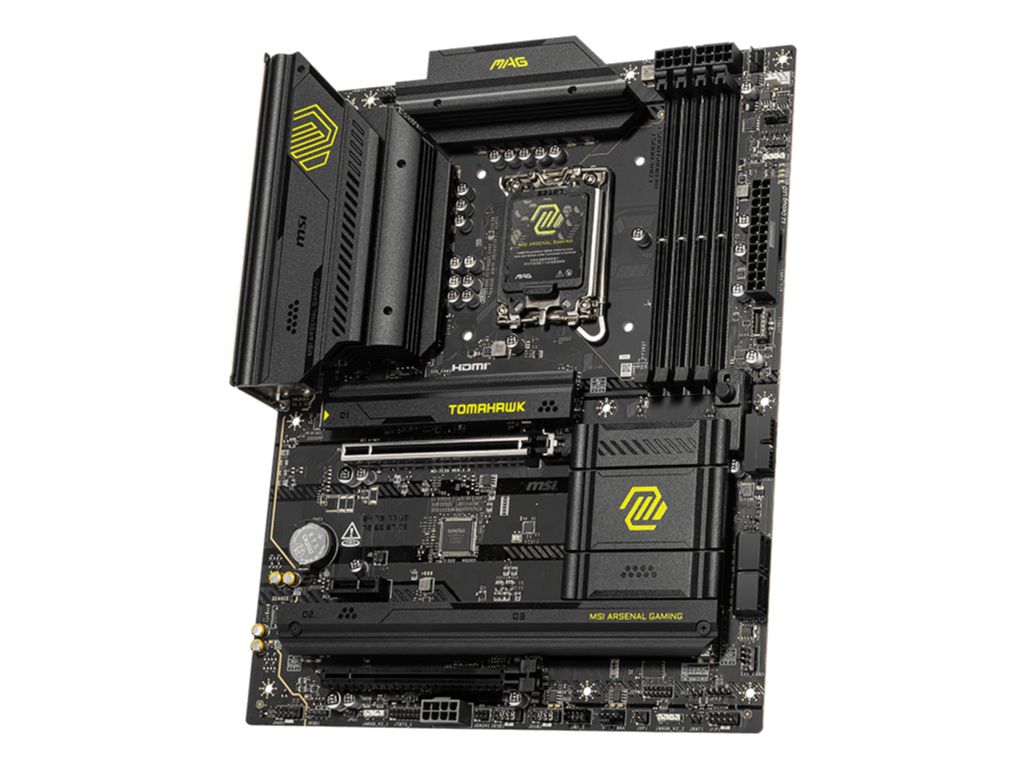

MSI MAG B860 TOMAHAWK WIFI (B860,S1851,ATX,DDR5)
Product code: 19683223 // MPN: 7E39-001R // EAN: 4711377279642
€289,90 (inc. VAT)
8-12 business days (3 pcs available)
Similar products
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2400 MHz, 2800 MHz (O.C.), 3200 MHz (O.C.), 3200 MHz, 3600 MHz (O.C.), 4600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel Killer BE1750x / Intel Killer E5000 |
| Network Interfaces | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 4.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 PCIe 5.0 -connectors: 1 x M.2 |

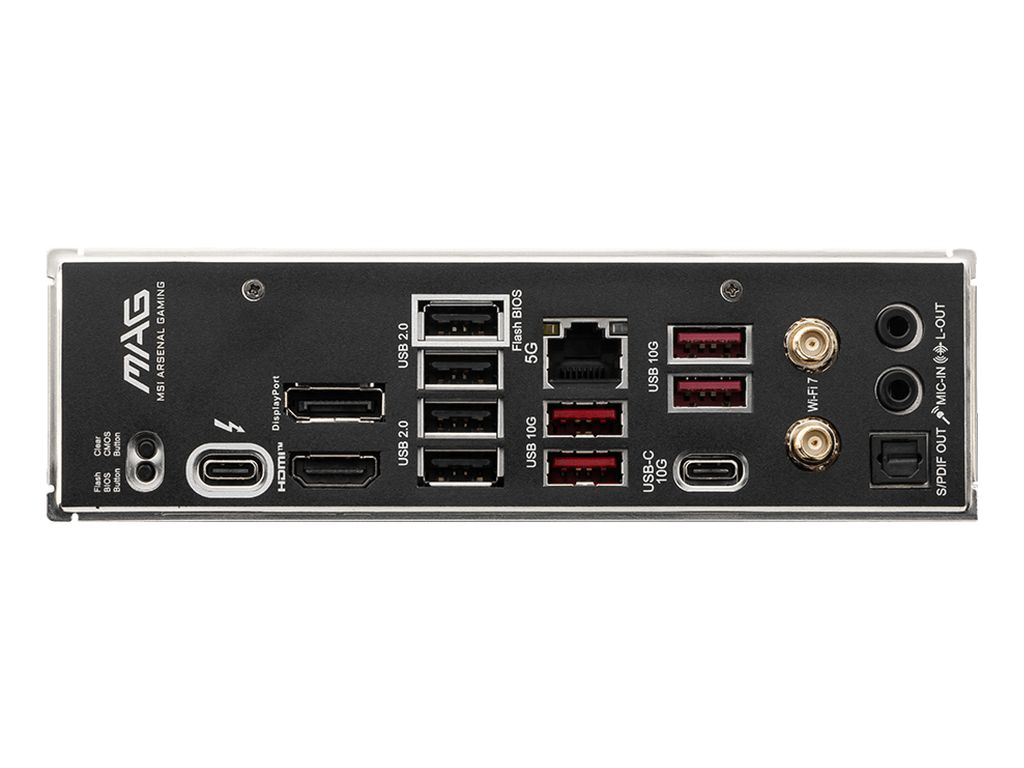

| Interfaces | 1 x HDMI 1 x DisplayPort 4 x USB 2.0 1 x USB4 1 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 2 1 x LAN (5Gigabit Ethernet) 2 x aerial 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Features | Features |
| Hardware Features | 12+1+1+1+1 Phase Power Design, pre-mounted I/O shield, EZ M.2 Sheild FROZR II, EZ PCIe Release, MSI Steel Armor II, EZ Conn-Design, Extended Heatsink Design, 2oz Copper PCB, 6 Layer PCB, MSI Memory Boost, MSI AI Engine, DIY Friendly Design, EZ Debug LED, overvoltage protection, load-line calibration (LLC), Surface Mount Technology (SMT), transient voltage suppressors, MSI Audio Boost, MSI Mystic Light |
| Miscellaneous | Miscellaneous |
| Included Accessories | EZ M.2 clip II, EZ M.2 clip II remover, EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable, EZ front panel cable |
| Cables Included | 1 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial) |
| Width | 30.48 cm |
| Depth | 24.348 cm |
| Package Details | Box |
| All in one: | |
| Gaming: |
