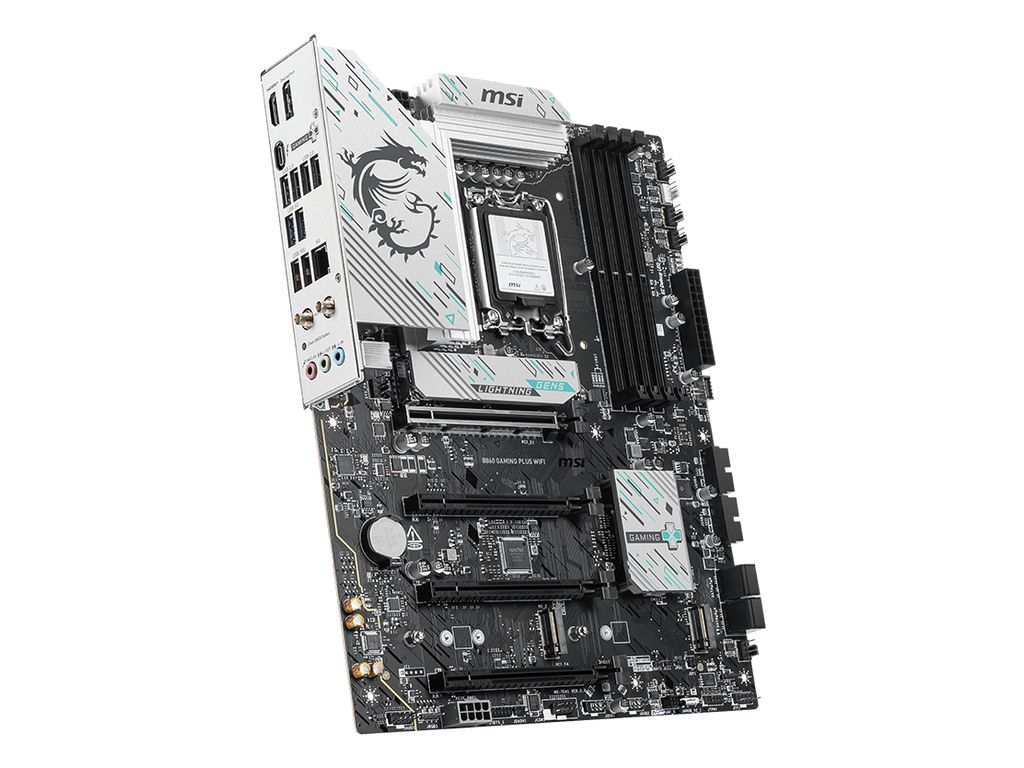

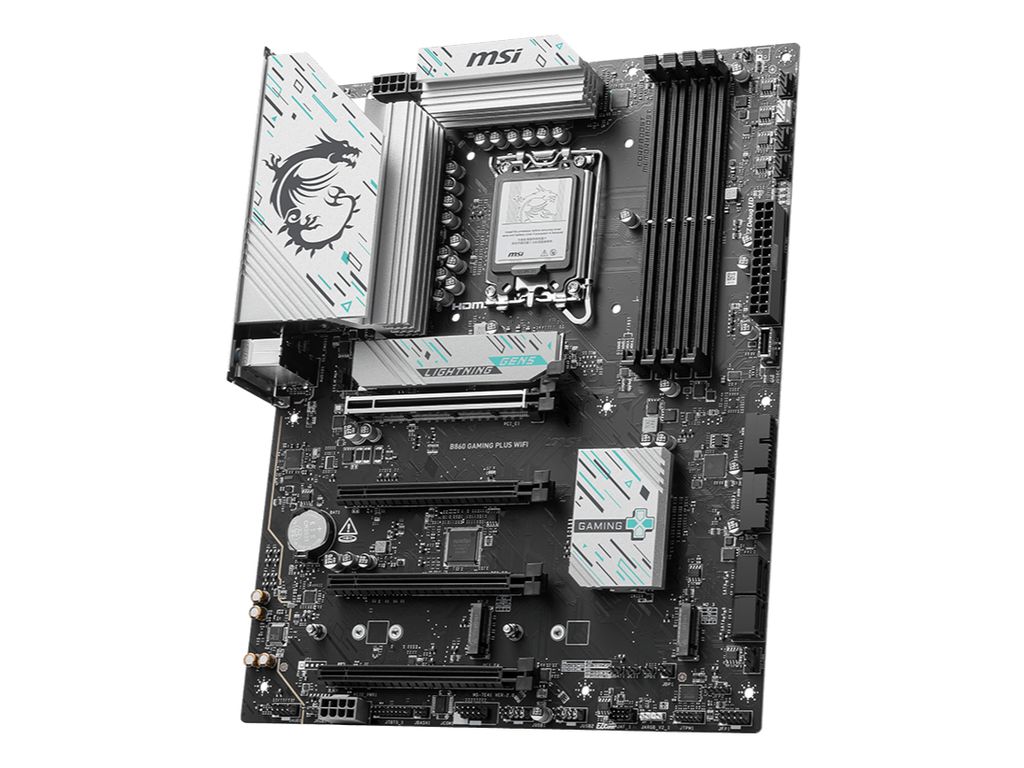

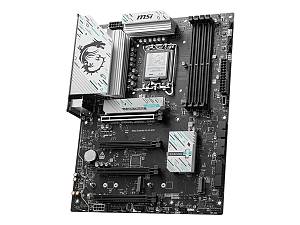

MSI B860 GAMING PLUS WIFI , Motherboard , ATX , LGA1851 Socket , B860 Chipset , USB 3.2 Gen 2, USB 3.2 Gen 1 , 5 Gigabit Ethernet, Wi-Fi 7 , onboard graphics (CPU required) , HD Audio (8-channel)

Product code: 19683323 // MPN: 7E41-003R // EAN: 4711377289764

€260,95 (inc. VAT)

8-12 business days (24 pcs available)

Add to wishlist

Gigabyte Z890 AERO D (Z890,S1851,ATX,DDR5)

Code: 19681623

€868,45

8-12 business days

Product Type	Motherboard - ATX
Chipset Type	Intel B860
Processor Socket	LGA1851 Socket
Max Processors Qty	1
Compatible Processors	(supports Intel Core Ultra processors (Series 2))
Supported RAM	Supported RAM
Max Size	256 GB
Technology	DDR5
Bus Clock	4400 MHz (O.C.), 3600 MHz (O.C.), 3200 MHz (O.C.), 2400 MHz
Supported RAM Integrity Check	Non-ECC, on-die ECC
Registered or Buffered	Unbuffered
Features	Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture
Audio	Audio
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC897
Compliant Standards	High Definition Audio
LAN	LAN
Network Interfaces	5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x1 mode) 1 x PCIe 4.0 x16 (x4 mode) 2 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

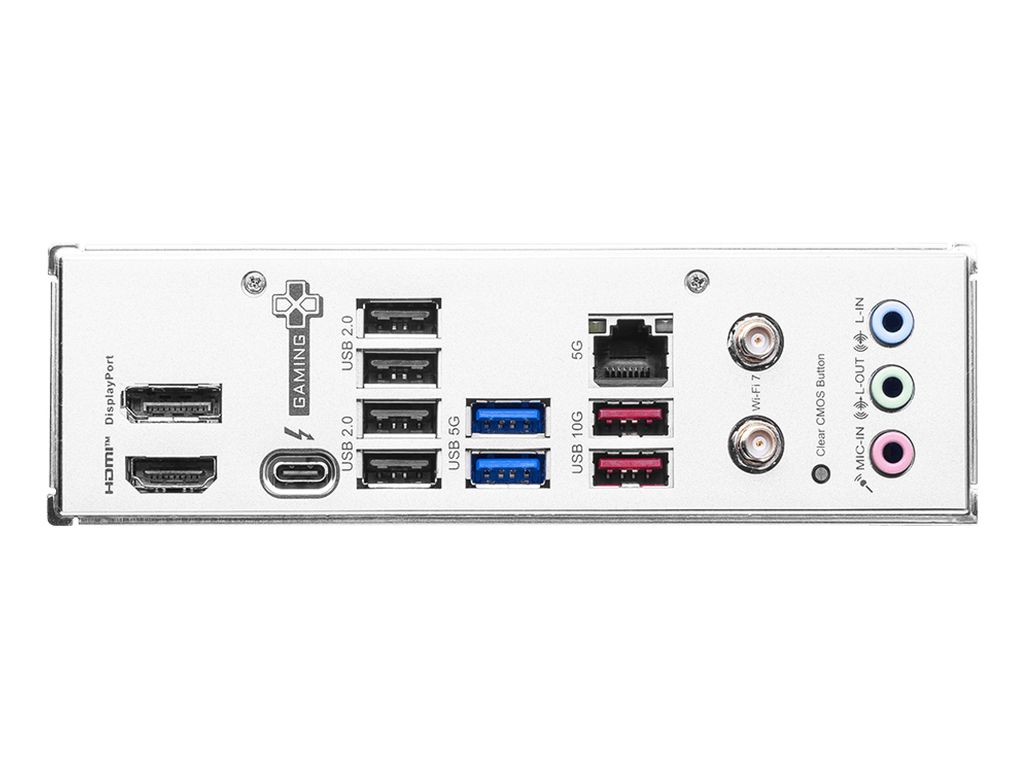

Interfaces	1 x HDMI 1 x DisplayPort 1 x Thunderbolt 4/DisplayPort/USB4 4 x USB 2.0 2 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 2 x aerial 1 x LAN (5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack
Internal Interfaces	1 x USB-C 3.2 Gen 2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x serial - header 1 x Thunderbolt 5 - header 1 x SPI - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector, 8-pin PCI Express power connector
Features	Features
BIOS Type	AMI
BIOS Features	MSI ClickBIOS
Hardware Features	EZ Conn-Design, Clear CMOS Button, 12+1+1 Phase Power Design, EZ PCie Clip II, pre-mounted I/O shield, MSI Audio Boost, EZ Debug LED, MSI Steel Armor, EZ M.2 Sheild FROZR II, 6 Layer PCB, MSI Core Boost, Enlarged Chipset Heatsink, Extended Heatsink Design
Miscellaneous	Miscellaneous

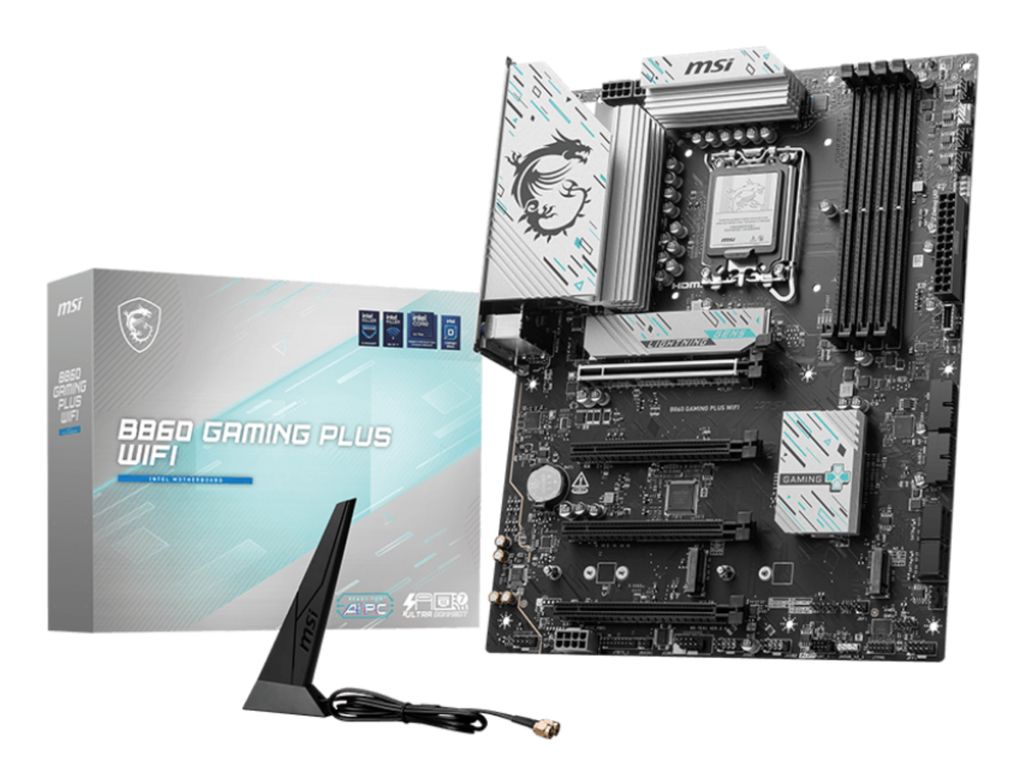

Included Accessories	EZ Wi-Fi antenna, EZ M.2 clip II, EZ M.2 clip II remover, 1 to 2 EZ Conn-Cable
Cables Included	1 x Serial ATA cable
Width	30.48 cm
Depth	24.384 cm
Package Details	Box
