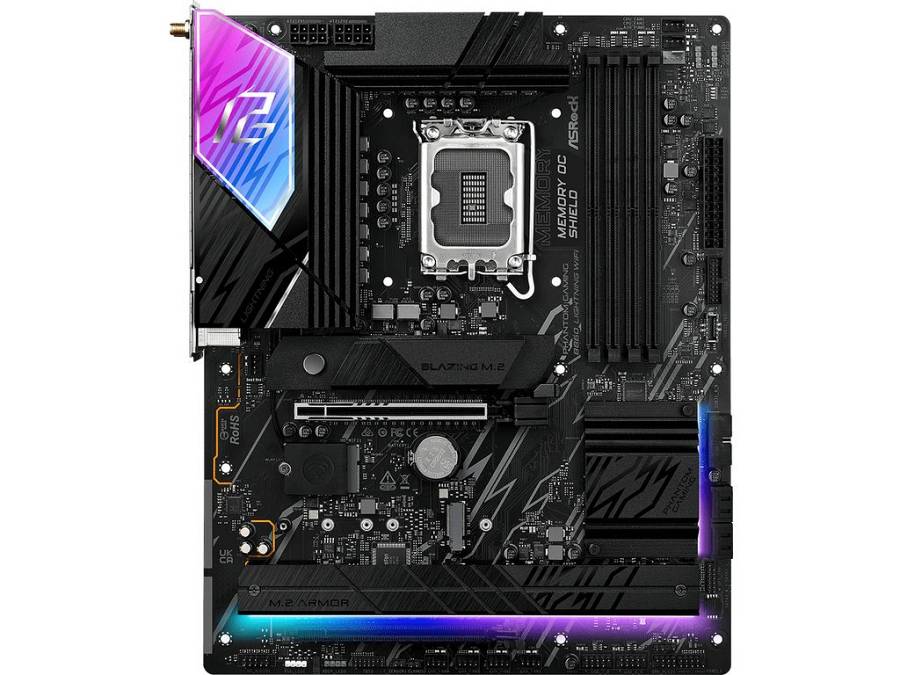

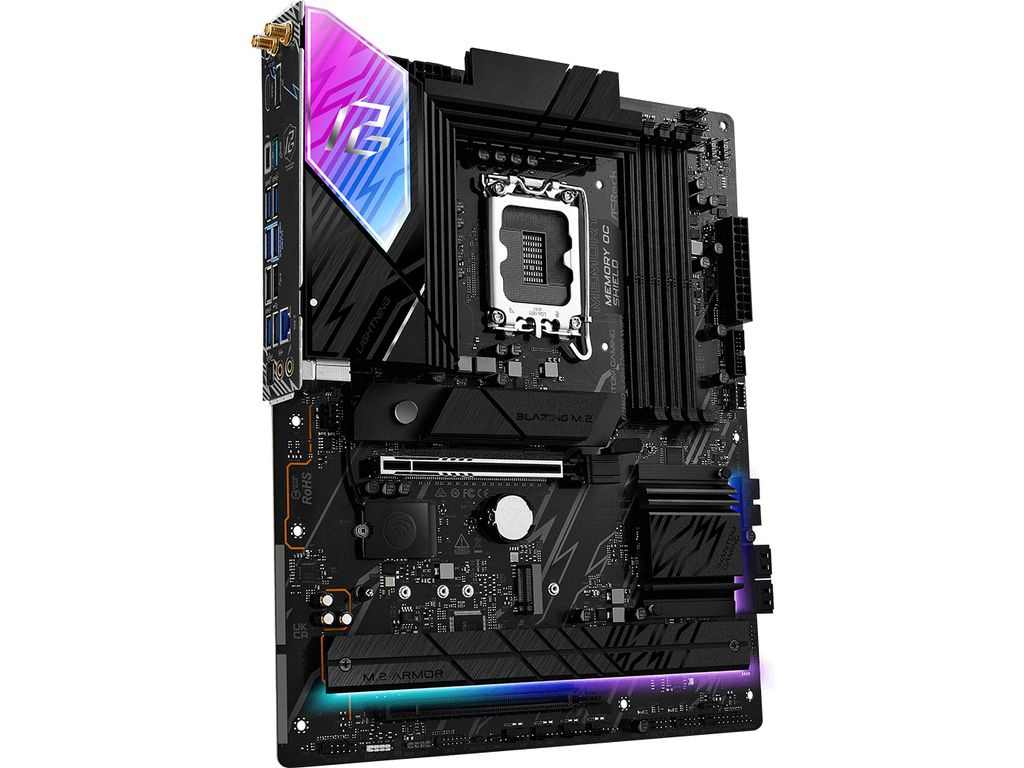

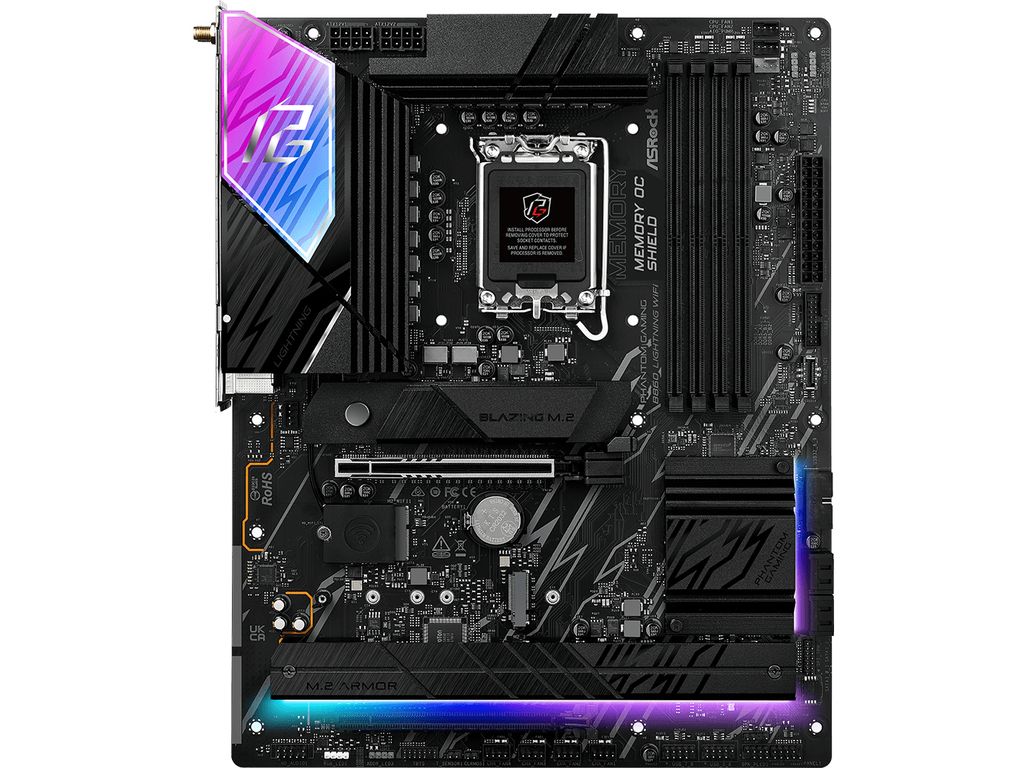

ASRock Phantom Gaming B860 LIGHTNING WiFi , Motherboard , ATX , LGA1851 Socket , B860 Chipset , USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 , 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth , onboard graphics (CPU required) , HD Audio (
Product code: 19686623 // MPN: 90-MXBR20-A0UAYZ // EAN: 4711581490116
€191,40 (inc. VAT)
8-12 business days (20 pcs available)
Similar products
ASUS PRIME H610I-PLUS D4-CSM S1700/DDR4/HDMI-DP-VGA/mITX
Code: 11196122
€168,15
Available from 4 to 10 days| Product Type | Motherboard - ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4466 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Clocked unbuffered, unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Killer E3100G |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x M.2 socket (Key E, for wireless module) 3 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x Hyper M.2 PCIe 5.0 -connectors: 1 x Blazing M.2 PCIe 4.0 -connectors: 1 x M.2 |

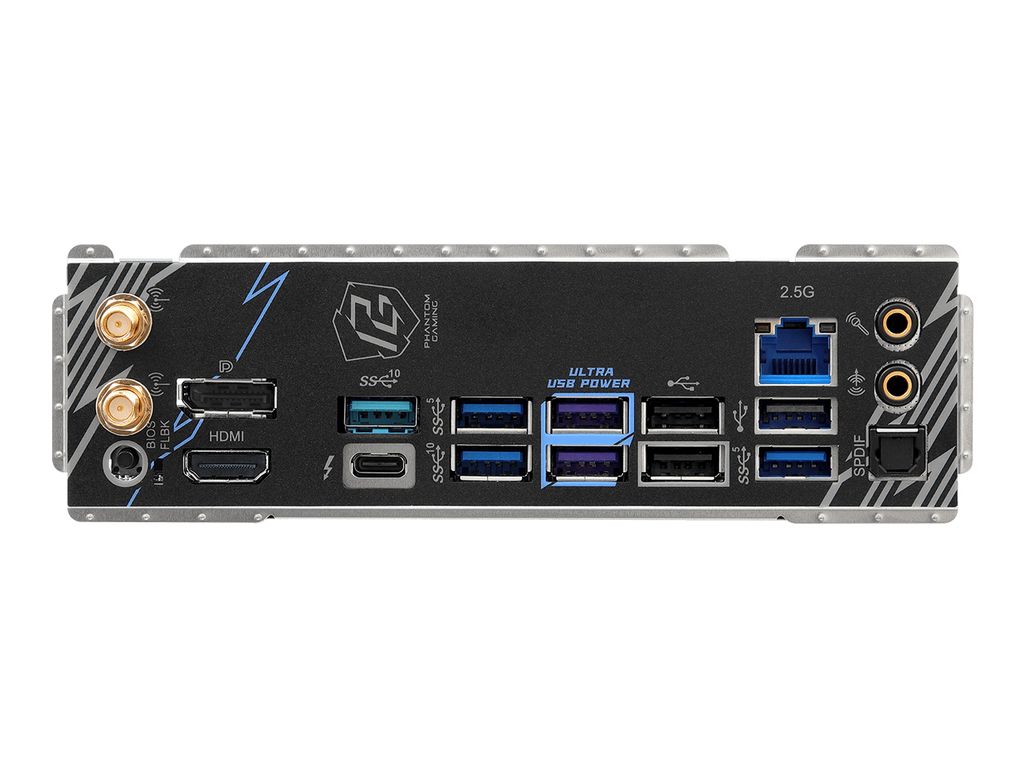

| Interfaces | 1 x HDMI 2 x aerial 1 x DisplayPort 1 x SPDIF out 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out 1 x microphone 3 x USB 2.0 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 1 x Thunderbolt 4 |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 14+1+1 Phase Power Design, 80A Smart Power Stage, Dr.MOS MOSFET, 20K black capacitors, Surface Mount Technology (SMT), reinforced PCIe slots, Nahimic Audio Enhacer, Memory OC Shield, 2oz Copper PCB, DIY Friendly Design, enlarged M.2 heatsink, anti-drop M.2 heatsink screw, aluminium heatsink design, ASRock Polychrome RGB |
| Miscellaneous | Miscellaneous |
| Included Accessories | Thermistor cable, 1 to 3 ARGB LED splitter cable, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, Killer Control Center |
| Compliant Standards | FCC, ERP, EuP |
| Width | 24.4 cm |
| Depth | 30.5 cm |
| Brand: | ASRock |
