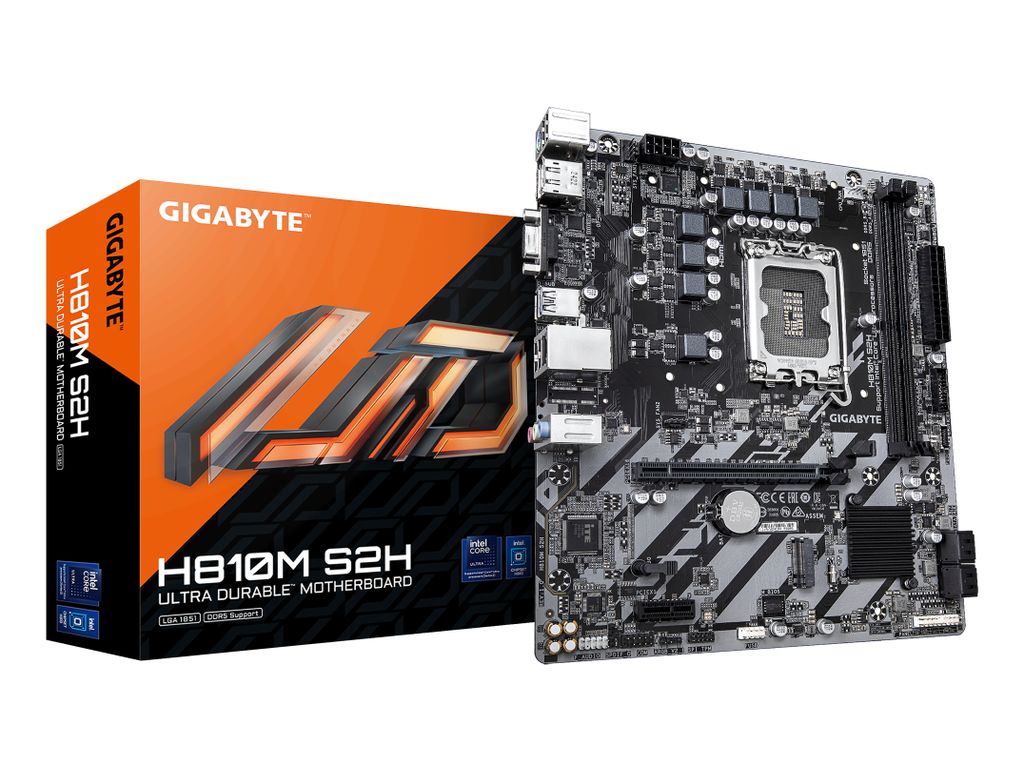

Gigabyte H810M S2H (H810,S1851,mATX,DDR5)
Product code: 19687023 // MPN: H810M S2H // EAN: 4719331869168
€112,45 (inc. VAT)
8-12 business days (40 pcs available)
Similar products
ASRock B860M-X - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Code: 17343222
€130,00
Available from 4 to 10 daysSpecifications
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H810 Express |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture, supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x USB 3.2 Gen 1 5 x USB 2.0 1 x HDMI 1 x DisplayPort 1 x VGA 1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x SPI - header 1 x SPDIF out - header 1 x serial - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection, water cooling flow rate |
| Hardware Features | Q-Flash, DIY Friendly Design, chipset heatsink, RGB FUSION, PCIe EZ Latch, EZ Debug LED, VRM heatsink design, GIGABYTE Smart Fan 6, Ultra Durable |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center, HWiNFO |
| Compliant Standards | DisplayPort 2.1, HDCP 2.3 |
| Width | 24.4 cm |
| Depth | 21.5 cm |
| All in one: | |
| Brand: | Gigabyte |
| Gaming: |
