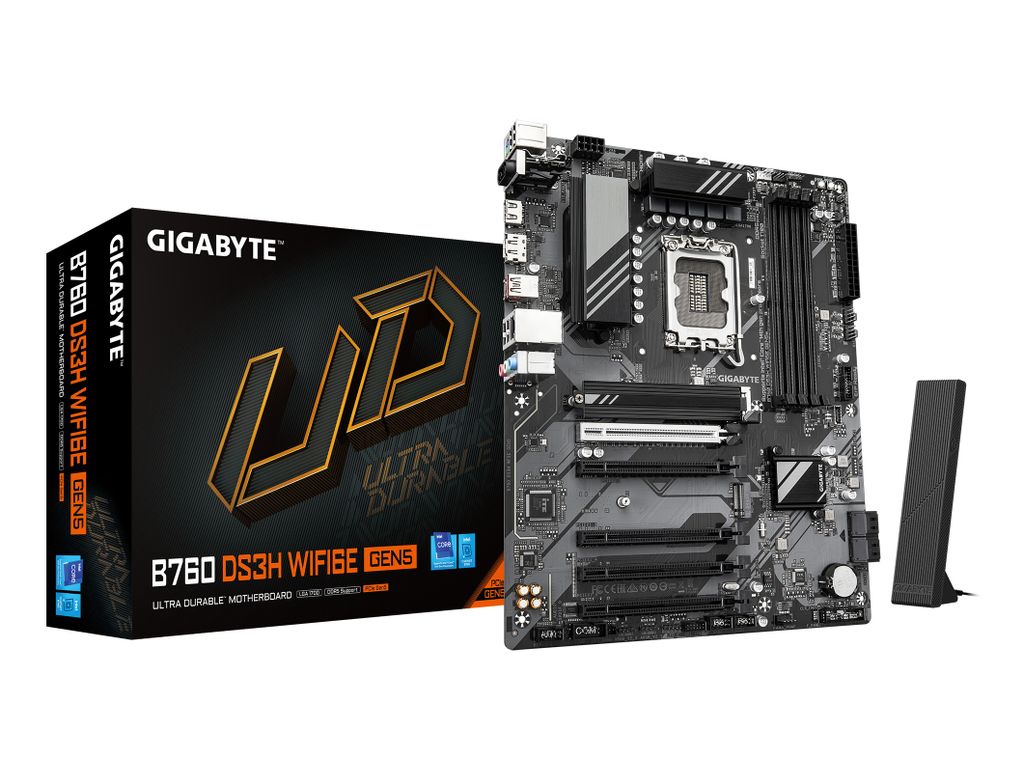

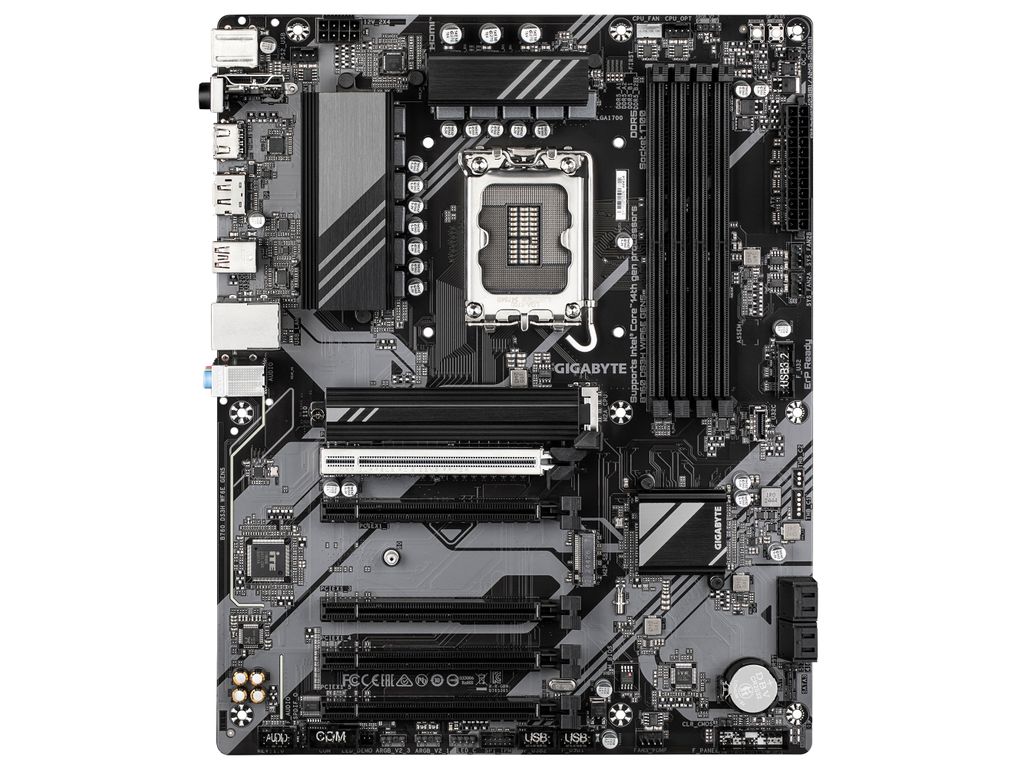

Gigabyte B760 DS3H WiFi6E GEN5 (B760,S1700,ATX,
Product code: 19690023 // MPN: B760 DS3H WF6E GEN5 // EAN: 4719331872939
€163,80 (inc. VAT)
8-12 business days (27 pcs available)
Similar products
Specifications
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4000 MT/s, 4800 MT/s, 5200 MT/s (O.C.), 5400 MT/s (O.C.), 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.) |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 4 x PCIe 3.0 x16 (x1 mode) 1 x M.2 socket (2280/22110 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |

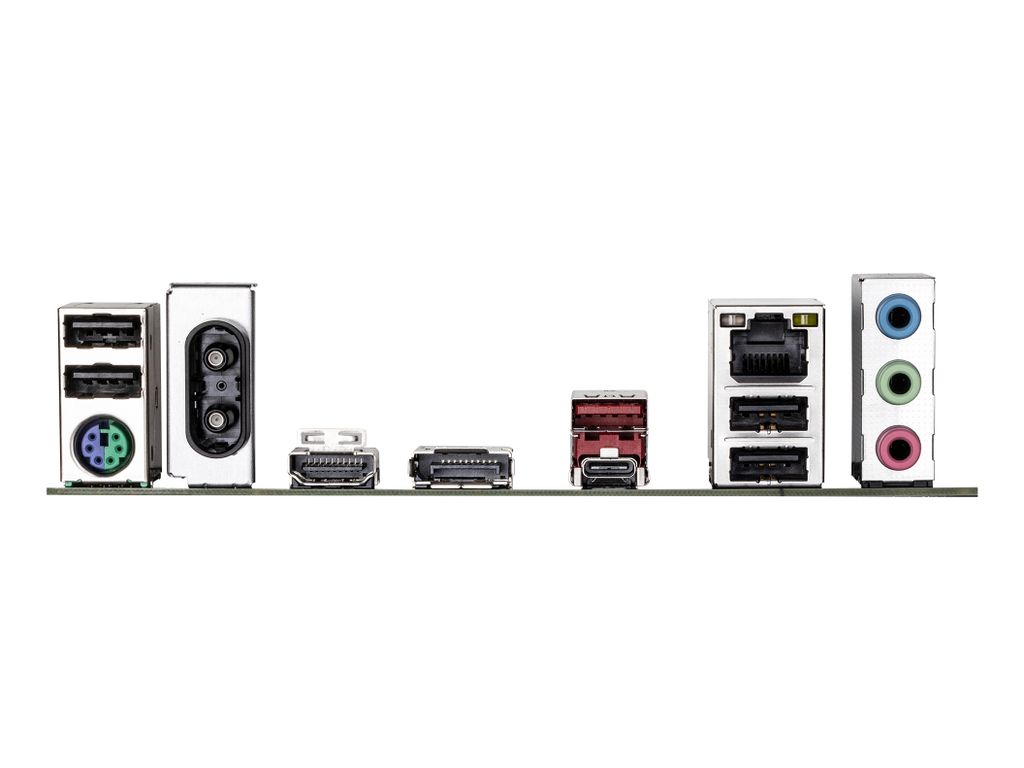

| Interfaces | 1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard / mouse 2 x aerial |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 1 x SPI - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS |
| Hardware Monitoring | System voltage, chassis temperature, fan control, water cooling flow rate, temperature detection, fan speed detection, fan fail warning |
| Hardware Features | 8+2+1 Phase Power Design, 6 Layer PCB, Premium Power Choke, VRM Thermal Armor Advanced, M.2 Thermal Guard, RGB FUSION, High-end Audio Capacitors, WIFI EZ-Plug, Q-Flash Plus, PCIe EZ Latch, Ultra Durable, GIGABYTE Smart Fan 6, DIY Friendly Design, MultiKey |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| All in one: | |
| Brand: | Gigabyte |
| Gaming: |
