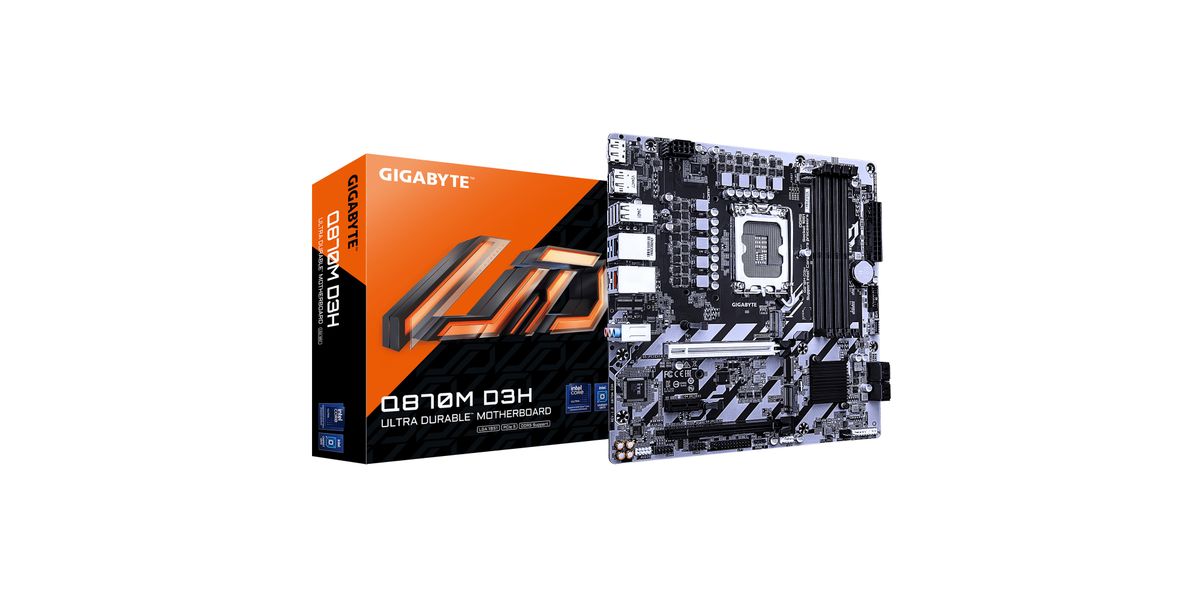

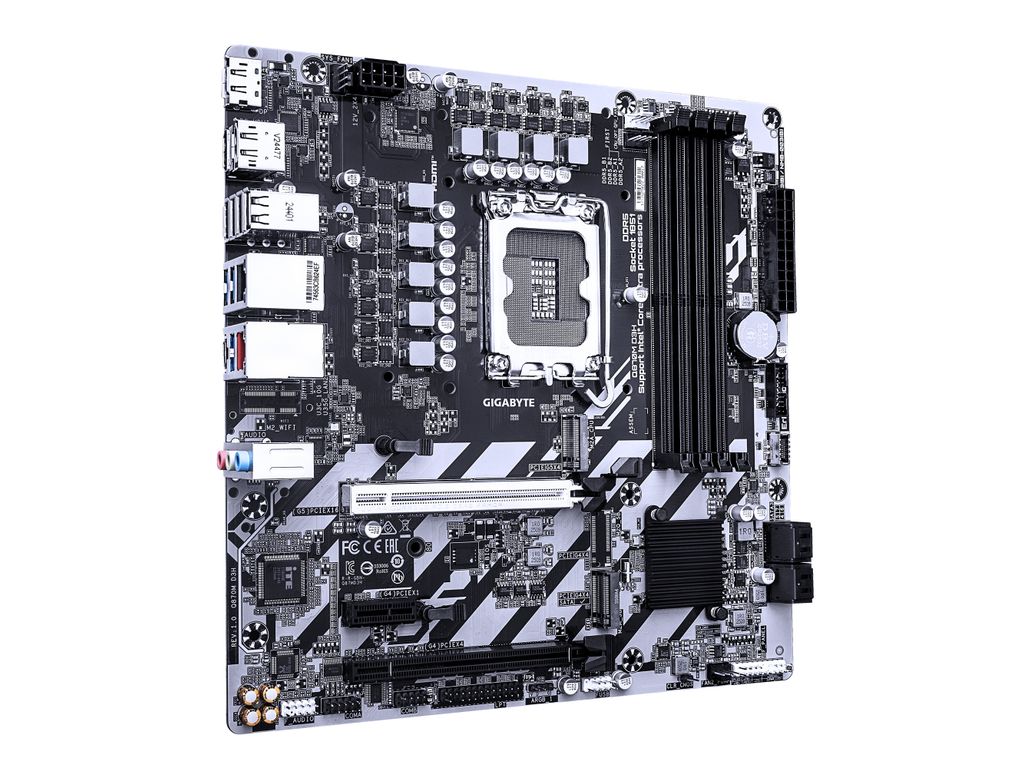

Gigabyte Q870M D3H (Q870,S1851,mATX,DDR5

Κωδικός: 19690323 // Κωδικός προμηθευτή: Q870M D3H // EAN: 4719331876982

€233,80 (συμπ. ΦΠΑ)

4-10 εργάσιμες ημέρες (4 τεμάχια διαθέσιμα)

Προσθήκη στη wishlist

Δείτε επίσης

MSI MAG X870 Tomahawk Wifi (X870,AM5,ATX,DDR5)

Κωδικός: 19761323

€357,25

4-10 εργάσιμες ημέρες

Specifications

Product Type	Motherboard - micro ATX
Chipset Type	Intel Q870
Processor Socket	LGA1851 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM	Supported RAM
Max Size	256 GB
Technology	DDR5
Bus Clock	5600 MT/s, 6400 MT/s, 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.), 8000 MT/s (O.C.), 8200 MT/s (O.C.), 8266 MT/s (O.C.), 8400 MT/s (O.C.), 8600 MT/s (O.C.), 8800 MT/s (O.C.), 9066 MT/s (O.C.)
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio	Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN	LAN
Network Interfaces	2.5 Gigabit Ethernet, Gigabit Ethernet
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

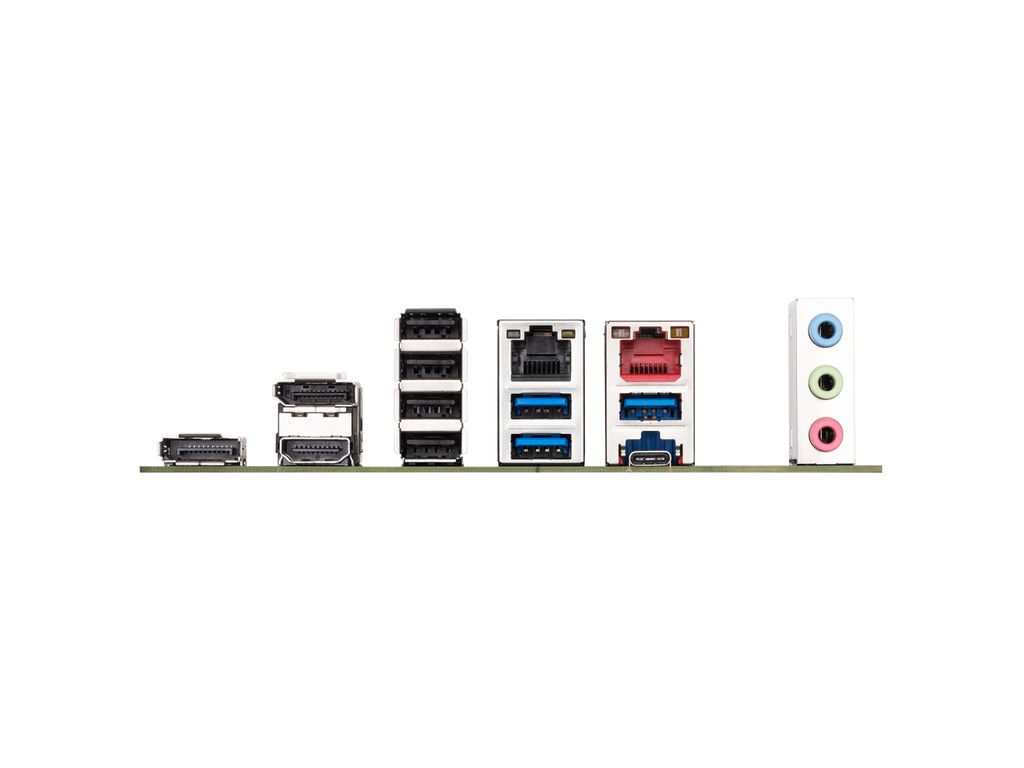

Interfaces	1 x HDMI 2 x DisplayPort 4 x USB 2.0 1 x USB-C 3.2 Gen 2 3 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x LAN (Gigabit Ethernet)
Internal Interfaces	2 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x serial - header 1 x parallel - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features	Features
BIOS Type	AMI
BIOS Features	PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardware Monitoring	System voltage, fan control, fan fail warning, water cooling flow rate
Hardware Features	6 Layer PCB, chipset heatsink, RGB FUSION, DIY Friendly Design, PCIe EZ Latch, AORUS AI SNATCH, GIGABYTE Smart Fan 6, Ultra Durable, 4+1+2 Phase Power Design
Miscellaneous	Miscellaneous
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version)
Width	24.4 cm
Depth	24.4 cm
