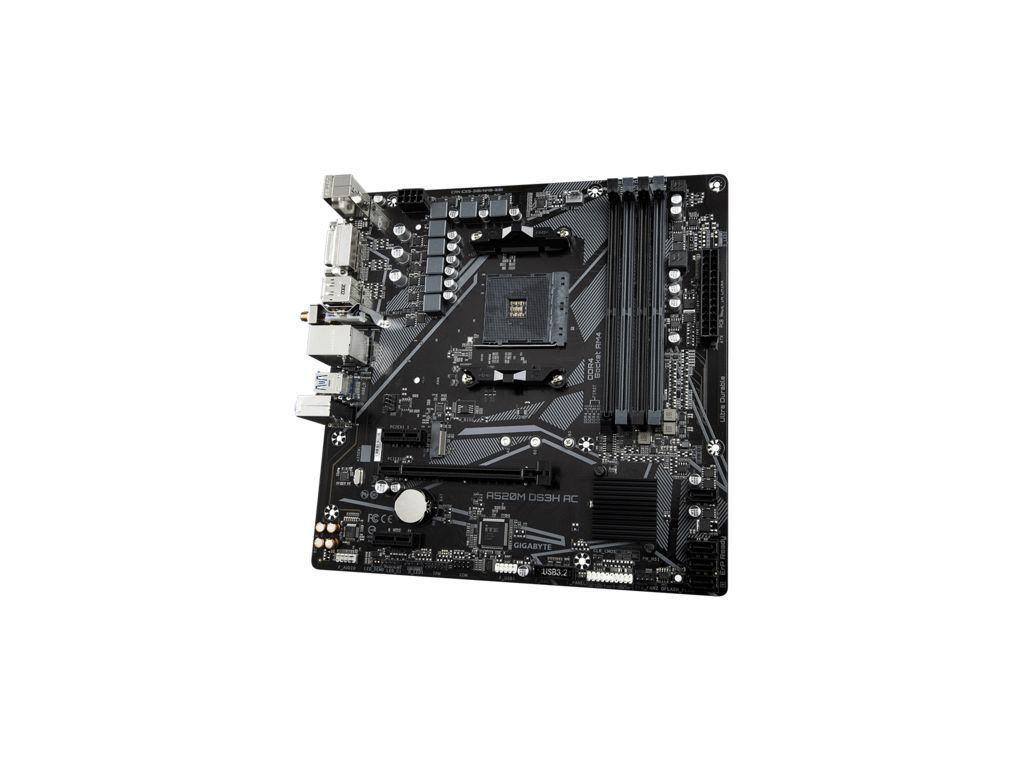

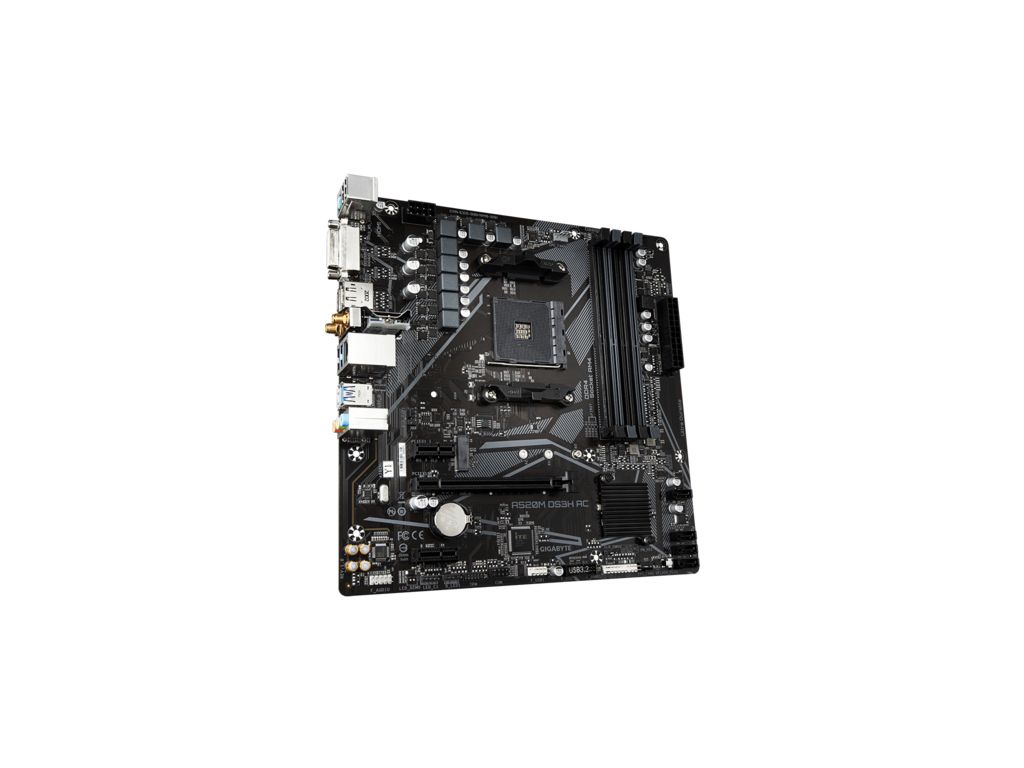

Gigabyte A520M DS3H AC (A520,AM4,mATX,DDR4)
Product code: 19883423 // MPN: A520M DS3H AC // EAN: 4719331810696
€94,20 (inc. VAT)
8-12 business days (11 pcs available)
Similar products
ASRock B860 Steel Legend WiFi 1851 ATX HDMI/DP DDR5
Code: 16637322
€236,50
Available from 4 to 10 daysSpecifications
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A520 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4733 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Graphics | Graphics |
| Max Allocated RAM Size | 16 GB |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

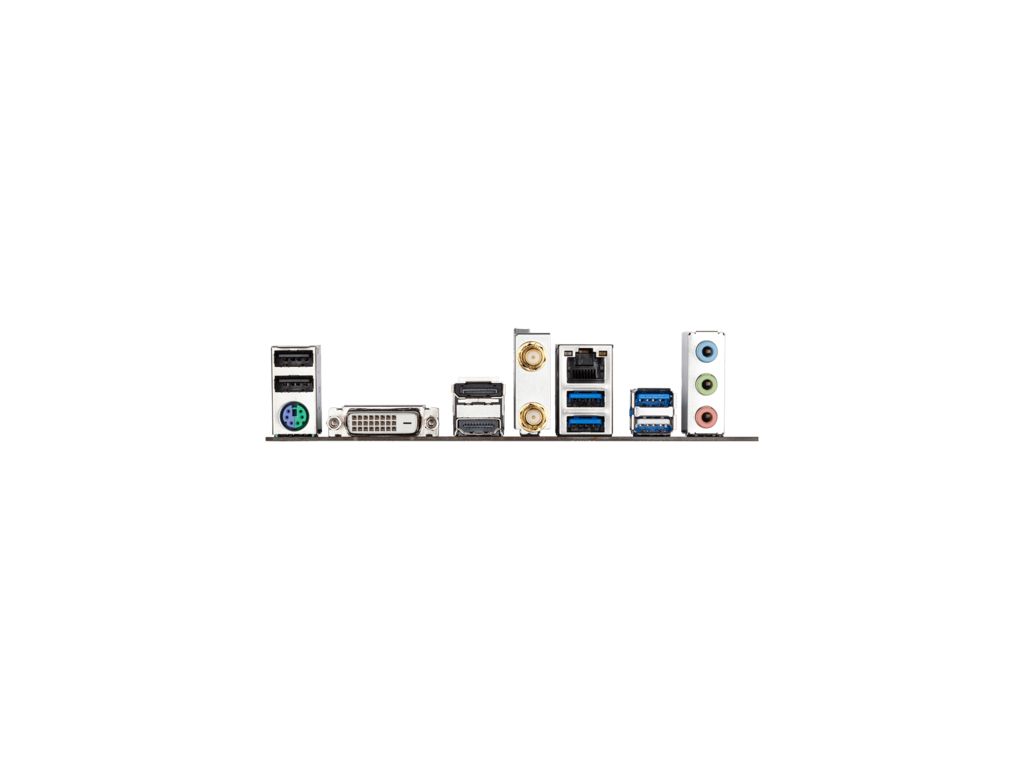

| Interfaces | 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x DVI-D 1 x HDMI 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x DisplayPort |
| Internal Interfaces | 2 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, WfM 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Hardware Features | Q-Flash, On/Off Charge, Ultra Durable, RGB FUSION 2.0, GIGABYTE Smart Fan 5, Q-Flash Plus, Anti-Sulfur Design, 5+3 Phase Power Design, Audio Noise Guard, GIGABYTE Double Locking Bracket, Solid Pin Power Connectors |
| Miscellaneous | Miscellaneous |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| All in one: | |
| Gaming: |
