Gigabyte B760M DS3H DDR4 (B760,S1700,mATX,DDR4)
Product code: 19884323 // MPN: B760M DS3H DDR4 // EAN: 4719331850876
New entry
€114,65 (inc. VAT)
8-12 business days (24 pcs available)
Similar products
New entry
Specifications
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |

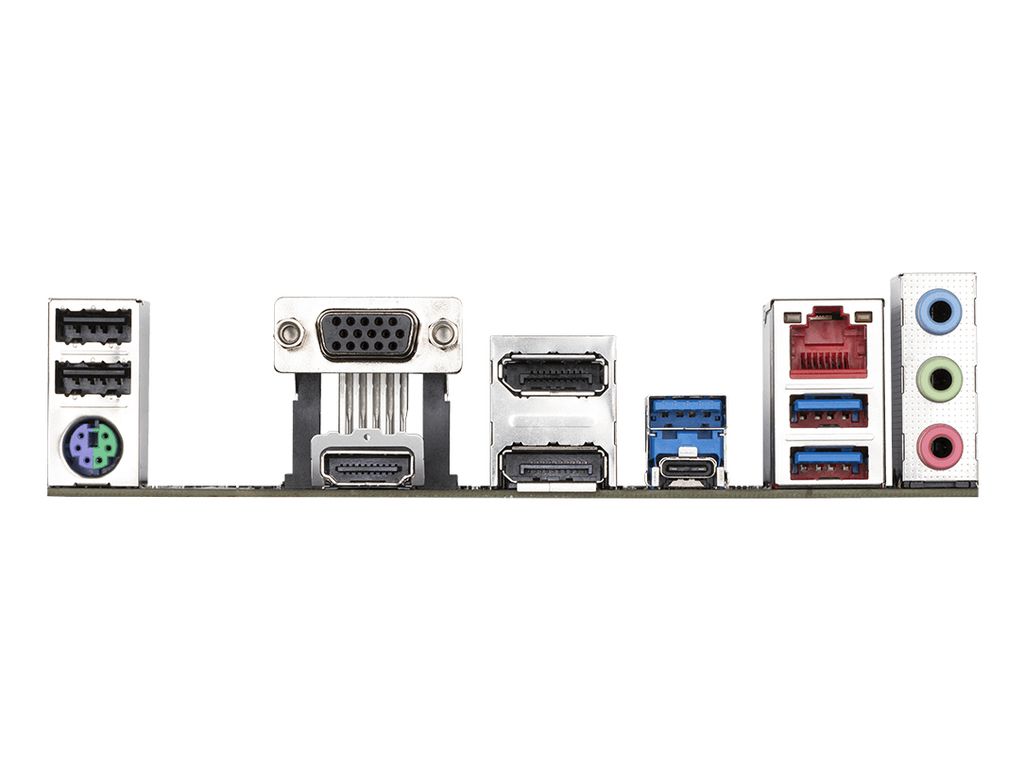

| Interfaces | 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, fan fail warning, fan control |
| Hardware Features | Q-Flash Plus, RGB FUSION, M.2 Thermal Guard, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design, MultiKey |
| Miscellaneous | Miscellaneous |
| Included Accessories | External antenna |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security |
| Compliant Standards | WEEE, DisplayPort 1.2, HDCP 2.3, UKCA, FCC Part 15 Subpart B |
| Width | 24.4 cm |
| Depth | 24.4 cm |
