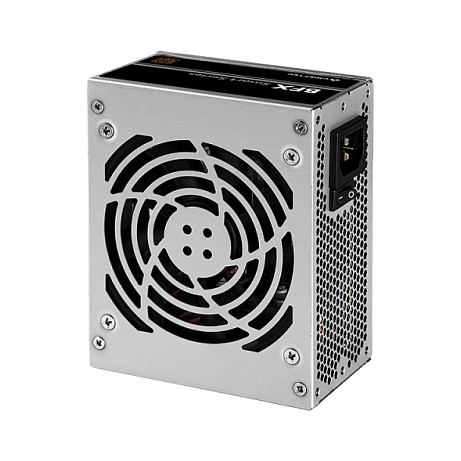

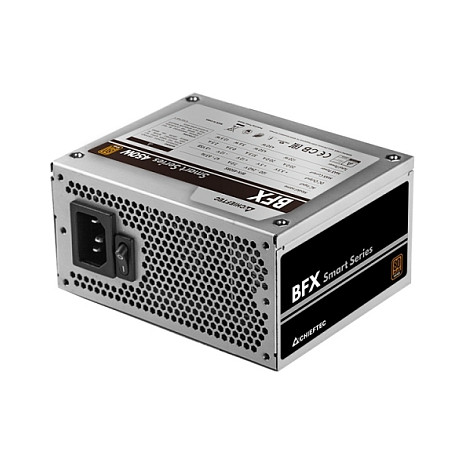

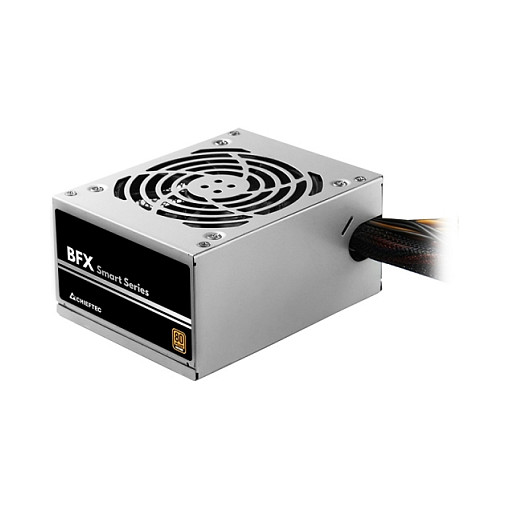

350W Chieftec Smart Series BFX-350BS 80+bronze

Add to wishlist

Code: 16446622

Available from 4 to 10 days

Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.3/ SFX12V
PSU Form Factor	SFX
[Power Device]
Input Voltage	AC 100-240 V
Frequency Required	47 - 63 Hz
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 3 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage	+3.3, +5, ±12 V
Power Capacity	350 Watt
Output Current	+5V - 18 A ¦ +3.3V - 18 A ¦ +12V1 - 29.16 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Power Factor (PF)	0.9
80 PLUS Certification	80 PLUS Bronze
[Miscellaneous]
Cooling System	90 mm fan
Features	Over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, thermal protection, DC-DC technology, non-modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP)
Compliant Standards	CB, RoHS, ErP Ready, EAC, TUV Rheinland
[Manufacturer Warranty]
Service & Support	Limited warranty - 2 years
[Dimensions & Weight]
Width	12.5 cm
Depth	10 cm
Height	6.4 cm
Weight	1 kg
[Dimensions & Weight (Shipping)]
Shipping Weight	1.3 kg
