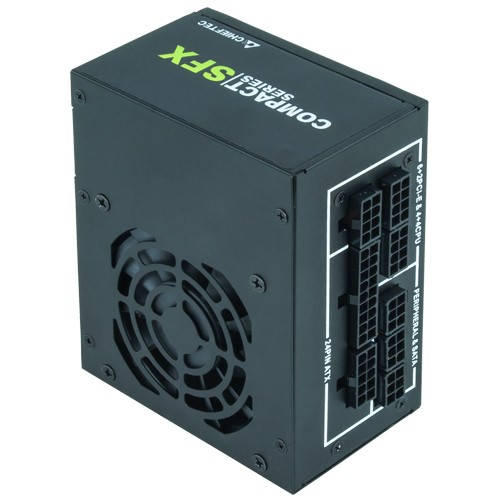

SFX 650W Chieftec Compact Serie CSN-650C

Add to wishlist

Code: 20790222

Available from 4 to 10 days

Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.3/ SFX12V
PSU Form Factor	SFX
Colour	Black
Power Device	Power Device
Input Voltage	AC 100-240 V
Frequency Required	50/60 Hz
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 2 x 8 pin PCI Express power with detachable 2 pin section 1 x 4 PIN mini-power connector
Output Voltage	+3.3, +5, ±12 V
Power Capacity	650 Watt
Output Current	+5V - 15 A +3.3V - 18 A +12V1 - 54 A -12V - 0.3 A +5VSB - 3 A
Efficiency	90%+
Power Factor (PF)	0.9
80 PLUS Certification	80 PLUS Gold
Miscellaneous	Miscellaneous
Cooling System	80 mm fan
Features	Overheat protection, over current protection, over voltage protection, SLI ready, overload protection, undervoltage protection, short-circuit protection, CrossFireX ready
Compliant Standards	TUV, CB, RoHS, ERP
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Dimensions & Weight	Dimensions & Weight
Width	12.5 cm
Depth	10 cm
Height	6.4 cm
