ROUTERS

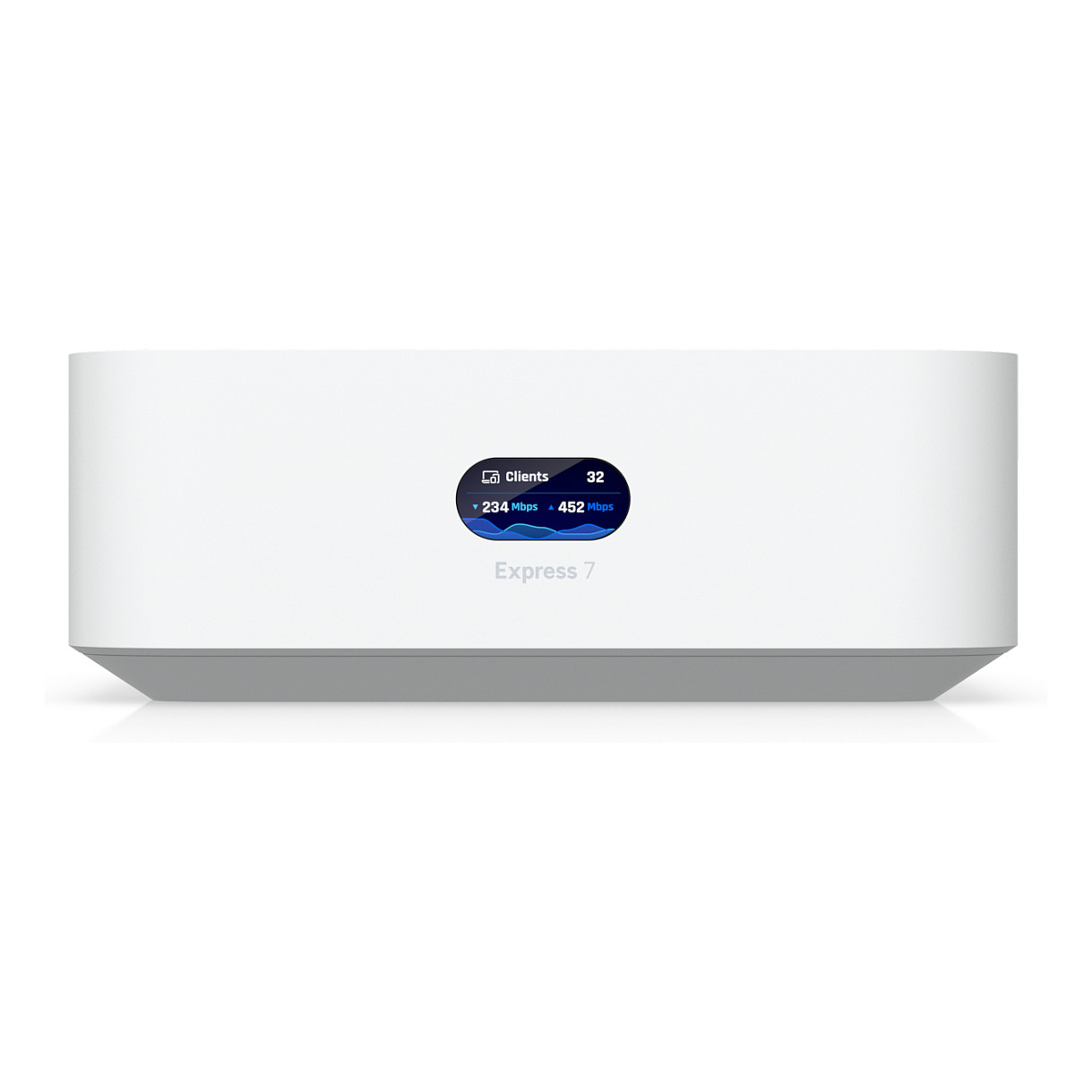

Mesh-scalable. super-compact 10G Cloud Gateway with integrated WiFi 7.

Design
Product colour: White
Enclosure material: Polycarbonate (PC)
LED indicators: Status
Features
Antenna type: Internal
Antenna gain level (max): 6 dBi
Antennas quantity: 4
Performance
Feature: Control display unit
Display type: LCM
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A53
Processor frequency: 1500 MHz
Number of processors installed: 1
Internal memory: 3000 MB
Protocols
Routing protocols: OSPF
Feature: DHCP server
Network
Ethernet LAN data rates: 10.100.1000.2500.10000 Mbit/s
Networking standards: IEEE 802.1Q
Feature: Wi-Fi
WLAN data transfer rates supported: 1.2.5.5.6.6.5.9.11.12.18.24.36.48.54.300 Mbit/s
Feature: Bluetooth
Frequency band: 2.4. 5. 6 GHz
Feature: Load balancing
Data transfer rate: 5.7 Gbit/s
Feature: Wireless connection
Security
Security algorithms: 802.1x RADIUS. IPSec. PPSK. TLS. WPA. WPA-Enterprise. WPA-PSK. WPA2. WPA3
Feature: Firewall security
Feature: VLAN support

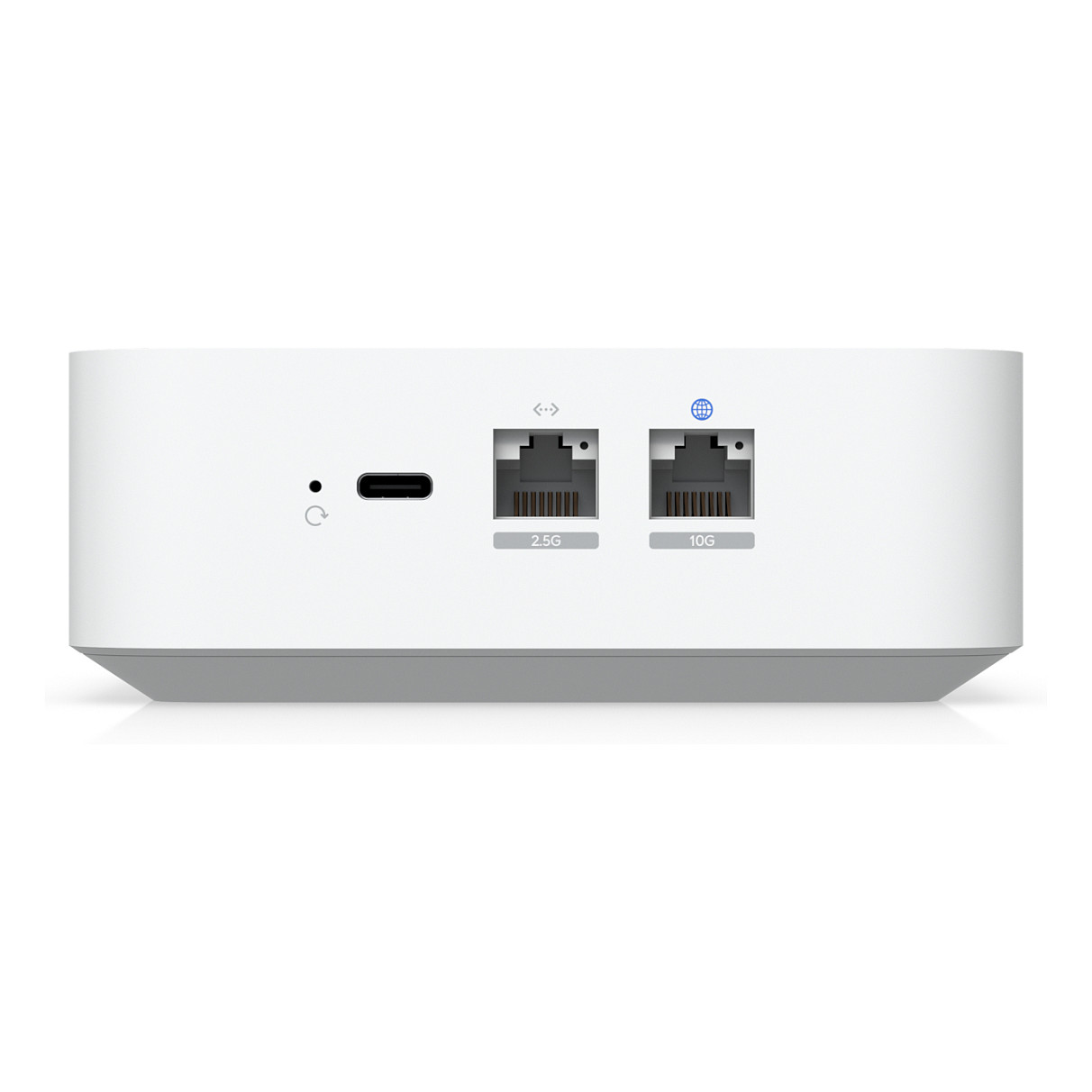

Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)
Management features
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Multicast support
Power
Power consumption (max): 22 W
Input voltage: 100 - 240 V
Input current: 5 A
Feature: Electromagnetic (EMP) protection
Electromagnetic (EMP) protection (air): 8 kV
Electromagnetic (EMP) protection (contact): 4 kV
Weight & dimensions
Width: 117 mm
Depth: 117 mm
Height: 42.5 mm
Weight: 422 g

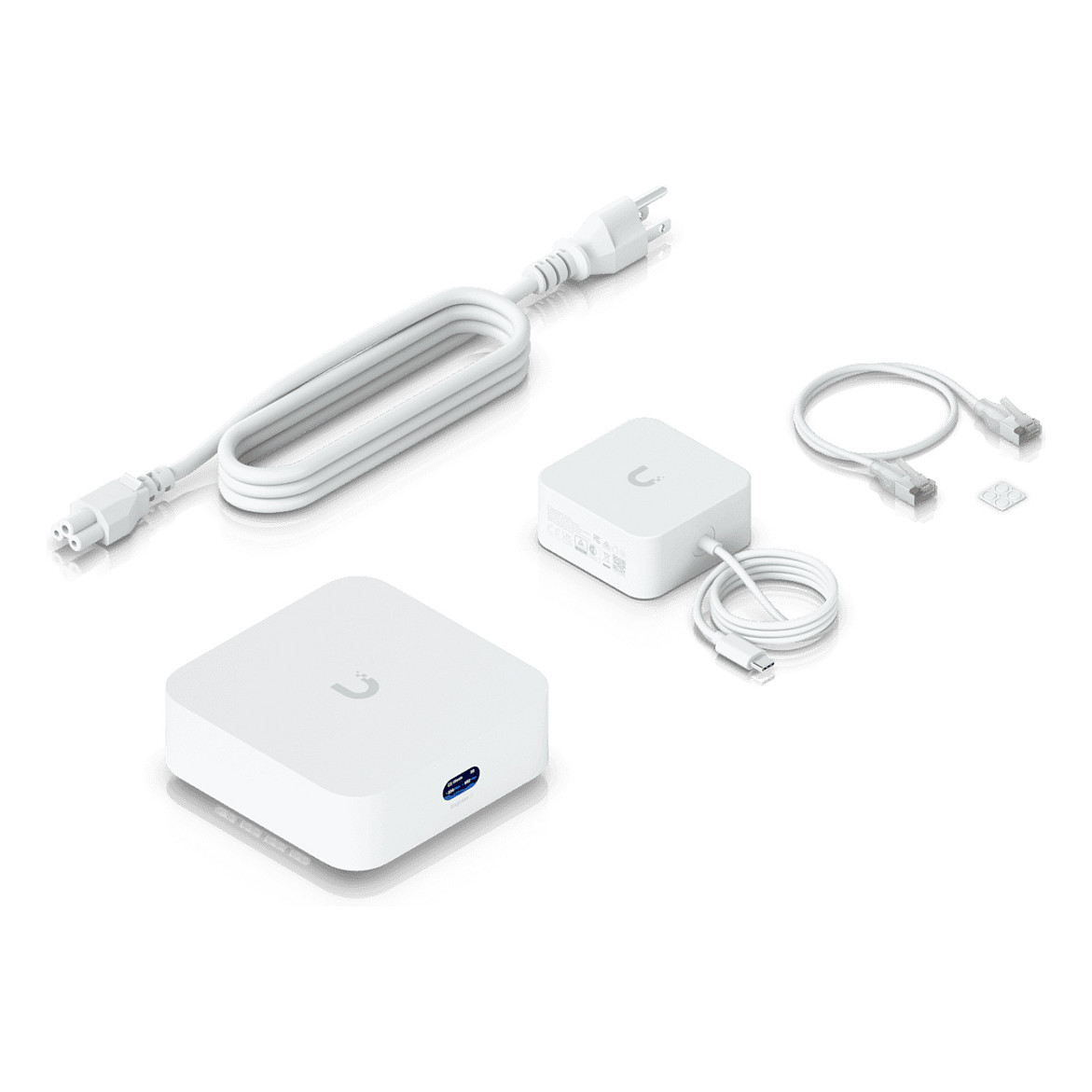

Packaging content
Feature: AC adapter included
Cables included: LAN (RJ-45). Power
Operational conditions
Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Certificates
Compliance certificates: CE. Federal Communications Commission (FCC). Industry Canada (IC)
Display
Display diagonal: 2.44 cm (0.96")
