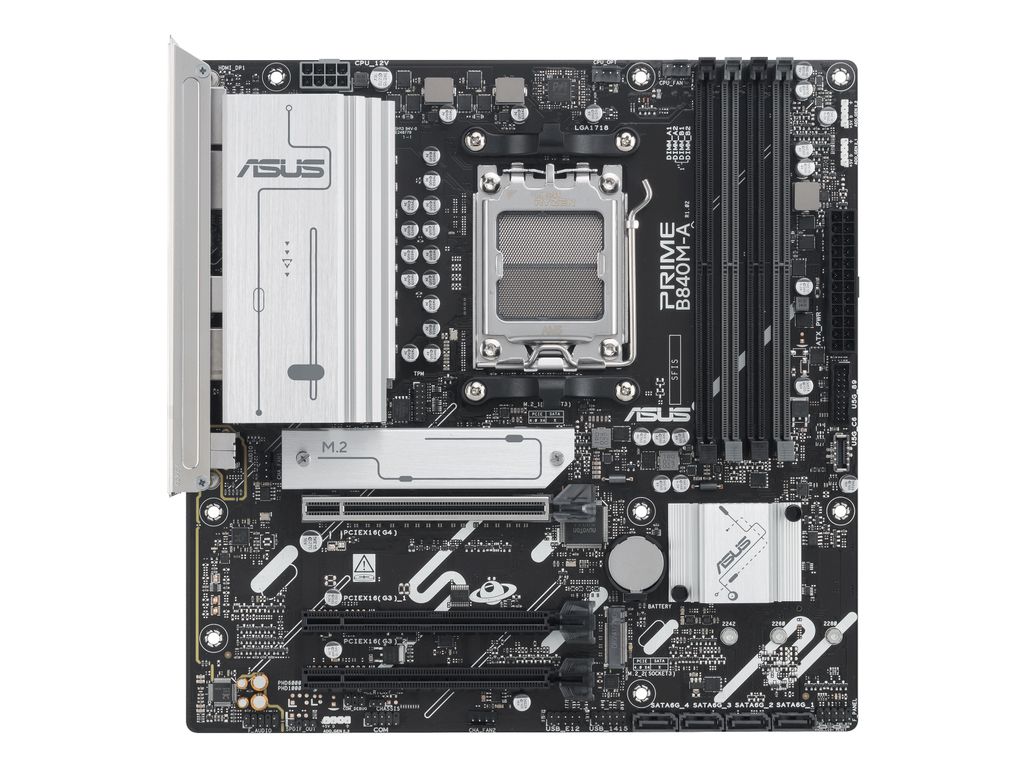

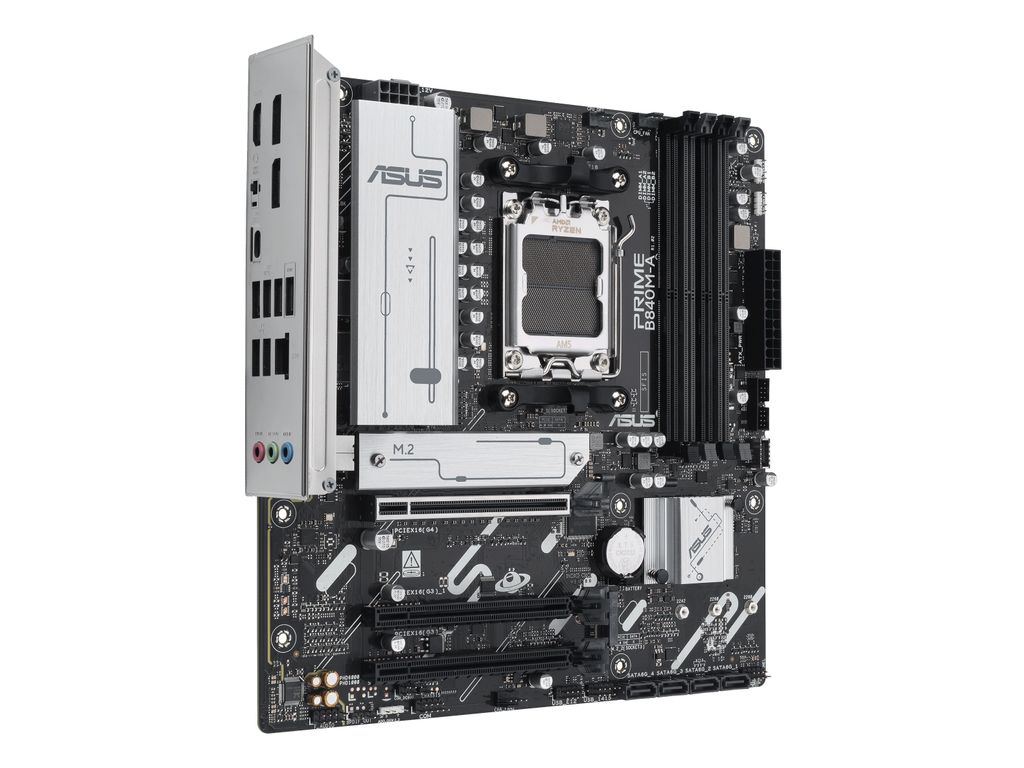

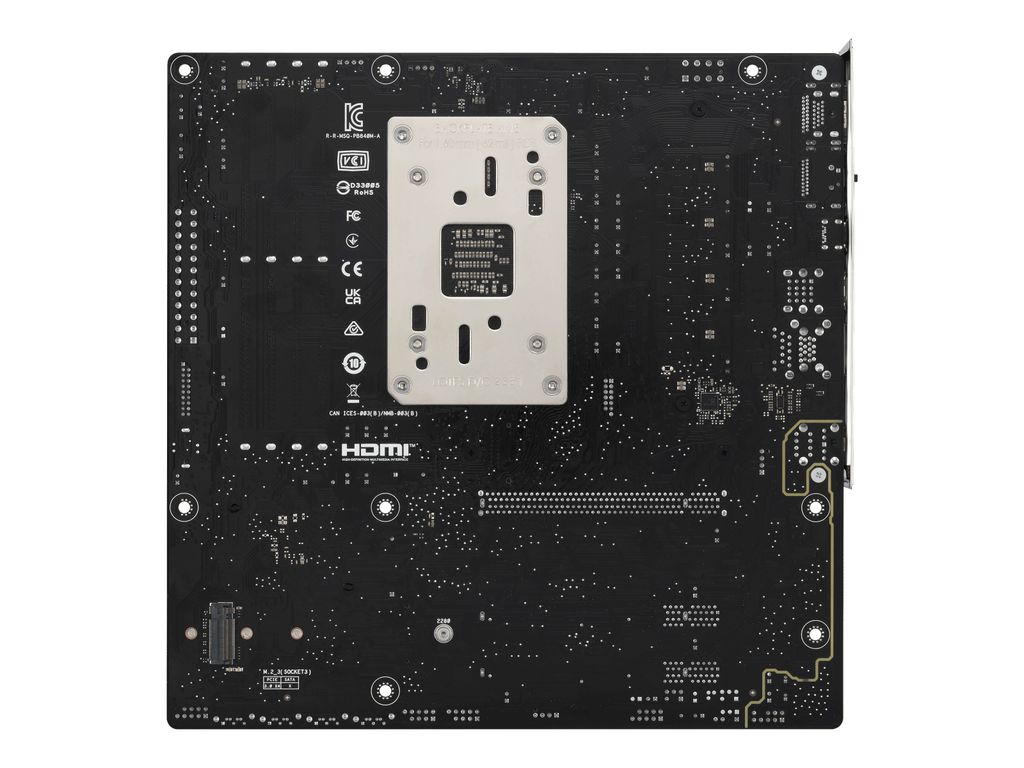

ASUS PRIME B840M-A-CSM (AMD,AM5,DDR5,mATX)

Product code: 19969323 // MPN: 90MB1J10-M0EAYC // EAN: 4711387797204

New entry

€227,15 (inc. VAT)

8-12 business days (103 pcs available)

Add to wishlist

Gigabyte X870M AORUS ELITE WIFI7 (X870,AM5,ATX,DDR

Code: 19664723

€321,20

8-12 business days

Product Type	Motherboard - micro ATX
Chipset Type	AMD B840
Processor Socket	Socket AM5
Max Processors Qty	1
Compatible Processors	Ryzen (supports Ryzen 7000/8000/9000 Series)
Supported RAM	Supported RAM
Max Size	192 GB
Technology	DDR5
Bus Clock	3800 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, on-die ECC, ECC
Registered or Buffered	Unbuffered
Features	AMD EXPO technology, dual channel memory architecture
Audio	Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN	LAN
Network Interfaces	2.5 Gigabit Ethernet
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2

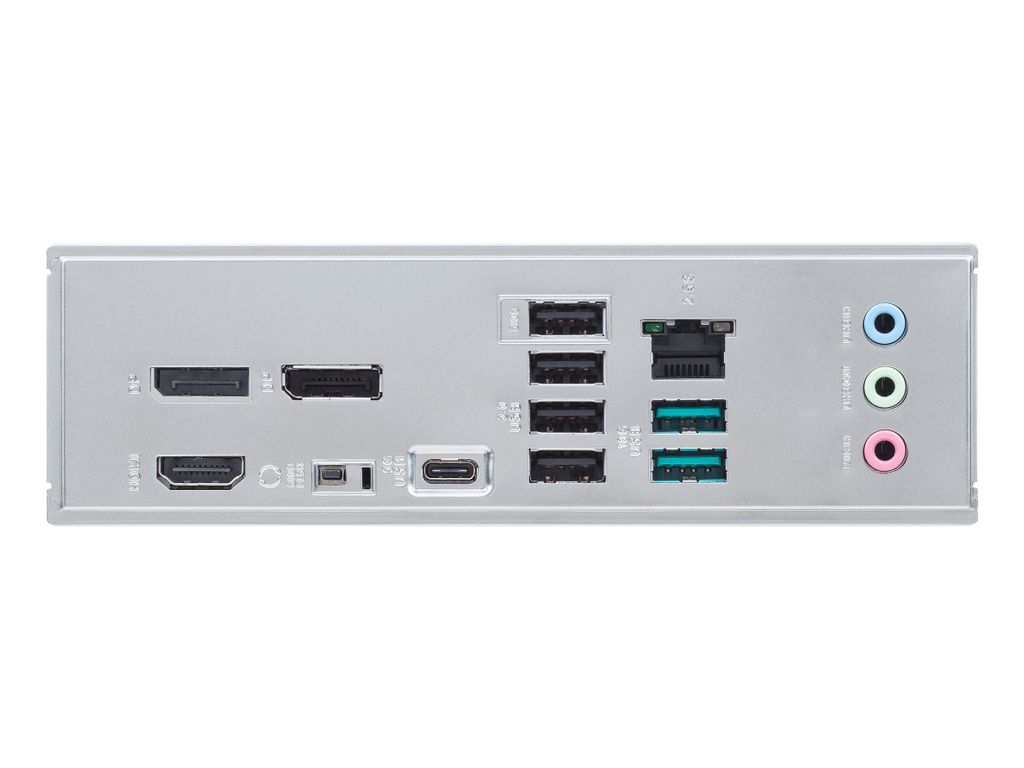

Interfaces	1 x HDMI 2 x DisplayPort 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack
Internal Interfaces	1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPDIF out - header 1 x speaker - header 1 x SPI - header 1 x Thunderbolt - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features	Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	Preboot eXecution Environment (PXE), ASUS EZ DIY, ASUS DIGI+ VRM, CrashFree BIOS 3, ASUS OptiMem II, ASUS 5X Protection III, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Aura Sync, Lighting Control, ASUS Control Center Express (ACC Express), 6 Layer PCB, ASUS Enhanced Memory Profile (AEMP), 8+2+1 Phase Power Design
Miscellaneous	Miscellaneous
Included Accessories	M.2 screw package, IO shield, ACC Express Activation Key Card
Cables Included	2 x Serial ATA cable
Software Included	WinRAR, Norton 360 for Gamers (60 days trial), ASUS CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AI Suite III, ASUS Fan Xpert 2+, ASUS AURA Creator, Armoury Crate, Adobe Creative Cloud (free trial), WinRAR (40 days trial), ASUS Control Center Express
Width	24.4 cm
Depth	24.4 cm
Pricing Type	ASUS Corporate Stable Model (CSM)
