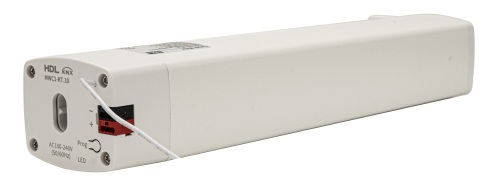

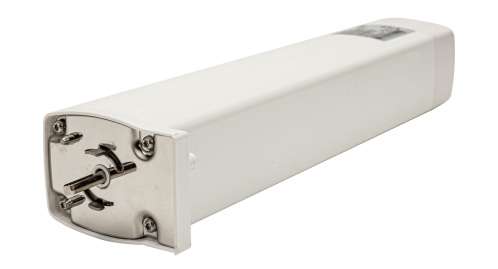

HDL Curtain Motor for KNX 8mA C1
Κωδικός: 20004020 // Κωδικός προμηθευτή: MWC1-KT.10
€139,20 (συμπ. ΦΠΑ)
Διαθέσιμο από 1-3 εργάσιμες ημέρες
Δείτε επίσης
Meanwell PWM-60-24KN KNX LED Driver 60W 24V
Κωδικός: 20523420
€40,32
Διαθέσιμο από 1-3 εργάσιμες ημέρες- KNX communication protocol
- Curtain control: Open / close / stop / open or close at specific percentage
- Touch start: The device supports "Touch Start" by default. This means, when users gently pull the curtain cloth towards any direction, curtain motor will be activated to work and automatically complete the preset travel
- Auto travel limit: After setting the motor travel limit, the motor will automatically complete the pre-set travel
- Auto modification while detecting obstacles: When single side of curtain cloth encounters obstacles, the motor will automatically modify its travel limit
- Auto pause while detecting obstruction: When curtain cloth encounters obstruction, the motor will automatically stop running
- Soft start / stop: The motor slows down before it reaches the travel limit point, which is designed to effectively protect the motor and lengthen its service life, as well as reduce motorised noise
- When the device starts up for the first time after power off then on, it will automatically proceed travel calibration
- Factory setting can be restored by commissioning software or programming button
- Through commissioning software, users can proceed advanced settings for the device, including functional configuration, data backup, data upload or download
- On-line / Manually update for device firmware
- Motor input voltage : 100 - 240V AC, 50/60Hz
- Motor rated consumption : 22W
- KNX rated voltage : 30V DC
- KNX rated current : 8mA/30V DC
- Motor torque : 1.2 N·m
- Motor rotate speed : 90rpm
- Motor maximum load-bearing : 50kg
- Motor sound level : <30dB ,at silent mode
- Communication protocol :KNX
- Working temperature : -5℃ ~ 45℃
- Working relative humidity : ≤90%RH, non-condensed
- Storage temperature : -20℃ ~ 60℃
- Storage relative humidity : ≤93%RH
