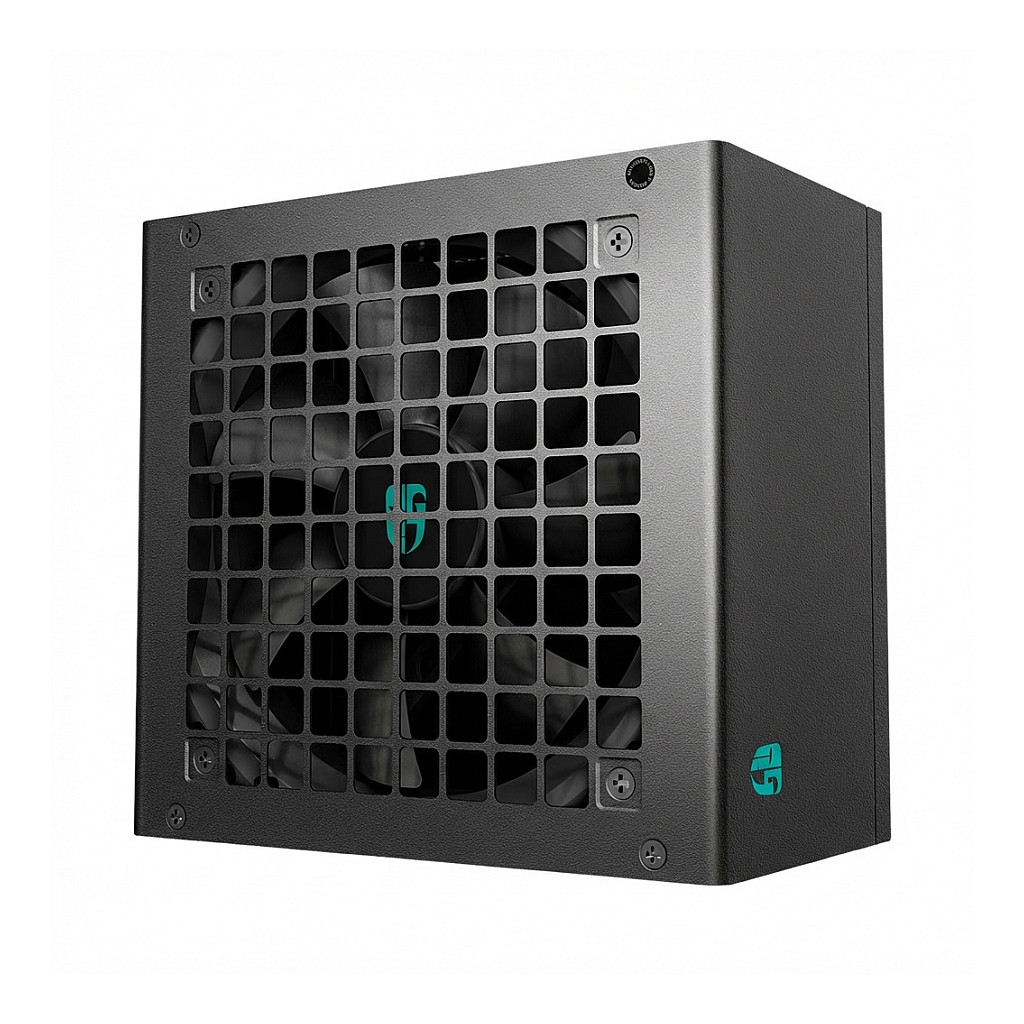

POWER SUPPLY (PSU)

MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS
The *bronze efficiency obtained from 80 PLUS. Cybenetics. and PPLP. ensuring 88% efficiency under typical loads (50%). significantly reduced energy loss and heat generation while extending the service life of the PSU.

TAIWANESE + JAPANESE PREMIUM CAPACITORS
By using the Taiwanese premium solid and electrolytic capacitors. the PF-X series can ensure a hold-up time ≥ 16ms under 75% load. which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands. which have a four-fold life span compared with normal. ensuring stable standby throughout the day.

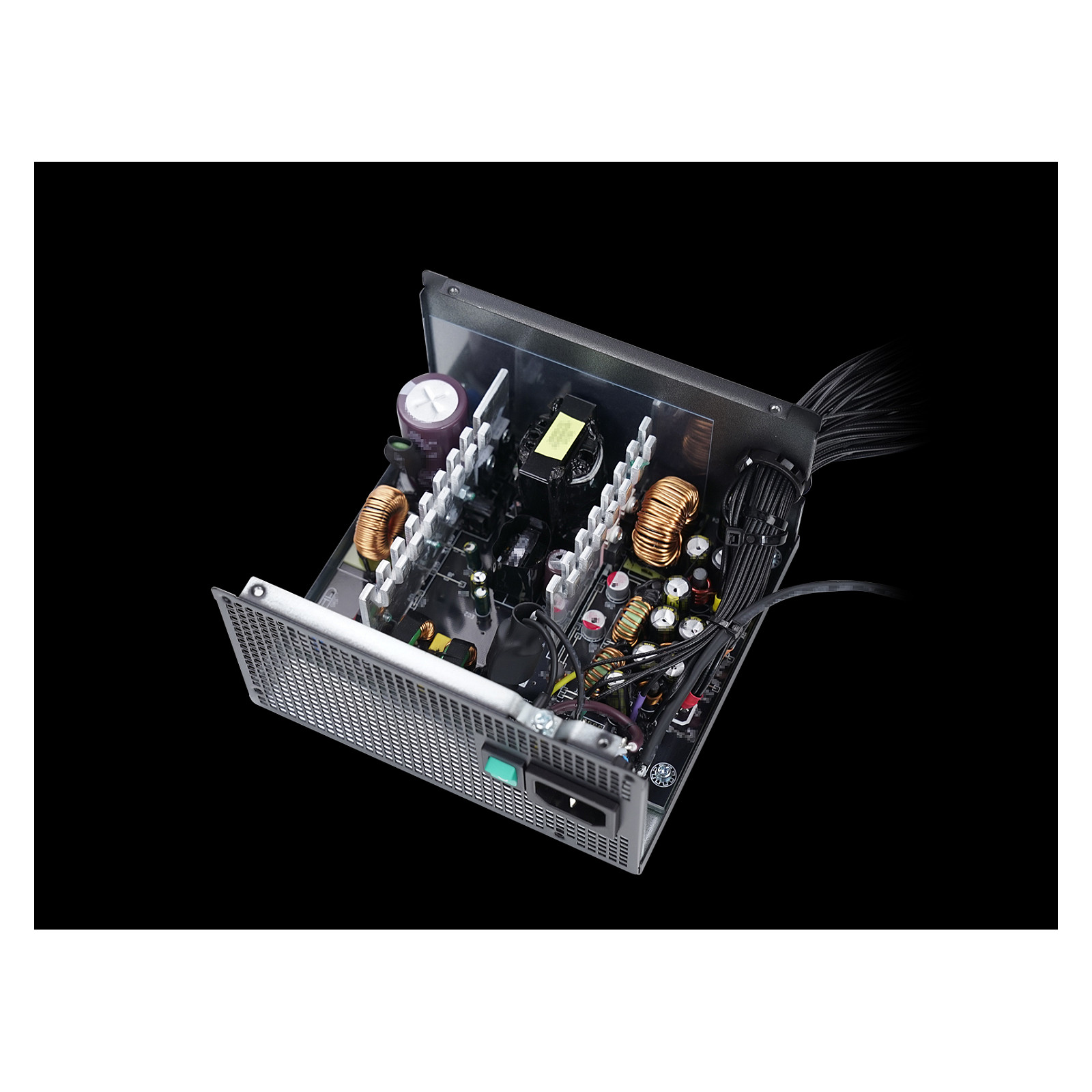

RELIABLE TOPOLOGY
To meet the Intel ATX 2.52 standard. using Active PFC + Double Forward + DC to DC. combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation. providing better electrical performance and compatibility.

WIDE VOLTAGE ADAPTATION
Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.

Strict Safety Standard
Strictly following global safety standards. beyond competitors. including the 40℃ and 5000m safety levels. meets the requirements for high-temperature and high-altitude areas.

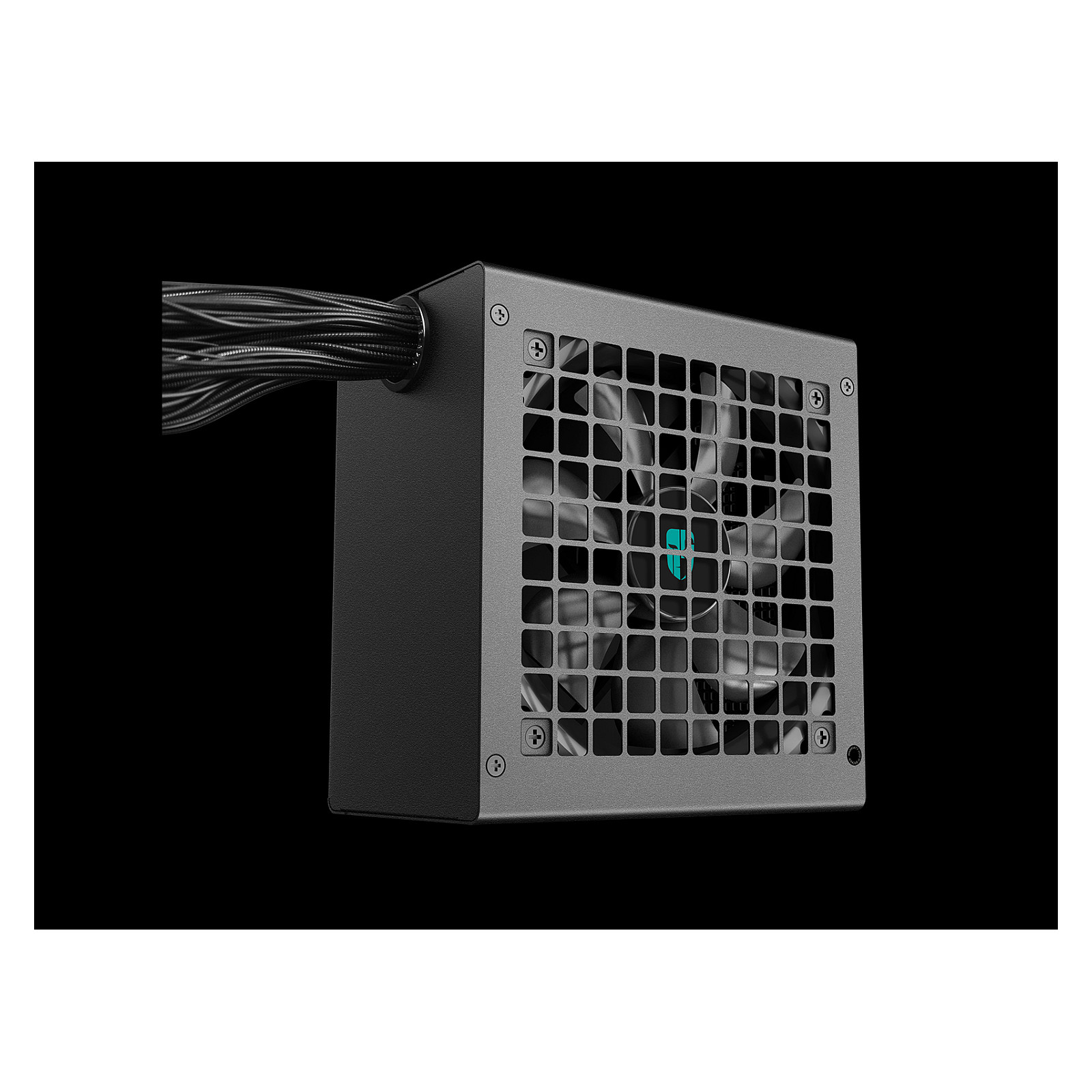

40K HRS MTBF LONG-LIFE FAN
A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile. the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.

High-Grade Configurations
Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.

Peace of Mind
The PF-X is equipped with eight protection IC providing comprehensive safeguards. including OPP. OVP. SCP. OTP. OCP. UVP. SIP. and NLO.

Power
Total power: 500 W
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 499.2 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 16 A
Max output current (+12V): 41.6 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 88%
Power protection features: No load operation. Over current. Over power. Over voltage. Overheating. Short circuit. Surge & inrush protection (SIP). Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 3
SATA power cable length: 450.600.750 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 900 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 55 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 62 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector

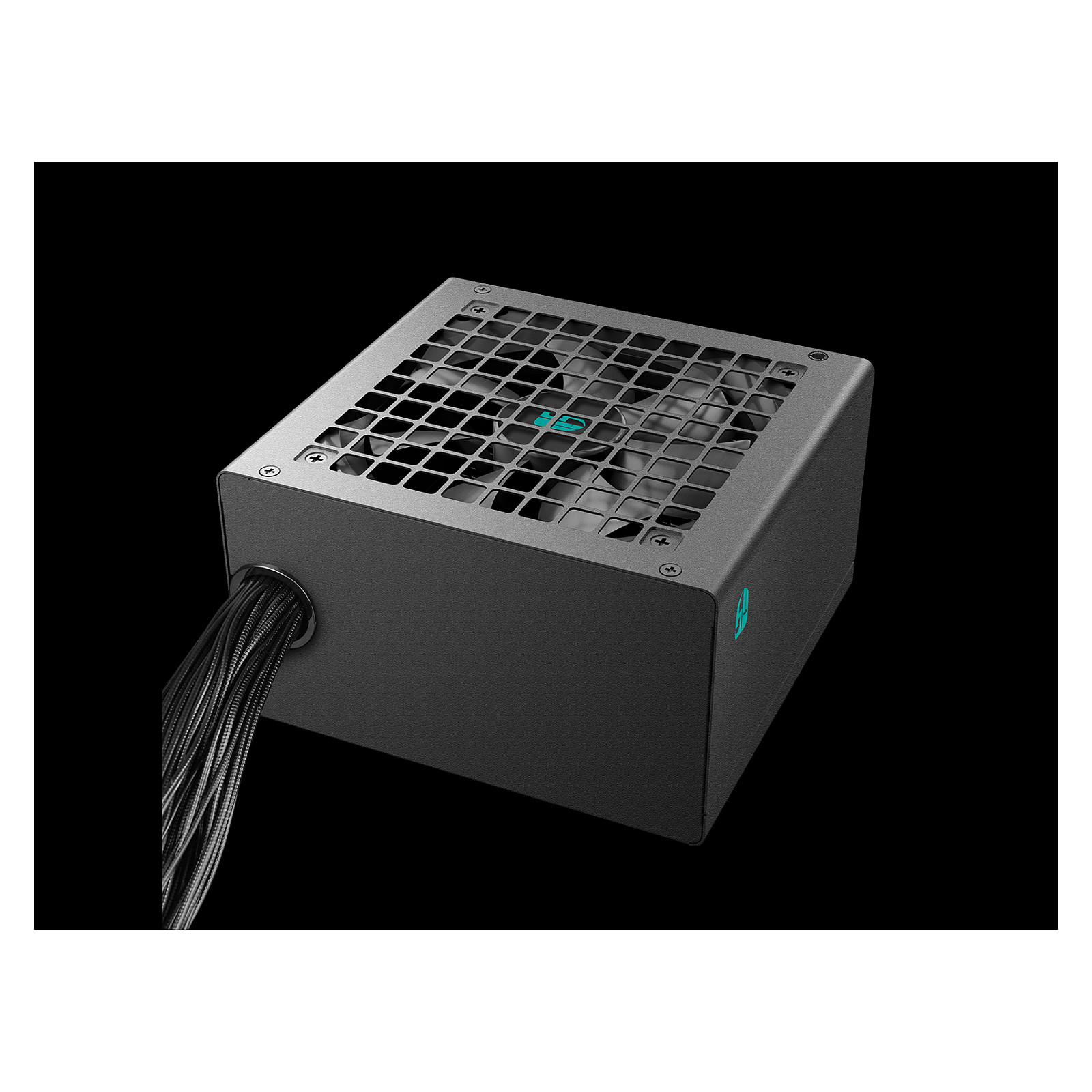

Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.52
Bearing technology: HYB
Mean time between failures (MTBF): 40000 h
Design
Product colour: Black
Cooling type: Active

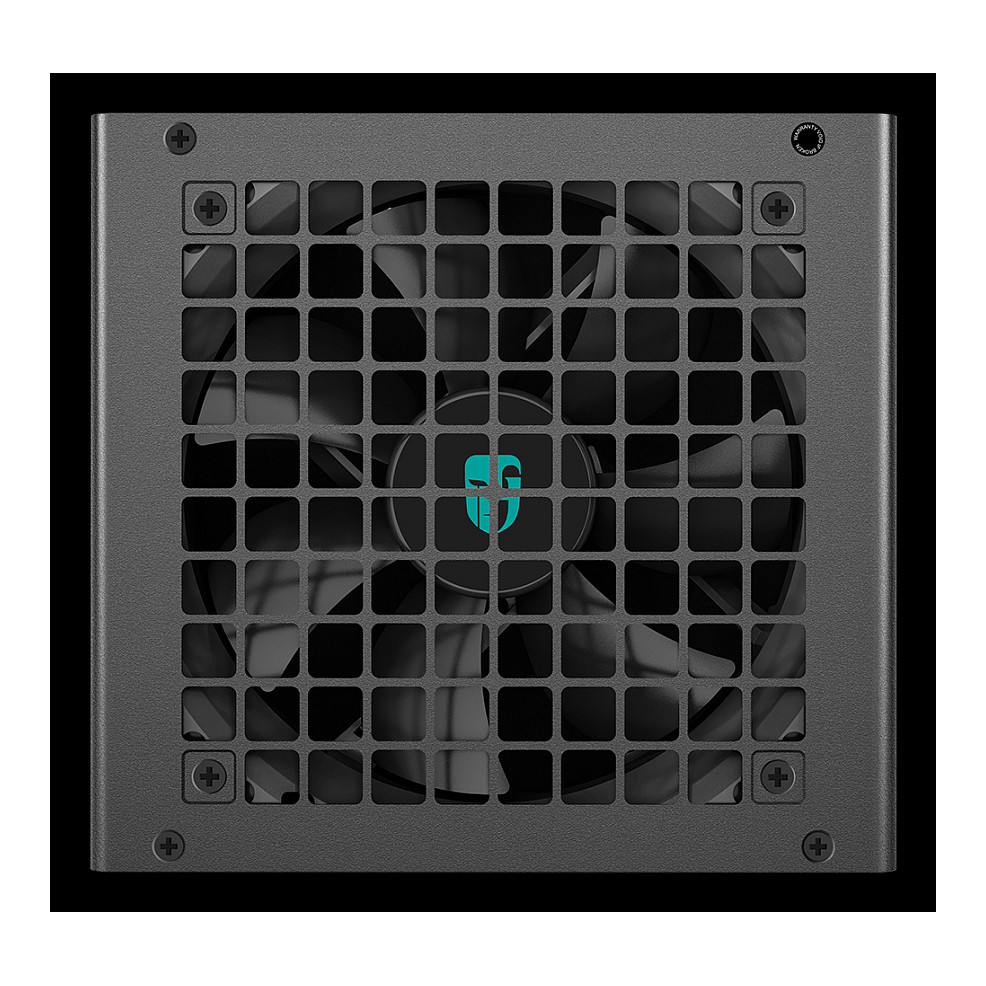

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

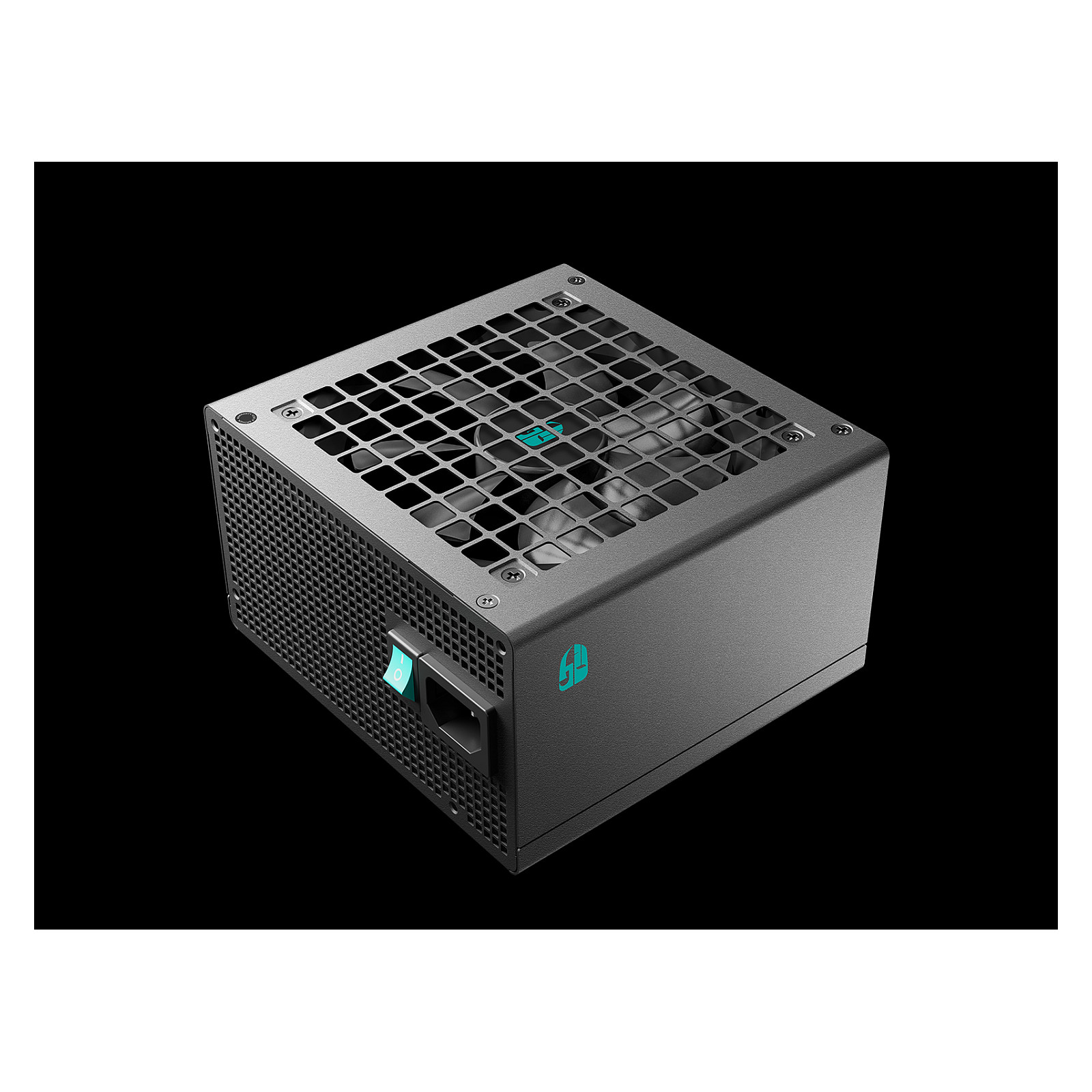

Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C

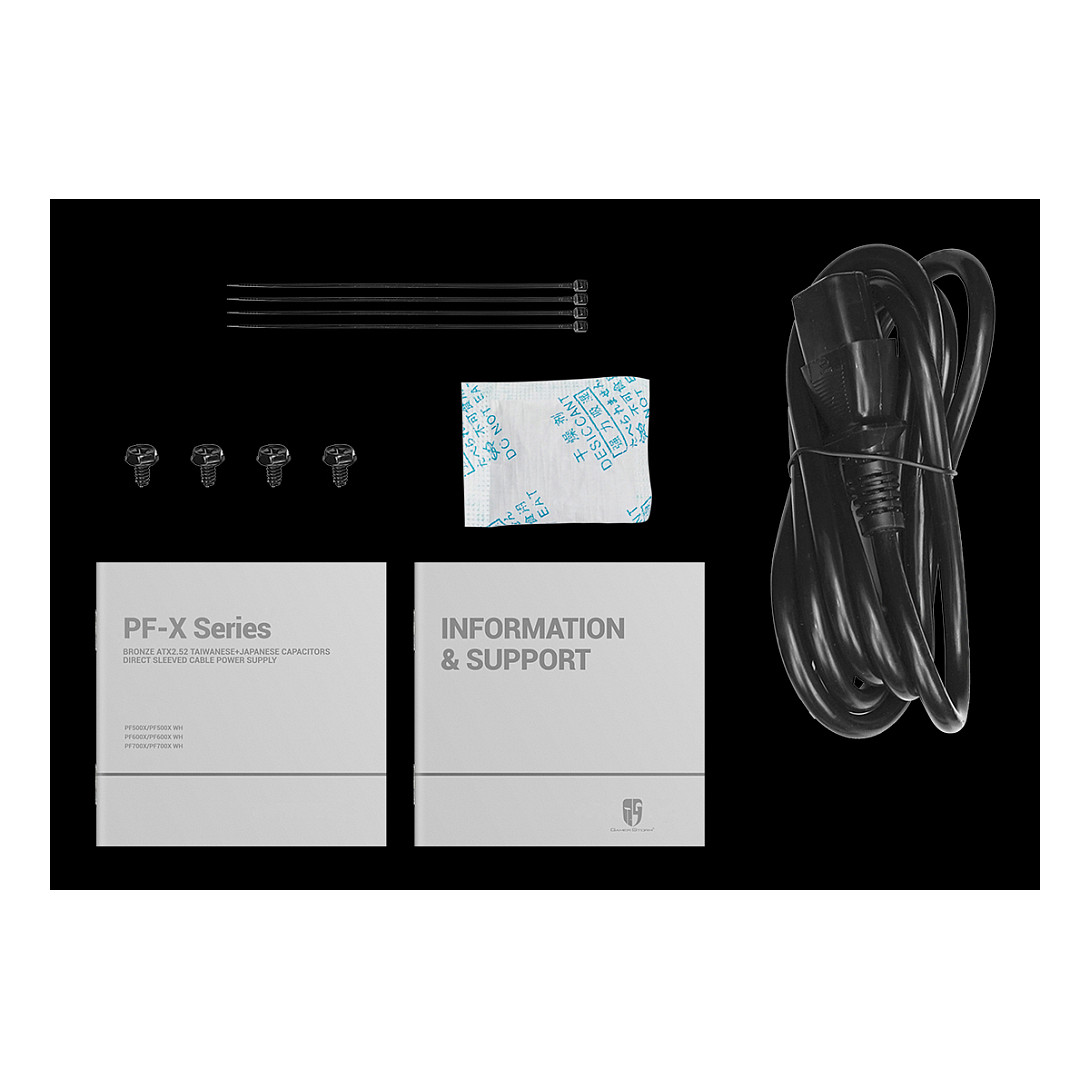

Packaging content
Cables included: AC
Certificates
Compliance certificates: CCC. CE. KC. RCM. TÜV mark. WEEE
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Sustainability certificates: ErP. Triman
Logistics data
Warranty period: 3 year(s)
Other features
Feature: Screws included
Feature: Cable ties included
