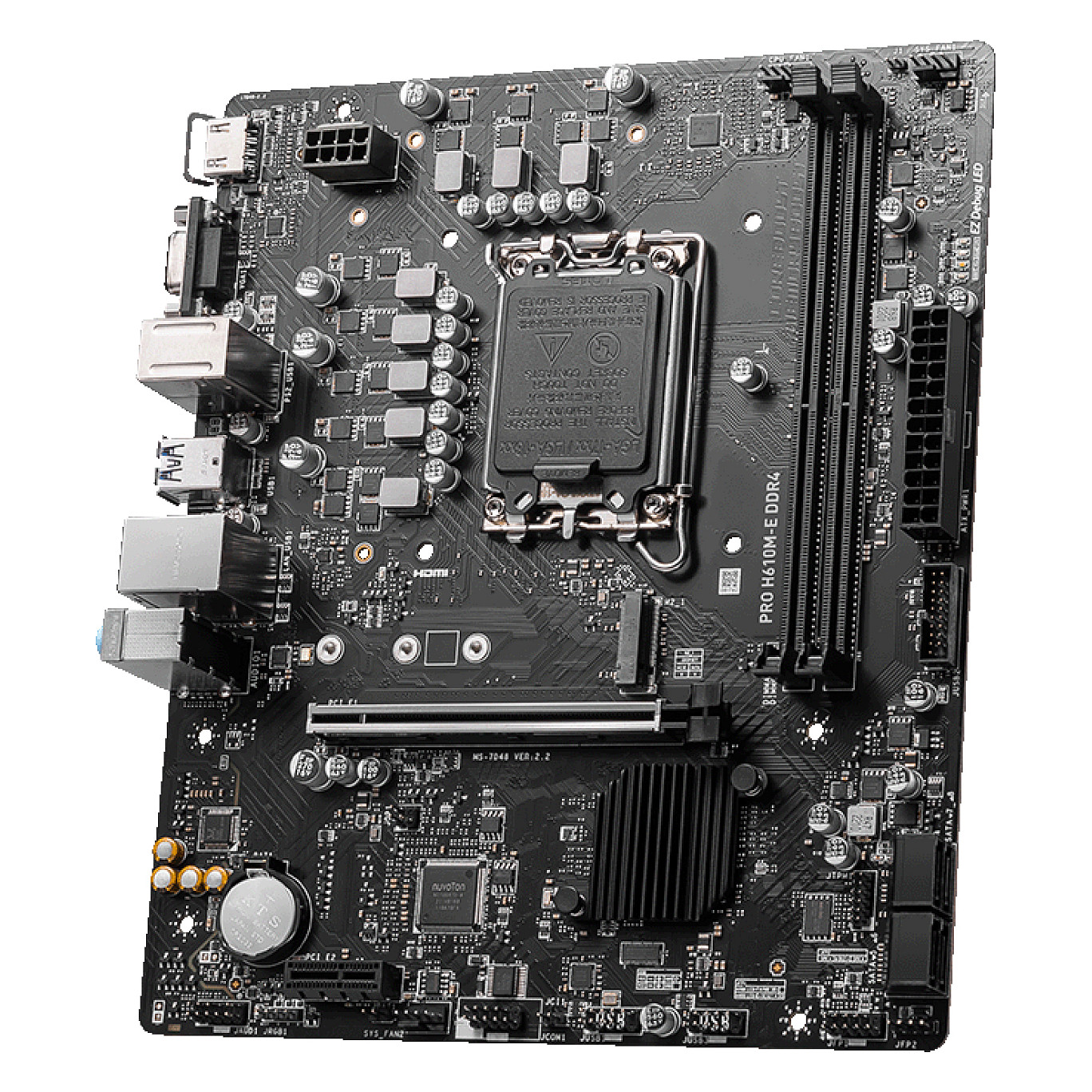

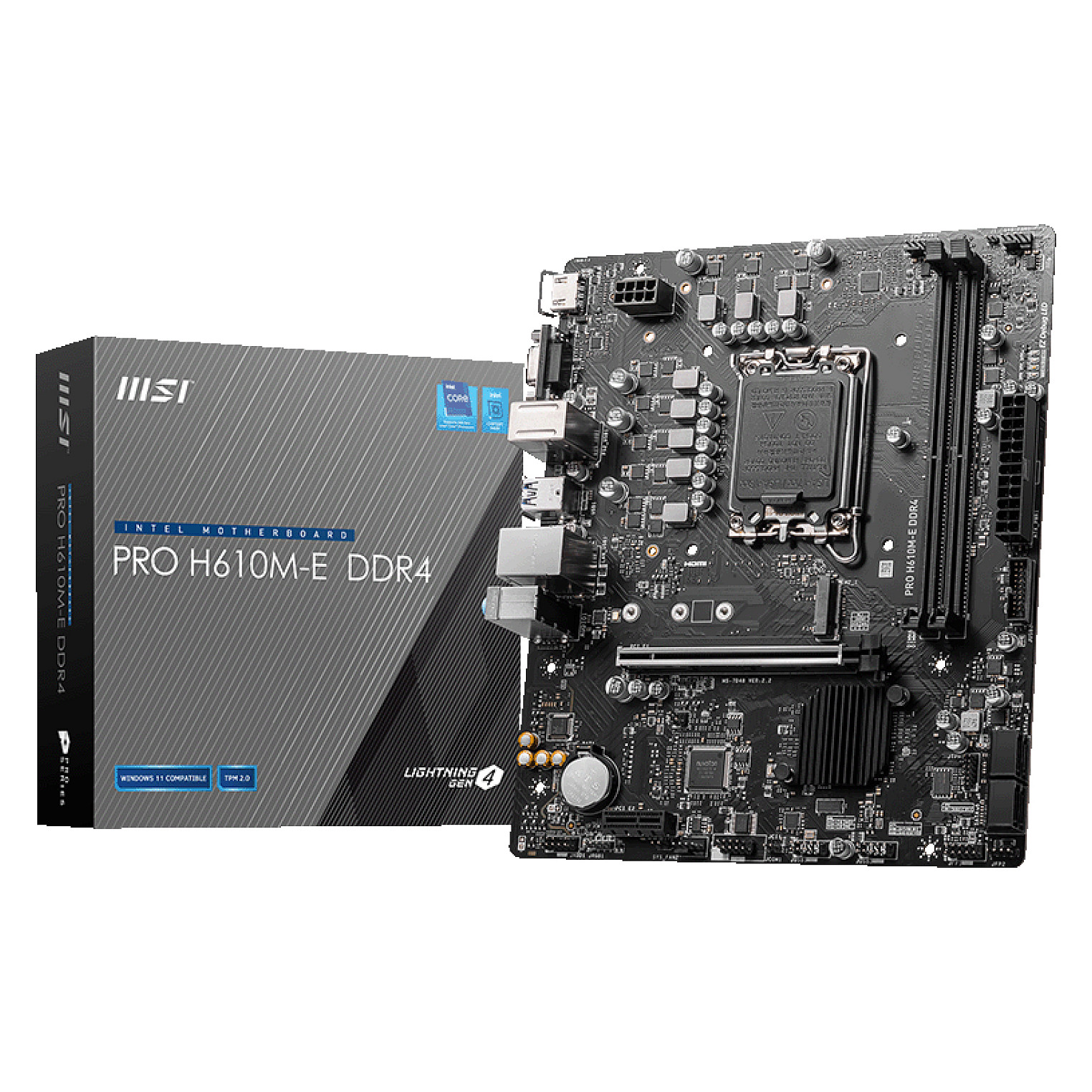

1700 MSI H610M-E PRO mATX D4
Product code: 20459022 // MPN: 7D48-001R // EAN: 4711377002660
New entry
€74,65 (inc. VAT)
Available from 4 to 10 days (200 pcs available)
Similar products
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |

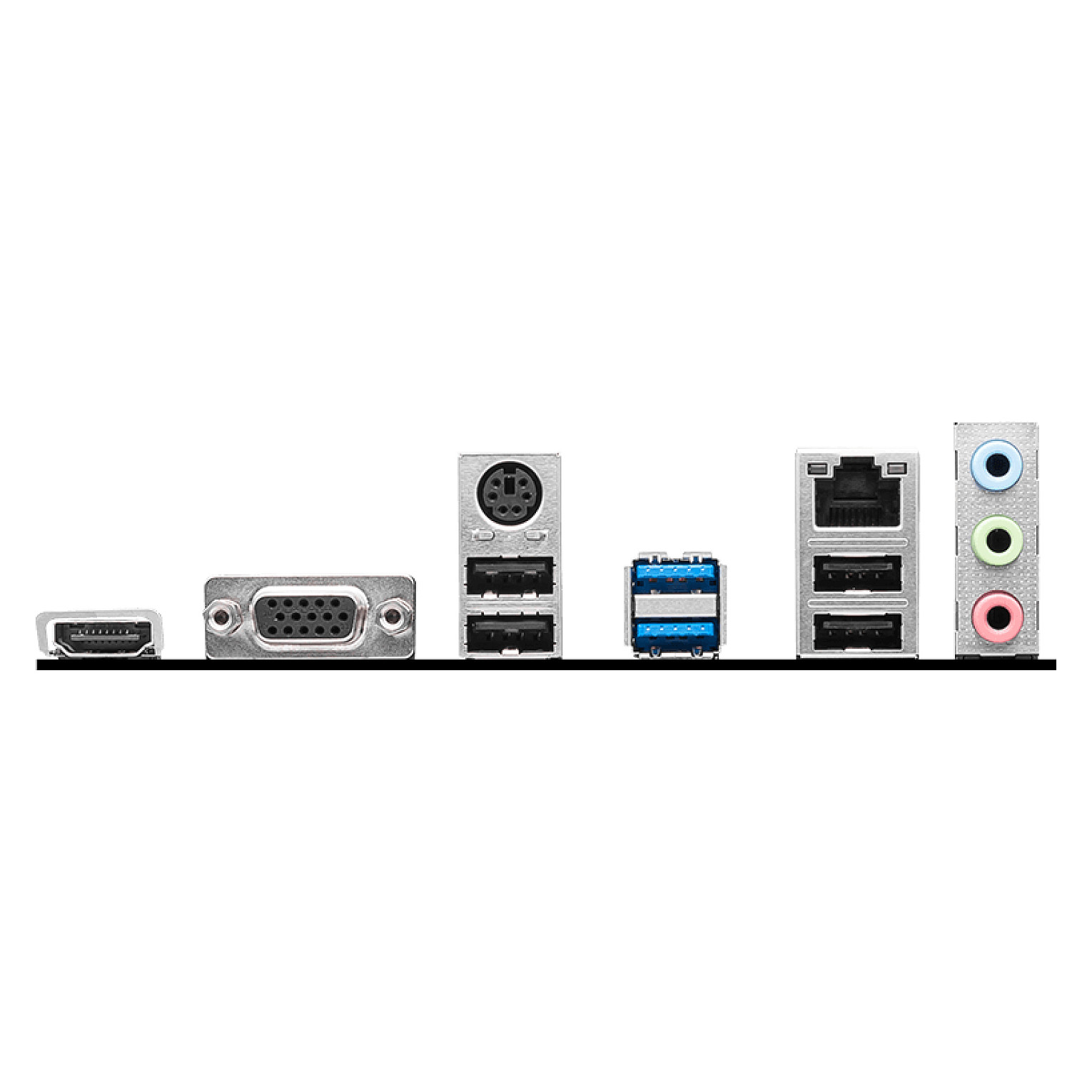

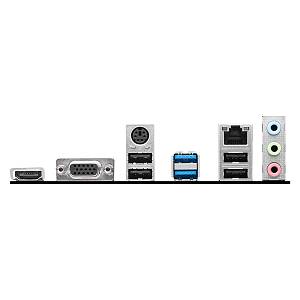

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x serial - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, Debug LED, MSI Core Boost, MSI PCIe Steel Slot, MSI Memory Boost |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, M.2 clip |
| Cables Included | 2 x Serial ATA cable |
| Software Included | MSI Center |
| Compliant Standards | WEEE, FCC Part 15 Class B, JIS C 0950 |
| Width | 23.6 cm |
| Depth | 20 cm |
