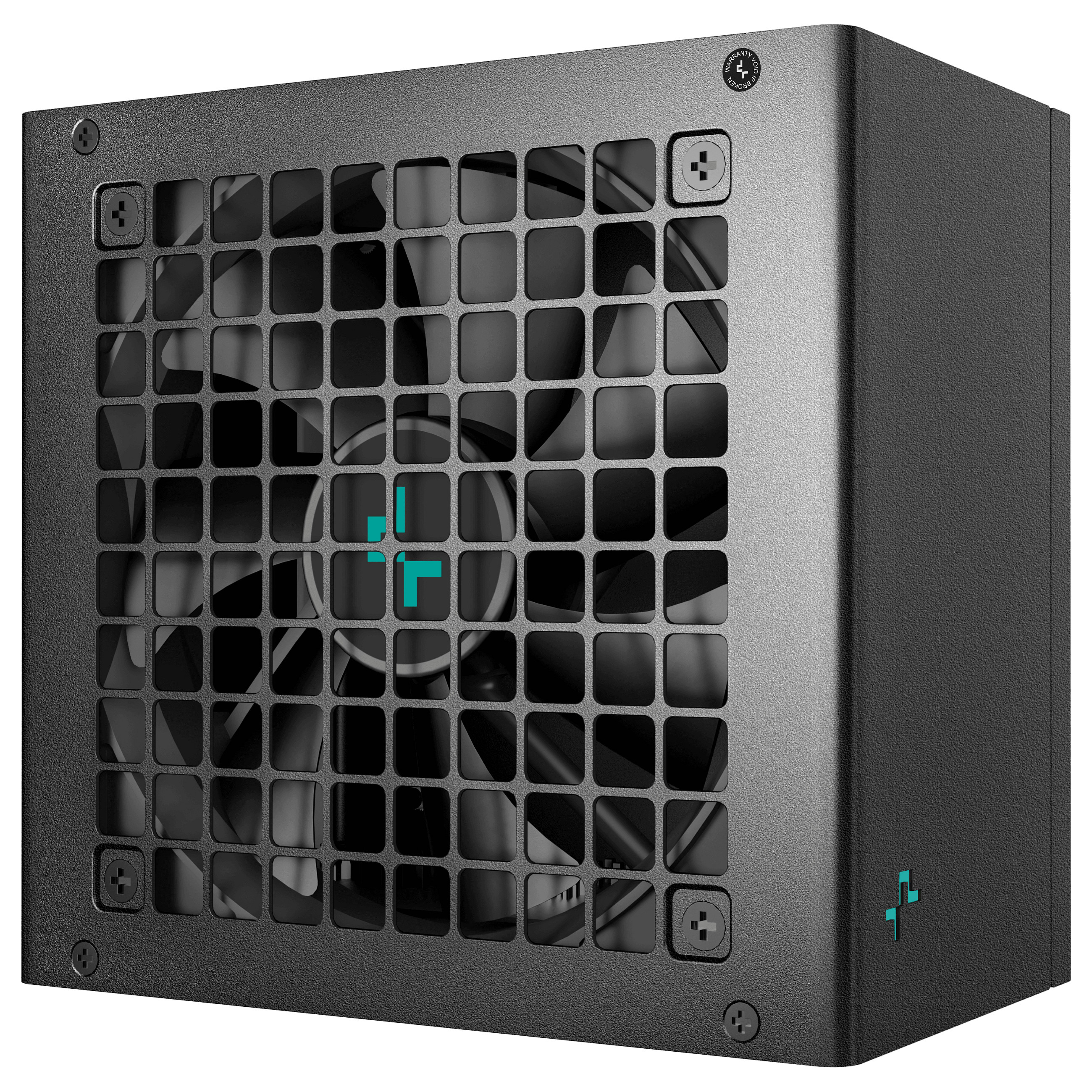

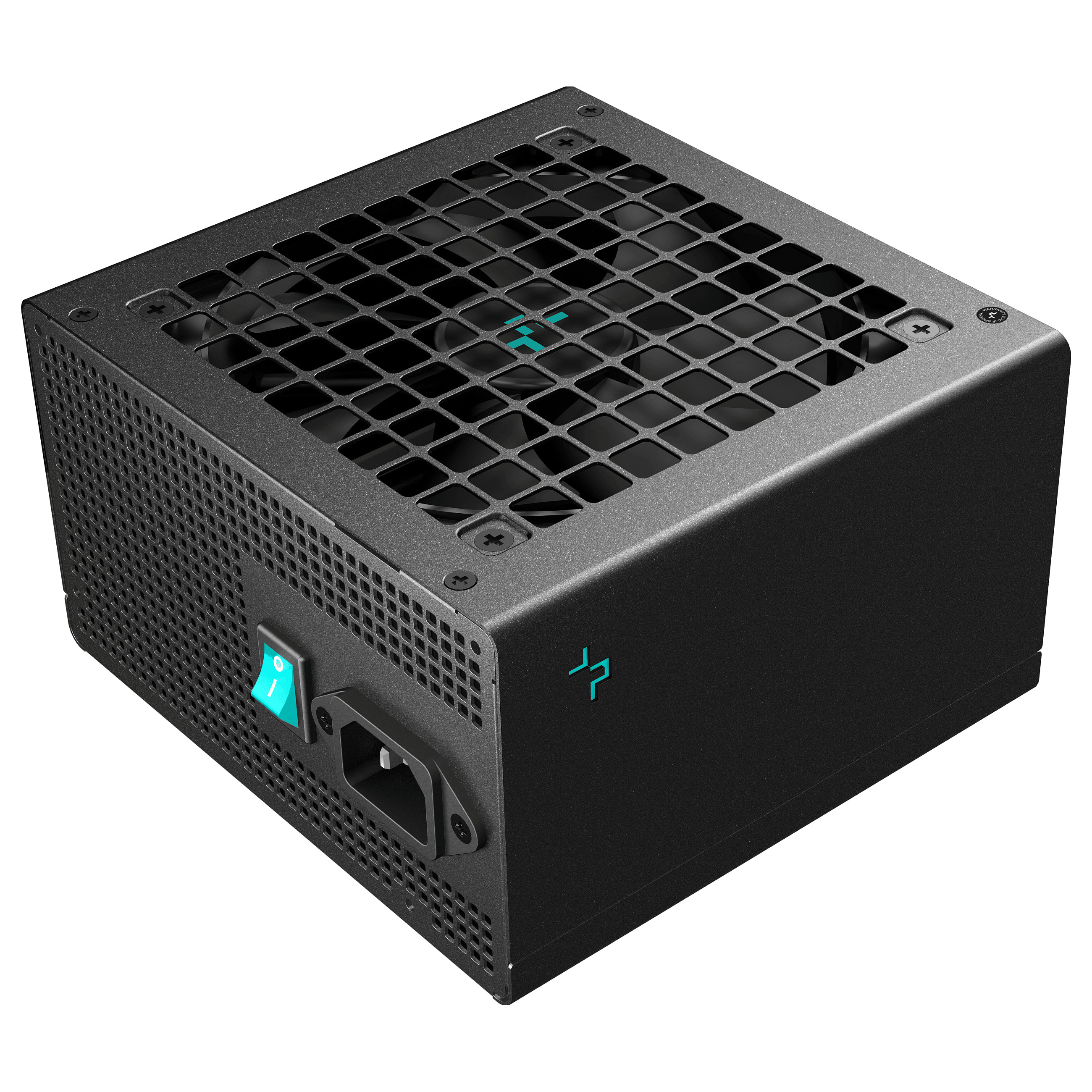

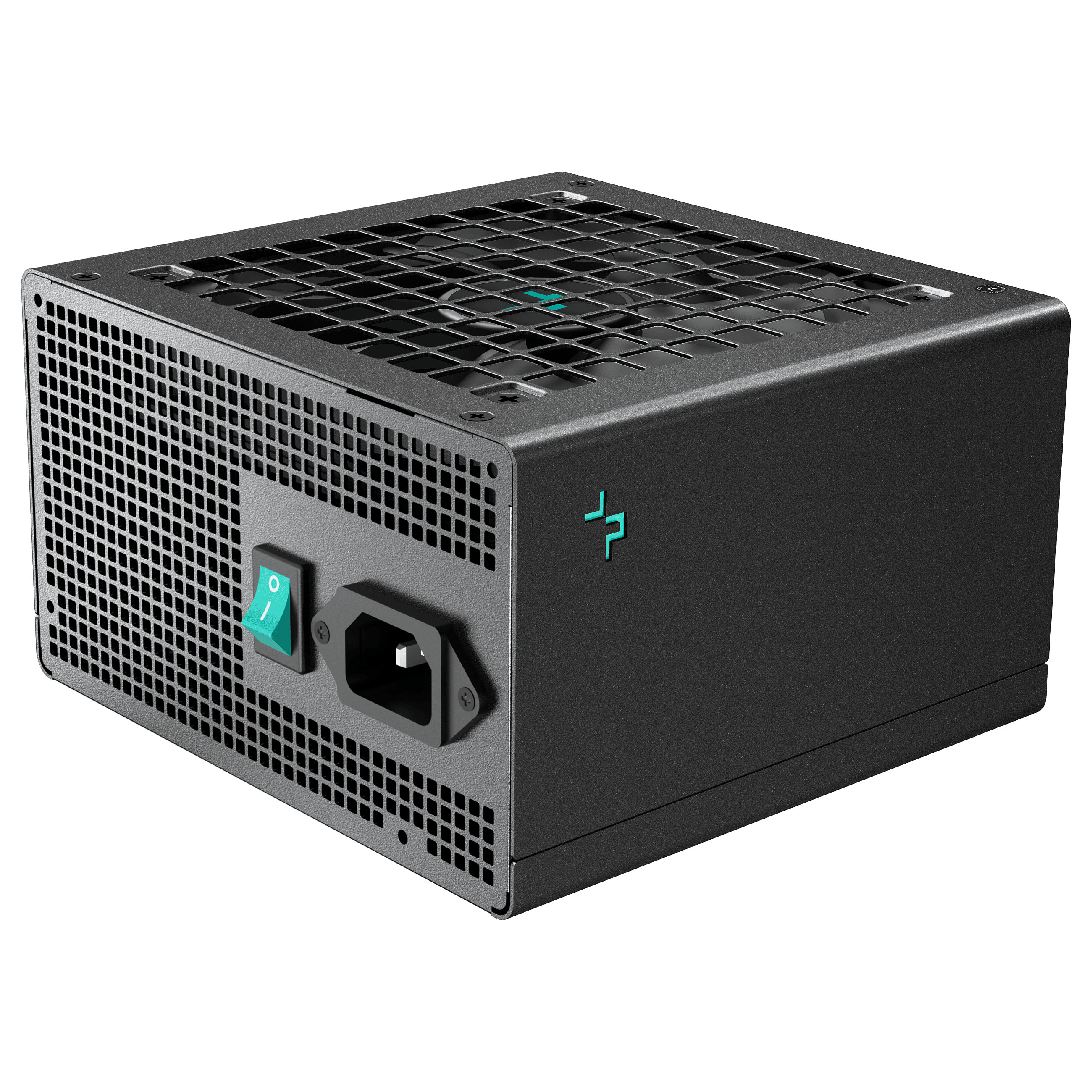

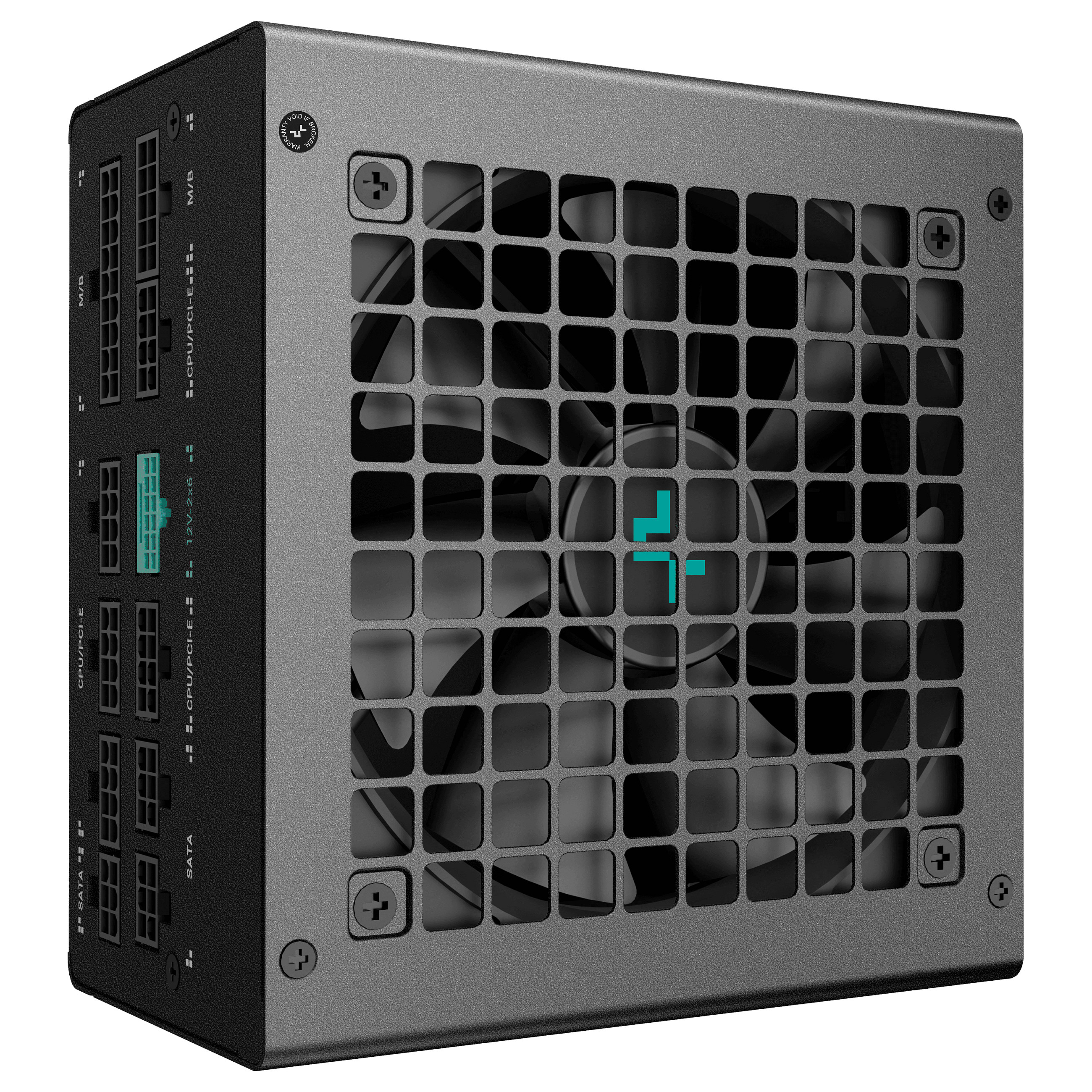

850W DeepCool PN850-M

Product code: 20483622 // MPN: R-PN850M-FC0B-JGEU // EAN: 6933412741053

€116,75 (inc. VAT)

Available from 4 to 10 days (21 pcs available)

Add to wishlist

1200W be quiet! PURE Power 12 M | 80+ Gold ATX 3.1

Code: 17230422

€194,85

Available from 4 to 10 days

Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.31/ EPS12V
PSU Form Factor	ATX
Colour	Black
Localisation	Europe
Power Device	Power Device
Input Voltage	AC 100-240 V
Frequency Required	50 - 60 Hz

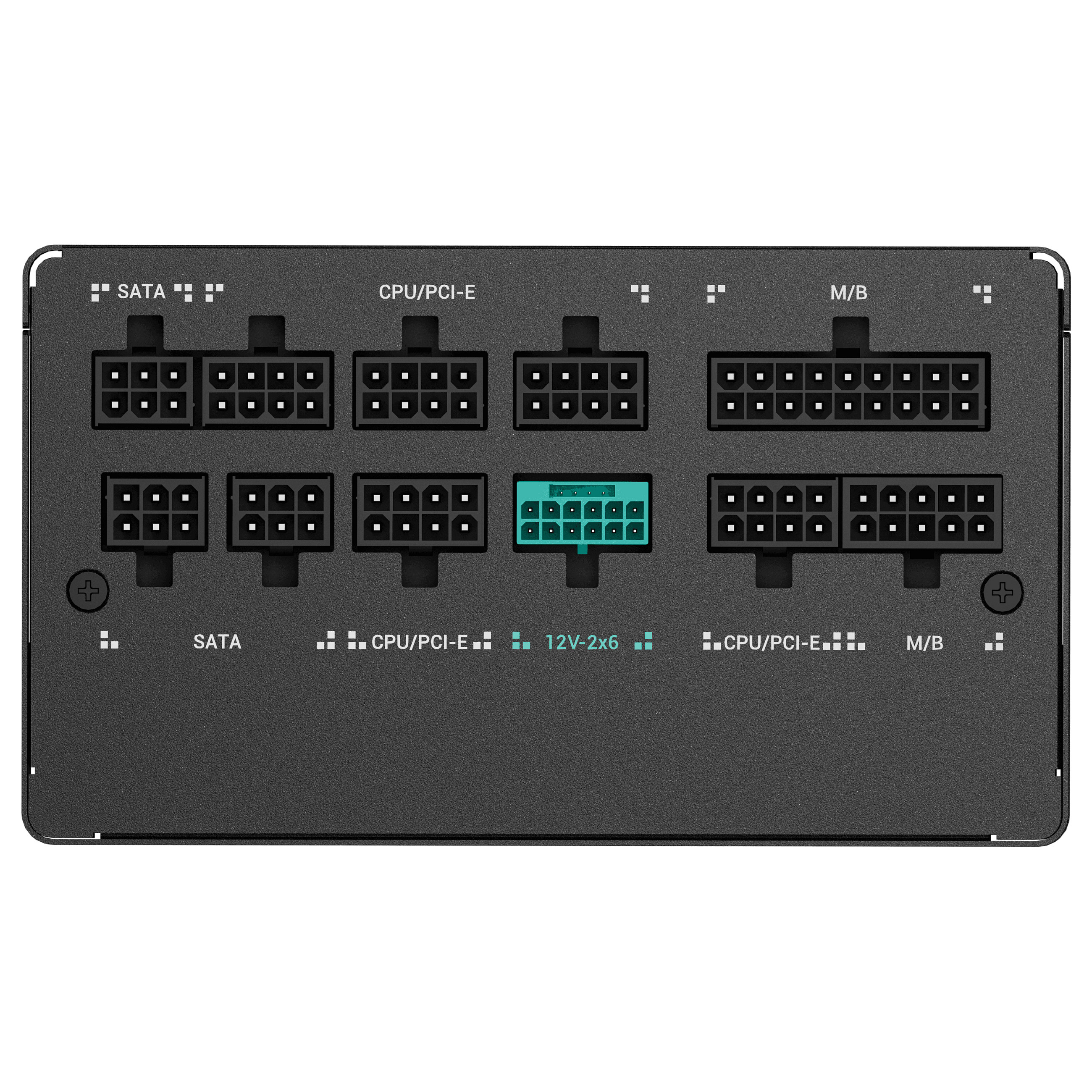

Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 3 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 16 pin PCI Express power
Output Voltage	+3.3, +5, ±12 V, +5Vsb V
Power Capacity	850 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V - 70.5 A -12V - 0.3 A +5VSB - 3 A
Efficiency	90% at 50% Load
Modular Cable Management	Yes
80 PLUS Certification	80 PLUS Gold
Miscellaneous	Miscellaneous

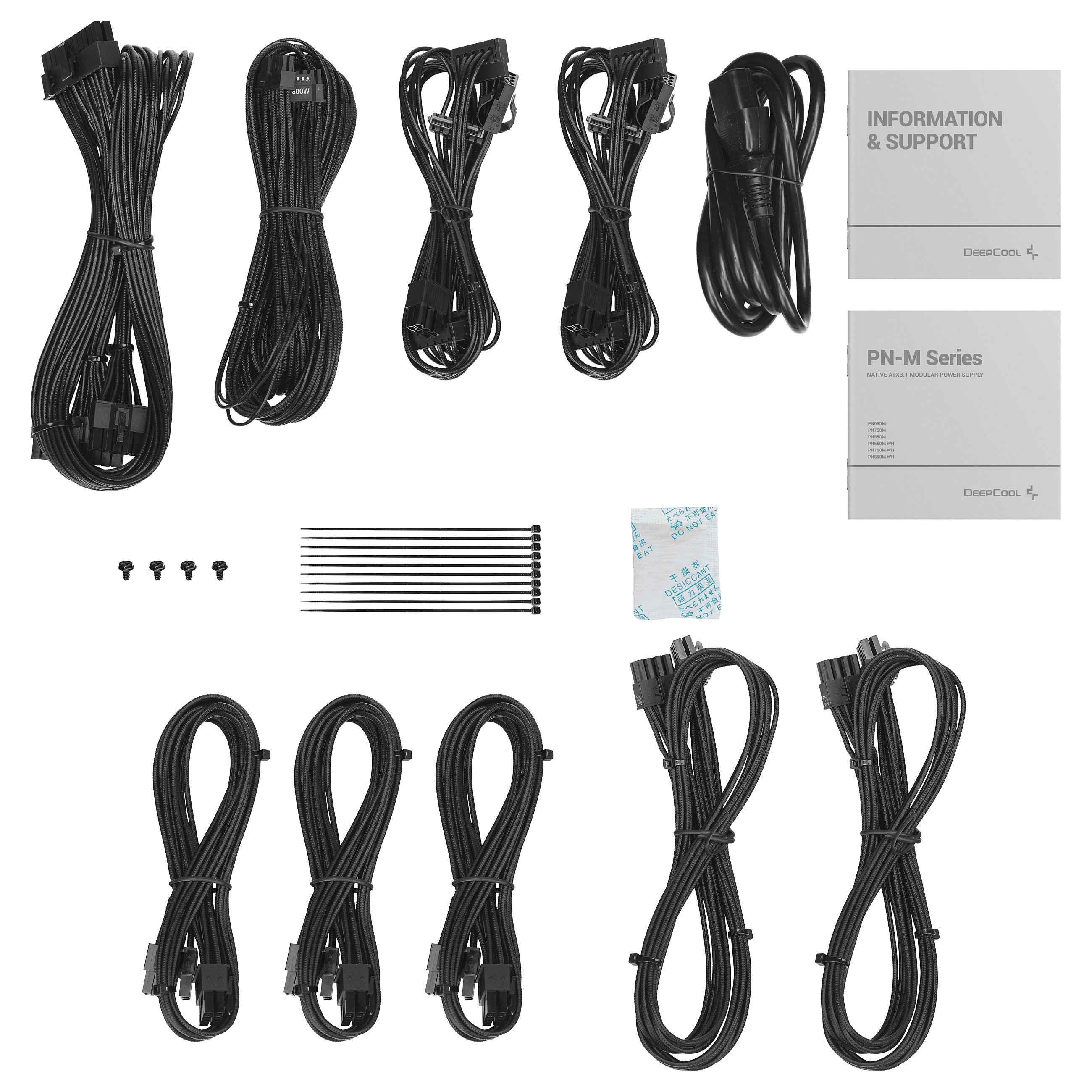

Cables Included	Power 24 pin ATX modular cable - external - 55 cm 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable - external - 70 cm 2 x 4x Serial ATA modular cable - external 4 pin power modular cable - external 3 x 8 pin PCI Express power with detachable 2 pin section modular cable - external 16-pin 12VHPWR power cable - external
MTBF	100,000 hours

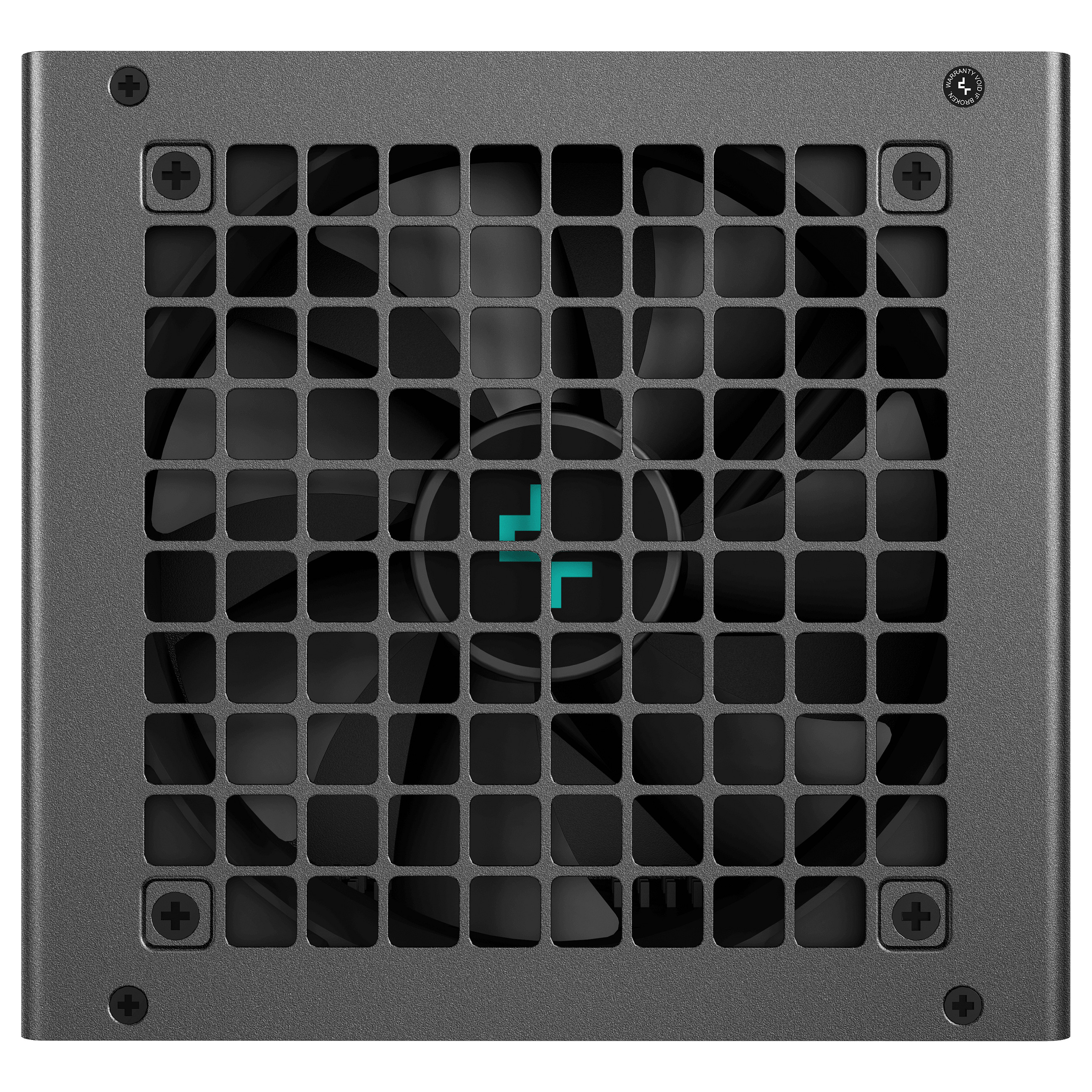

Cooling System	120 mm fan
Features	Fluid dynamic bearing cooling fan, overpower protection, over voltage protection, short-circuit protection, overheat protection, over current protection, undervoltage protection, no load operation protection, surge & inrush protection, fully modular, LLC Full Bridge Topology, DC-DC technology
Compliant Standards	CCC, FCC, cTUVus, RCM, EAC, BIS, TUV Rh, WEEE, RoHS, Triman, ErP 2014
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 10 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Dimensions & Weight	Dimensions & Weight
Width	15 cm
Depth	14 cm
Height	8.6 cm
