HDL FCU & Floor Heating Actuator

Product code: 20520420 // MPN: M/FCU01.10.1

€155,52 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

HDL Panel Tile Series OLED Thermostat Ash Gray HDL-M/PTOL6.1

Code: 20525920

€126,72

Available from 1 to 3 days

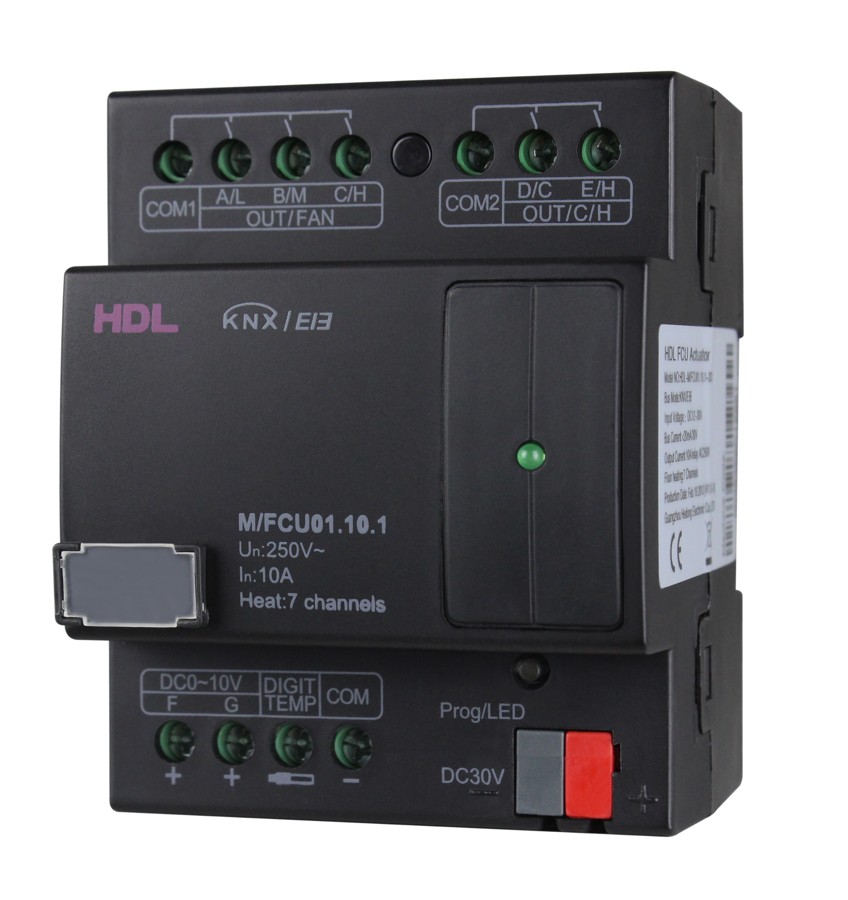

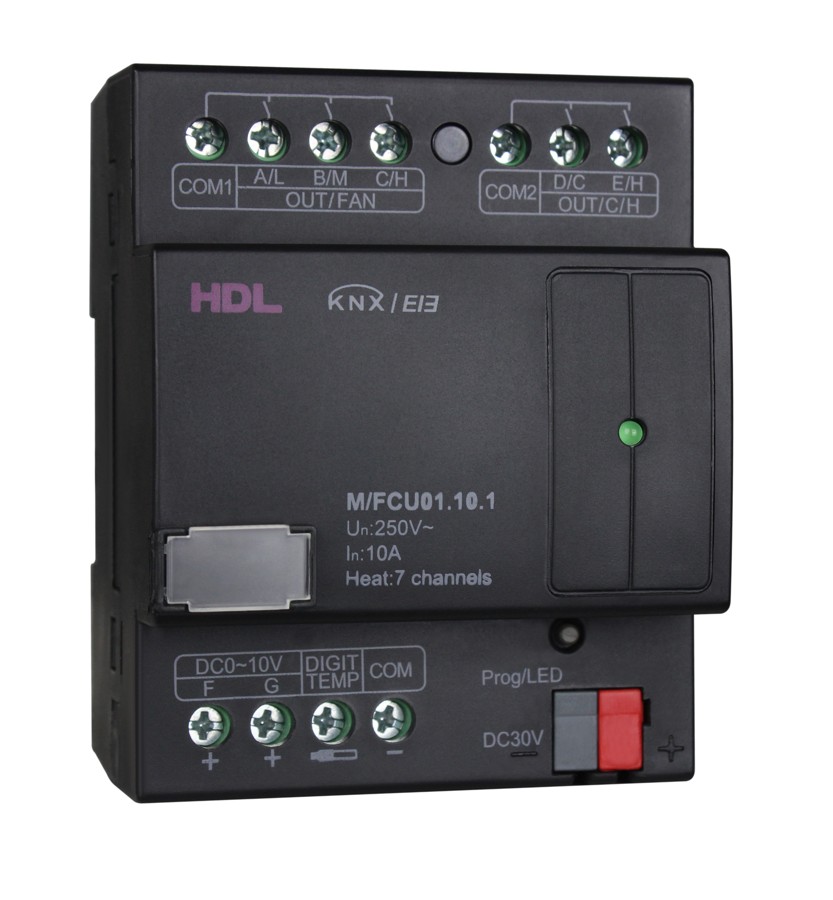

FCU & Floor Heating Actuator, DIN-Rail Mount, 5CH for relay output and 2CH DC 0-10 V output. with FCU control and floor heating control, it has High-Medium-Low Fan Speed,also cooling and heating control if selected FCU function in ETS , it has 7CH floor heating control if selected by ETS, Support 7 digital temperature sensors.

Multiple control objects: HVAC, Fan, Compressor, Floor heating, one control mode for each control target.
Control modes: HVAC mode, Fan mode, Compressor mode and Floor heating mode.
Active control and passive control: More flexible to work in conjunction with different panels. When in active control mode, this module can work in conjunction with panels without PI algorithm such as HDL-M/DLP04.1. When in passive control mode, this module can work in conjunction with panels with algorithm such as Siemens 5WG1.
Local temperature detection and limit temperature alarm. When the local temperature is too high or too low, te module will send an alarm signal to the bus. This module can connect to up to 7 temperature sensors.
