Artsound Arcus-EDS KNX Interface for Smart Audio products
Product code: 20521920 // MPN: AR40400003
€383,04 (inc. VAT)
Available from 1 to 3 days

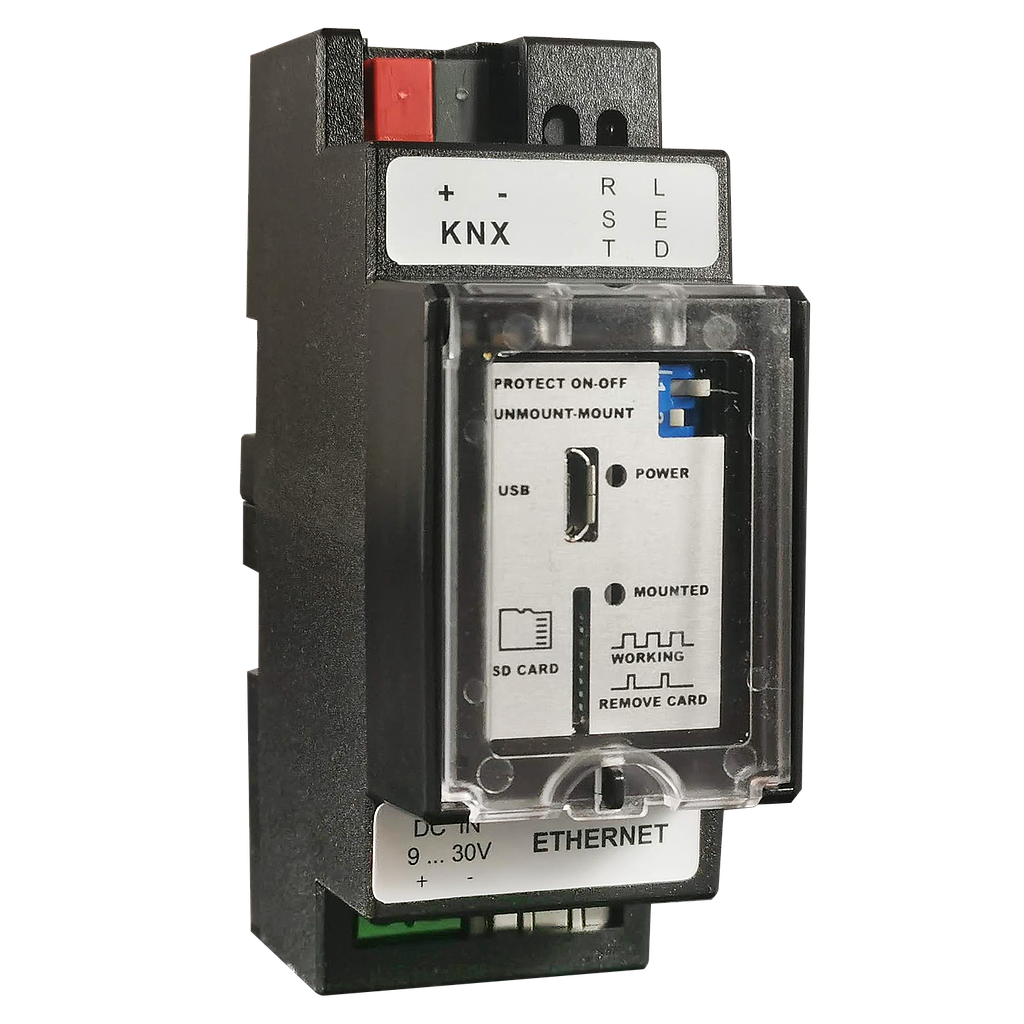

The KNX-GW-IP-2TE is used for coupling the ETS ( PC software tool ) via Ethernet to the KNX bus for addressing and programming KNX components.
Using the KNX-group monitor allows for the monitoring and transfer of telegrams via the KNX-bus in real time. The site of the KNX-group monitor is subdivided into a configuration and a telegram section.
The KNX-IP-gateway is able to save telegrams. The KNX-telegram logger lists the saved telegrams. It is possible to set a timeframe as well as a group address filter.
To visualize the data, up to three different group addresses can be displayed in one graph.
The gateway can link html-sites with KNX-files and visualize them in every browser, provided that websockets are supported.
- Operating voltage: 9 .. 30VDC max. 1,5W 2-pin terminal with screws
- Terminal bus voltage: KNX 2-pin terminal ( red / black )
- Power consumption (KNX): Approx. 120mW (at 24V DC)
- Ambient temperature: Storage -25 .. +85°C
- Operation -25 .. +55°C
- Ethernet: 10/100 Mbit/s RJ45
