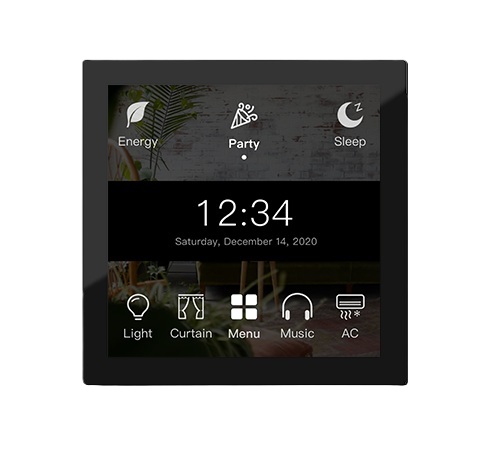

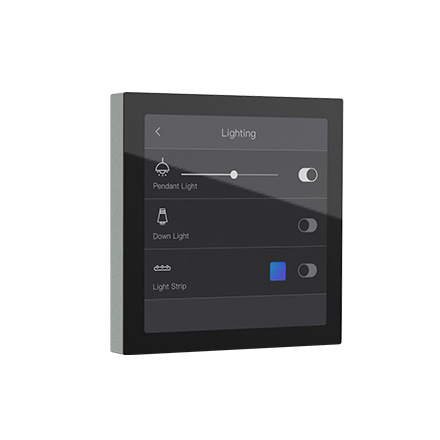

HDL Panel GRANITE Touch Display 4inch Black

New entry

Add to wishlist

Code: 20520320

Available from 1 to 3 days

4-inch LCD screen and Aluminum plate
Control lighting, curtain, scene, air conditioning, floor heating, music and fresh air
Built-in temperature sensor, humidity sensor and proximity sensor

Powered by HDL-M/PCI2PE.1

Built-in temperature and humidity sensor, proximity sensor
Adjustable LCD backlight
LCD screen automatically wakes up

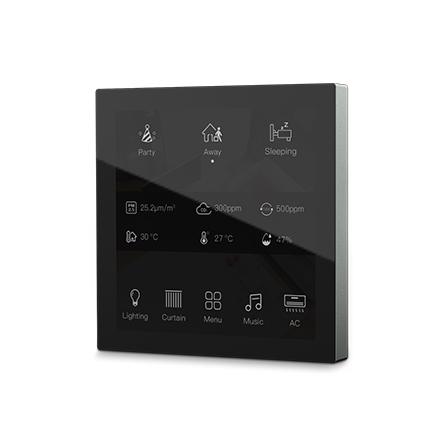

3 scene quick control buttons, 4 function shortcut buttons, and 1 main menu button are available in the main interface
Standby display interface: displays date and time, and supports periodic switching between 2 backup pages.
Dedicated pages for lights, curtains, decorations, AC / FCU, underfloor heating, music and fresh air controls

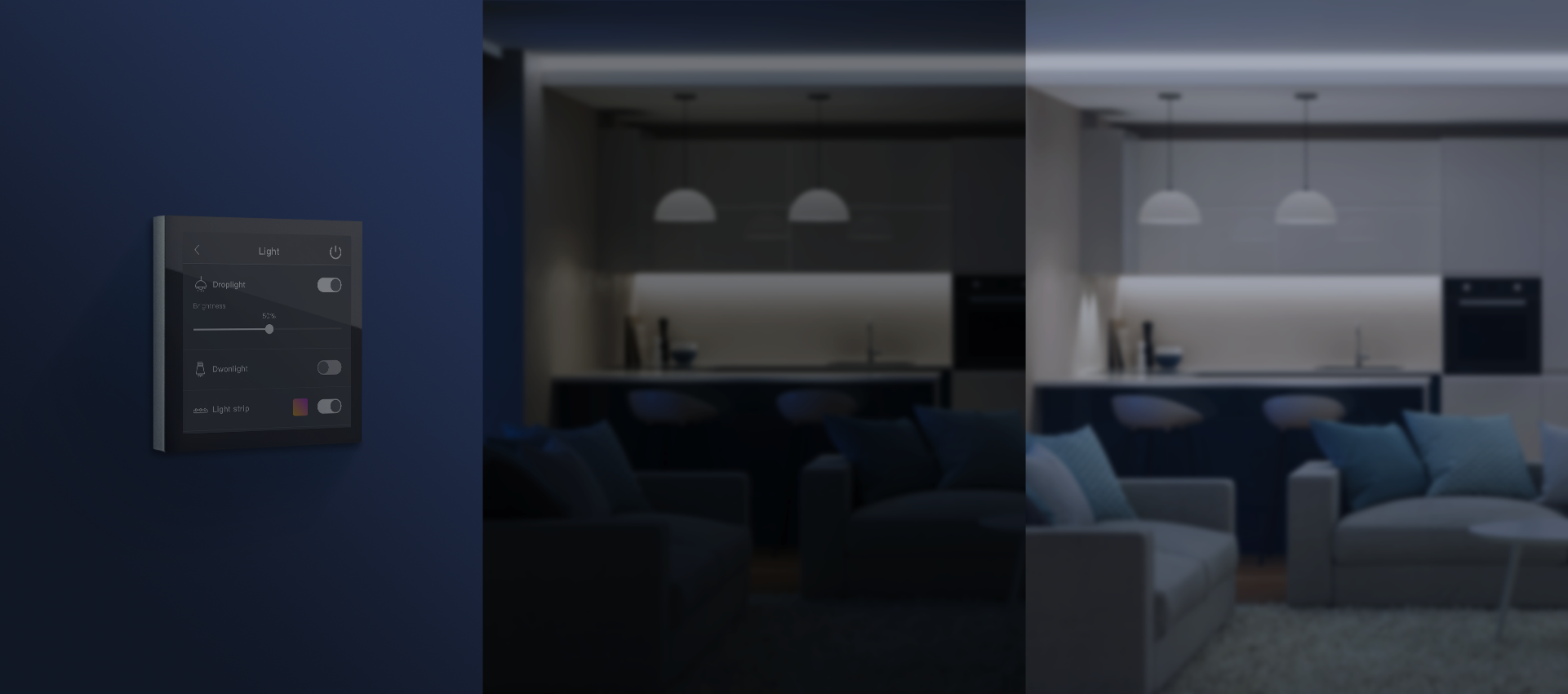

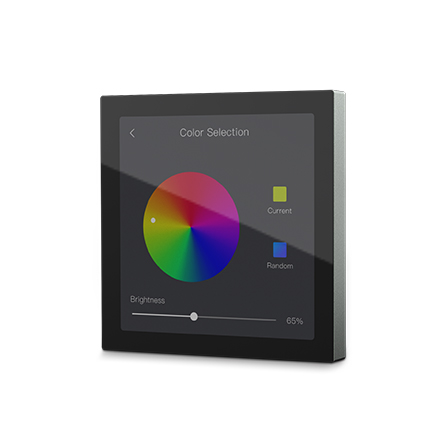

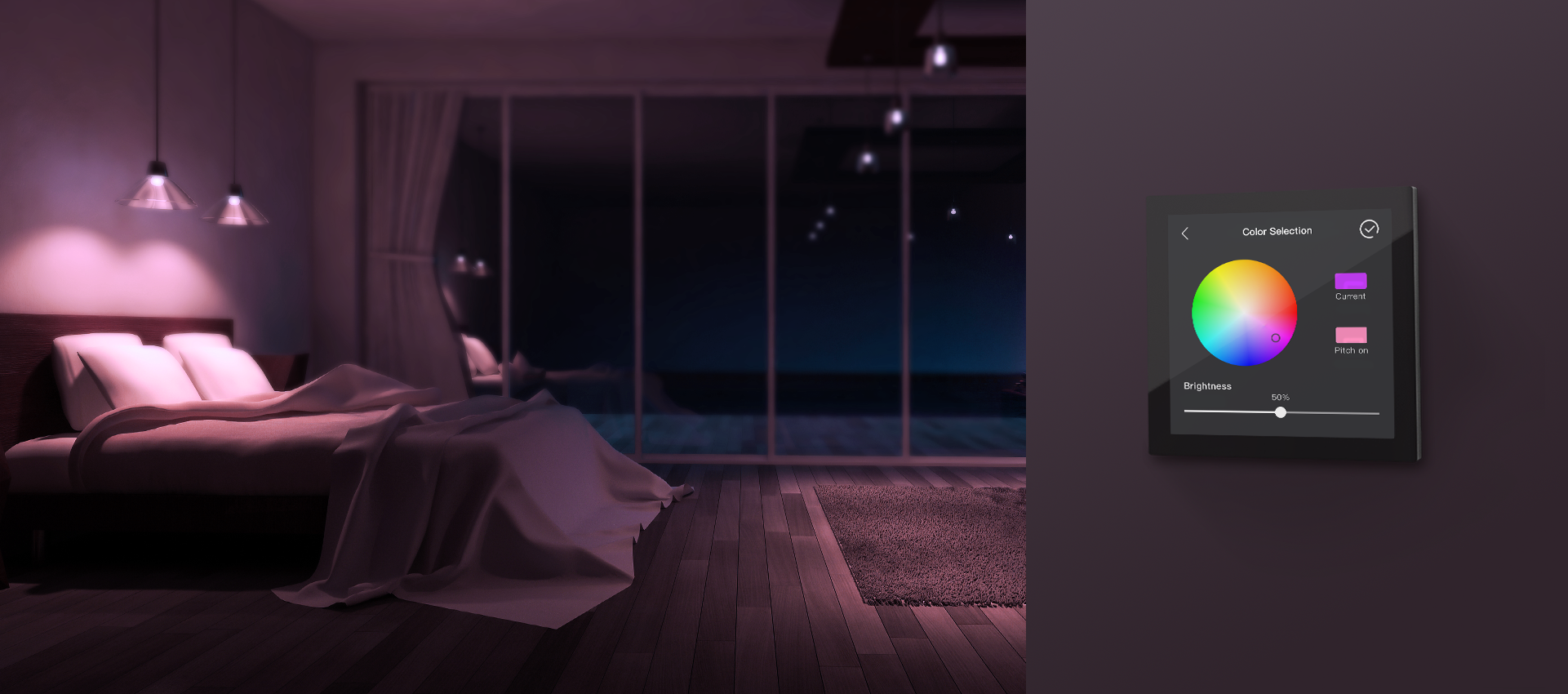

Up to 20 control buttons can be set on the lighting page. Control types: Switch, dimmer and RGB.

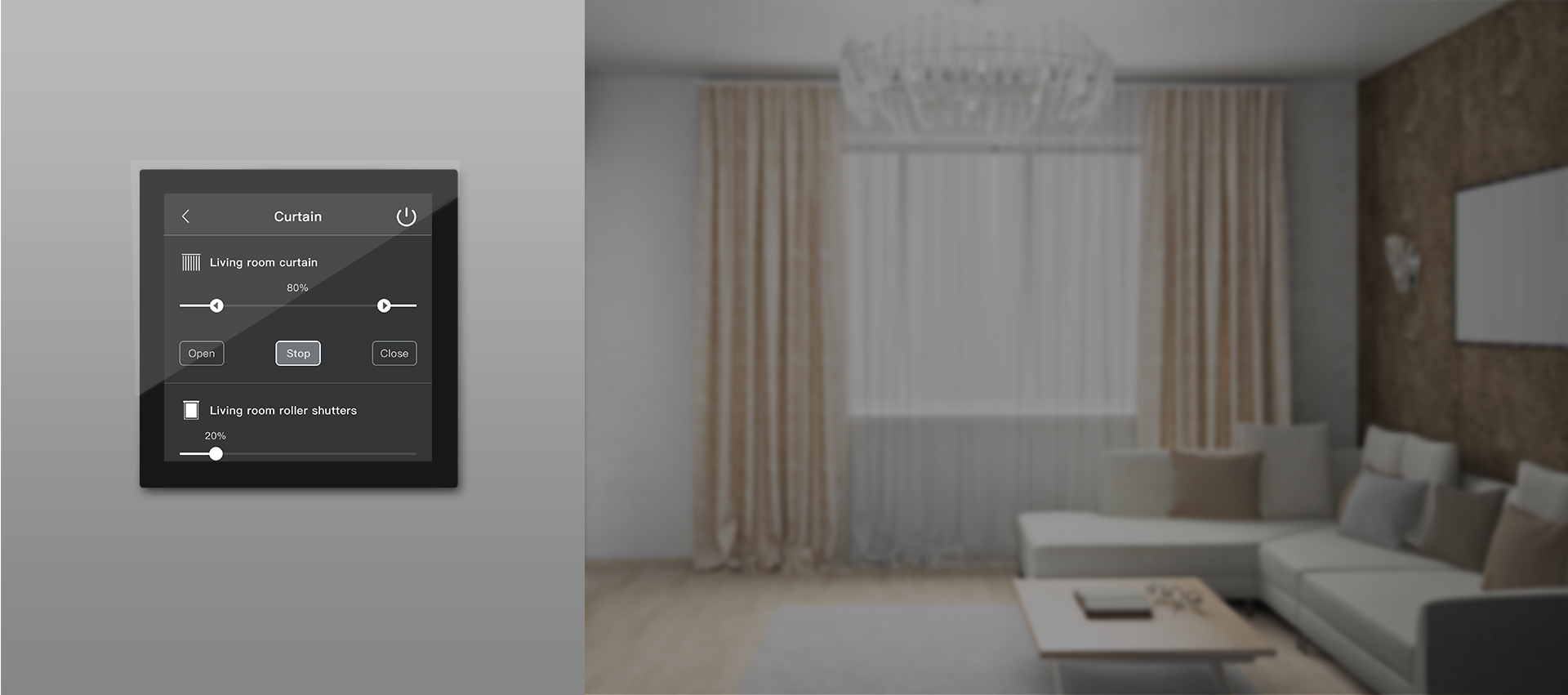

Curtain control: Up to 8 curtains are supported. Support open / close, stop, percentage adjustment
Scene control: up to 20 scenes supported
AC / FCU control: supports switching, temperature control, fan speed control, mode switching up to 3 AC / FCU
Underfloor heating control: supports switching, temperature control, floor heating control switching up to 8
Underfloor heating modes: Normal, Day, Night, Outdoor, Timer

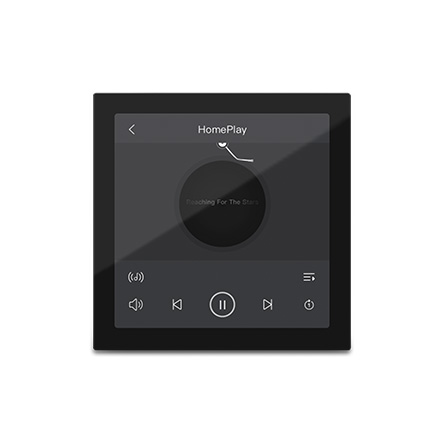

Music playback: Supports 1 music player
