HDL DLP US Touch Panel 8 Buttons White

Add to wishlist

Code: 22868123

8-12 business days

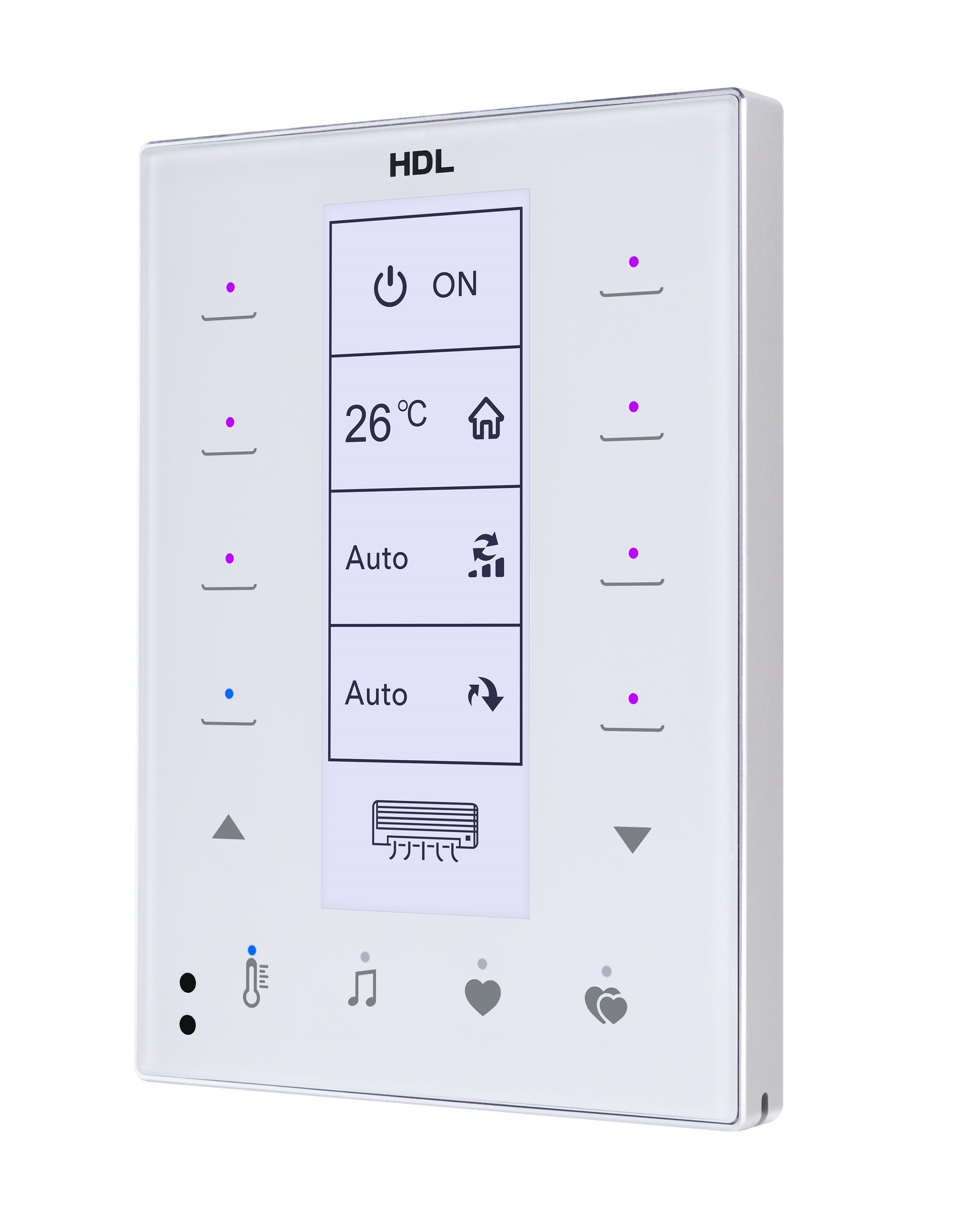

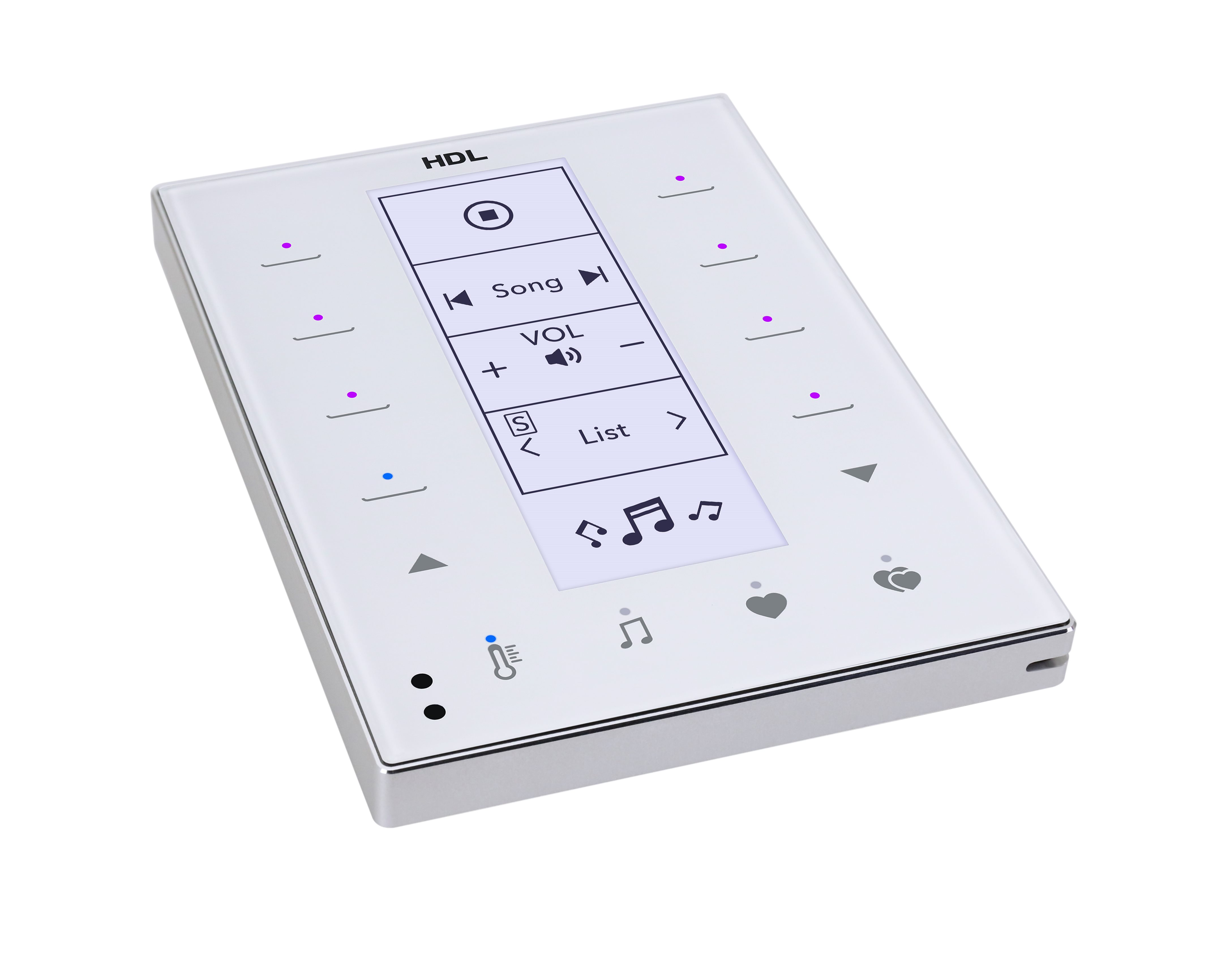

Modern Series Touch DLP Smart Panel
It has 8 touch Buttons
User Interface DLP Series Panel programmed separately
Each control button can be displayed with a Icon in the LCD screen, customization for end user
There are 2 buttons to be used for shifting to next pages
There are 4 shortcut buttons for directly going to certain page, the page can defined by user

Powered by M/PCI.3-A (not included)

Icon customization supported for page 1, 2, 3 and downloads to device via “HDL KNX Assistant Software”
Brightness of the LCD and LED adjustable
Touch button can be locked via KNX/EIB
Button sound settable
Keep pressing the first and last button (A1and A10) together for 2 seconds, the LED Indicators will flash and the panel
will enter programming mode.
Time Display and Temperature Display
Control types: Switch control, Dimming control, Shutter control, Flexible control, Scene control, Sequence control,
Percentage control, Threshold control, Pulse control, String(14bytes) control, Combination control, HVAC control,
Audio control, Floor heating control, Button Lock, Button Trigger, Remote Trigger.
