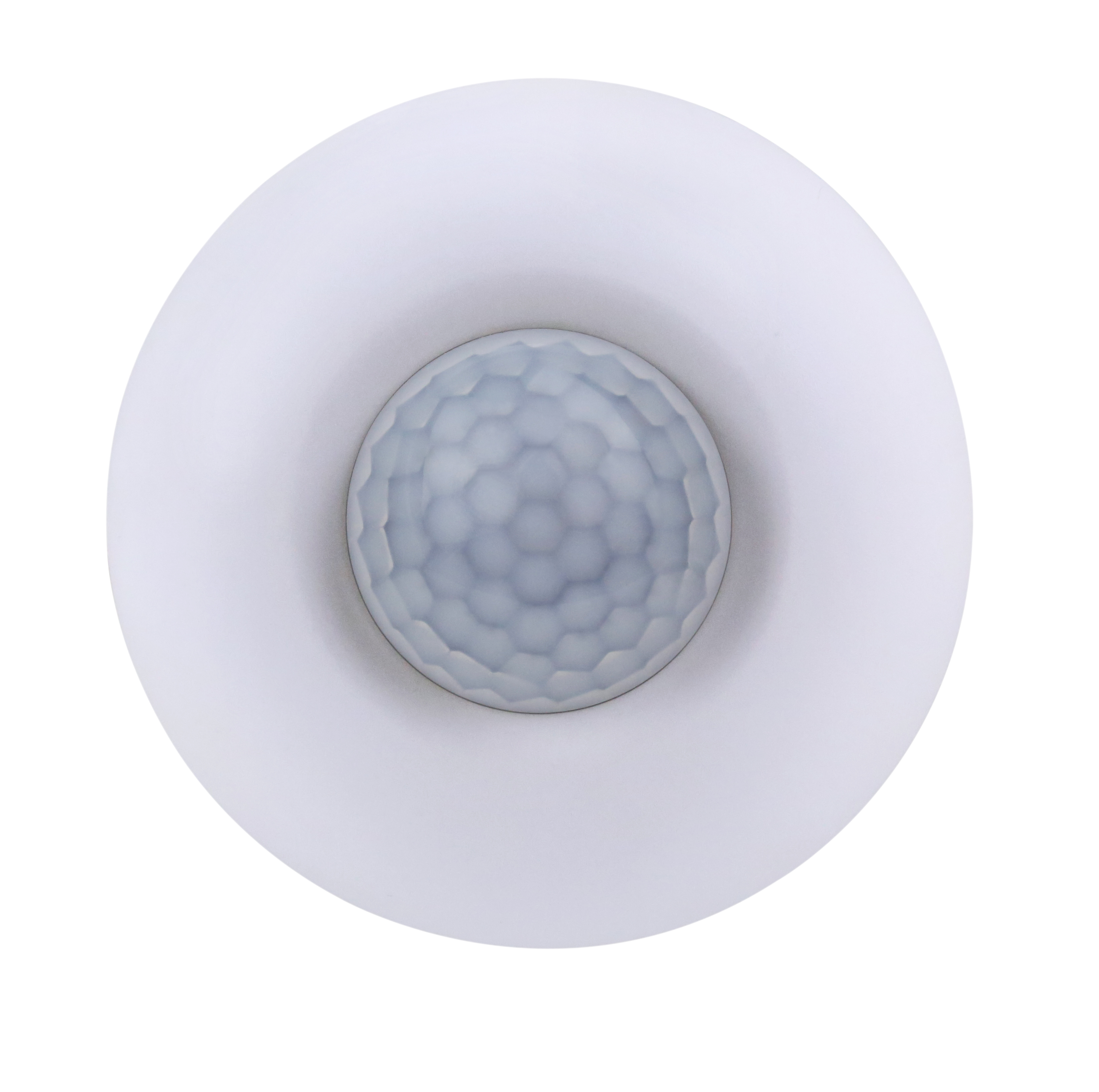

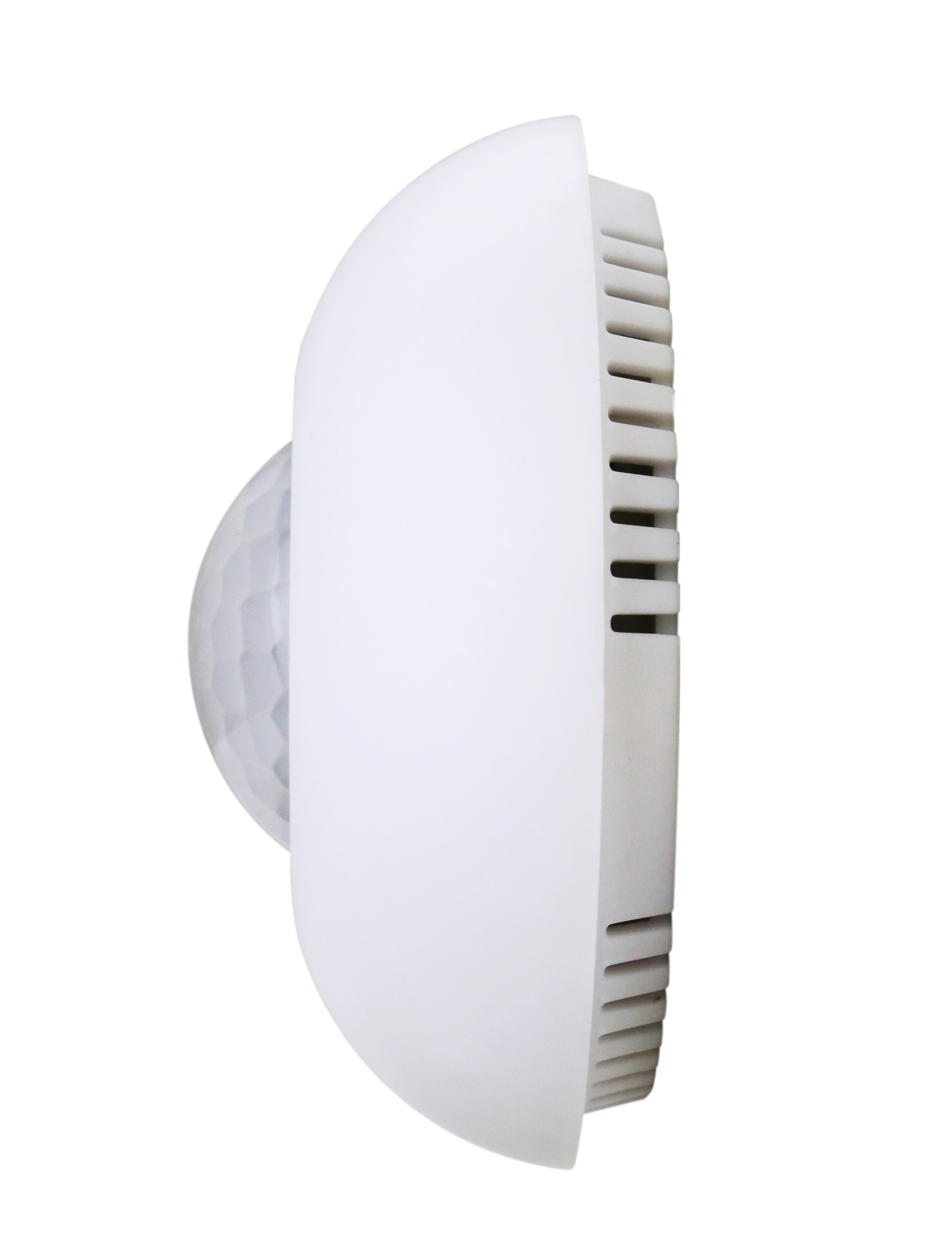

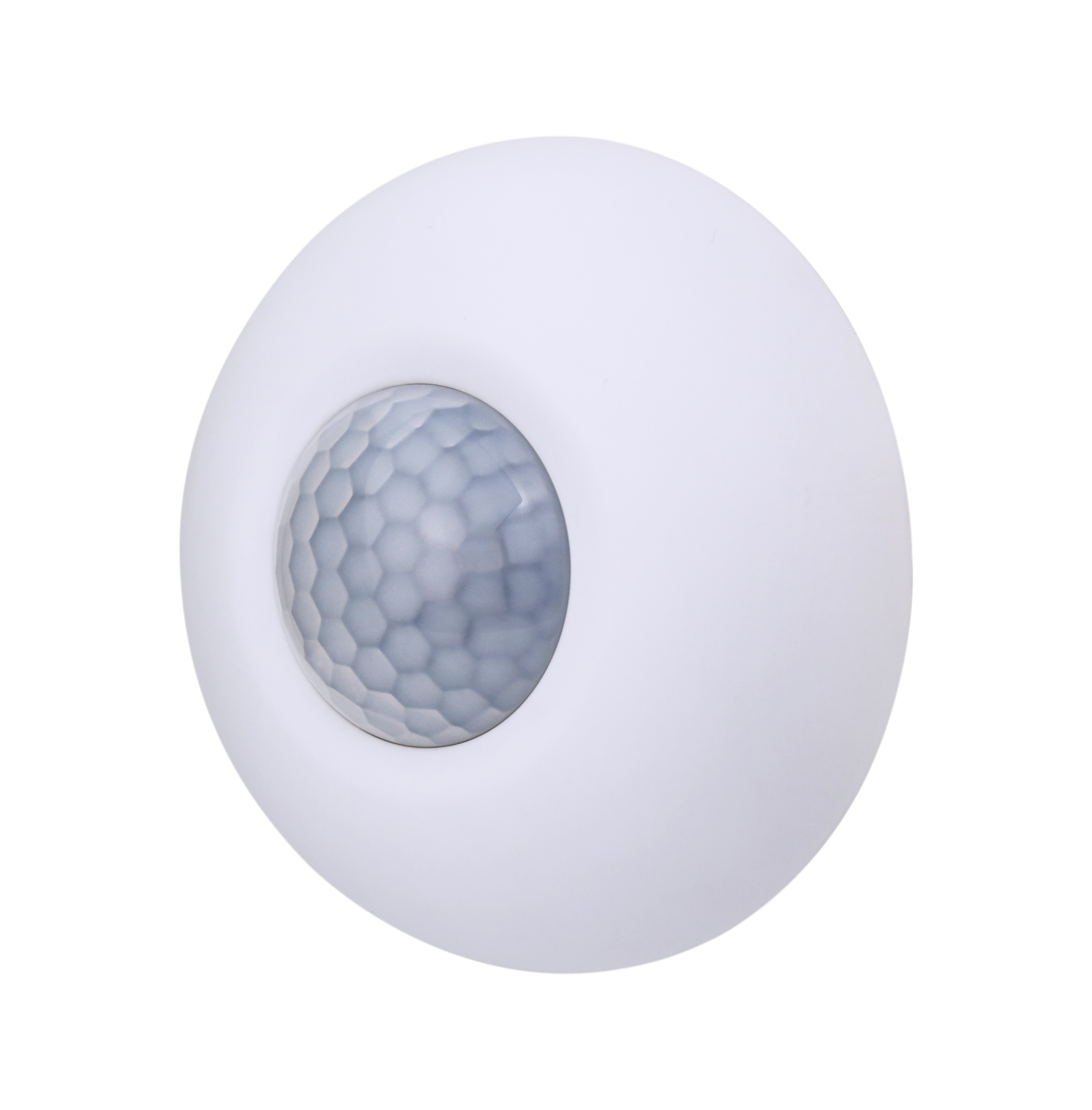

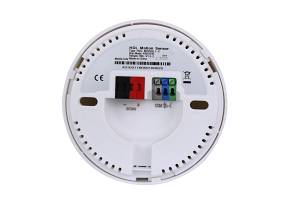

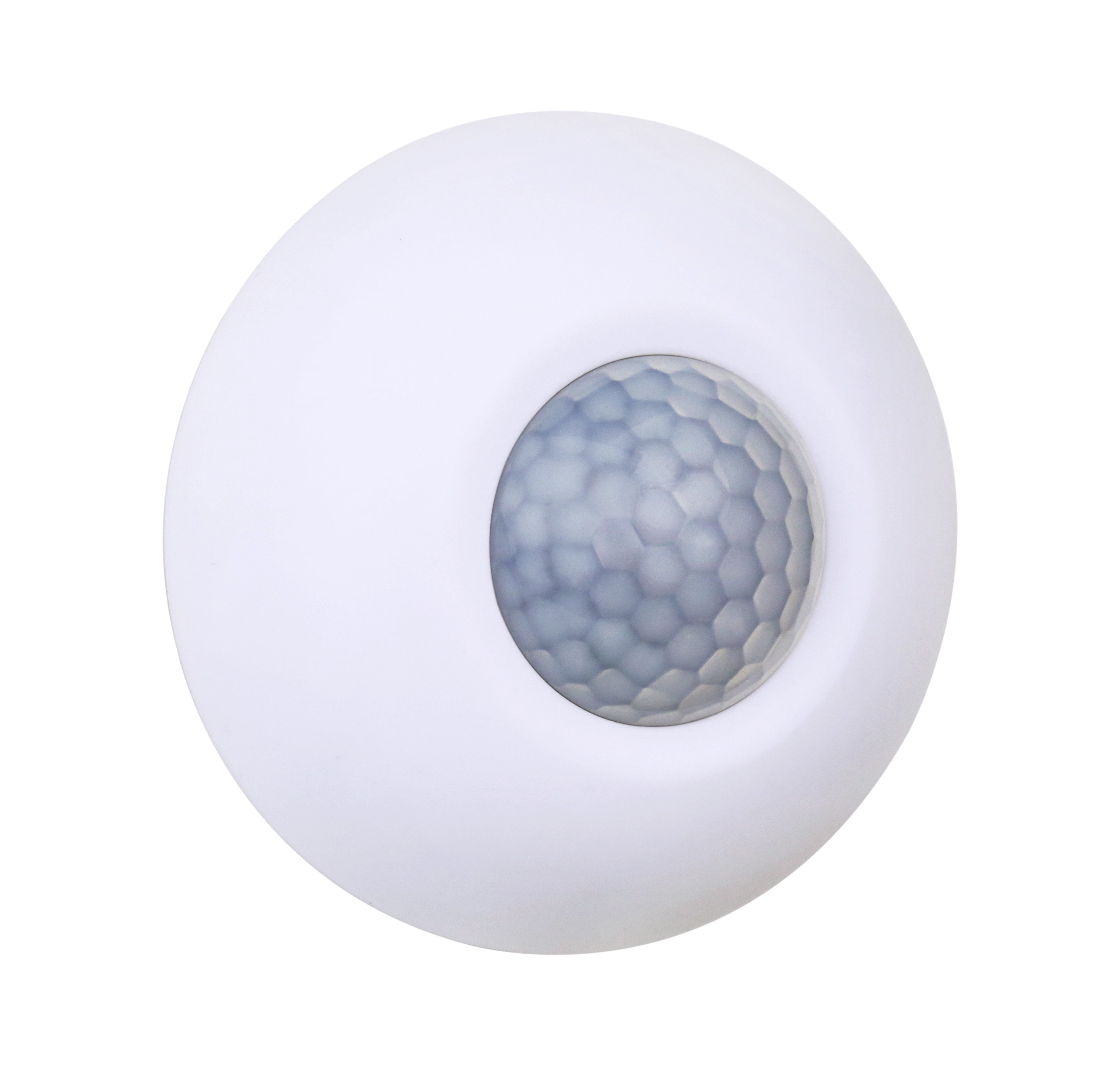

HDL Sensor PIR & Lux Surface Mount M/HS05.1

Product code: 20529120 // MPN: M/HS05.1

New entry

€92,16 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

Sonoff T52C-WiFi Smart Wall Touch Switch 2-Button White

Code: 17809320

€20,73

Available from 1 to 3 days

KNX Ceiling Mount PIR & Lux Sensor is a multi-function sensor which contains PIR sensor, temperature sensor, Lux sensor, dry contact and external telegram. 5 logical blocks are available and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master / slave mode are supported.

With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set.
With 2CH constant brightness control, dimming values and forced operation can be set.
The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact, telegram locking/unlocking and delay time can be set.
Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
5 Logic inputs: PIR sensor status, brightness value, temperature , dry contact status and external telegrams.
2 logical relations: AND, OR.
2 working modes: Single mode and master / slave mode.
2CH dry contact can be set as dry contact and LED status display and the operation function can be set as switch control, dimming control, scene control and percentage control.
The logic validity can be set by external telegram.
